Place of Origin: | Shandong Province, China |
---|---|
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | SHMS500-1, SHMS500-2, etc |
Minimum Order Quantity: | 1 SET Firelighter Wood Wool Rope Machine |
Price: | US $5,600 - 15,000 / Set |
Packaging Details: | Container loading of Firelighter Wood Wool Rope Machine |
Delivery Time: | within 20 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 1000sets/year |
Product Name: | Wood Wool Machine | Processing Log Length: | 300-500mm |
---|---|---|---|
Processing Log Max. Diameter: | 160mm, 160mm X 2pcs | Power(W): | 7.5KW, 16.5kw |
Capacity: | 50kgs To 150kgs Per Hour | Blade Quantity: | 2pcs |
Wood Wool Width: | 1mm To 10mm | Wood Wool Thickness: | 0.1mm To 1mm , Adjustable |
After-sales Service Provided: | Online Support,Video Technical Support,Free Spare Parts | Warranty: | 1 Year |
Type: | Widely Used Wood Shaver | ||
Highlight: | 150KPH Wood Wool Making Machine,50KPH Wood Wool Making Machine,Firelighter Wood Wool Mill |
Technical Specification:
Model |
SHMS500-1 | SHMS500-2 | |
Processing Log Length
|
300-500mm | 300-500mm | |
Max Processing Log Diameter
|
160mm | 160mm x 2 | |
Blade Quantity
|
2 | 2 | |
Excelsior Width
|
1mm-10mm | 1mm-10mm | |
Excelsior Thickness
|
0.1mm-1mm | 0.1mm-1mm | |
Excelsior Length
|
300-500mm | 300-500mm | |
Motor Power
|
9kw | 16.5KW | |
Production Capacity
|
50-100kg/hour | 100-150KG/Hour |

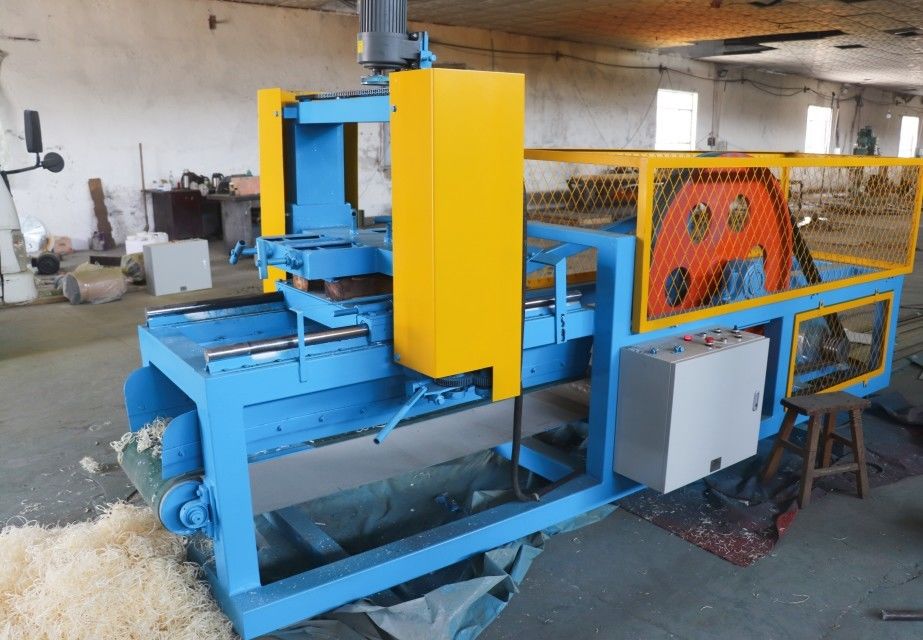

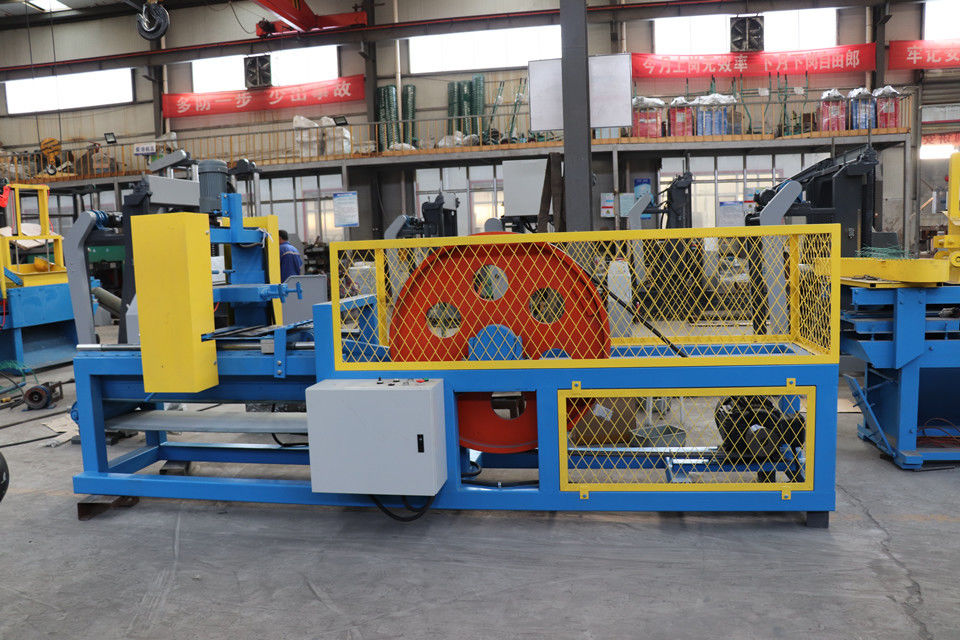

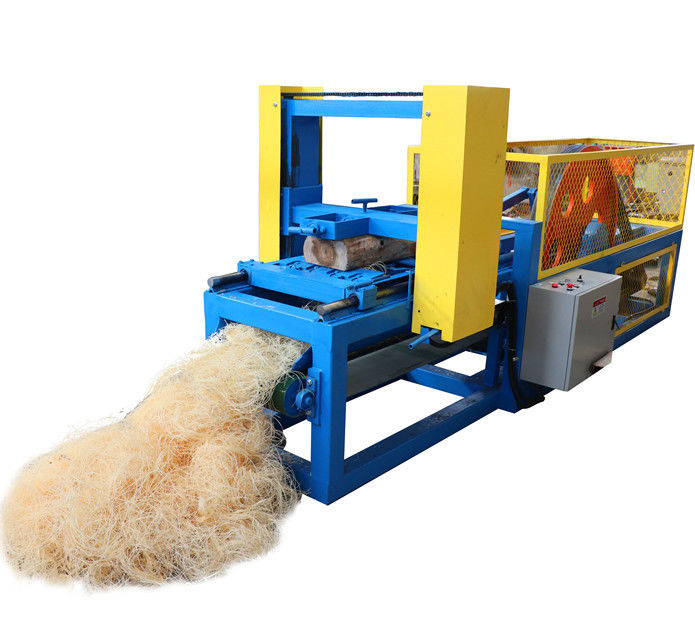

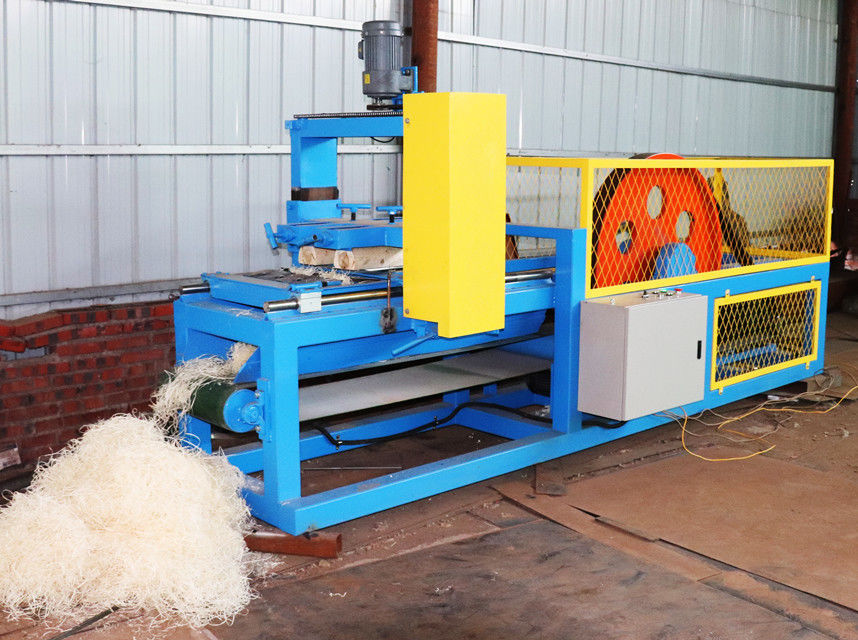

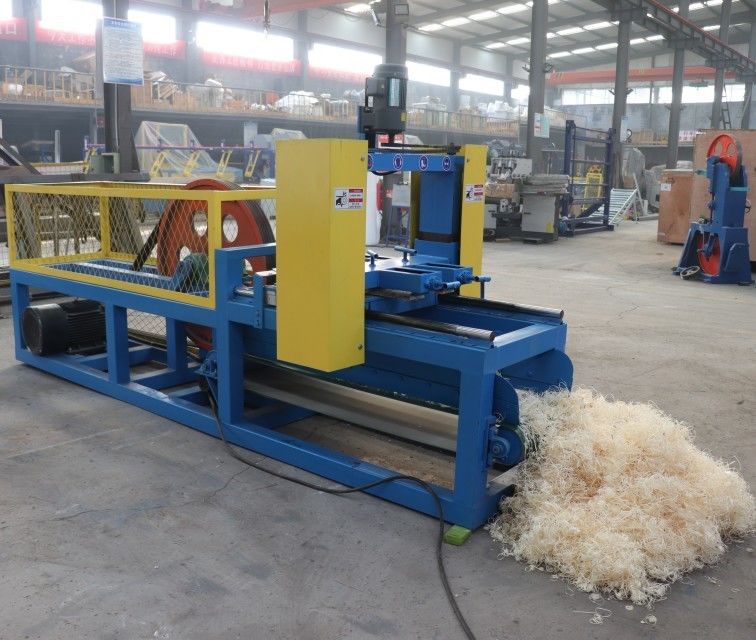

Detailed Image
Model SHMS500-2
Model SHMS500-1
Rope Size | 10-30MM |
Motor | 3KW |
Overall Size |
4000*810*1000MM |
Capacity | 20-30m/min |
Weight | 570KG |
Wool Rope Cutter
Motor power | 3kw |
Cutting speed | 150~200times/min |
Short rope length | 3-5cm |
Overall size | 2060x650x950mm |
Weight | 182kgs |
Related Products
Spiral Shaft Wood Shaving Machine for pets animals
Model | SHBH500-2-L | SHBH500-4-L | SHBH500-6-L |
Processing wood max. length(mm) | 800 | 1400 | 1400 |
Processing max. width/diameter(mm) | 500 | 500 | 500 |
Shaft quantity | 2 | 4 | 6 |
Blade (pcs) | 84pcs/shaft | 84pcs/shaft | 84pcs/shaft |
Motor speed (rpm) | 3500 | 3500 | 3500 |
Bin length (mm) | 800 | 1400 | 1400 |
Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
Shaving depth (mm) | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable |
Shavings output | 300KG/H | 700KG/H | 1000KG/H |
Machine weight | 950kgs | 1800kgs | 2200kgs |
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
