Technical Specification:
|
Model |
SHMS500-1 | SHMS500-2 | |
|
Processing Log Length
|
300-500mm | 300-500mm | |
|
Max Processing Log Diameter
|
160mm | 160mm x 2 | |
|
Blade Quantity
|
2 | 2 | |
|
Excelsior Width
|
1mm-10mm | 1mm-10mm | |
|
Excelsior Thickness
|
0.1mm-1mm | 0.1mm-1mm | |
|
Excelsior Length
|
300-500mm | 300-500mm | |
|
Motor Power
|
9kw | 16.5KW | |
|
Production Capacity
|
50-100kg/hour | 100-150KG/Hour | |

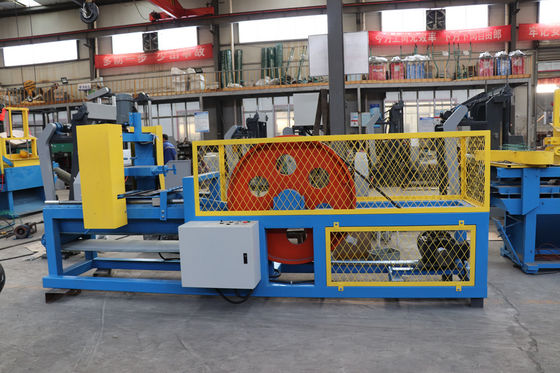

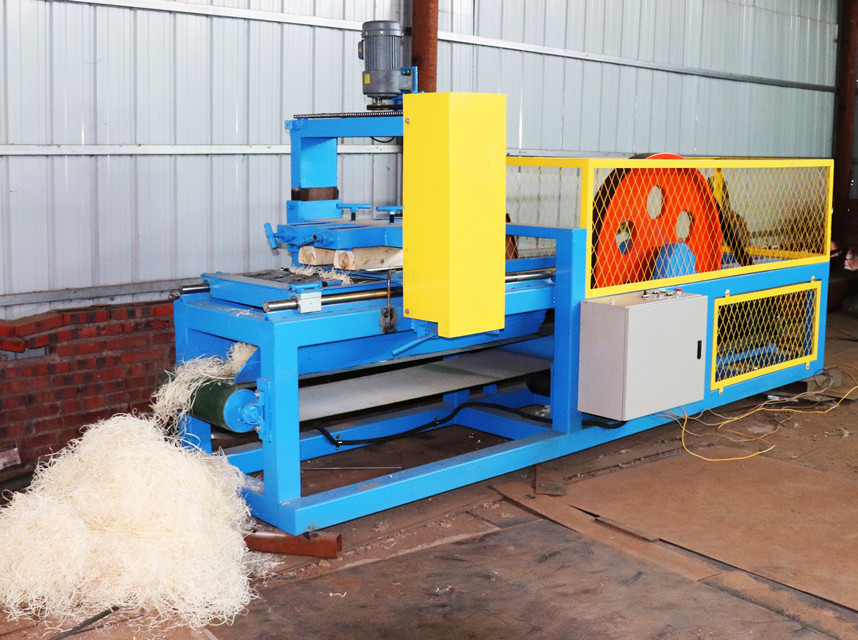

Detailed Image
Model SHMS500-2
Model SHMS500-1
| Rope Size | 10-30MM |
| Motor | 3KW |
| Overall Size |
4000*810*1000MM |
| Capacity | 20-30m/min |
| Weight | 570KG |
Wool Rope Cutter
| Motor power | 3kw |
| Cutting speed | 150~200times/min |
| Short rope length | 3-5cm |
| Overall size | 2060x650x950mm |
| Weight | 182kgs |
Related Products
Spiral Shaft Wood Shaving Machine for pets animals
| Model | SHBH500-2-L | SHBH500-4-L | SHBH500-6-L |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 84pcs/shaft | 84pcs/shaft | 84pcs/shaft |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable |
| Shavings output | 300KG/H | 700KG/H | 1000KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
| 1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; | |||
