China made New Design Waste Wood Shaving Machine Electric/Diesel powered shavings machine

Basic Information
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: SHBH500-1,SHBH500-2,SHBH500-4, SHBH500-6, etc
Minimum Order Quantity: 1 SET
Price: US $3,900 - 8,800 / Set
Packaging Details: iron frame export packing
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Detail Information
Condition: New Application: Making Wood Shavings
Production Capacity: 300-1500kgs Voltage: 380V/3phase/50hz Or As Customer Needs
Power(W): 7.5-50kw Dimension(L*W*H): 2.6*0.7*1.1m,2.9*0.85*1.2m
Weight: 700-1500kg Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machine Overseas Raw Materials: Wood, Log, Tree Branch Etc
Axle Quantity: 1 - 6 Pcs Blade Quantity: 4-48 Pcs
Highlight:

electric wood shaving machine

,

diesel powered shavings machine

,

waste wood shaving machine


Product Description

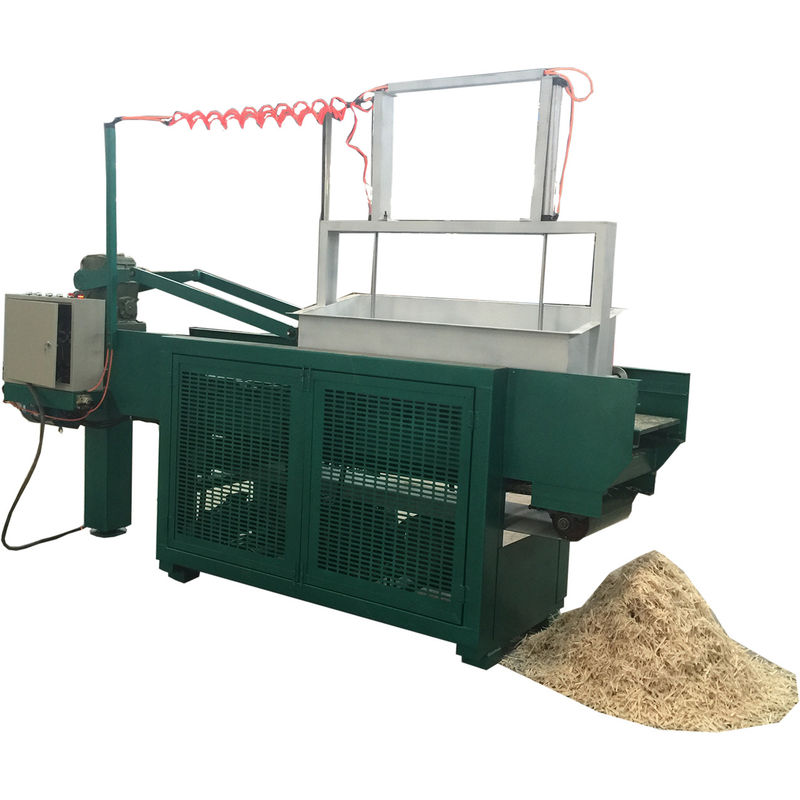

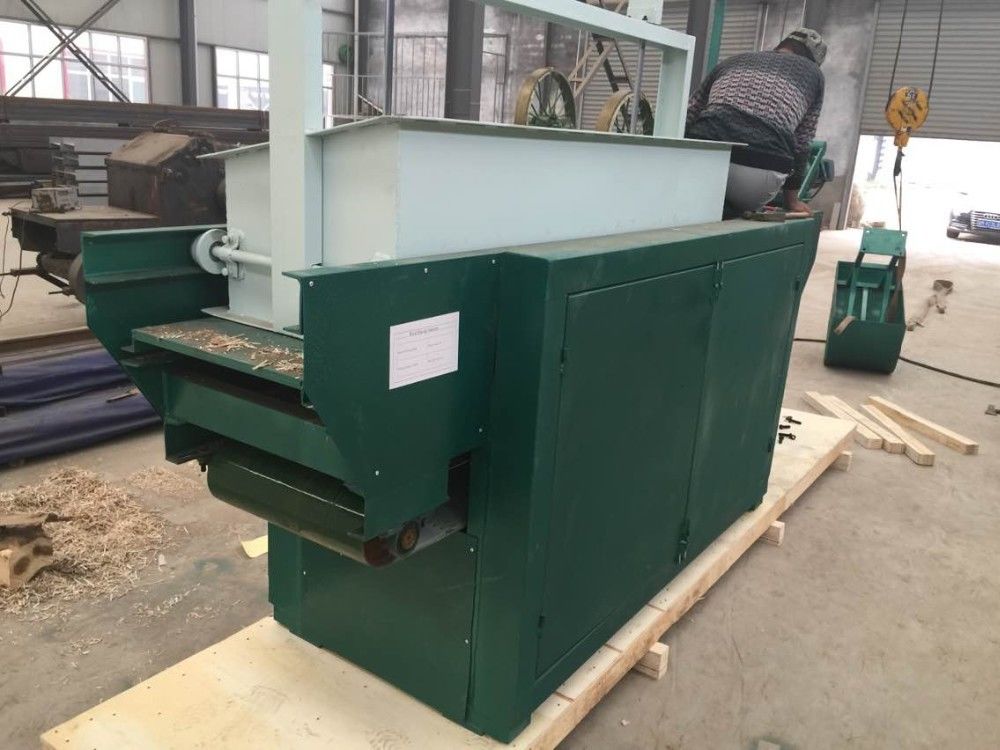

Wood Shaving Machine

Process wood sticks,twigs,branches,wood scraps into shaving.

Adjust the size and thickness of the wood shaving.

It is the material for Plywood,furniture or paper factory.

Add as filler to prevent damage when transport some fragile items.

Use as nest shavings filler in poultry or animal breeding.

Bio-energy ignition material.



Model

SHBH500-1 SHBH500-2 SHBH500-4 SHBH500-6



Max Processing Length

800MM 800MM 1400MM 1400MM



Max Processing Width

500MM 500MM 500MM 500MM



Axle Quantity

1 2 4 6



Blade Quantity

4 8 16 24



Speed (r/min)

4500 4500 4500 4500



Hopper Length (mm)

800 800 1400 1400



Total Power (kw)

7.7KW 10.5KW 18.5KW 25.5KW



Shaving Depth(mm)

1-5 1-5 1-5 1-5



Production(KG/Hour)

250 500 1000 1500



With pneumatic press cover

China made New Design Waste Wood Shaving Machine Electric/Diesel powered shavings machine 0

China made New Design Waste Wood Shaving Machine Electric/Diesel powered shavings machine 1

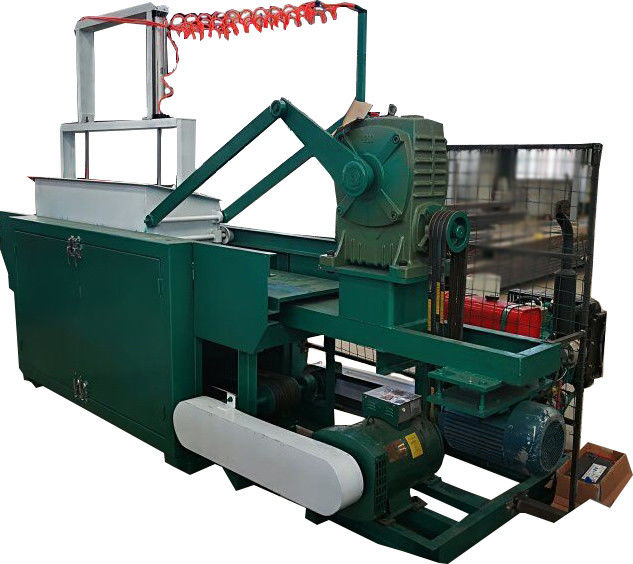

Diesel Engine Powered Wood Shaving Machine


Model
SHD500-2D SHD500-4D SHD500-6D

Max Processing Length
800MM 1600MM 1600MM

Production(KG/Hour)
500 1000 1500

Max Processing Width
500MM 500MM 500MM

Axle Quantity
2 4 6

Blade Quantity
8 16 24

Speed R/Min
3500 3500 3500

Bucket Length
800 1600 1600

Diesel Engine
22HP 30HP 40HP

Generator
10KW 15KW 15KW

Shaving Depth(mm)
0.2-2 0.2-2 0.2-2













































China made New Design Waste Wood Shaving Machine Electric/Diesel powered shavings machine 2

China made New Design Waste Wood Shaving Machine Electric/Diesel powered shavings machine 3
