Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer
Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer
Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: Φ1.2×10 ,Φ1.2×15, Φ1.5×15, Φ1.8×18 , etc
Minimum Order Quantity: 1 SET
Price: US$6,100.00 - US$11,000.00/ set
Packaging Details: Container loading of wood shaving dryer
Delivery Time: within 20 days
Payment Terms: T/T , Western Union
Supply Ability: 1000sets/year
Get Best Price Contact Now
Detail Information
Product Name: Wood Shaving Dryer Application: Dry Wood Shavings
Production Capacity: 1000kg/hour Dimension(L*W*H): 5.1X 1.5X 1.7M
Power: 4kw Inner Cylinder Size: 1200x3600x4mm
Electrical Heating Power:: 60-80kw Burning Woods/coal: 40-50kg/hour
Burning Natural Gas: 13m3/hour Dehumidifying Fan:: 170W
Warranty: 1 Year After-sales Service Provided: Online Support,Video Technical Support,Free Spare Parts
Voltage: Customized
Highlight:

Wood Chips Rotary Dryer

,

Wood Shaving Drum Rotary Dryer

,

Sawdust Wood Shaving Dryer

Product Description

Wood Shavings Dryer, hot selling products Wood Shaving Machine drying machine production line



Rotary Dryer

  • Used for wood shavings drying. It is easy usage, low cost, high performance
  • Technical data:
Model (m) Volume/m3

Capacity

(ton/h)

 Feeding air max. temperature

Main motor

kw

Weight

ton
Φ1.2×10 9.0 1-1.5 700-800 7.5 9
Φ1.2×15 11.3 1.5-2 700-800 7.5 11
Φ1.5×15 21.2 2-3 700-800 15 18.5
Φ1.8×18 30.5 3-4 700-800 18.5 21.5

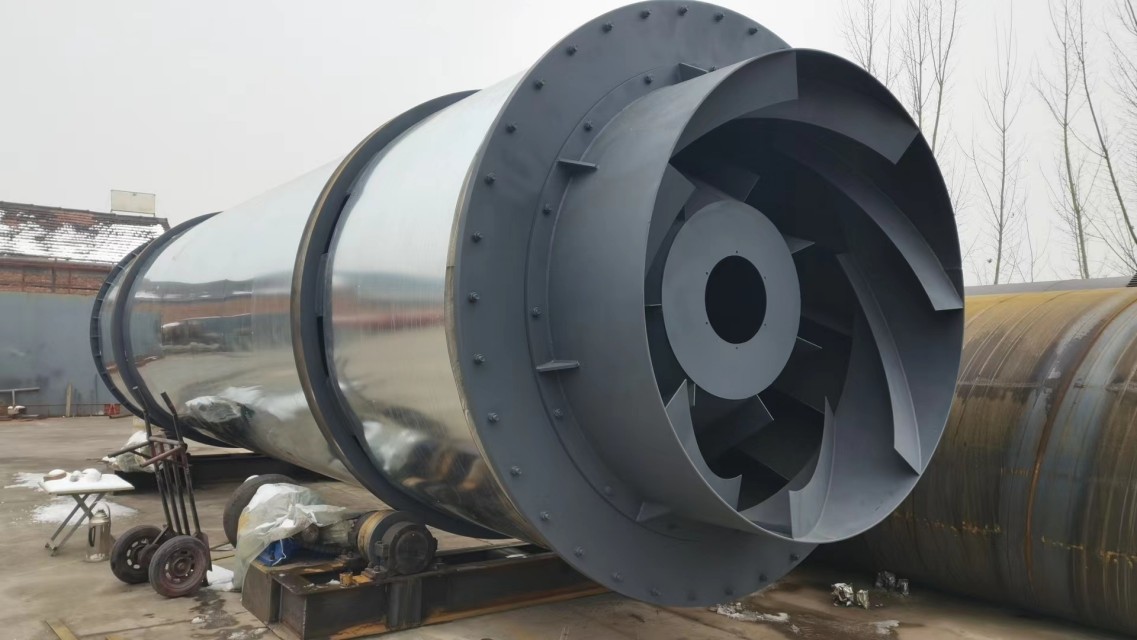

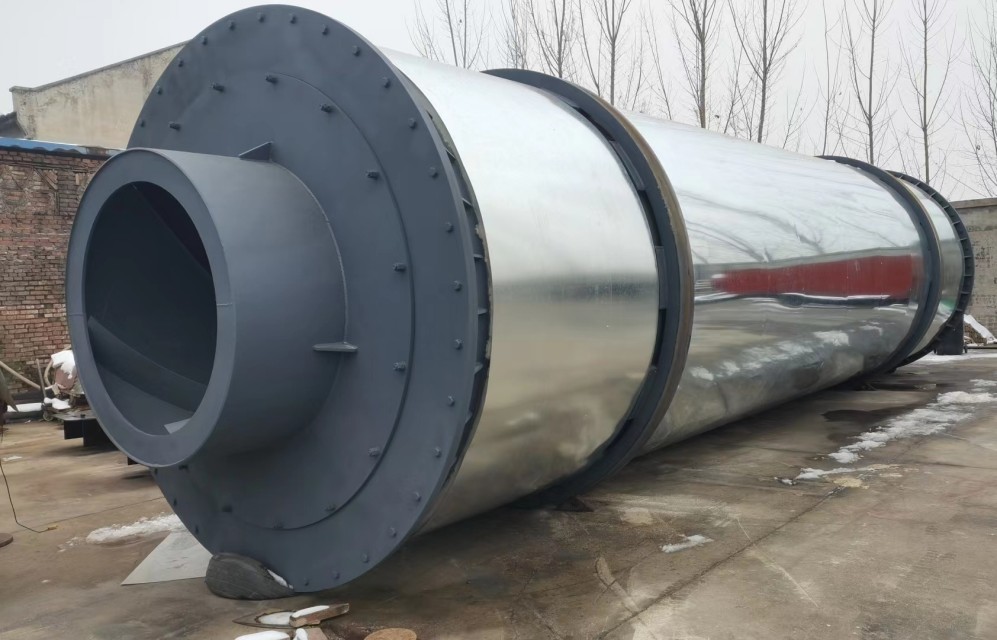

  • Image of rotary dryer

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 0

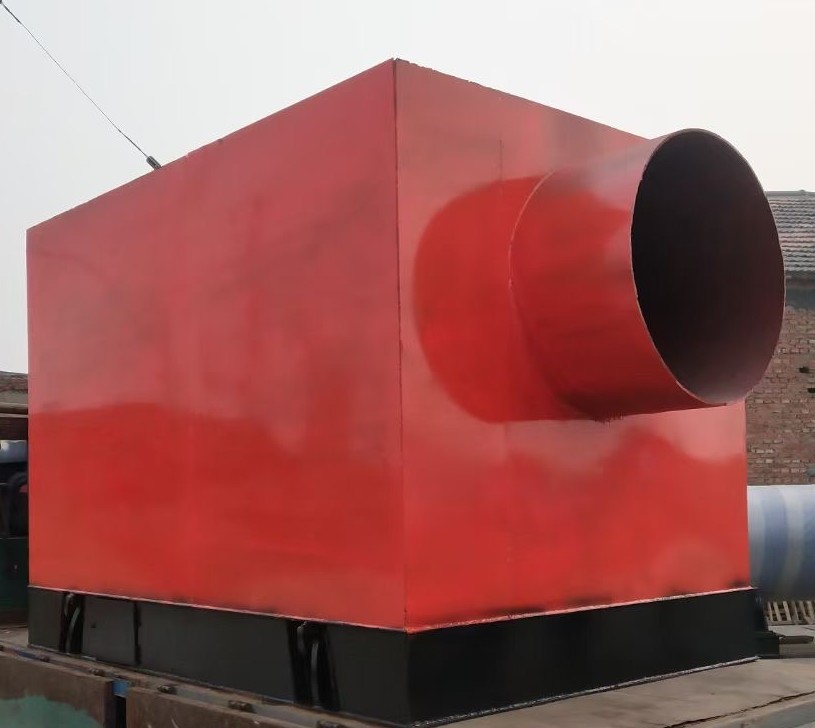

  • Image of burner - fuels can be briquette, woods/coal , natural gas

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 1



Wood Shavings Dryer



  • Technical data
Model HG500 HG1000
Capacity 500kg/hour 1000kg/hour
Overall size 4200x1300x1500mm 5100x1500x1700mm
Inner cylinder size 1000x2800x3mm 1200x3600x4mm
Electric motor 3kw 4kw
Gearbox ZQ200 ZQ250
Electric heating power 40-50KW 60-80KW
Burning coal/woods 20-30kg/hour 40-50kg/hour
Burning natural gas 7.8m3/hour 13m3/hour
Dehumidifying fan 170w 170w

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 2

Wood Shaving Machine

  • Process wood sticks,twigs,branches,wood scraps into shaving.
  • Adjust the size and thickness of the wood shaving.
  • It is the material for Plywood,furniture or paper factory.
  • Add as filler to prevent damage when transport some fragile items.
  • Use as nest shavings filler in poultry or animal breeding.
  • Bio-energy ignition material.
  • Technical data:
Model SHBH500-2 SHBH500-4 SHBH500-6
Max Processing wood Length 800MM 1400MM 1400MM
Max Processing wood Width 500MM 500MM 500MM
Shaft Quantity 2pcs 4pcs 6pcs
Blade Quantity 8pcs 16pcs 24pcs
Speed (r/min) 3500 3500 3500
Bucket Length (mm) 800 1400 1400
Total Power (kw) 10.5KW 23.25KW 30.75KW
Shaving Depth(mm) 0.2-1 0.2-1 0.2-1
Production(KG/Hour) 500 1000 1500
With pneumatic press cover



Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 3

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 4Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 5

Screw Spiral Shaft Wood Shaving Machine

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 6

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 7



Related Products:

Wood shavings baler/packaging machine

  • Technical data:​
Model SHDB-20 SHDB-1
Main electric motor 22KW 22KW
Hydraulic pump 25VQ25 25VQ25
Hydraulic valve LQ32 LQ32
Hydraulic oil tank ɸ140 &ɸ160 ɸ80&ɸ125&ɸ63
Electrical System PLC control PLC control
Operation system manual +automatic manual +automatic
Filter 400L/min 400L/min
Cooling system air cooling air cooling
Heating system 3kw 3kw
Oil tank 500L 260L
bale size 40x60x20cm 350*130*60mm
bale weight 15 to 20kgs/bag 1kg/bag
Capacity 60-80bags/hour 200bags/hour

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 8

Wood Wool Machine

Professional Sawdust / Wood Chips / Wood Shaving Drum Rotary Dryer 9
