Double blade board edger wood saw machine, Slab Edger Saw with Laser positioning

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH600, EG600A，etc

Minimum Order Quantity:	1 set
Price:	US $5,000 - 9,000 / Set
Packaging Details:	export iron frame packing Wood board edger saw
Delivery Time:	within 15 days for Wood board edger saw
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1500sets/year of Wood board edger saw

Get Best Price Contact Now

Detail Information

Name:	Board Edger Wood Saw Machine	Type:	Circular Saw
Application:	Cutting Both Sides Wood Boards	Power(W):	15kw
Max. Sawing Width:	600mm To 1000mm	Max. Sawing Height:	70mm To 200mm
Warranty:	1 Year	Voltage:	380V/50HZ/3phase Or As Customer Needs
Highlight:	woodworking machine , circular saw , sawing machine

Product Description

Twin Blades Wood Board Edger/border cutting machine

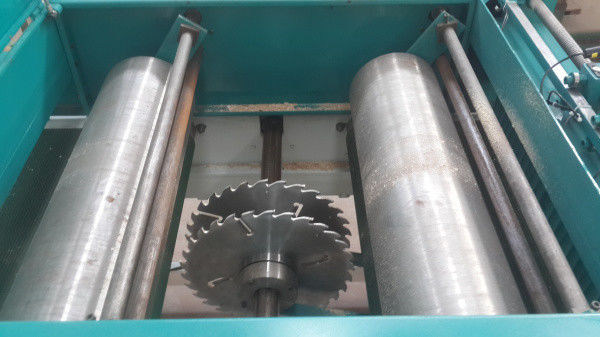

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

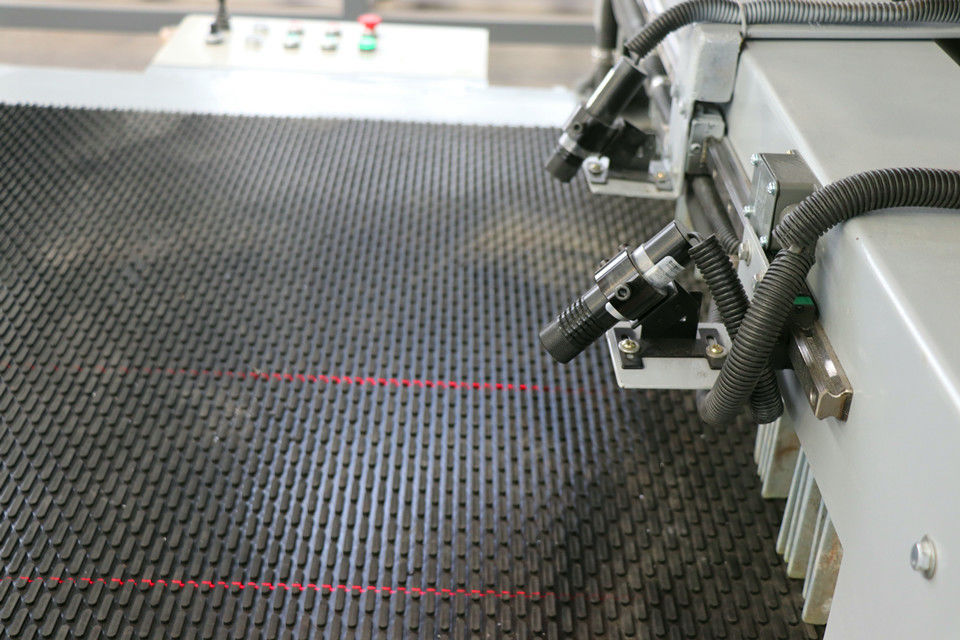

4. The saw blade moves with infrared light and moves at the same time .

5. Feeding: frequency speed adjustable auto feeding

6. Max. sawing width: 600mm or as customer needs

7. Max. sawing thickness : 70mm

Technical data :

Technical parameters	EG600A
cutting max. width	600mm
cutting min. width	50mm
sawn max. thickness	70mm
sawn min. thickness	10mm
Blade	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute
Power	15KW electric motor
Positioning	Infrared line
Machine weight	800KG
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable

Photos:

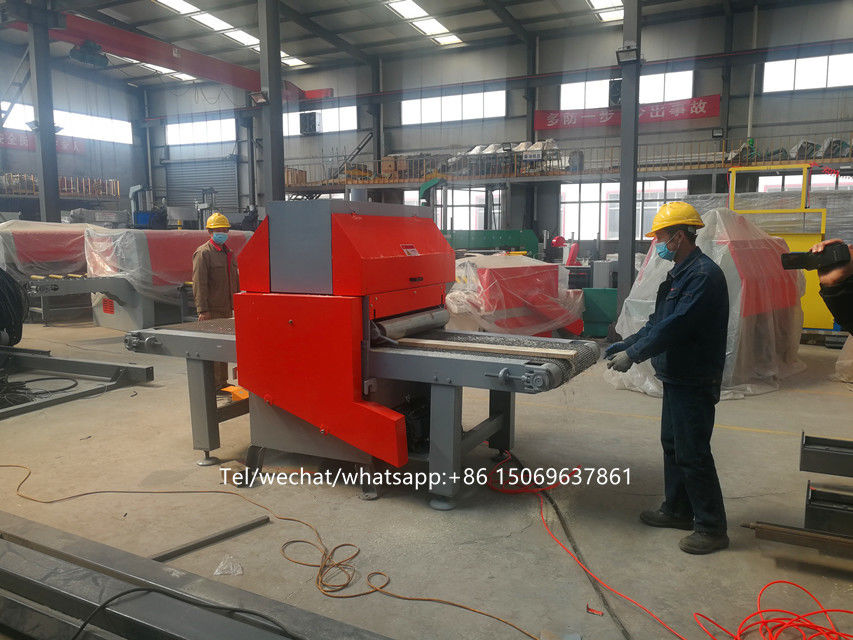

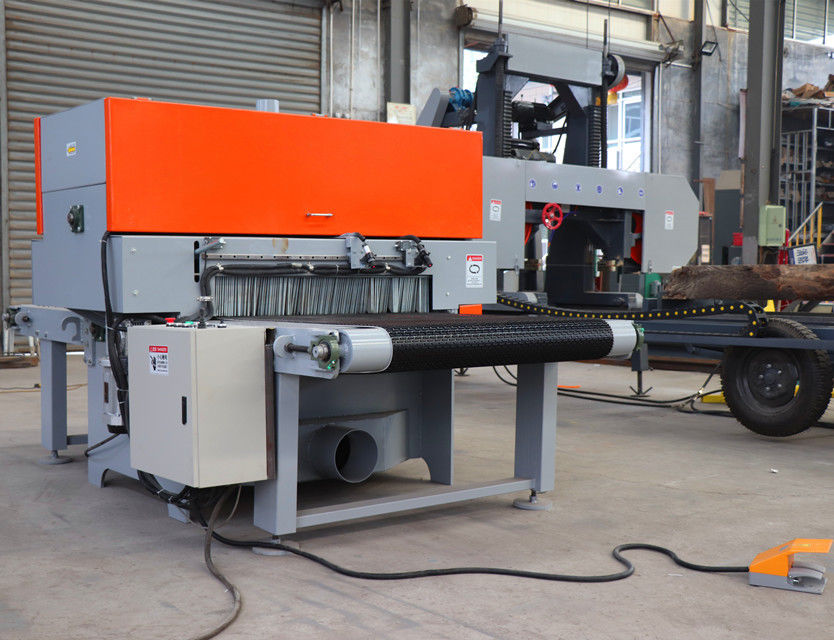

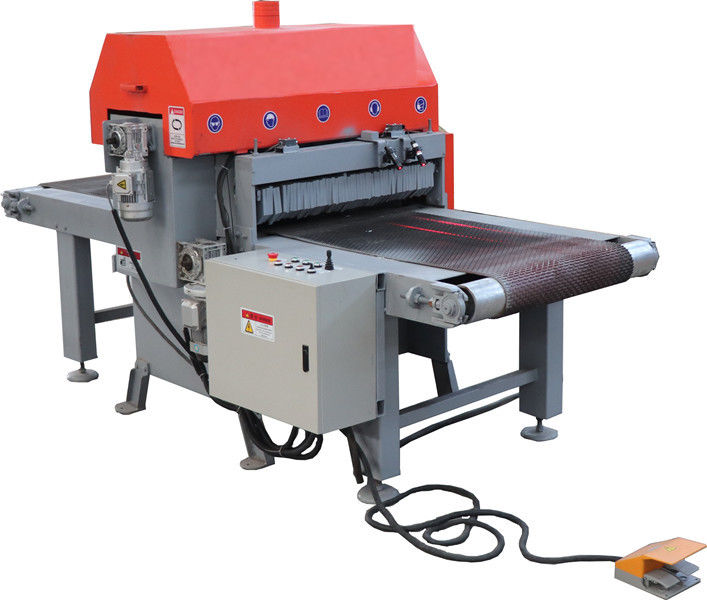

Double blade board edger wood saw machine, Slab Edger Saw with Laser positioning 0

Double blade board edger wood saw machine, Slab Edger Saw with Laser positioning 1
