Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable

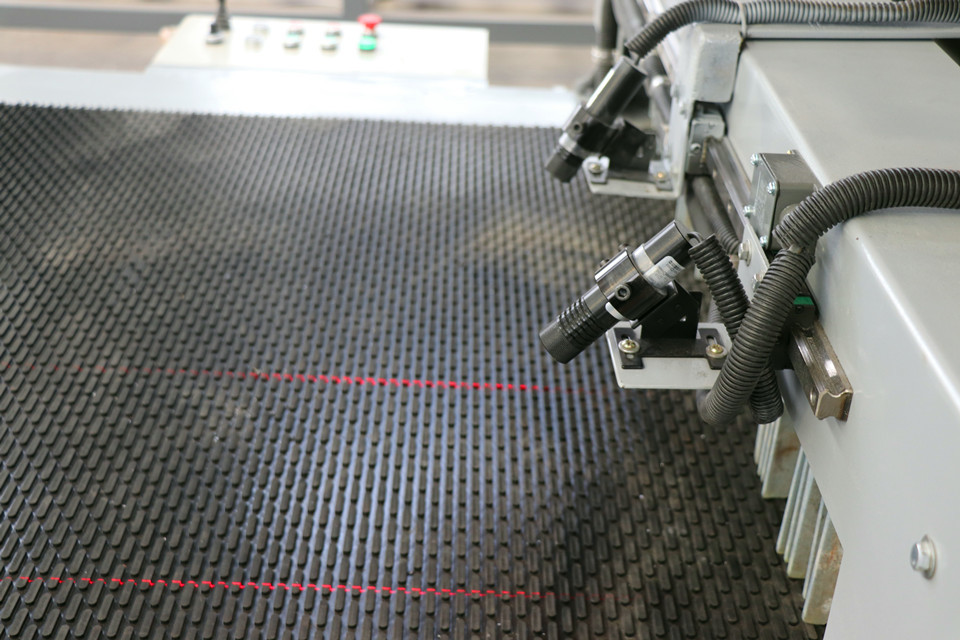

4. The saw blade moves with infrared light and moves at the same time .
5. Feeding: frequency speed adjustable auto feeding
6. Max. sawing width: 600mm or as customer needs
7. Max. sawing thickness : 70mm
Technical data :
| Technical parameters | EG600A |
| cutting max. width | 600mm |
| cutting min. width | 50mm |
| sawn max. thickness | 70mm |
| sawn min. thickness | 10mm |
| Blade | 2*350mm |
| Feeding method | Automatic feeding conveyor |
| Feed Rate | 20-25m/ minute |
| Power | 15KW electric motor |
| Positioning | Infrared line |
| Machine weight | 800KG |
|
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable |
|
Photos:
