Efficient Pine Wood Shavings Making Machine / Log Shaving Mill Machine

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number SHBH500-2,SHBH500-4,SHBH500-6
Minimum Order Quantity 1 SET
Price US $ 4,300 - 12,600 / Set
Packaging Details wooden pallet or iron frame packings
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Application Making Wood Shavings
Production Capacity 500-1500kgs Voltage 380V, 3phase, 50HZ Or As Customer Needs
Power(W) 7.7-50KW Weight 700-2200kg
Warranty 12 Month After-sales Service Provided Engineers Available To Service Machines Overseas
Raw Materials Wood, Log, Tree Branch, Offcuts, Scraps, Etc Axle Quantity 1 - 6 Pcs
Blade Quantity 4-48 Pcs
Leave a Message
Product Description

Wood Shaving Machine

Process wood sticks,twigs,branches,wood scraps into shaving.

Adjust the size and thickness of the wood shaving.

It is the material for Plywood,furniture or paper factory.

Add as filler to prevent damage when transport some fragile items.

Use as nest shavings filler in poultry or animal breeding.

Bio-energy ignition material.

Model SHBH500-2 SHBH500-4 SHBH500-6
Max Processing Length 800MM 1400MM 1400MM
Max Processing Width 500MM 500MM 500MM
Axle Quantity 2 4 6
Blade Quantity 8 16 24
Speed (r/min) 4500 4500 4500
Hopper Length (mm) 800 1400 1400
Total Power (kw) 10.5KW 18.5KW 25.5KW
Shaving Depth(mm) 1-5 1-5 1-5
Production(KG/Hour) 500 1000 1500

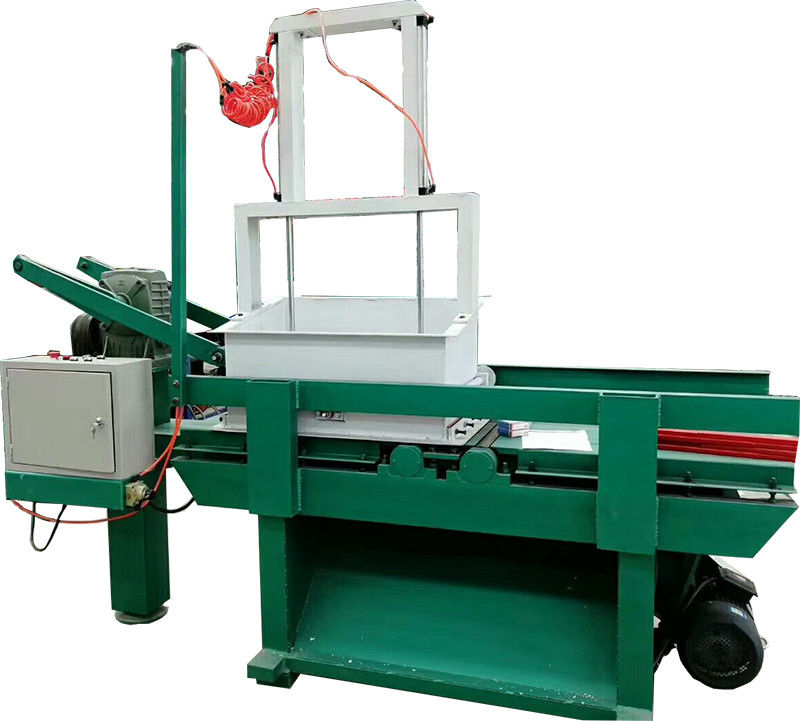

With pneumatic press cover

Efficient Pine Wood Shavings Making Machine / Log Shaving Mill Machine 0Efficient Pine Wood Shavings Making Machine / Log Shaving Mill Machine 1

Diesel Engine Powered Wood Shaving Machine


Model
SHD500-2D SHD500-4D SHD500-6D

Max Processing Length
800MM 1600MM 1600MM

Production(KG/Hour)
500 1000 1500

Max Processing Width
500MM 500MM 500MM

Axle Quantity
2 4 6

Blade Quantity
8 16 24

Speed R/Min
3500 3500 3500

Bucket Length
800 1600 1600

Diesel Engine
22HP 30HP 40HP

Generator
10KW 15KW 15KW

Shaving Depth(mm)
0.2-2 0.2-2 0.2-2













































Efficient Pine Wood Shavings Making Machine / Log Shaving Mill Machine 2

Efficient Pine Wood Shavings Making Machine / Log Shaving Mill Machine 3
