Detail Information

Name:	European Wood Pallet Pier Automatic Connecting Nailing Machine	Capacity:	600P/H
Power(w):	1.5KW Servomotor	Block Width:	60-150mm
Board Length:	600-1300mm Or As Customer Needs	Nail Gun:	Stanley BOSTITCH Stitch Gun70mm*3
Nailing Method:	1 Nail, 2nails, 3nails, 4nails, 5nails	Condition:	New
Warranty:	1 Year	After-sales Service Provided:	Commissioning And Training, Video Technical Support

Product Description

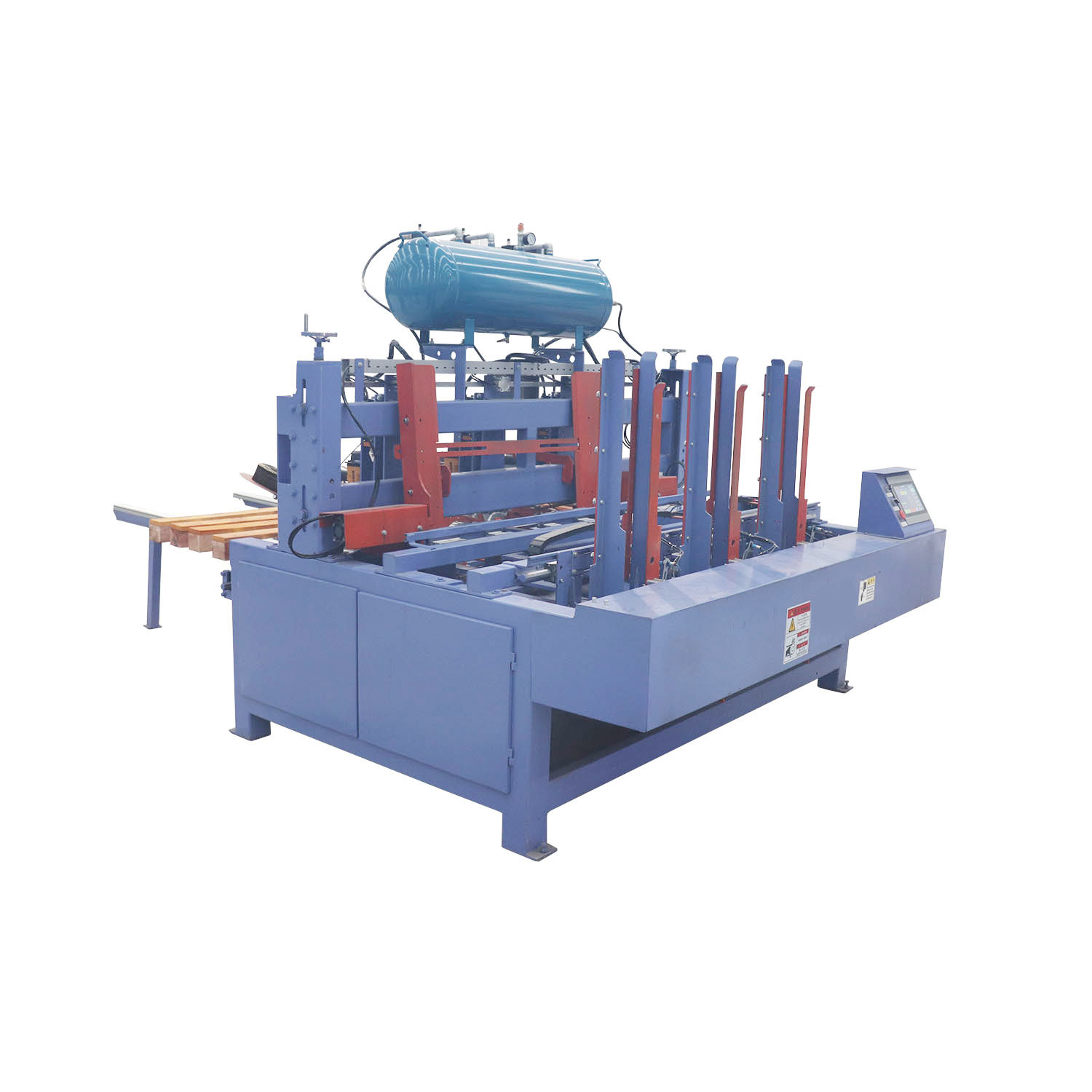

Automatic Euro Pallet Block Nailing Machine

– High-Efficiency Automated Pallet Production

Overview

The Automatic Euro Pallet Block Nailing Machine is a state-of-the-art industrial solution designed for high-speed, precision nailing in pallet manufacturing. With its fully automated program and advanced control system, this machine ensures smooth, efficient, and compact production, significantly enhancing workflow compared to traditional manual or semi-automatic methods.

For even greater productivity, the machine can be integrated with an automatic PALLET Nailing Machine and stacking system, enabling one-stop nailing and stacking production—reducing labor costs and optimizing output.

Technical data

Model	SLDJ-1300-3
Block width	60-150mm
Board Length	600-1300mm
Nail gun	Stanley BOSTITCH Stitch gun70mm*3
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.1KW Servomotor
Capacity	600P/H
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier
Machine size	250018002100mm

Images

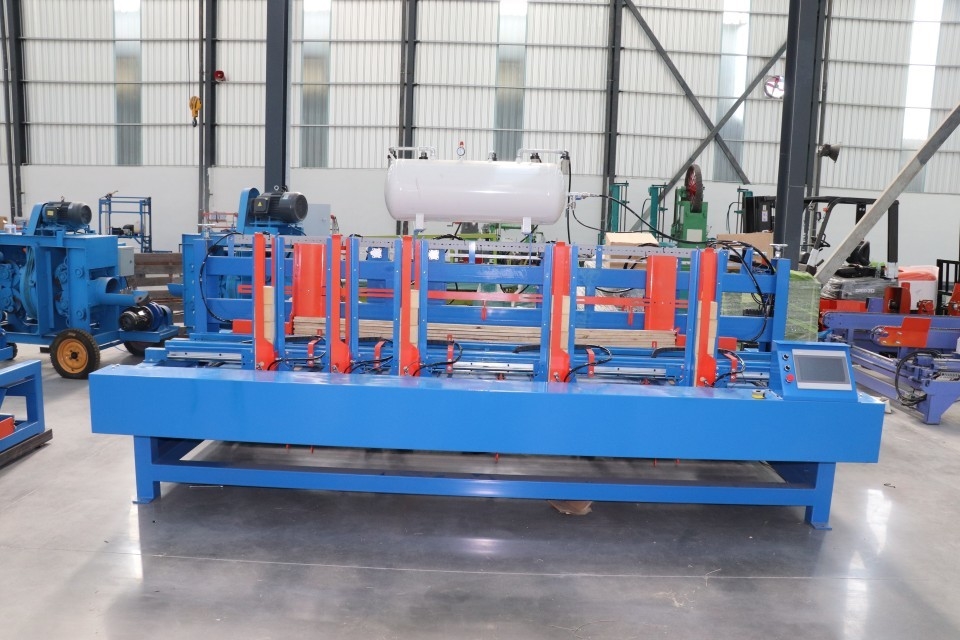

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 0

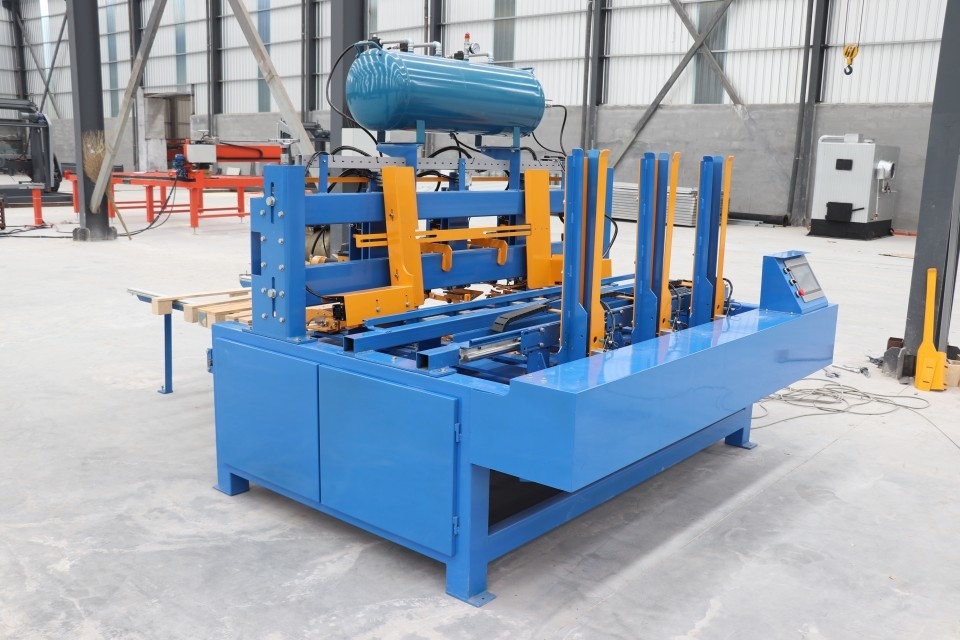

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 2

Applications & Benefits

Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.
Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.
Reduces production time and costs while maintaining consistent, high-quality output.

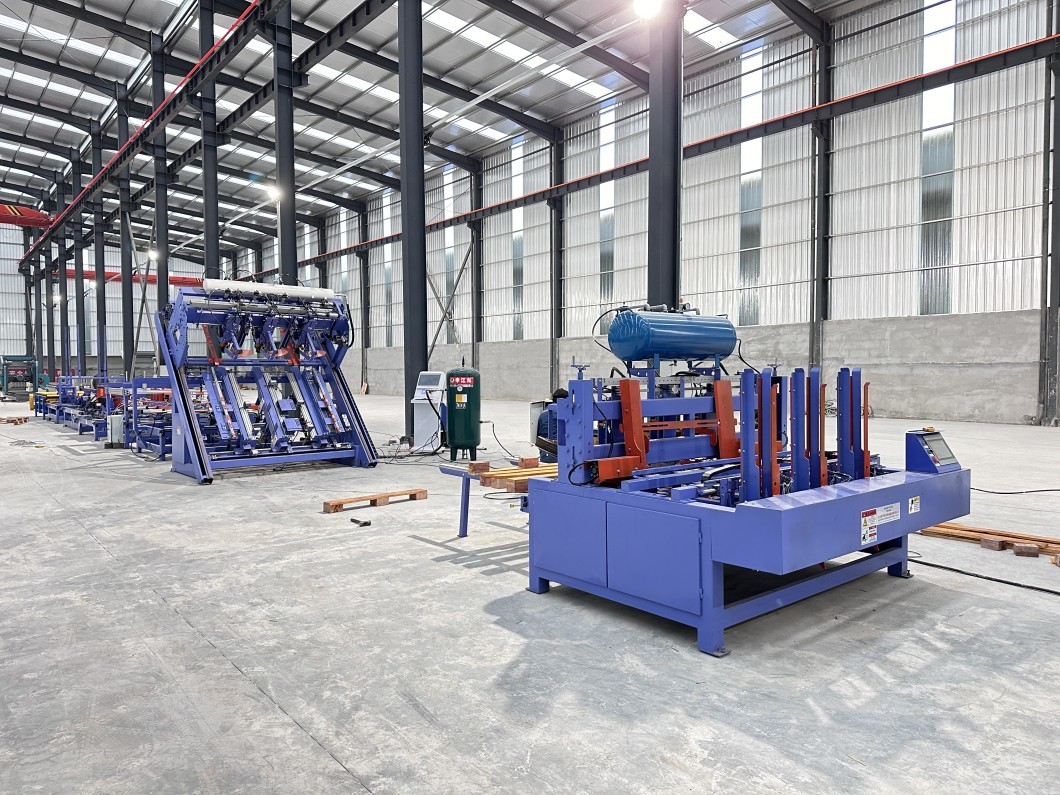

Wood Pallet Production Line

Pallet block nailing machine + Automatic pallet nailing machine + Rotating machine + Logo Branding machine

+ Pallet corners cutting machine + Pallet turnover machine + Stacking/Palletizing machine + Conveyor

are connected into a production line.

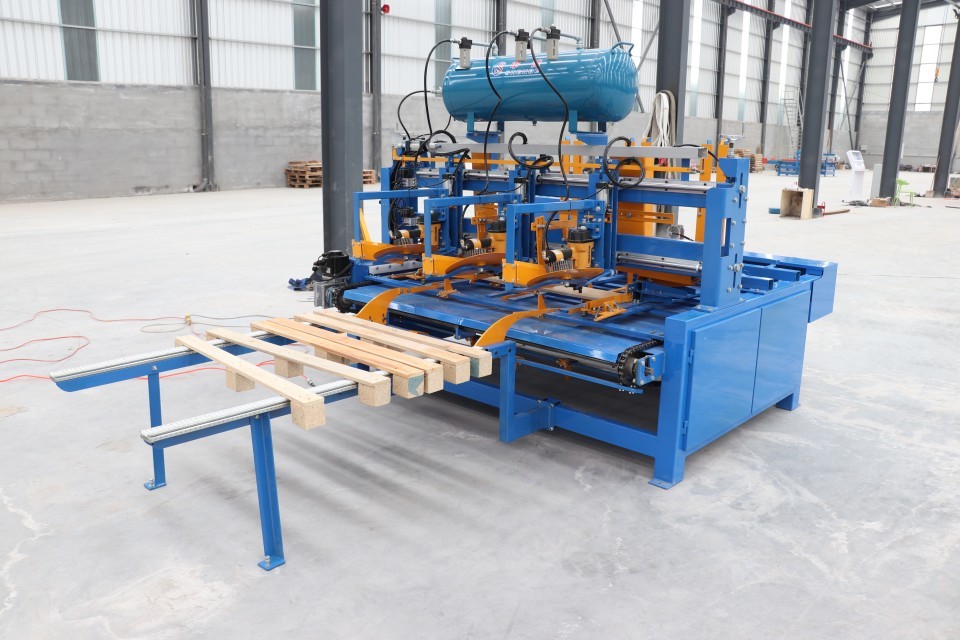

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 3

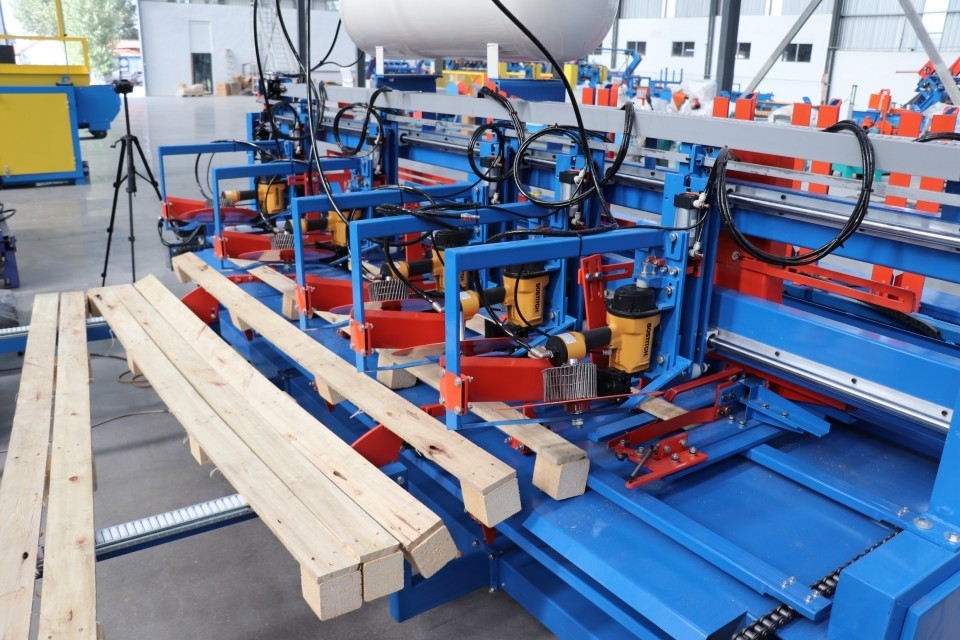

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 4

Related Hot Selling Machines

Wooden pallet block nailing machine

Model	PB200
Working mode	Automatic feeding ,automatic nailing and cutting
Operating mode	Touch screen control
Operational mode	Pneumatic operation
Motor power	7.5KW,2.2KW*2,1KW
Raw material length	1000-3000mm
Block Length	40-200mm
Cutting height	40-120mm
Cutting width	40-100mm
Cutting blade	350-400mm
Number of planer	2
Nail quantity	1-3 pcs (adjustable)
Working Efficiency	5-6m3/day
Voltage	380V/3 Phase
Weight	1200Kg
Dimension	540014001600mm

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 5

Wood block multi-blade saw

Model	BM-1250
Cutting Length	1250mm
Cutting Thickness	100mm
Cutting Width	200mm
Saw Diameter	355mm
Motor	30kw
Weight	1600kg

European Style Wood Pallet Block Feet Connecting Machine Pallet Legs Nailing Machine 7

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001,CE
Model Number:	SLDJ-1300-3, etc

Minimum Order Quantity:	1 SET wood pallet pier automatic connecting nailing machine
Price:	US $7,800 - 12,400 / Set
Packaging Details:	export packing or film wrapped container loading
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of wood pallet pier automatic connecting nailing machine
