Professional Wood Pallet Making Machine / Machine To Make Wood Pallet
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | AEPN-1300 |
| Minimum Order Quantity | 1 SET Wood Pallet Nailing Machine |
| Price | US $4,800 - 21,500 / Set |
| Packaging Details | iron frame packings or luo packings |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Pallet Nailing Machine | Wood Pallet Length | 700-1300mm |
|---|---|---|---|
| Wood Pallet Width | 800-1300mm | Working Mode | Automatic Feeding And Stacking |
| Voltage And Power | 220V/ 2kw Servo Motor | Number Of Coil Nail Guns | 3pcs Or 4pcs |
| Air Pressure | 0.8MPA | Nail Gun Speed | 7times/second |
| Production Capacity | 1- 2tray/minute | Weight | 2000kg |
| High Light | Professional wood pallet machine,1300mm Length wood pallet machine,Wood Pallet Making Machine |
||
Product Description
Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

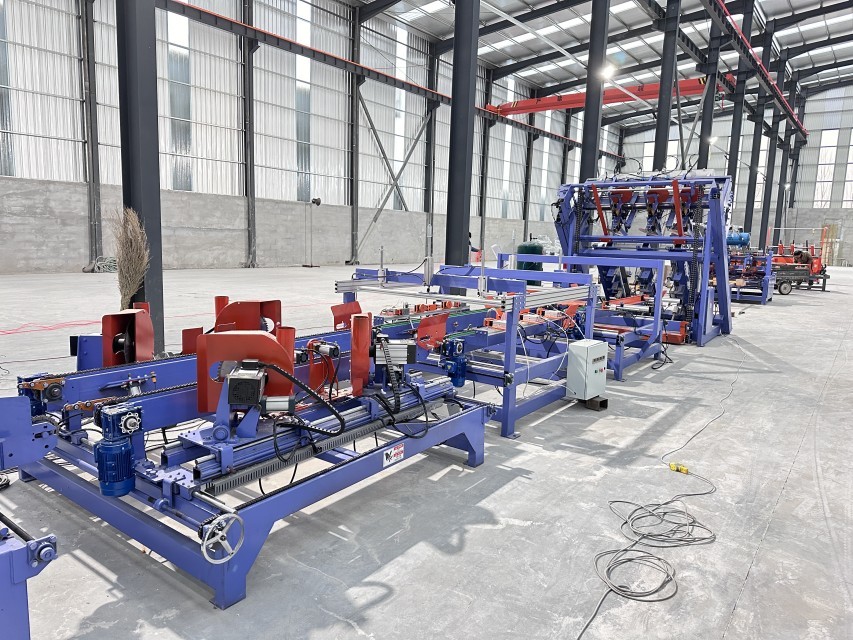

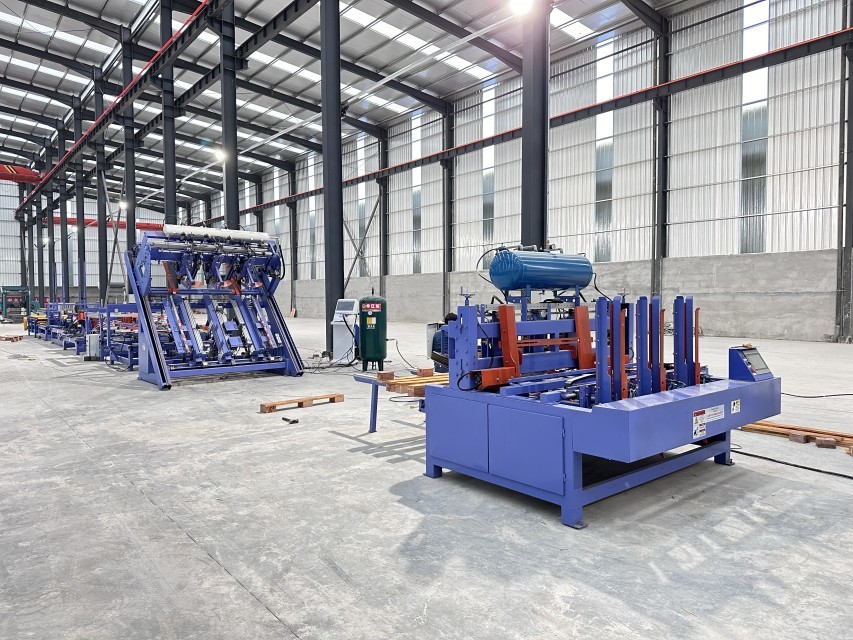

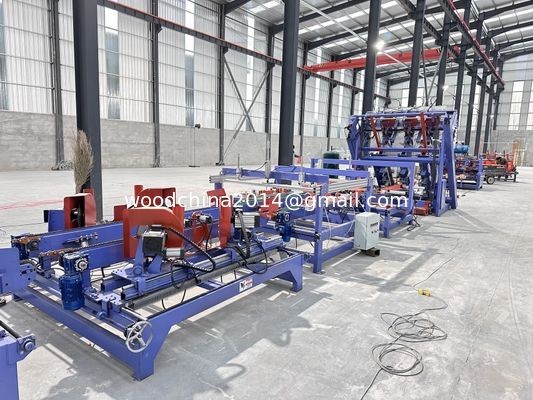

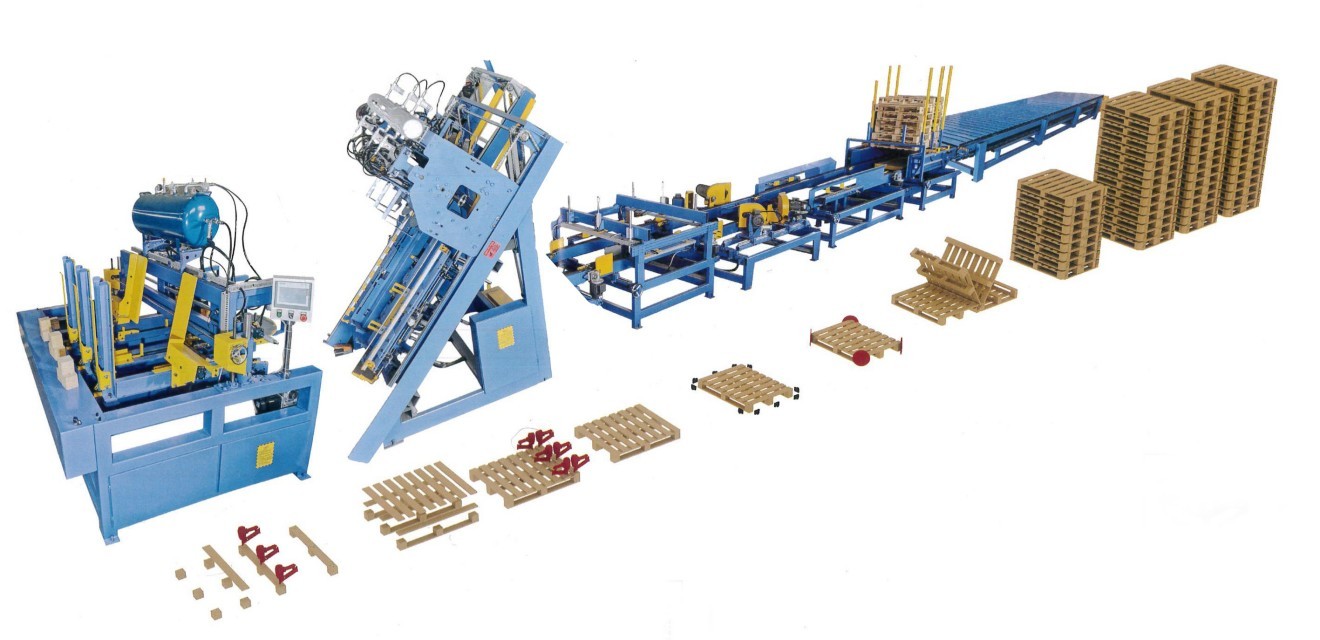

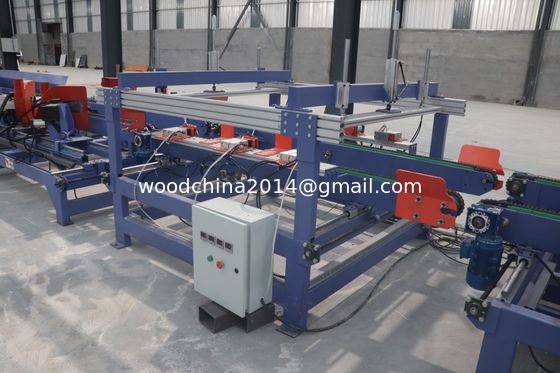

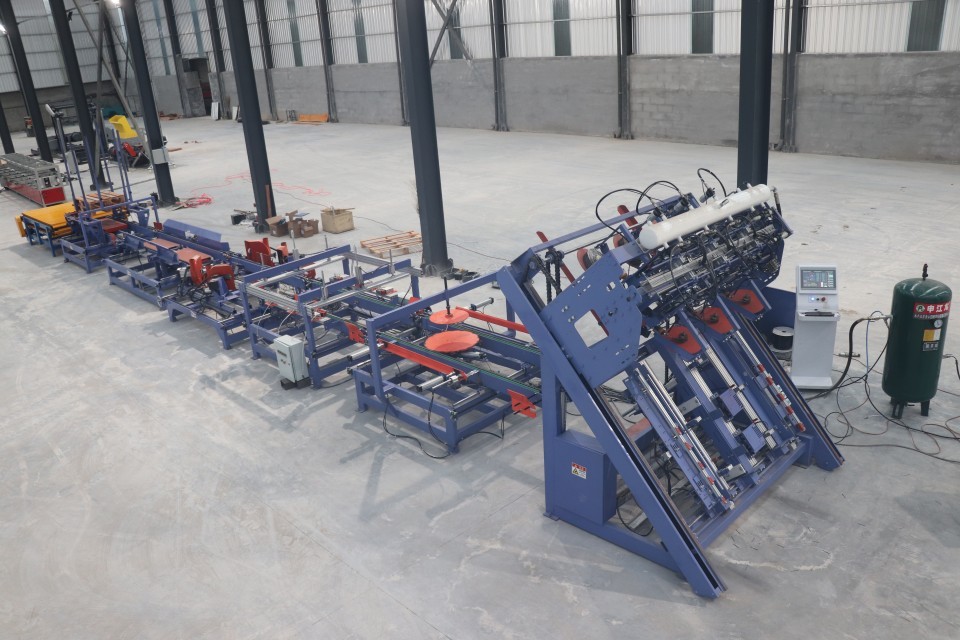

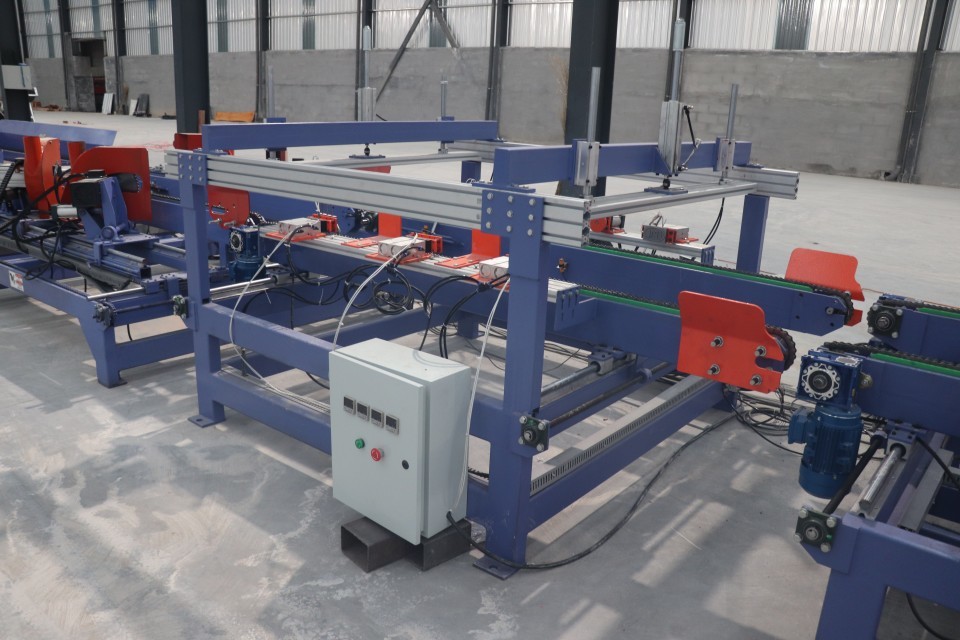

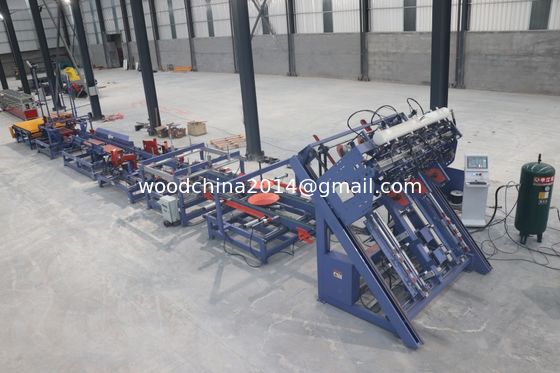

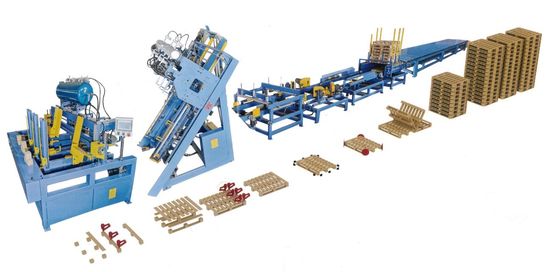

Euro Pallet Automatic Wood Pallet Making Line
1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |

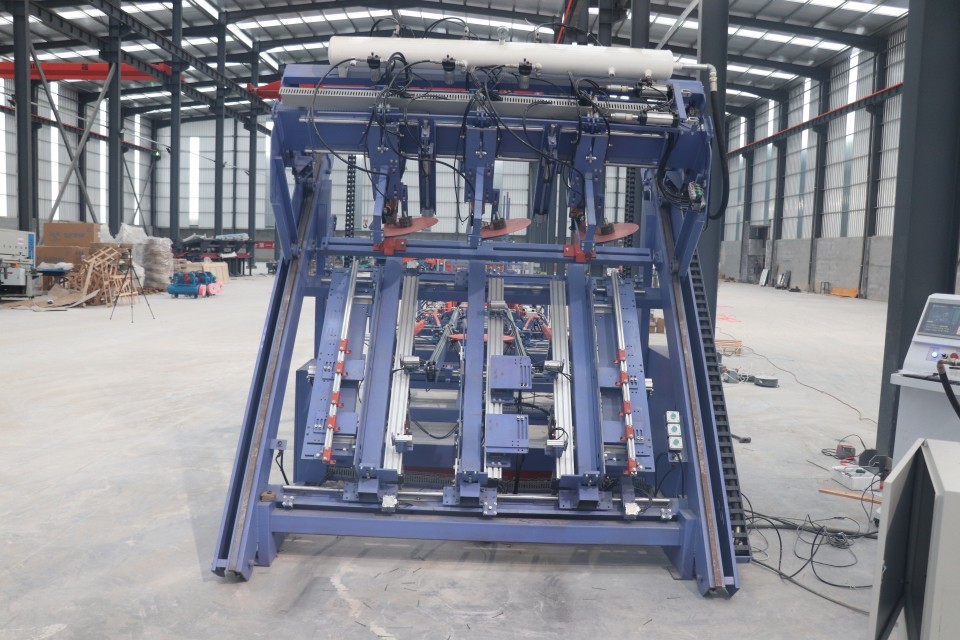

2,Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
| Model | PQ1300-4 |
| Processing size | 800-1300mm |
| Circular saw blade diameter | 300mm |
| Motor power | 2.2KW*4 |
| Working mode | Automatic feed,Automatic Angle cutting |
| Weight | 350kg |
5. Wooden pallet palletizer
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |
