Log cutting Vertical Band Saw Machine with hydraulic log loading Arm

Log cutting Vertical Band Saw Machine with hydraulic log loading Arm

    • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
    • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
    • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
    • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
    • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
  • Log cutting Vertical Band Saw Machine with hydraulic log loading Arm

    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: MJ3310-H3000,MJ3212-H5000, etc

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $27,900 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 500sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: CNC Bandsaw
    Use: Woodworking Voltage: 380v,50Hz/3phase Or As Requested
    Warranty: 12 Months Max. Sawing Wood Diameter: 1000mm
    Saw Walking: Inverter Wood Rotation: Hydraulic Log Rolling On The Ground

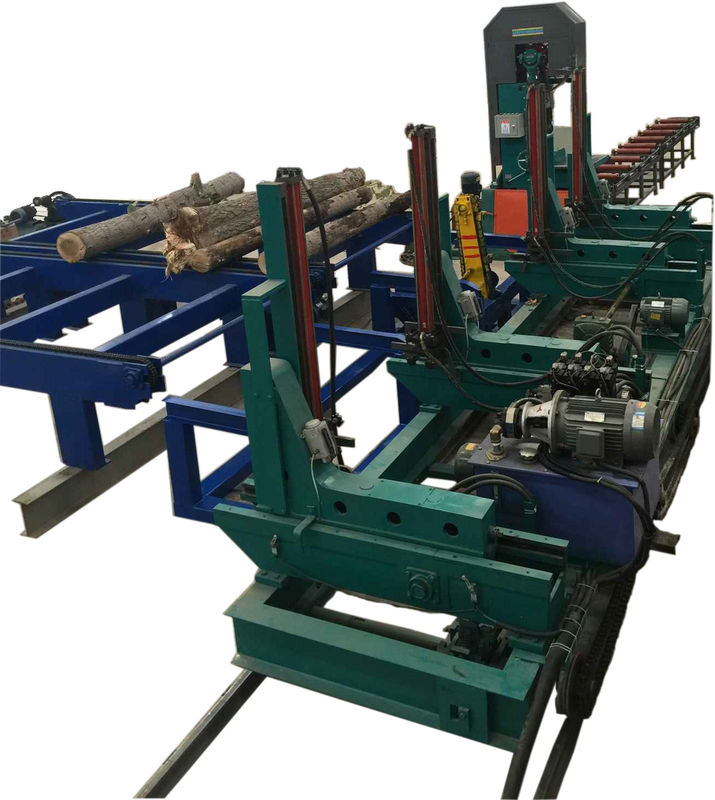

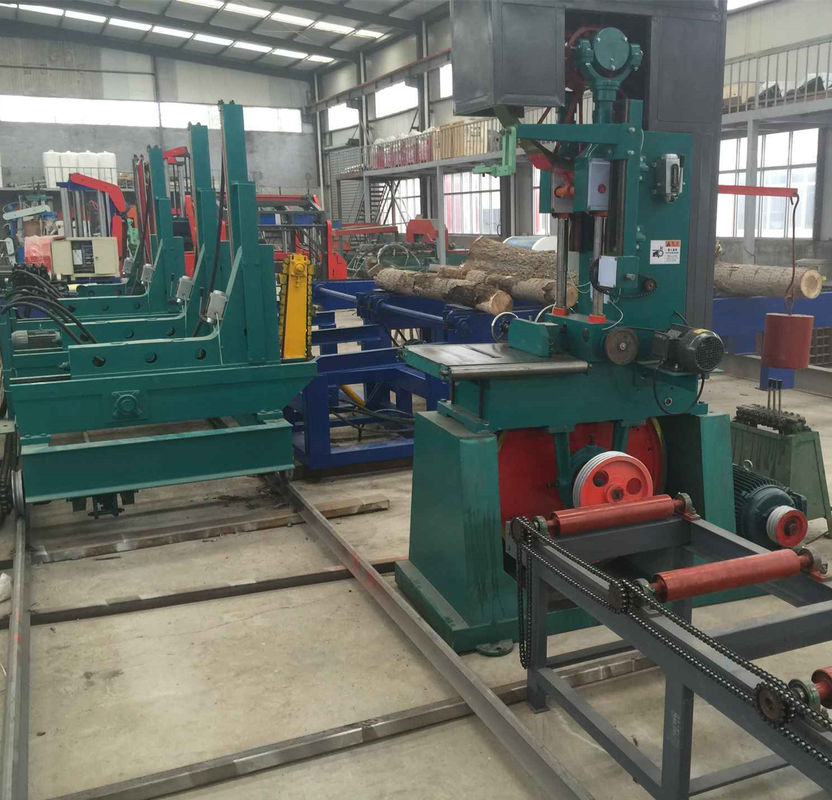

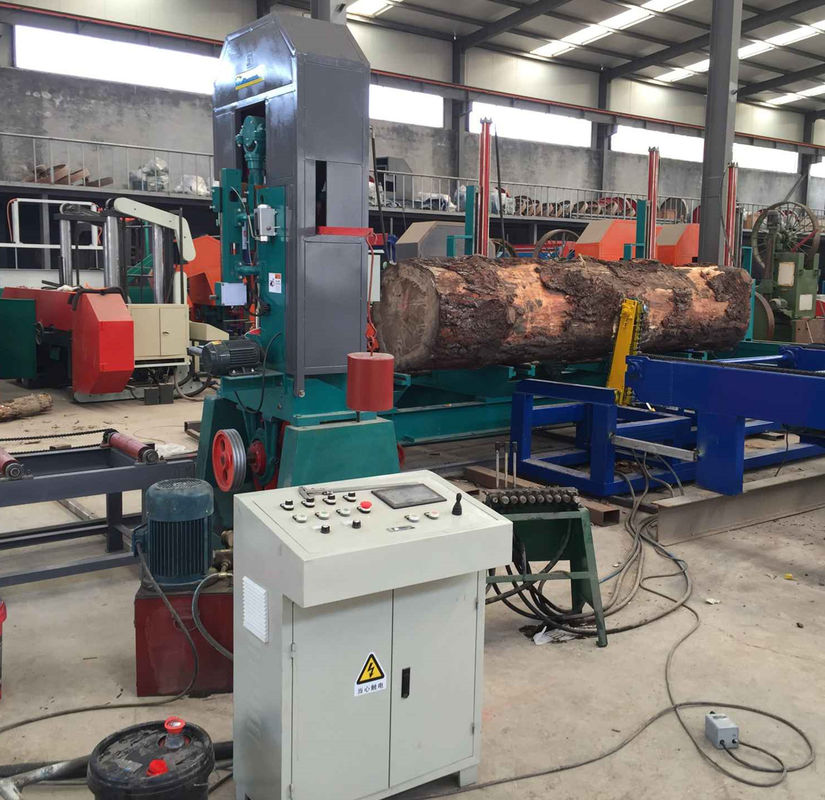

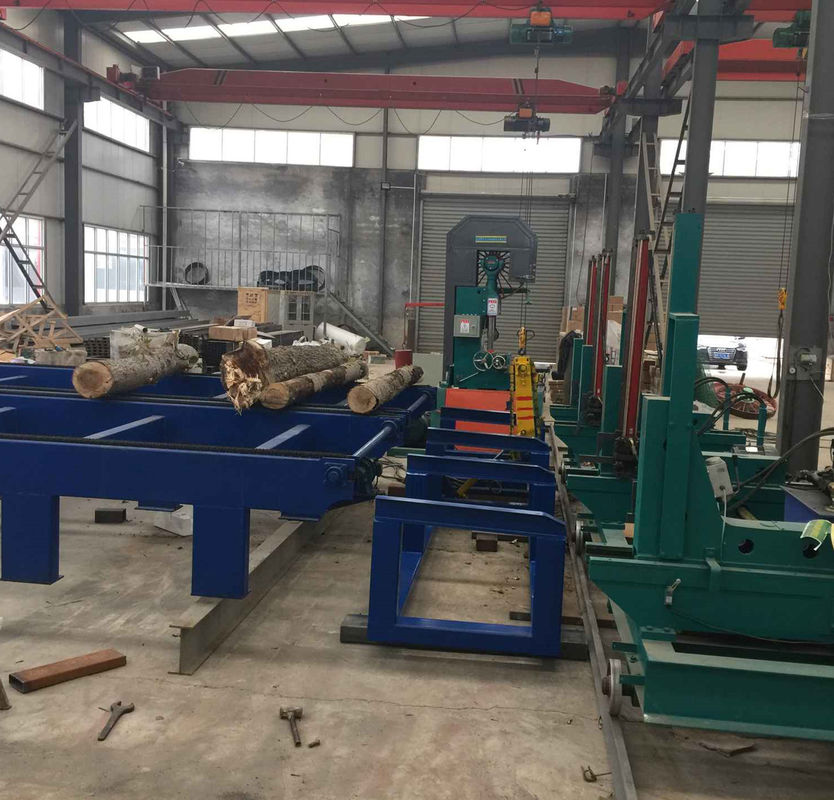

    Vertical Band Sawmill With Hydraulic Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

    Technical data MJ3310-H3000 MJ3310-H5000
    Saw wheel diameter 1060mm 1060mm
    Maximum log diameter 800mm 800mm
    Maximum log length 4meters 6meters
    Motor power 30kw 30kw
    Carriage clip stake quantity 3sets 4sets
    Carriage running wheel quantity 2sets 3sets
    Carriage walking Inverter Inverter
    Sawn sizes setting CNC CNC
    Wood clamping mode Electric Electric
    Wood rotation Hydraulic roller on ground Hydraulic roller on ground
    Length of track 10m 18m
    Weight 5000kg 6000kg

    Log cutting Vertical Band Saw Machine with hydraulic log loading Arm

    Technical data MJ3212-H3000 MJ3212-H5000
    Saw wheel diameter 1250mm 1250mm
    Maximum log diameter 1000mm 1000mm
    Maximum log length 4meters 6meters
    Motor power 45kw 45kw
    Carriage clip stake quantity 3sets 4sets
    Carriage running wheel quantity 2sets 3sets
    Carriage walking Inverter Inverter
    Sawn sizes setting CNC CNC
    Wood clamping mode Electric Electric
    Wood rotation Hydraulic roller on ground Hydraulic roller on ground
    Length of track 10m 18m
    Weight 9000kg 10000kg

    Log cutting Vertical Band Saw Machine with hydraulic log loading Arm
