Log cutting Vertical Band Saw Machine with hydraulic log loading Arm

Basic Information

Place of Origin:	shandong province
Brand Name:	SH
Certification:	ISO
Model Number:	MJ3310-H3000,MJ3212-H5000, etc

Minimum Order Quantity:	1 SET
Price:	US $27,900 - 50,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year

Get Best Price Contact Now

Detail Information

Condition:	New	Type:	CNC Bandsaw
Use:	Woodworking	Voltage:	380v,50Hz/3phase Or As Requested
Warranty:	12 Months	Max. Sawing Wood Diameter:	1000mm
Saw Walking:	Inverter	Wood Rotation:	Hydraulic Log Rolling On The Ground
Highlight:	hydraulic log loading band saw , vertical band sawmill machine , log cutting band saw

Product Description

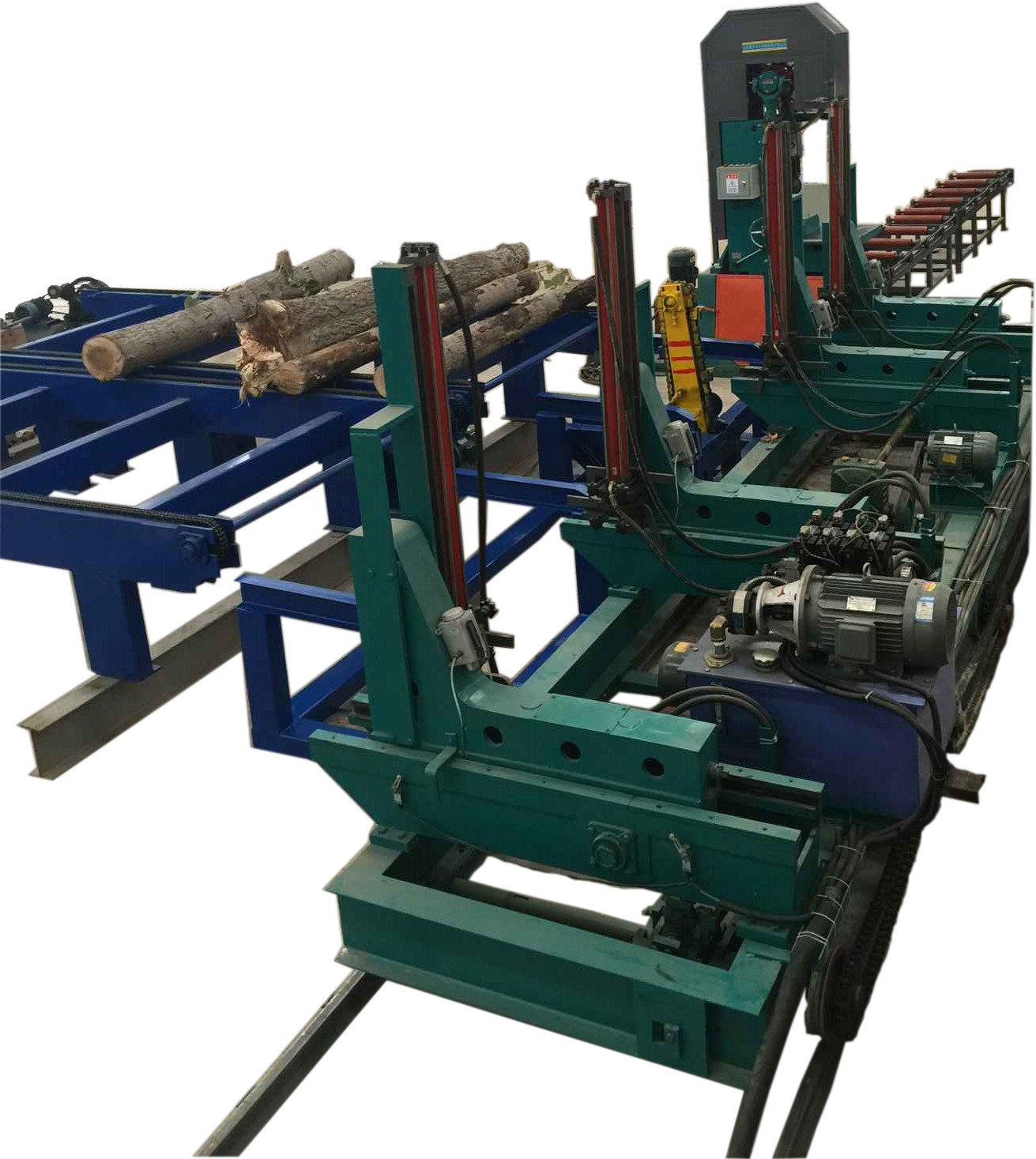

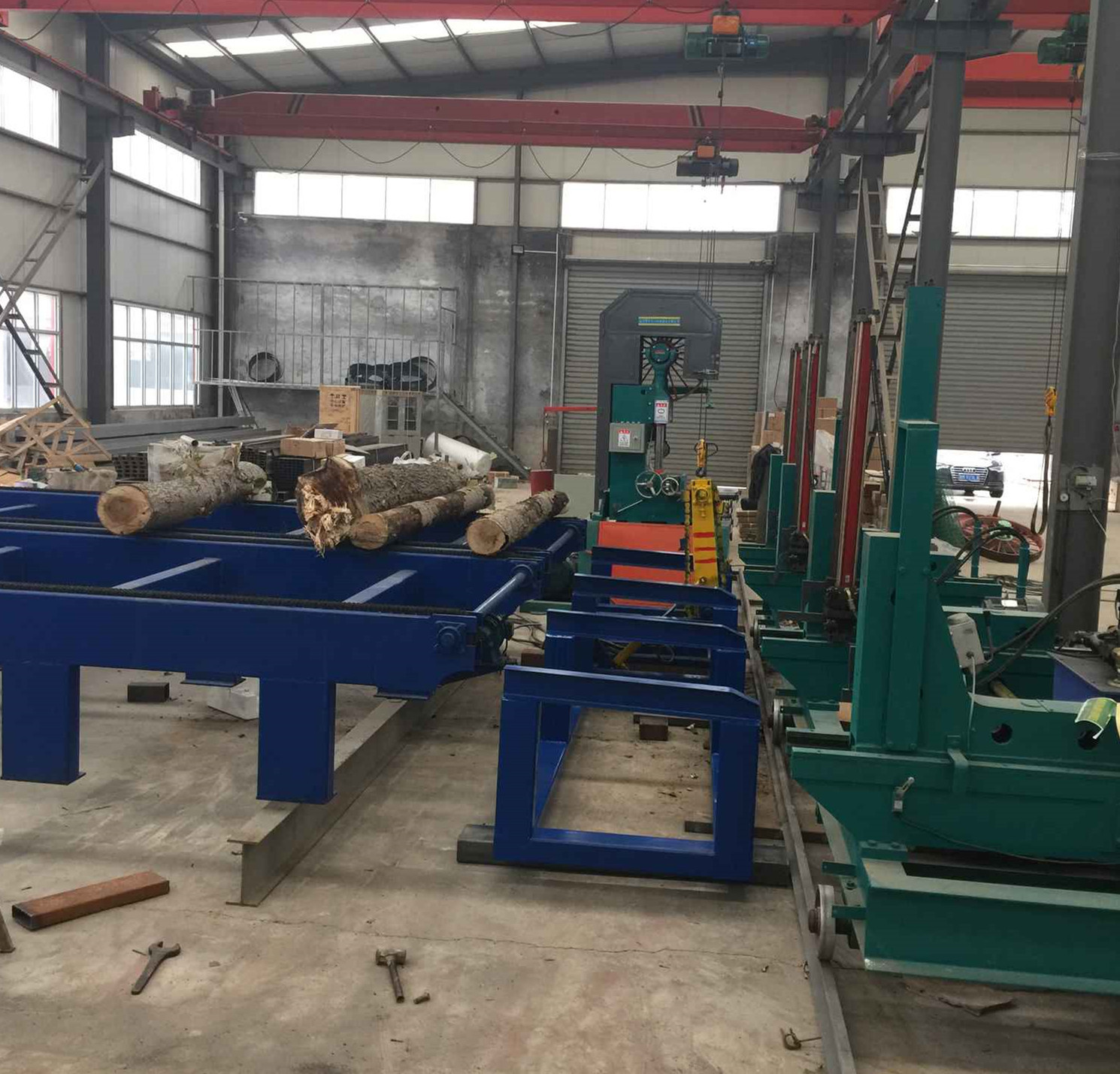

Vertical Band Sawmill With Hydraulic Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical data	MJ3310-H3000	MJ3310-H5000
Saw wheel diameter	1060mm	1060mm
Maximum log diameter	800mm	800mm
Maximum log length	4meters	6meters
Motor power	30kw	30kw
Carriage clip stake quantity	3sets	4sets
Carriage running wheel quantity	2sets	3sets
Carriage walking	Inverter	Inverter
Sawn sizes setting	CNC	CNC
Wood clamping mode	Electric	Electric
Wood rotation	Hydraulic roller on ground	Hydraulic roller on ground
Length of track	10m	18m
Weight	5000kg	6000kg

Log cutting Vertical Band Saw Machine with hydraulic log loading Arm 0

Technical data	MJ3212-H3000	MJ3212-H5000
Saw wheel diameter	1250mm	1250mm
Maximum log diameter	1000mm	1000mm
Maximum log length	4meters	6meters
Motor power	45kw	45kw
Carriage clip stake quantity	3sets	4sets
Carriage running wheel quantity	2sets	3sets
Carriage walking	Inverter	Inverter
Sawn sizes setting	CNC	CNC
Wood clamping mode	Electric	Electric
Wood rotation	Hydraulic roller on ground	Hydraulic roller on ground
Length of track	10m	18m
Weight	9000kg	10000kg
