Detail Information

Name:	Full Auto Wood Planks Saw Line	Condition:	New
Sawing Log Max. Diameter:	500mm Or As Customer Needs	Sawing Log Length:	6meters Or As Customer Needs
Log Feeding:	Frequency Auto Feeding	Log Rotation:	Hydraulic Chain Rotation
Highlight:	Log Plank Gang Rip Saw Machine , Hydraulic Gang Rip Saw Machine , Hydraulic Ripsaw Portable Sawmill

Product Description

Wood Gang Rip Saw Machine, Log/Plank Multi Blade Saw Machine, Automatic Saw production line

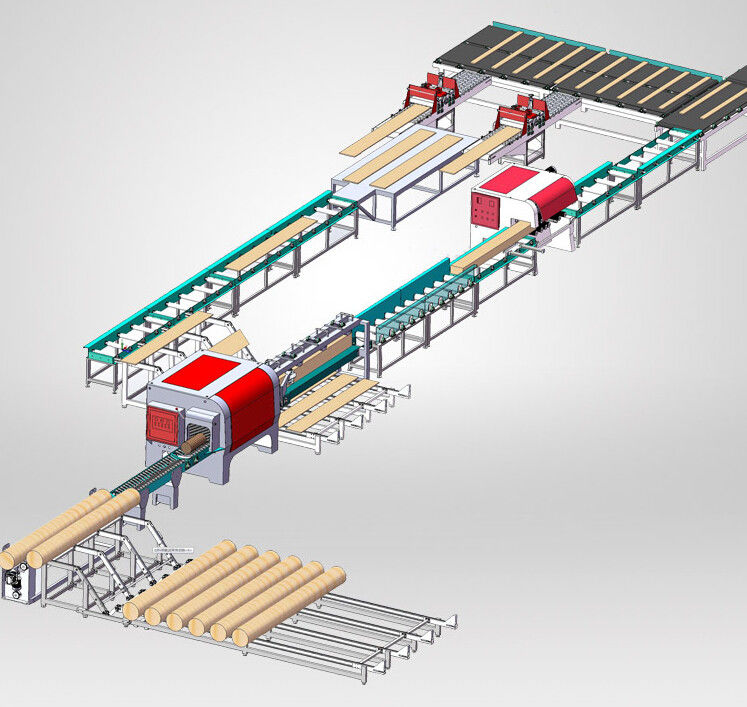

Multi Blades Ripsaw Production Line(Diameter 500MM,Length: 3meters)

We do production line as customer needs .

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 0

Log Loading Deck
Log Length	4000mm
Width	2000mm
Feeding Speed	Variable Frequency Speed Adjustable
Motor	5.5KW
Feeding Speed	frequency speed adjustable
Feeding	Pneumatic
Feeding Model	Chain

Log Rotation And Feeding Belt
Log Length	4000mm
Feeding Model	Variable Frequency Speed Adjustable
Feeding Speed	frequency speed adjustable *3KW2**
Motor Power
Control Model	Remote Control

SLS500 Muti blades ripsaw for logs
Max Cutting Log Diameter		500mm
Min Cutting Log Diameter		200mm
Log Length		800-3000mm
Cutting Speed		9-25m/min
Motor Power		*75KW 2**
Centralise Model		Touch Screen Digital Control

Automatic Rotation Centralise Roller Conveyor
Conveyor Length		6000mm
Conveyor Width		1000mm
Motor Power		2.2KW
Centralise Model		Pneumatic

200-400 Heavy duty Log Cutting Multiple Blades Sawmill
max. sawing width		400mm
Max. sawing thickness		200mm
sawing speed		10-25m/min
Main Motor power		*45KW2**
Feeding Motor		2.2KW
Saw Blade Quantity		2-10 pieces
Saw Blade Diameter		355mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,

Slab Slope Conveyor
Length		3000mm
Width		2500mm
Motor		2.2KW

BP300重型 Slab Cutting Multiple Blades Horizontal Circular Saw
Max Cutting Width		300mm
Max. sawing thickness		80mm
feeding		frequency speed adjustable
Motor		*15KW2**

500 High Speed Multiple Blade Rip Sawmill
Max Cutting Plank Width			500mm
Max Cutting Plank Thickness			50mm
Circular Saw Blade Quantity			1-3 Pieces
Motor Power			22kw

Conveyor Belt
160-400 Conveyor Belt		*600mm6000mm,3KW**
BP300 Conveyor Belt		*600mm6000mm,3KW**
CB500 Conveyor Belt		*600mm6000mm,3KW**

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 8

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 11

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450

Minimum Order Quantity:	1 SET
Price:	US $5,000-150,000 / Set
Packaging Details:	container loading
Delivery Time:	within 30 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500 Sets/Year
