Home /Products/Multi Rip Saw Machine/Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill

1 SET
MOQ
US $5,000-150,000 / Set
Price
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Full Auto Wood Planks Saw Line
Condition: New
Sawing Log Max. Diameter: 500mm Or As Customer Needs
Sawing Log Length: 6meters Or As Customer Needs
Log Feeding: Frequency Auto Feeding
Log Rotation: Hydraulic Chain Rotation
Highlight:

Log Plank Gang Rip Saw Machine

,

Hydraulic Gang Rip Saw Machine

,

Hydraulic Ripsaw Portable Sawmill
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SHYM200,SHYM250, SHYM300, SHYM350,SHYM400,SHYM450
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 30 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500 Sets/Year
Product Description

Wood Gang Rip Saw Machine, Log/Plank Multi Blade Saw Machine, Automatic Saw production line

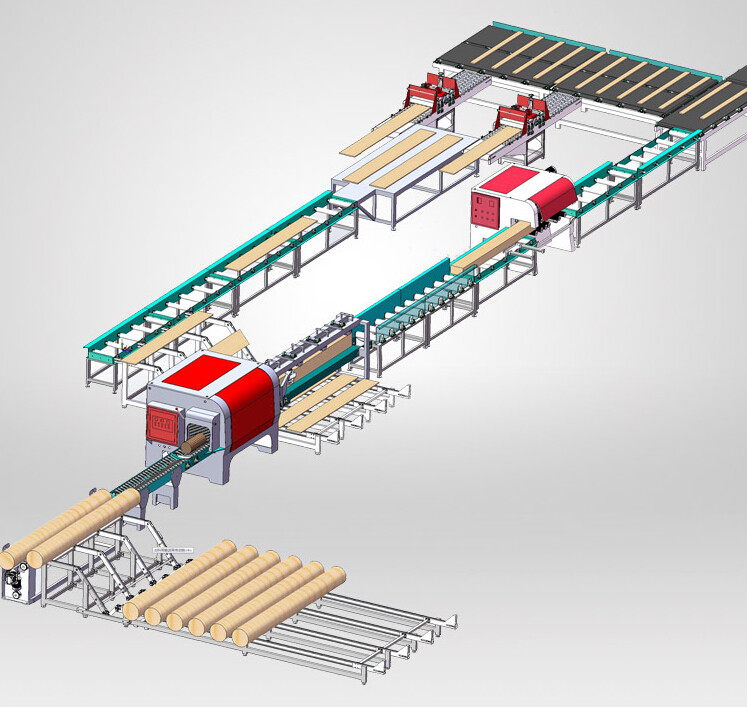

Multi Blades Ripsaw Production Line(Diameter 500MM,Length: 3meters)

We do production line as customer needs .

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 0

Log Loading Deck
Log Length 4000mm
Width 2000mm
Feeding Speed Variable Frequency Speed Adjustable
Motor 5.5KW
Feeding Speed frequency speed adjustable
Feeding Pneumatic
Feeding Model Chain

Log Rotation And Feeding Belt
Log Length 4000mm
Feeding Model Variable Frequency Speed Adjustable
Feeding Speed

frequency speed adjustable

3KW*2
Motor Power
Control Model Remote Control
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 1
SLS500 Muti blades ripsaw for logs
Max Cutting Log Diameter 500mm
Min Cutting Log Diameter 200mm
Log Length 800-3000mm
Cutting Speed 9-25m/min
Motor Power 75KW *2
Centralise Model Touch Screen Digital Control
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 2
Automatic Rotation Centralise Roller Conveyor
Conveyor Length 6000mm
Conveyor Width 1000mm
Motor Power 2.2KW
Centralise Model Pneumatic
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 3
200-400 Heavy duty Log Cutting Multiple Blades Sawmill
max. sawing width 400mm
Max. sawing thickness 200mm
sawing speed 10-25m/min
Main Motor power 45KW*2
Feeding Motor 2.2KW
Saw Blade Quantity 2-10 pieces
Saw Blade Diameter 355mm
Variable Frequency Speed Adjustable Feeding,
Axles Center Water Cooling System,
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 4
Slab Slope Conveyor
Length 3000mm
Width 2500mm
Motor 2.2KW
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 5
BP300重型 Slab Cutting Multiple Blades Horizontal Circular Saw
Max Cutting Width 300mm
Max. sawing thickness 80mm
feeding frequency speed adjustable
Motor 15KW*2
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 6
500 High Speed Multiple Blade Rip Sawmill
Max Cutting Plank Width 500mm
Max Cutting Plank Thickness 50mm
Circular Saw Blade Quantity 1-3 Pieces
Motor Power 22kw
Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 7
Conveyor Belt
160-400 Conveyor Belt 600mm*6000mm,3KW
BP300 Conveyor Belt 600mm*6000mm,3KW
CB500 Conveyor Belt 600mm*6000mm,3KW



Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 8Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 9Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 10

Log Plank Gang Rip Saw Machine Hydraulic Ripsaw Portable Sawmill 11
