Log Sawmill Double Heads Vertical Saw Mills, Automatic Twin Bandsaw Equipment

Basic Information

Get Best Price Contact Now

Detail Information

Name:	Twin Head Band Saw Mill	Condition:	New
Sawing Log Diameter:	100mm To 500mm	Sawing Log Length:	1000mm -3000mm Or As Customer Needs
Feeding Speed:	9-25m/min	Feeding Motor:	5.5kw
Main Motor Power:	18.5kw X 2sets	Bandsaw Blade Width:	50mm -80mm
Sawn Sizes Setting:	PLC Touching Screen Atuo Setworks	Usage:	Cut 4 Side Edges Of Log
After-sales Service:	Video Technical Support, Working Test Before Delivery

Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

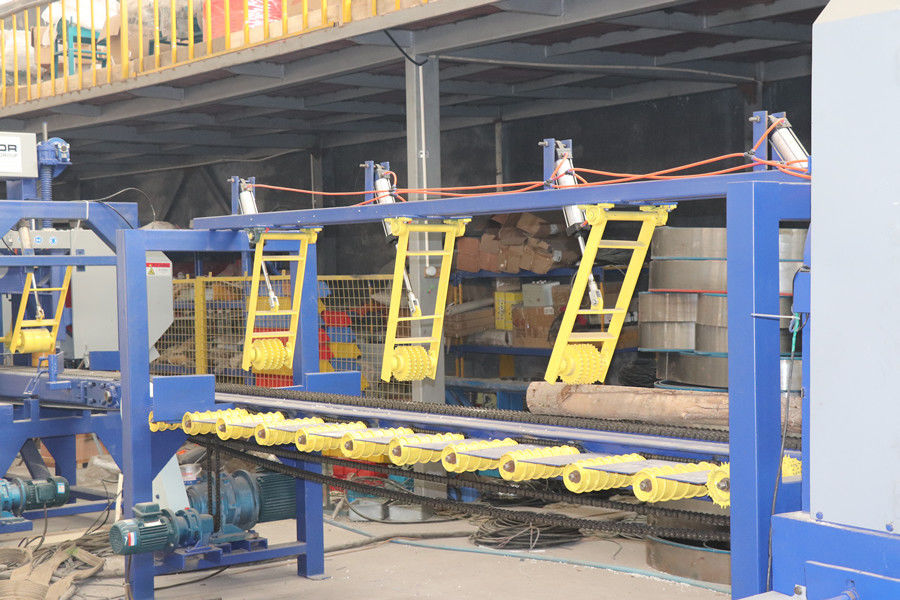

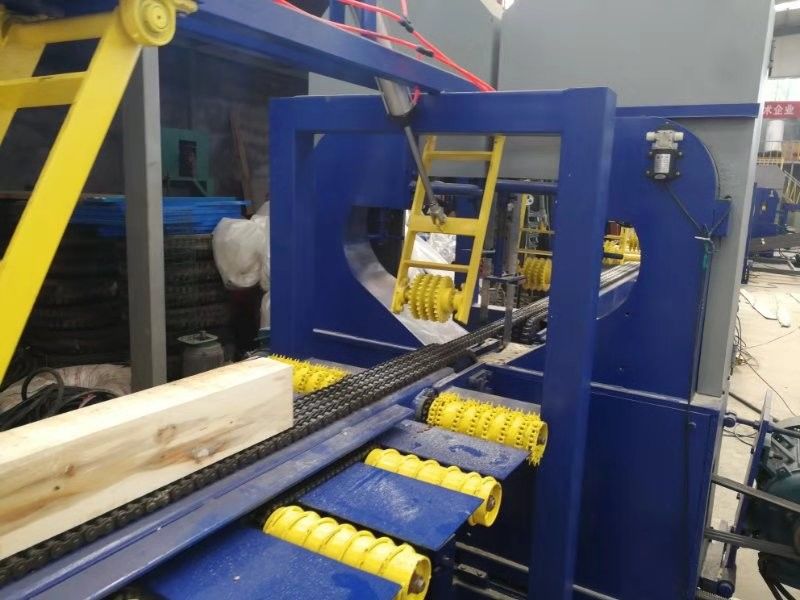

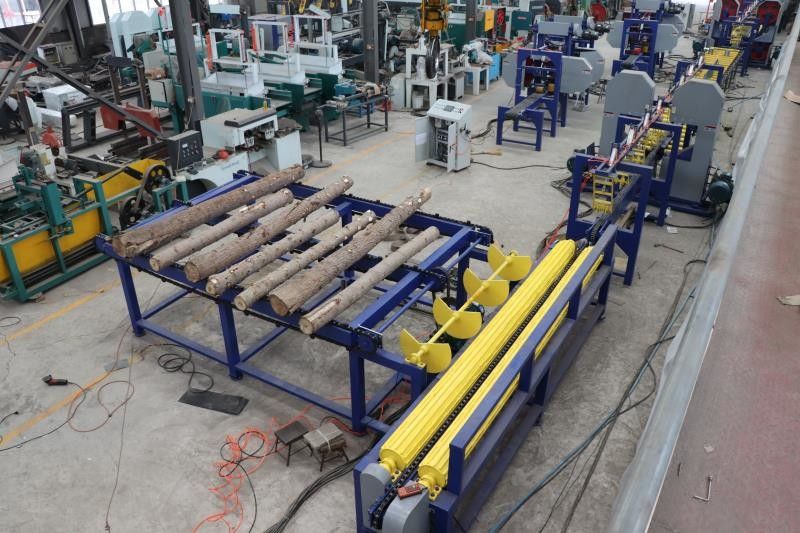

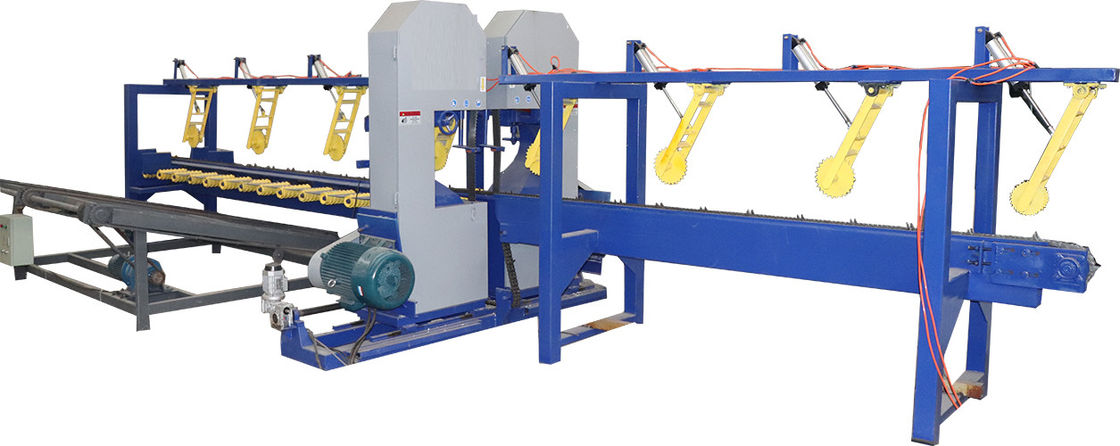

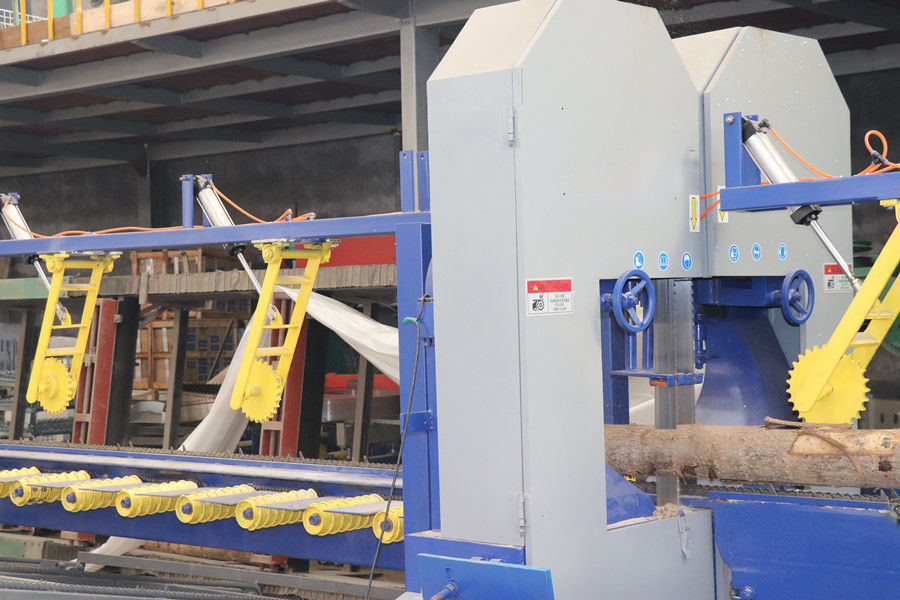

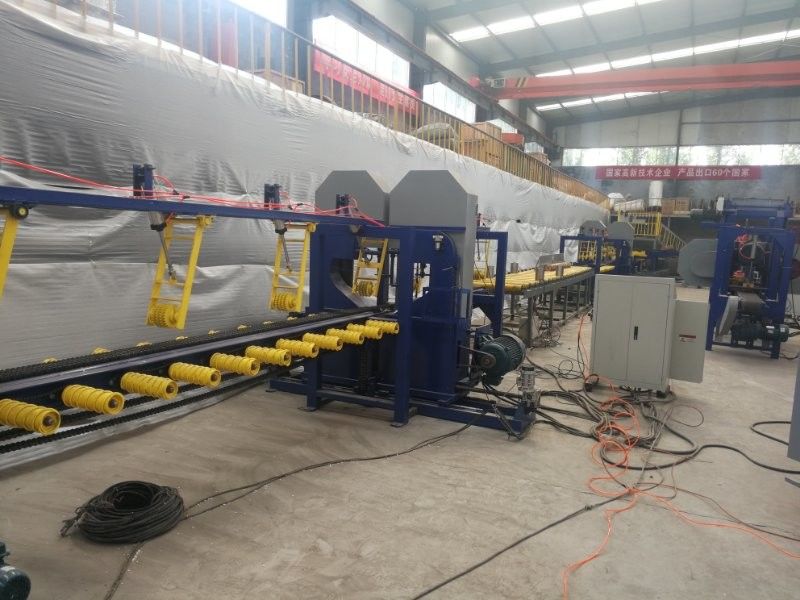

Log Sawmill Double Heads Vertical Saw Mills, Automatic Twin Bandsaw Equipment 0

Log Sawmill Double Heads Vertical Saw Mills, Automatic Twin Bandsaw Equipment 1
