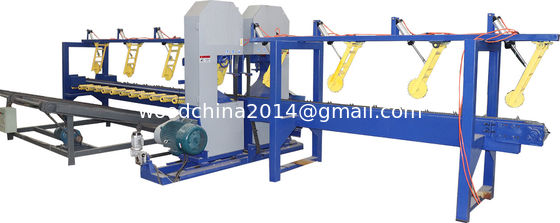

Log Sawmill Double Heads Vertical Saw Mills, Automatic Twin Bandsaw Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Twin Head Band Saw Mill | Condition | New |
---|---|---|---|
Sawing Log Diameter | 100mm To 500mm | Sawing Log Length | 1000mm -3000mm Or As Customer Needs |
Feeding Speed | 9-25m/min | Feeding Motor | 5.5kw |
Main Motor Power | 18.5kw X 2sets | Bandsaw Blade Width | 50mm -80mm |
Sawn Sizes Setting | PLC Touching Screen Atuo Setworks | Usage | Cut 4 Side Edges Of Log |
After-sales Service | Video Technical Support, Working Test Before Delivery |

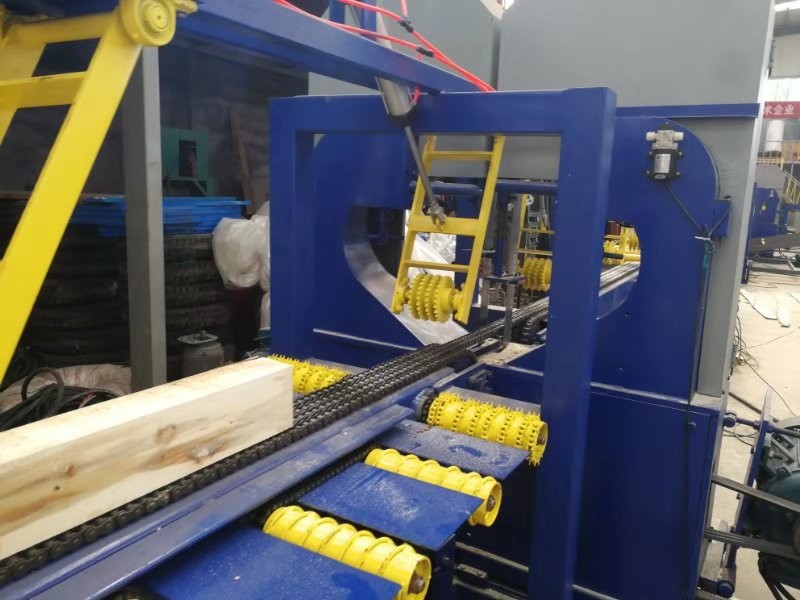

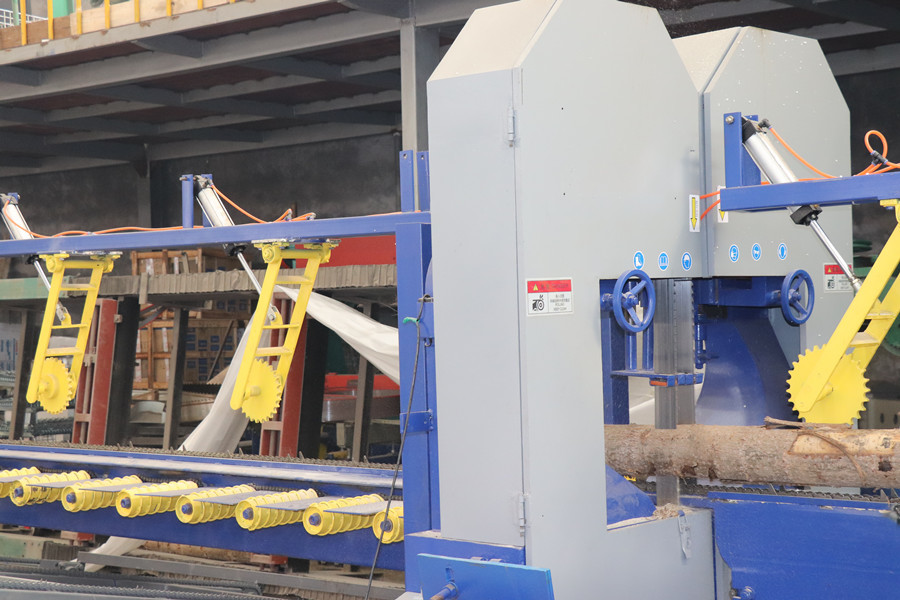

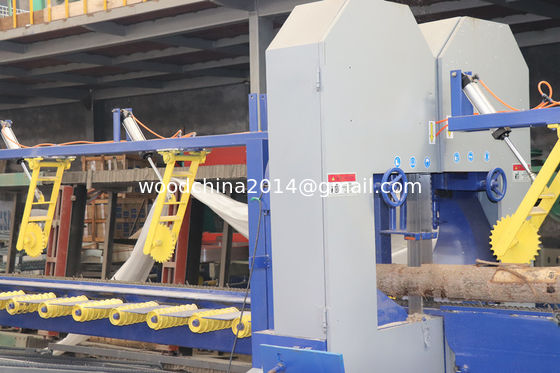

TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Working video link: https://youtu.be/r_9EEWxRlKk
Technical Specifications:
Technical data | SLS350 | SLS500 |
Maximum log diameter | 350mm | 500mm |
Minimum log diameter | 100mm | 100mm |
Wood length | 1000 to 3000mm | 1000 to 3000mm |
Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
Conveyor length | 7000mm | 3500mm x 2 |
Band wheel diameter | 700mm | 760mm |
Width of saw blade | 50-80mm | 50-100mm |
Length of saw blade | 4850 | 5200mm |
Thickness of saw blade | 0.9mm | 0.9mm |
Saw motor | 2x18.5kw | 2x22kw |
Feed motor | 5.5kw | 4kw x 2 |
Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |

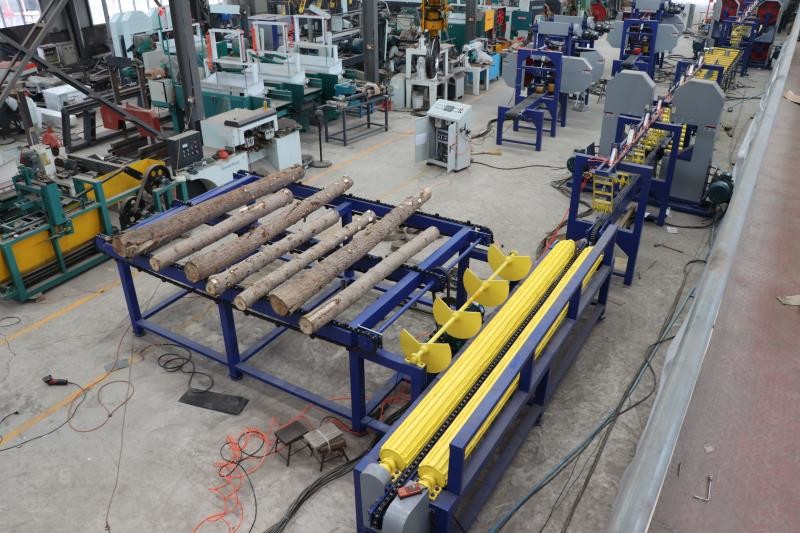

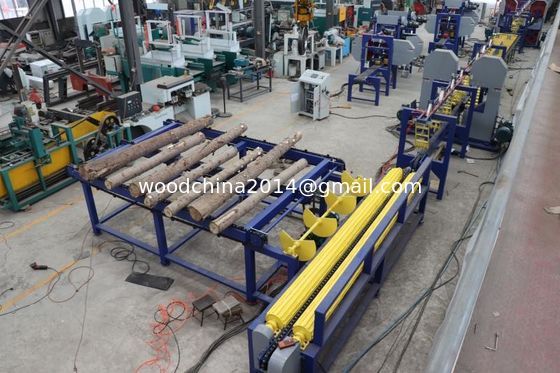

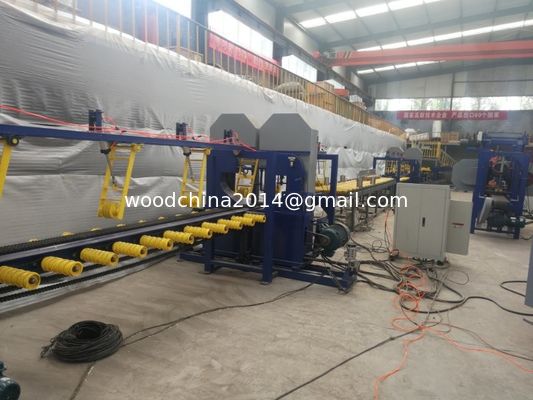

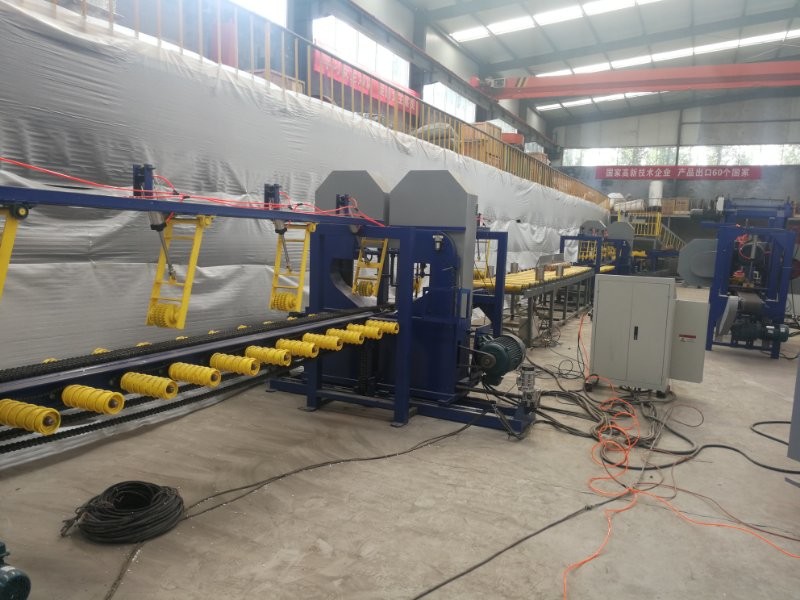

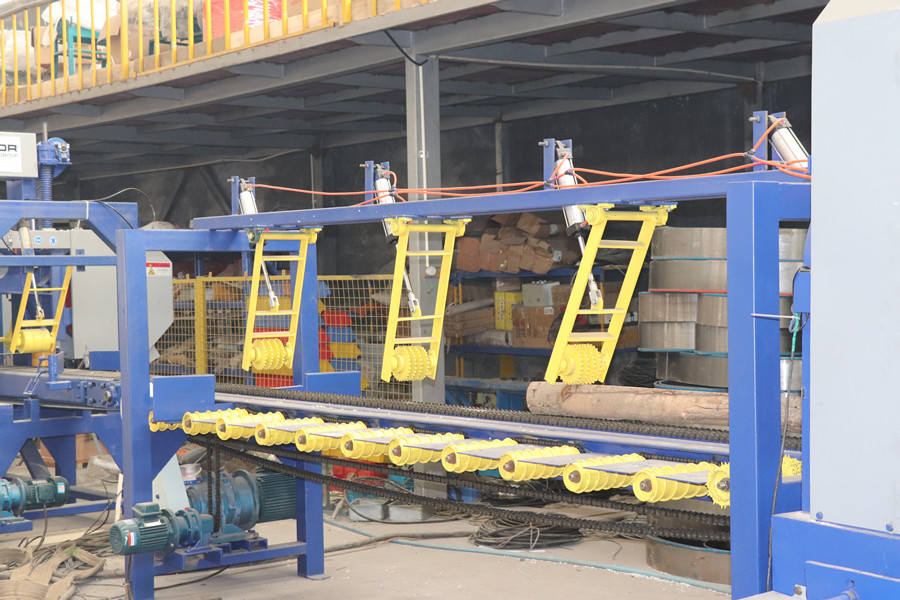

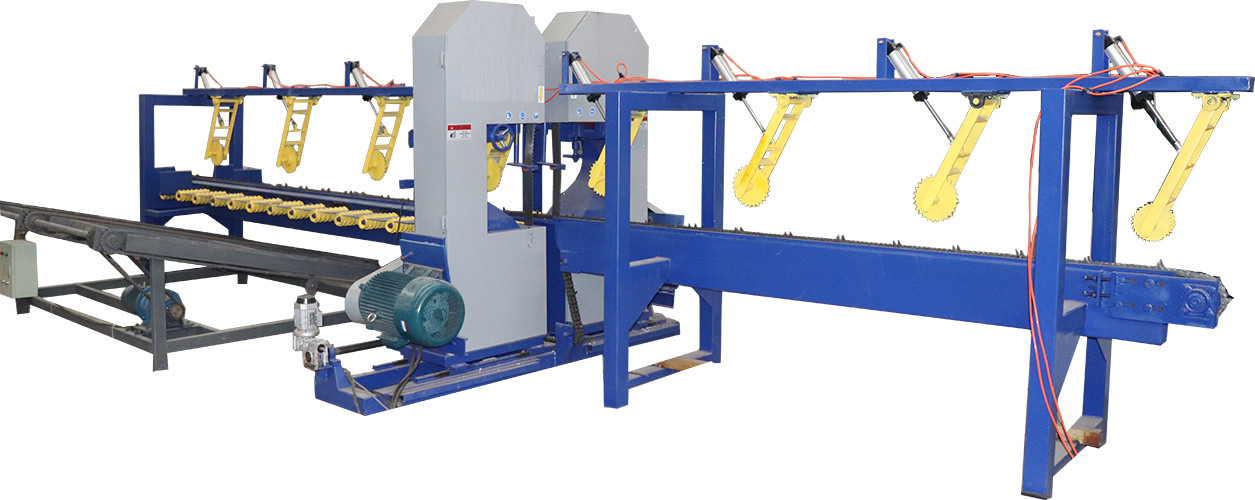

Photos
