Wood Shaving Machine Italy/Wood Shaving Machine For Animal Bedding

Place of Origin shandong province, China
Brand Name SH
Certification ISO9001
Model Number SHBH500-2,SHBH500-4,SHBH500-6
Minimum Order Quantity 1 SET
Price US $3,800 - 13,500 / Set
Packaging Details wooden pallet or iron frame packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Processing Max. Wood Length 1400mm Processing Max. Wood Width 500mm
Bucket Length 1500mm Blade Quantity 24pcs Or 16pcs
Production Capacity 1500kgs/hour Application Bedding Chicken Or Poultry Farms, Horses
Leave a Message
Product Description

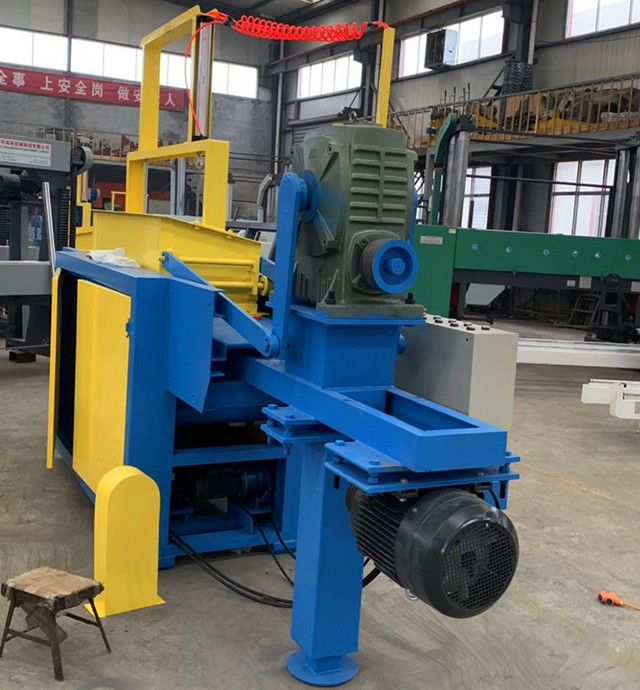

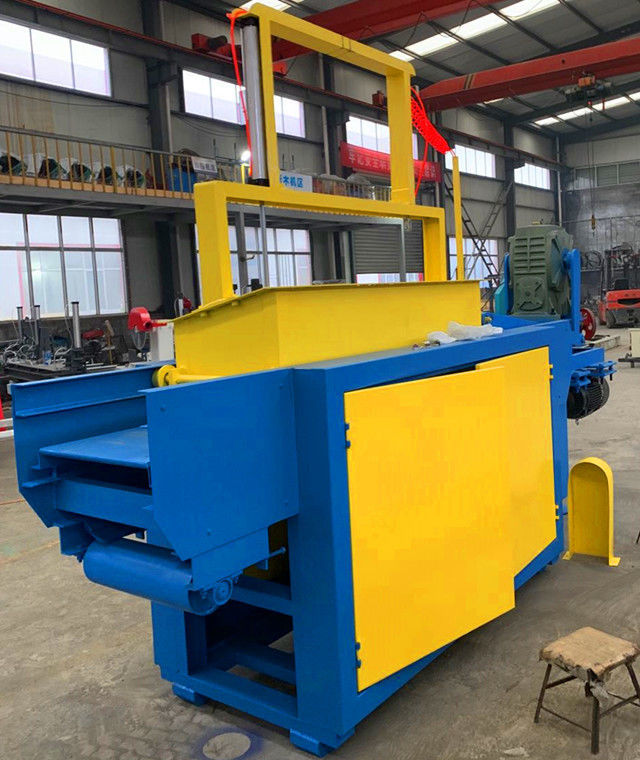

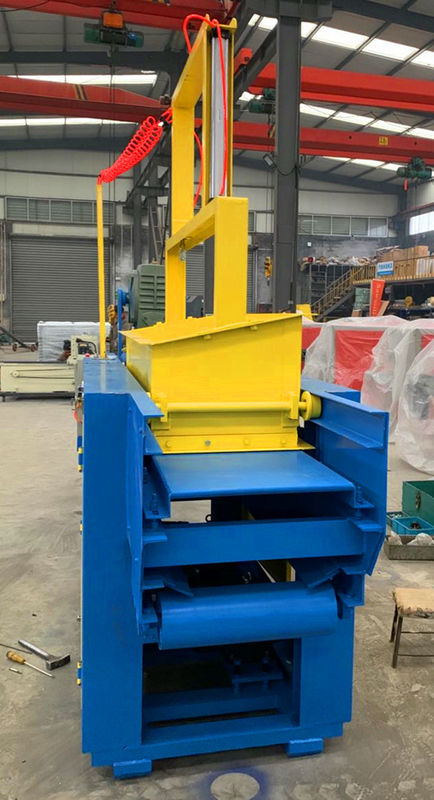

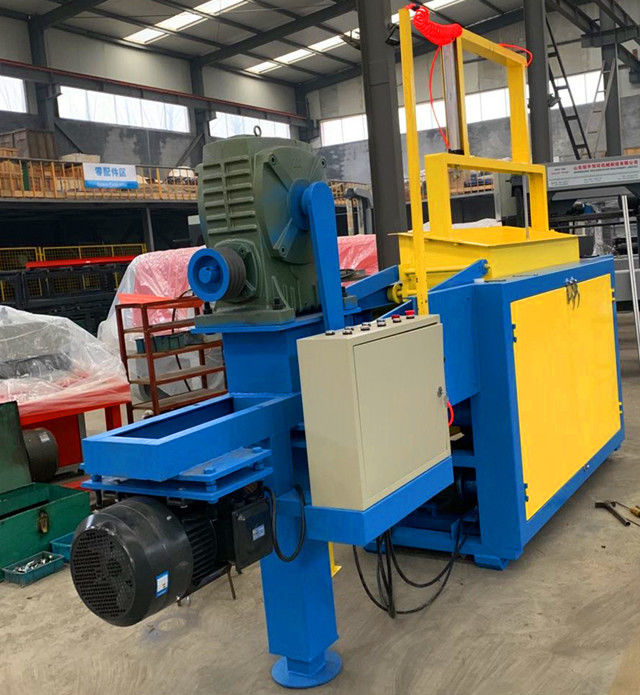

Wood Shaving Machine

  • Processing raw materials :​Process wood sticks,twigs,branches,wood scraps into shaving.
  • Adjust the size and thickness of the wood shaving.
  • It is the material for Plywood,furniture or paper factory.
  • Add as filler to prevent damage when transport some fragile items.
  • Use as nest shavings filler in poultry or animal breeding.



Working video link : https://youtu.be/hYl98MumWqI

video link : https://youtu.be/Ls9bCIdzzpU



Technical Specifications:

  • processing length: 1400mm
  • processing width:500mm
  • capacity: 1500kgs/hour
Model SHBH500-2 SHBH500-4 SHBH500-6
Processing wood max. length(mm) 800 1400 1400
Processing max. width/diameter(mm) 500 500 500
Shaft quantity 2 4 6
Blade (pcs) 8 16 24
Motor speed (rpm) 3500 3500 3500
Bin length (mm) 800 1400 1400
Total Motor power (kw) 10.5KW 23.25KW 30.75KW
Shaving depth (mm) 0.2-1 0.2-1 0.2-1
Shavings output 500KG/H 1000KG/H 1500KG/H
Machine weight 950kgs 1800kgs 2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;
