MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine

MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine

    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
    • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
  • MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine

    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO9001
    Model Number: MJ3212-Z5000,MJ3212-Z3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $19,900 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: Band Saw
    Usage: Woodworking Warranty: 12 Months
    Cutting Log Maximum Diameter: 1200mm Cutting Log Length: 4m/6meters Or As Customer Need
    Main Motor Power: 37KW Walking: Frequency Variable Speed Adjustable
    Operation: PLC Touching Screen Auto Setworks Wood Grasp: Electric

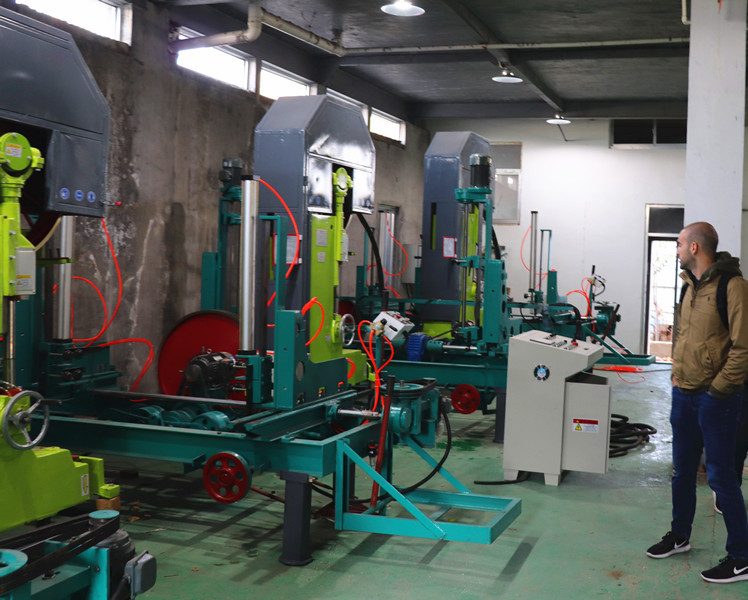

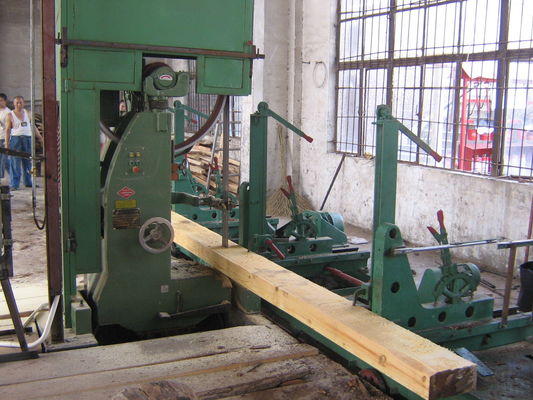

    MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.



    1.MJ3212 CNC vertical band sawmill with automatic log carriage

    Technical data MJ3212-ZD3000 MJ3212-ZD5000
    Saw wheel diameter 1250mm 1250mm
    Maximum sawing log diameter 1200mm 1200mm
    Maximum sawing log length 4meters 6meters
    Main motor 37KW 37KW
    Saw blade L*W*T 8600x150x1.25mm 8600x150x1.25mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Electric Electric
    Carriage walking/advance Frequency converter Frequency converter
    Setting sawn size PLC touching screen PLC touching screen
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 7500kgs 8000kgs



    2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage



    Technical data MJ3212B-ZD3000 MJ3212B-ZD5000
    Saw wheel diameter 1250mm 1250mm
    Maximum sawing log diameter 1500mm 1500mm
    Maximum sawing log length 4meters 6meters
    Main motor 45KW 45KW
    Saw blade L*W*T 9200x150x1.25mm 9200x150x1.25mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Electric Electric
    Carriage walking/advance Frequency converter Frequency converter
    Setting sawn size PLC touching screen PLC touching screen
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 11000kgs 12000kgs



    MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machineMJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machineMJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine
