MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine

Basic Information

Place of Origin:	shandong province
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ3212-Z5000,MJ3212-Z3000

Minimum Order Quantity:	1 SET
Price:	US $19,900 - 50,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1500sets/year

Get Best Price Contact Now

Detail Information

Condition:	New	Type:	Band Saw
Usage:	Woodworking	Warranty:	12 Months
Cutting Log Maximum Diameter:	1200mm	Cutting Log Length:	4m/6meters Or As Customer Need
Main Motor Power:	37KW	Walking:	Frequency Variable Speed Adjustable
Operation:	PLC Touching Screen Auto Setworks	Wood Grasp:	Electric

Product Description

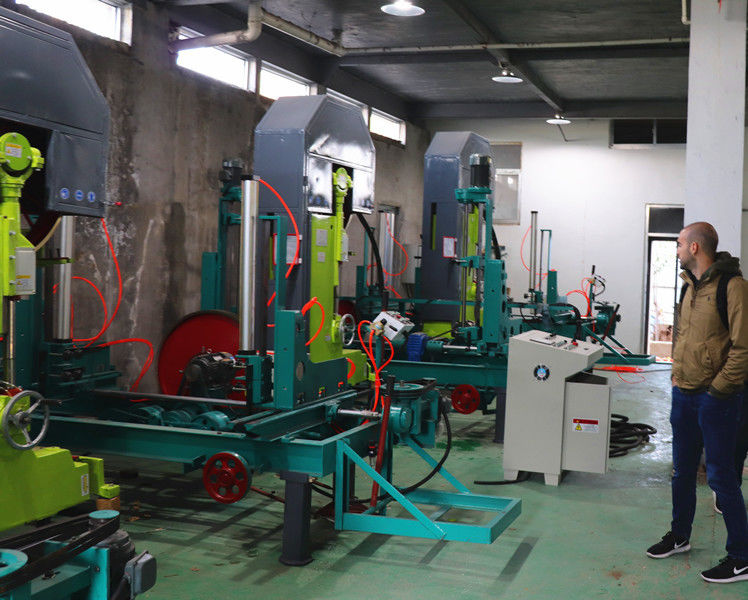

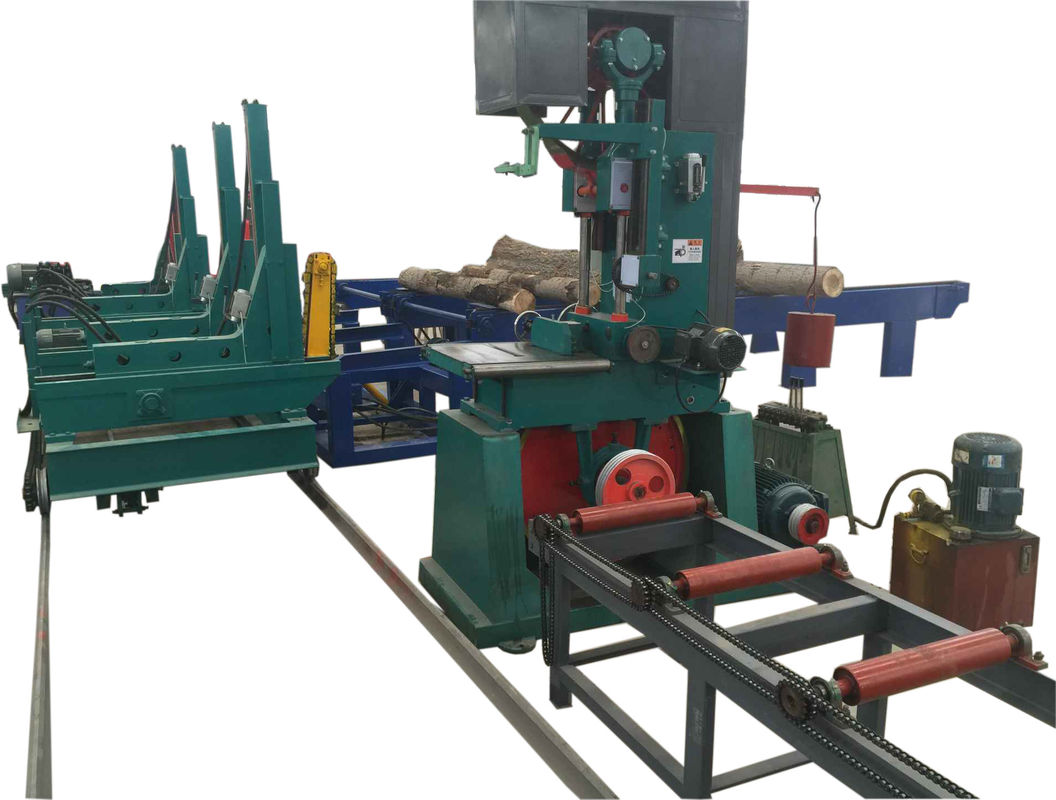

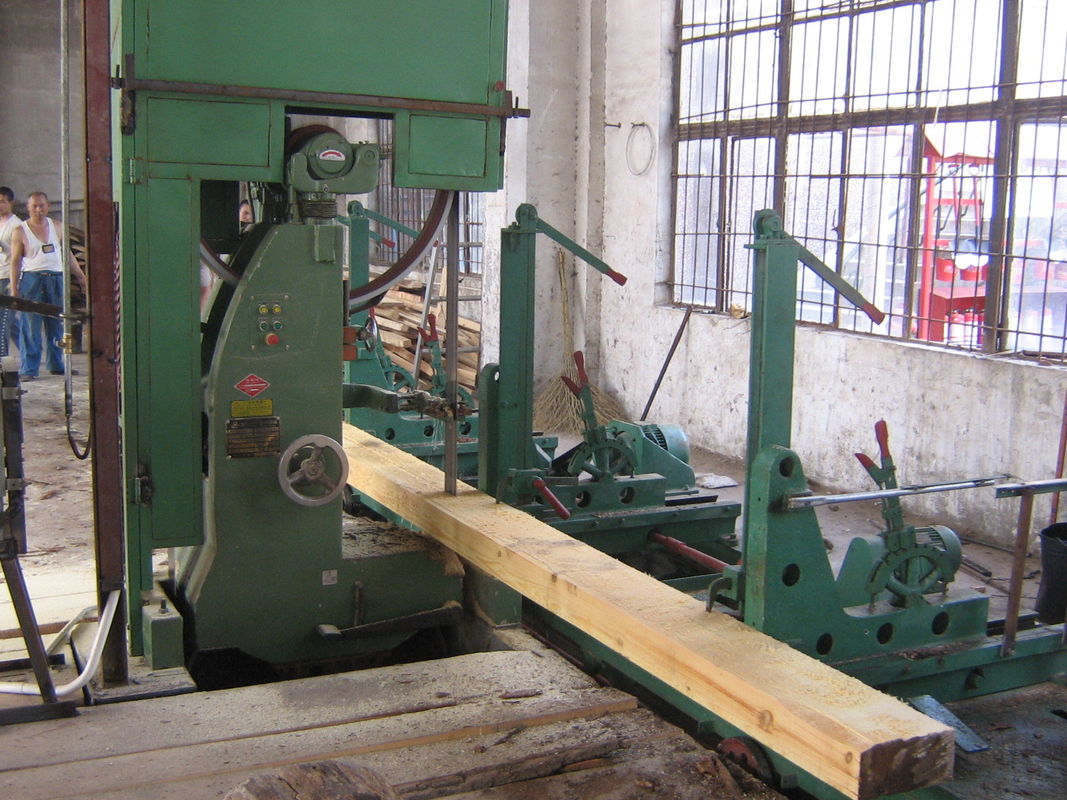

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical data	MJ3212-ZD3000	MJ3212-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1200mm	1200mm
Maximum sawing log length	4meters	6meters
Main motor	37KW	37KW
Saw blade LWT	8600x150x1.25mm	8600x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	7500kgs	8000kgs

2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-ZD3000	MJ3212B-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs

MJ3212MJ3210 vertical band SAW sawmill with CNC carriage automatic wood cutting machine 0
