MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage

MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage

    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
    • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
  • MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage

    Product Details:

    Place of Origin: Shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: MJ3310-Z5000,MJ3310-Z3000, MJ3310-D5000, etc

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $5,000 - 50,000 / Set
    Packaging Details: container loading
    Delivery Time: within 15 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Condition: New Name: Wood Cutting Band Saw Machine
    Type: Band Saw Power(W): 22kw To 50kw
    Warranty: 12 Months Application: Wood Working,Furniture Factory
    Keyword: Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support

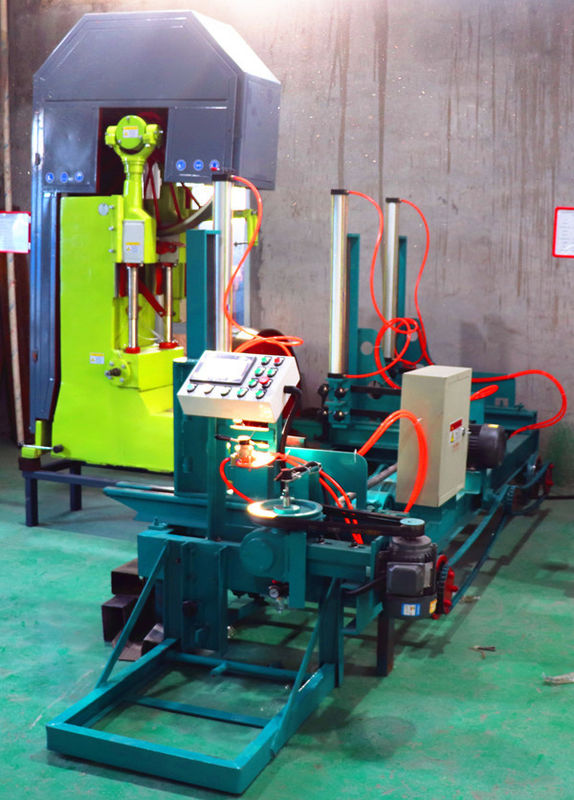

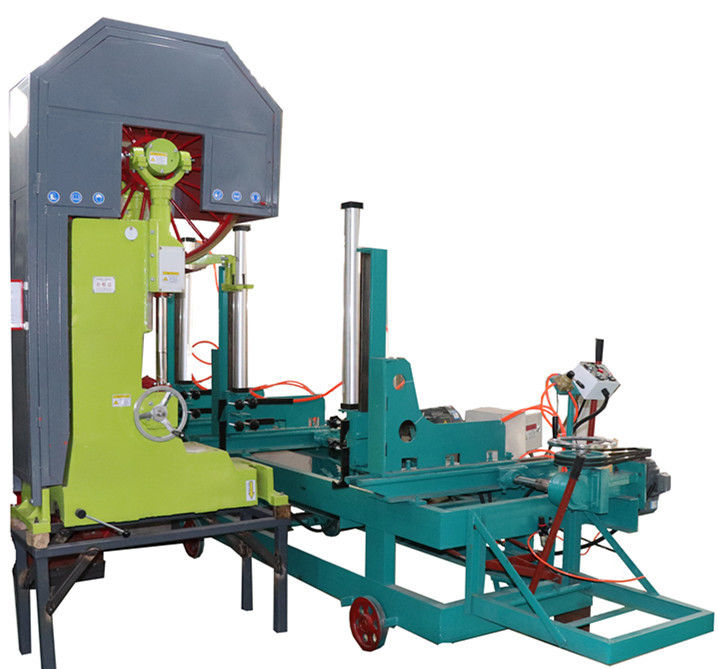

    Vertical Band Sawmill With CNC Log Carriage

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.



    Technical Specifications:

    Technical data MJ3310-DD3000 MJ3310-DD5000
    Saw wheel diameter 1070mm 1070mm
    Maximum sawing log diameter 1000mm 1000mm
    Maximum sawing log length 4meters 6meters
    Main motor 30KW 30KW
    Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Manual Manual
    Carriage walking/advance Electric Electric
    Setting sawn size Electric Electric
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 4500kgs 6000kgs

    MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage

    Technical data MJ3310-ZD3000 MJ3310-ZD5000
    Saw wheel diameter 1070mm 1070mm
    Maximum sawing log diameter 1000mm 1000mm
    Maximum sawing log length 4meters 6meters
    Main motor 30KW 30KW
    Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
    Carriage clip stake quantity 3sets 4sets
    Wood grasp mode Electric Electric
    Carriage walking/advance Frequency converter Frequency converter
    Setting sawn size PLC touching screen PLC touching screen
    Carriage length 3meters 5meters
    Rail length 10meters 18meters
    Weight 4500kgs 6000kgs



    MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage

    MJ3210/MJ3310 Wood cutting machine price vertical band saw machine with carriage
