Detail Information

Name:	Pallet Making Machine	Pallet Width:	800-1500 Mm
Pallet Length:	1300 Mm Max.	Capacity:	210-230 Pallets /8hours
Operating Pressure:	Up To 8 Bar	Number Of Coil Nail Guns:	1pc
Weight:	440kgs	Qty Of Stringers:	2, 3, 4, Or 5 Stringers
Pneumatic Clamp:	Easily Centers The Blocks	Pneumatic Lift:	Raises Pallet To Minimize Operator Lifting
After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training	Key Words:	Wood Pallet Machine, Pallet Board And Block Nailing Machine

Product Description

Wood Pallet Maker Pallet Nailing Machine, Pallet Making Machine with coil nails 0

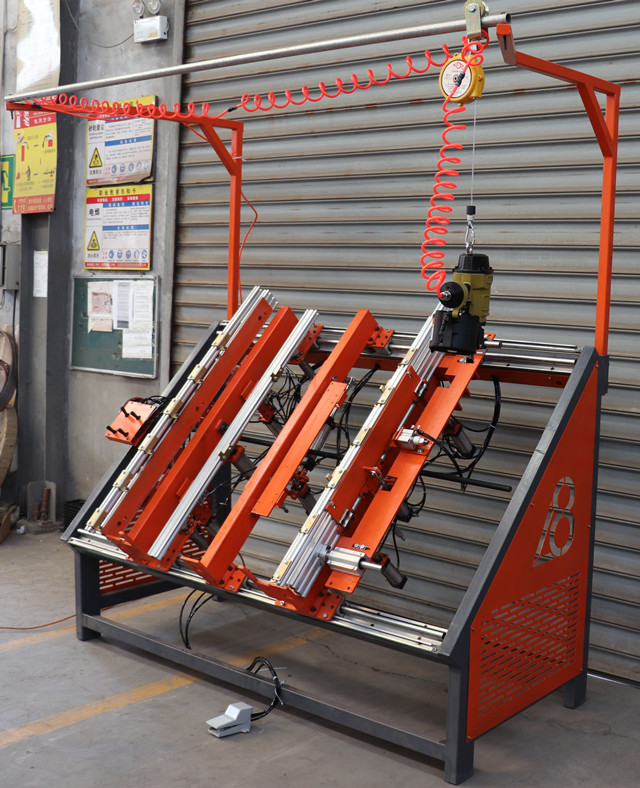

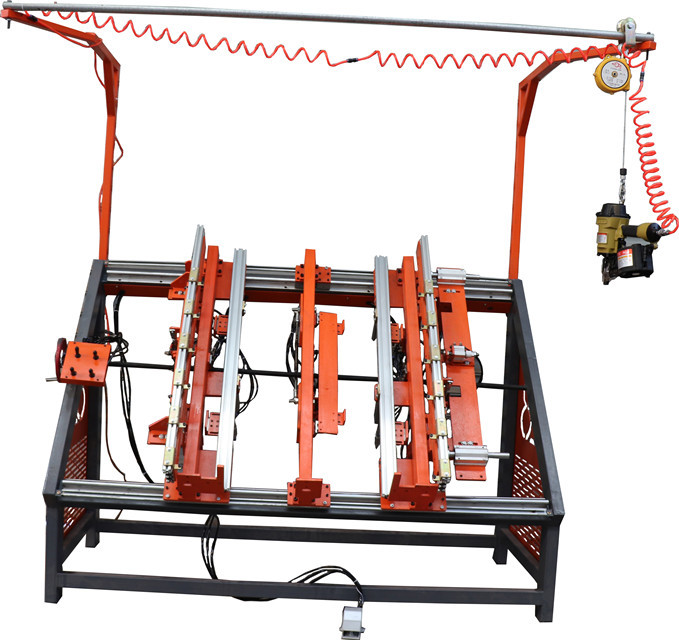

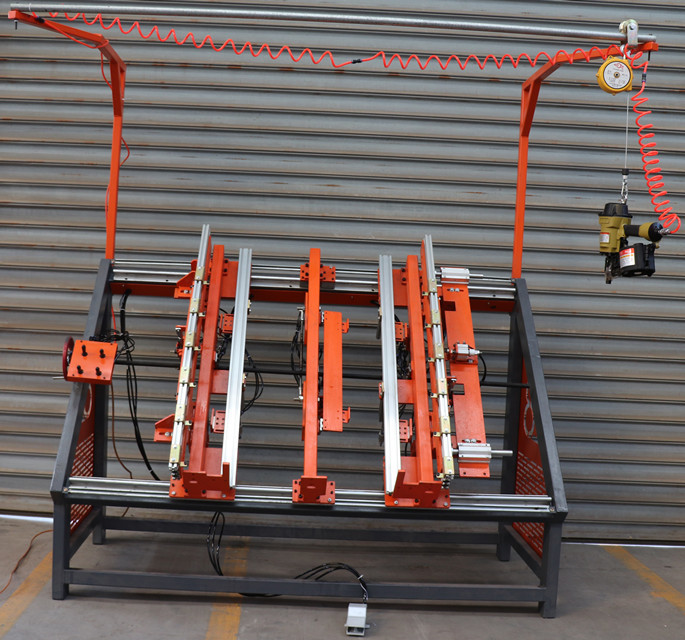

A universal pneumatic nailing table, Pneumatico PT-1500 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

Weight: 440 kg
Operating pressure: up to 8 bar
Material: structural steel

Dimensions of the pallets:

Width: 800 – 1500 mm
Length: 1300 mm

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Wood Pallet Maker Pallet Nailing Machine, Pallet Making Machine with coil nails 1

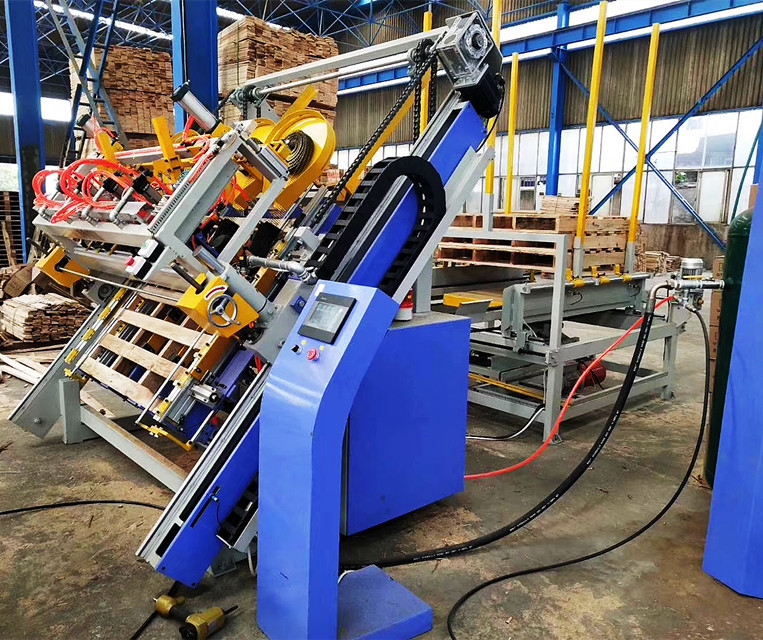

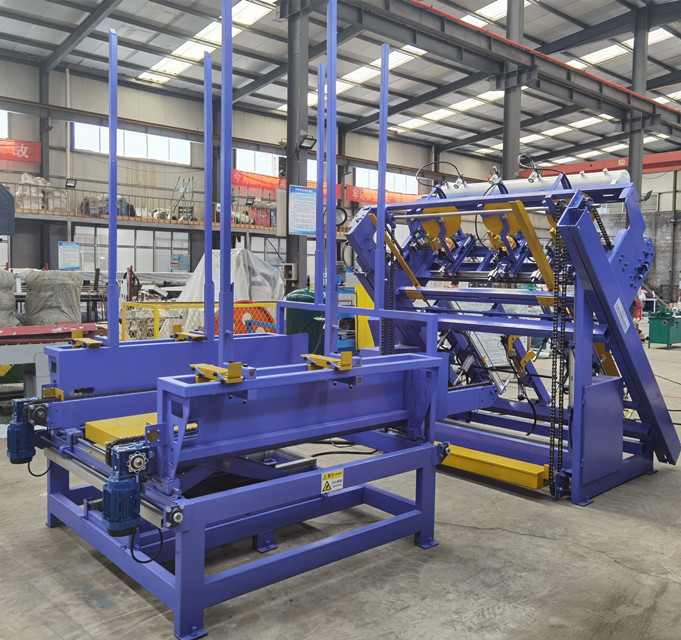

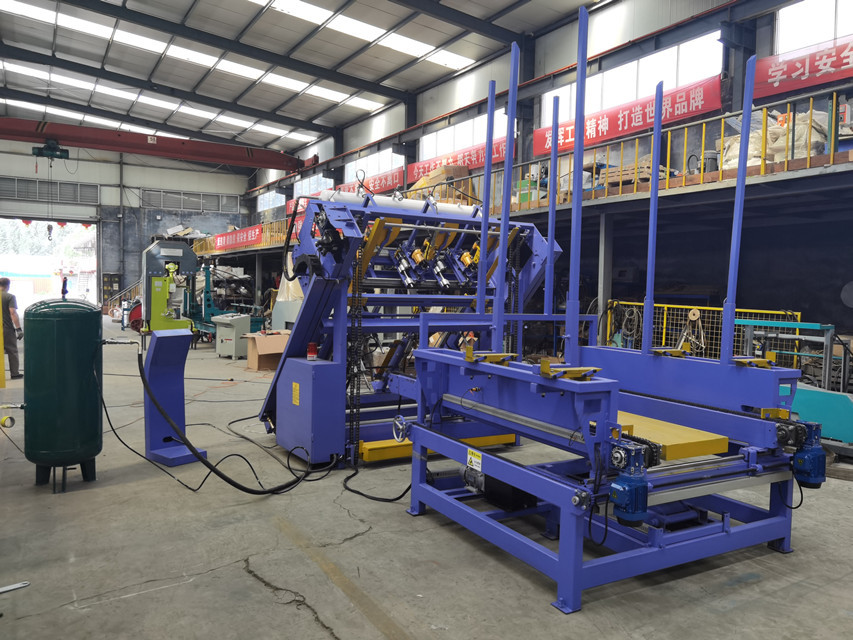

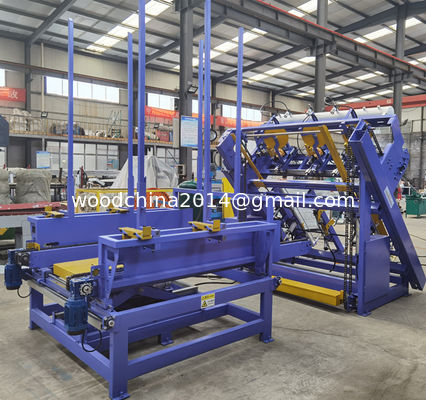

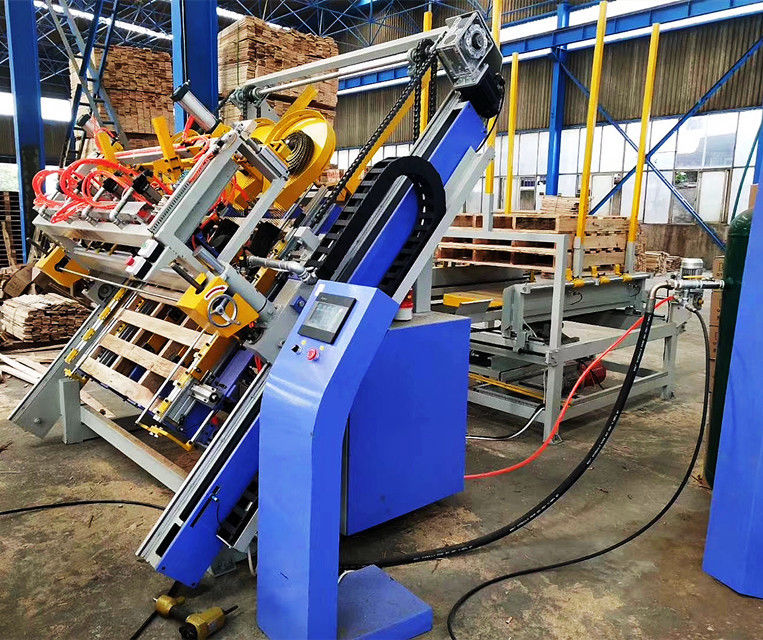

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AS 1250- 3 nail guns type
			AS1250- 4 nail guns type

			Nailing Range
			800—1250mm
			800—1250mm

			Operation ,Automatic
			PLC touching screen
			PLC touching screen

			Nail capacity
			3000 nails/large coil nails
			3000 nails/large coil nails

			Number of Coil Nail Guns
			3
			4

			Air pressure
			0.8MPA
			0.8MPA

			Receiving
			Automatic palletizing (pneumatic)
			Automatic palletizing (pneumatic)

			Production prodedure
			Manual feeding/automatic nailing/automatic palletizing

			Pallet type
			American tray , European tray
			American tray, European tray

			Weight
			1000kg
			1200kg

			Palletizer equipment parameters

			Processing size
			800-1250mm pallet nailing machine supporting

			Air compressure
			0.8MPA

			working speed
			4-8 seconds/each

			Motor power
			1.5KW/3phase

			Controlling
			Integrated supporting of pallet nailing machine production line

			Production mode
			Automatic feeding of pallet nailing machine

Related Products
Pallet Notcher
https://www.chinawoodsawmill.com/sale-31191544-double-slot-wood-pallet-notcher-double-head-pallet-notcher-notching-machine-for-wood-pallet.html

Multi Blades Rip Saw
https://www.chinawoodsawmill.com/sale-34529699-log-multi-blade-rip-saw-circular-saw-blade-wood-cutting-machine-multi-ripsaw-machine.html

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PT-1500,AS1250- 3 ,AS1250- 4

Minimum Order Quantity:	1 SET Pallet making machine
Price:	US $4,200 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine
