Detail Information

Name:	Circular Swing Blade Sawmill Wood Saw Machine	Application:	Sawing Round Logs Into Square Timber
Max. Sawing Width:	2000mm	Max. Sawing Height:	1500mm
Max. Sawn Size, Widh X Thickness:	300mm X 210mm, 210mmx210mm	Max. Sawing Length:	6meters Or Extend Sawmill Track
Saw Head Walking Forward/back:	Frequency Speed Adjustable, 3kw	Overall Size:	3700 X 2100 X 2550mm
Main Motor:	22kw , 15kw	Blade Moving Right/left:	1.5kw, Automatic
After-sales Service:	Video Technical Support, Spare Parts	Guarantee:	One Year
Highlight:	2000mm Angle Cutting Table Saw , 2m Angle Cutting Table Saw Mill , 2000mm Timber Wood Cutting Machine

Product Description

Angle cut saw timber wood machine,Circular swing blade sawmill with rails

Double Saw blade Angle Circular Swing Blades SawMill

The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
The angle circular saw is a machinethat:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

Max. sawing timber size : 300mm x 210mm
Carbide circular blade diameter : 760mm , 546mm
Log feeding : frequency auto feeding

Technical Parameter	DS700	DS1300	DS2000
Max Sawing Wood Diameter	700MM	1300MM	2000MM
Max Sawing Wood Size	150*150MM	210 * 210MM	300*210MM
Saw Blade Diameter	2*424MM	2*546MM	1760mm 1546mm
Motors Power(KW)	11KW2, 1.5KW2, 2,2kw	15KW2, 1.5KW1,2.2KW*1, 3kw x 1	22KW1,15KW1 2.2KW*1, 3kw x 1, 1.5kw x 1
Max Swing Wood Length	6 Meters	6 Meters	6 Meters
Machine weight	1500KG	2000KG	3000KG

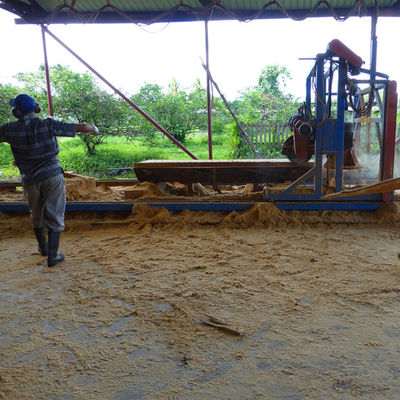

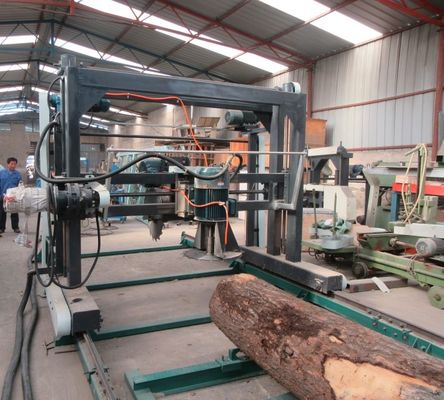

Photos:

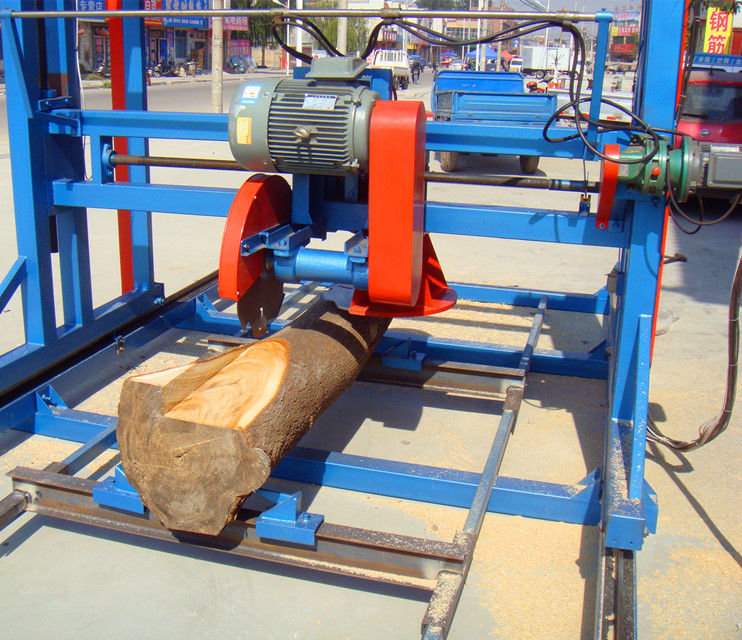

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 0

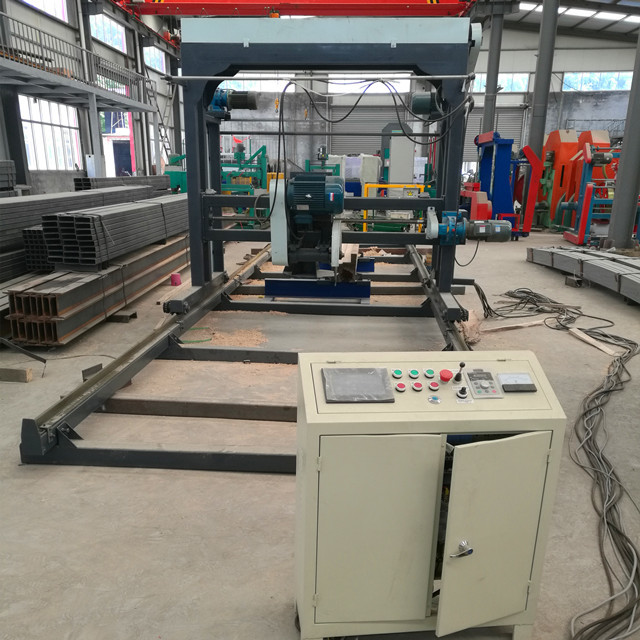

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 1

Hot Selling Products:

Twin blades sliding table sawmill -manual type

model	TT1500	TT2000	TT3000
Cut log max. diameter	400mm	400mm	400mm
Cut length	1.5m	2m	3m
Blade diameter	500mm	500mm	500mm
Main Motor power	7.5KW*2	7.5KW X 2 sets	7.5KW X 2 sets
Track length	3000mm	5000mm	6000mm
Log clamping	Pneumatic up/down	Pneumatic up/down	Pneumatic up/down
Carriage Rail Mode	Linear Axis	Linear Axis	Linear Axis
Feeding mode	Manual	Manual	Manual
Setting size mode	Manual	Manual	Manual

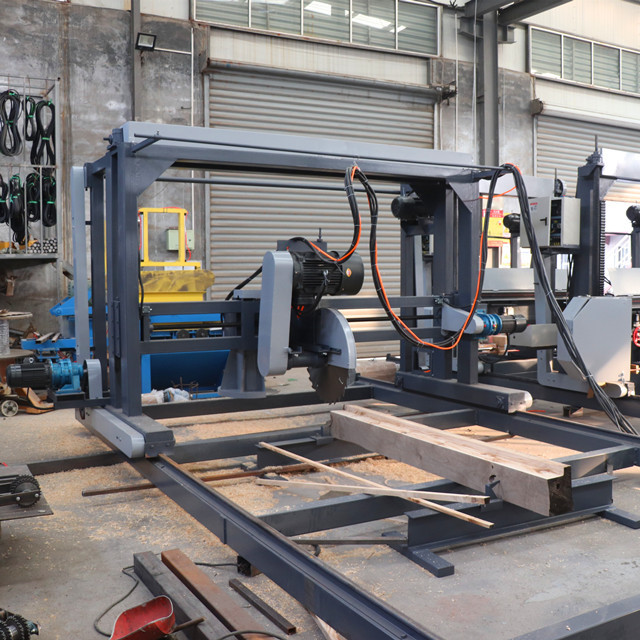

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 2

Twin blades sliding table sawmill -computer type

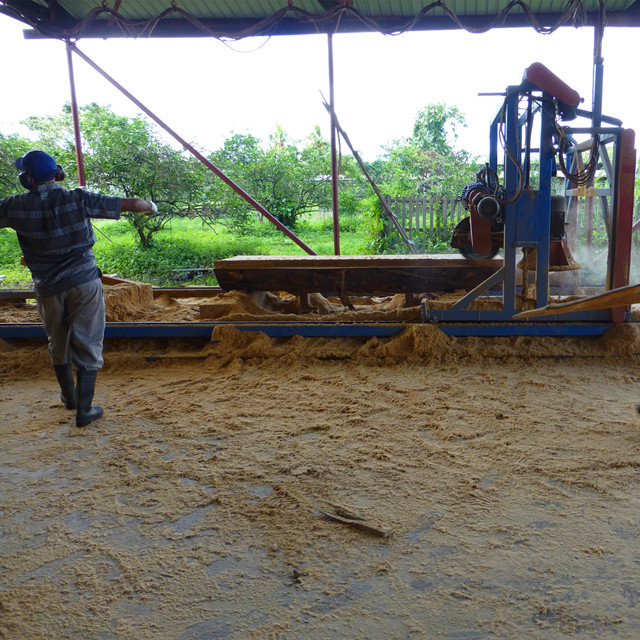

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 4

MJ109 Woodworking Circular Table Saw

Specification	MJ109
saw blade diameter	900mm
Working table size	1500mm×800mm
Max Sawing Wood Thickness	360mm
Height from table to ground	800mm
Motor power	18.5KW/380V
Rotation speed	1500r/min
Overall size	1900x1000x1350mm
Weight	630kgs

Diesel type

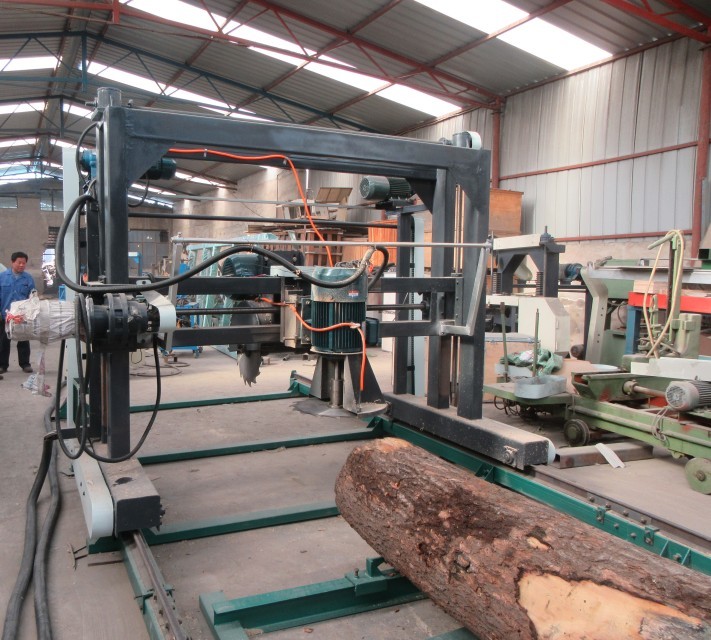

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 5

Electrical type

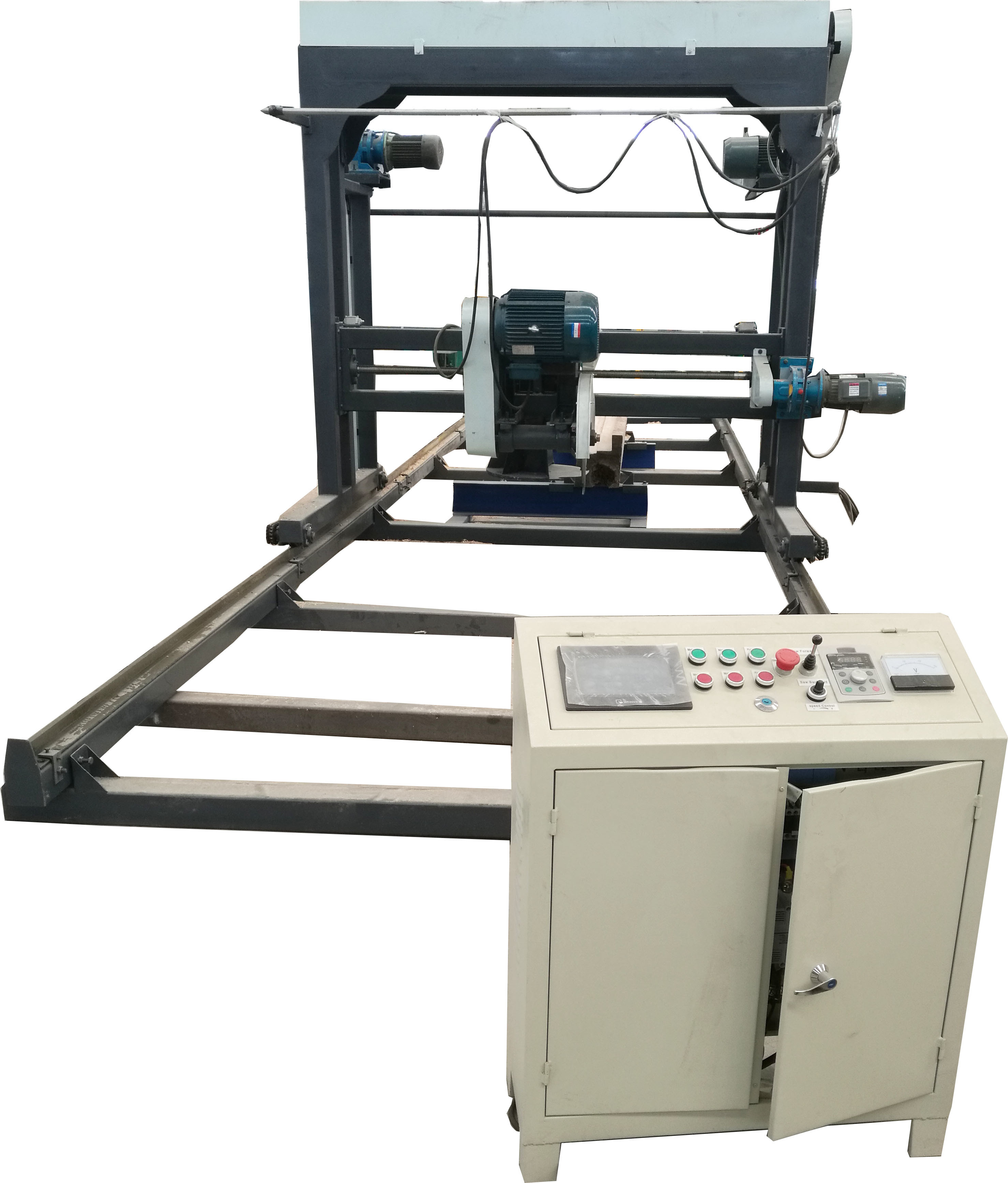

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 6

Wood Chipper

Introduction:

1. Processing log diameter : 50-300mm

2. End chips size :20-40mm

3. Production capacity : 7-15tons/hour

4. We can also do production line design as customer needs

Technical Data

Model	SH216	SH218
Feeding Inlet	240*540mm	310*680mm
Rotor Diameter	650mm	800mm
Blade Quantity	2 or 3	2 or 3
Motor Power	55KW	110KW
In Feed Conveyor	6000mm	6000mm
Out Feed Conveyor	10000mm	10000mm
Capacity	7-10T/H	9-13T/H
Weight	4070KG	7500KG

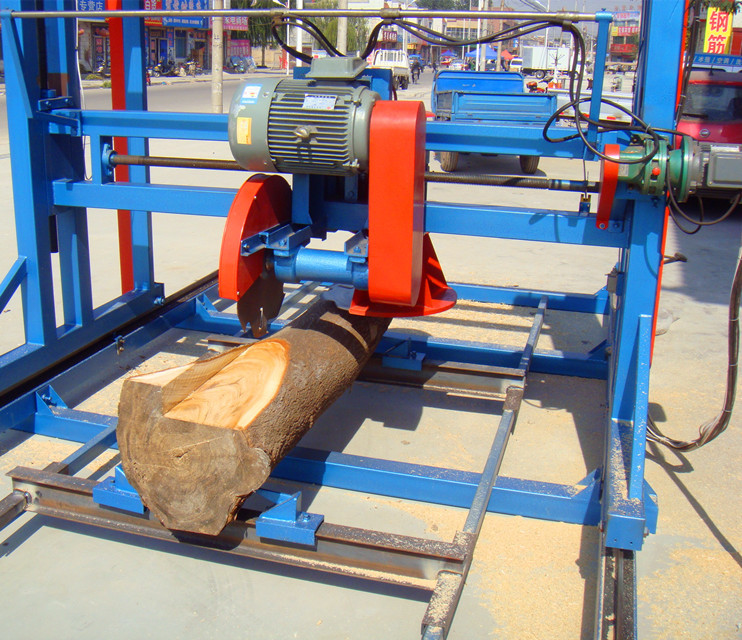

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 7

2000mm Angle Cutting Table Saw Mill Timber Wood Cutting Machine With Rails 8

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DS700, D1300,DS2000

Minimum Order Quantity:	1 SET Circular swing blade sawmill
Price:	US $6,700 - 14,800 / Set
Packaging Details:	container loading of wood saw machine
Delivery Time:	within 15 days
Payment Terms:	T/T, Western Union
Supply Ability:	500sets/year
