Pallet Making Machine, Pallet nailing table, wood pallet corner cutter

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number WPN-1, WPN-2, WPC-7045,AWPN-1300,etc
Minimum Order Quantity 1 SET pallet making machine
Price USD2800-23200/SET
Packaging Details wooden pallet or iron frame packings
Delivery Time within 20 days
Payment Terms T/T, Western Union
Supply Ability 100sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pallet Making Machine Motor Power 2kw
Working Mode Automatic Feeding And Stacking Operational Mode Pneumatic Operation
Air Pressure 0.8MPA Nail Gun Speed 7 Times /second.
Production Efficiency 1-2pcs /min Number Of Nail Guns 3P OR 4P
Apply A Nail Less Than 90mm Warranty 1 Year
After-sales Service Video Technical Support, Spare Parts
Leave a Message
Product Description

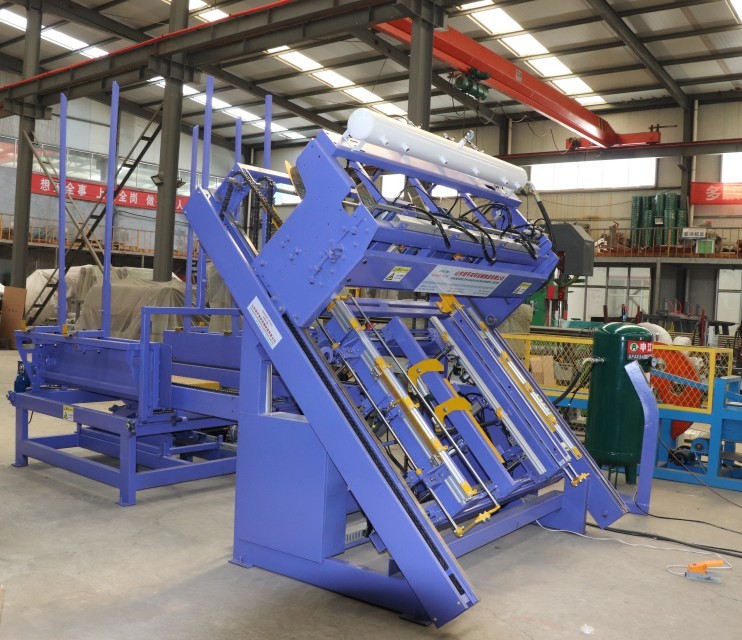

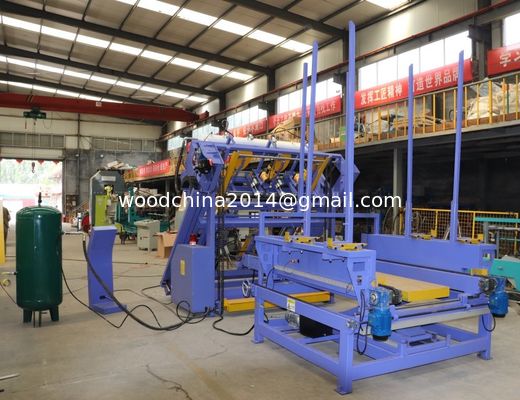

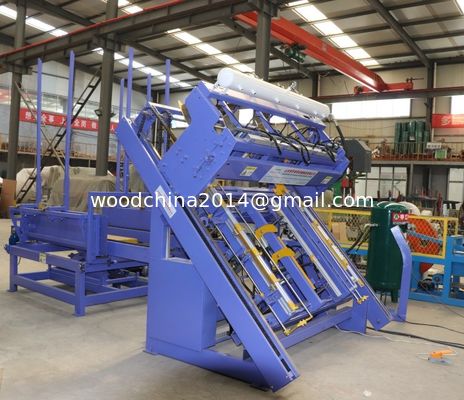

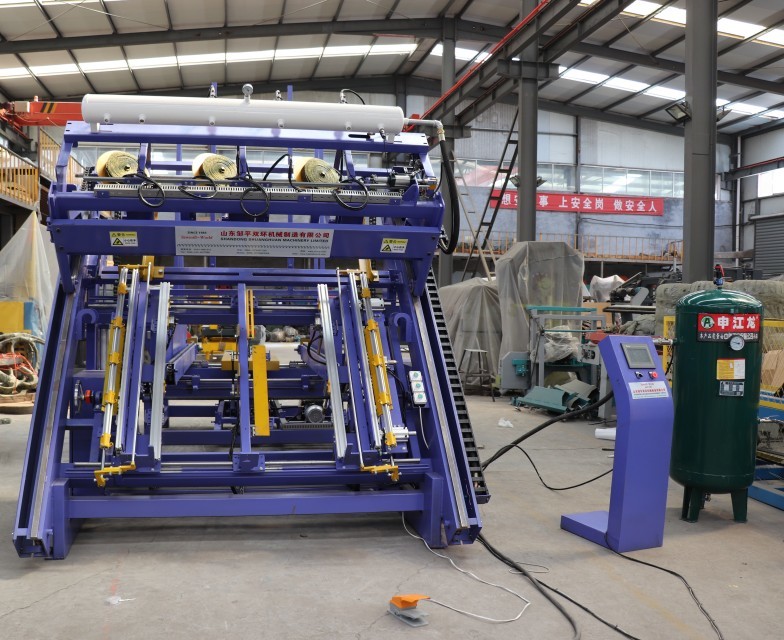

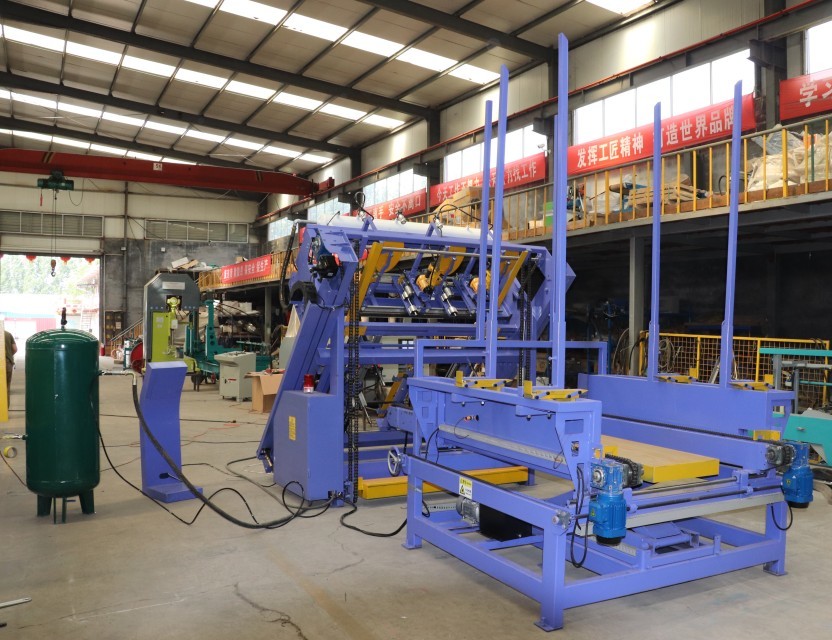

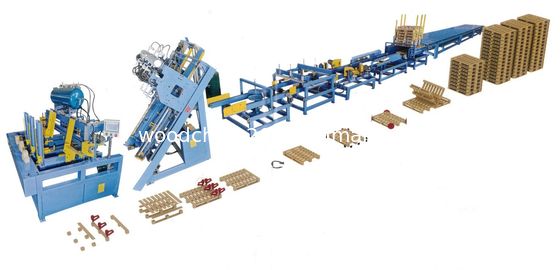

Automatic wooden pallet nailing machine

Model AWPN-1300
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 220V/ 2kw Servo motor
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Weight 2000kg
Size Host machine 1660*1970*2217mm
Stacking 2945*2054*1410



Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 0

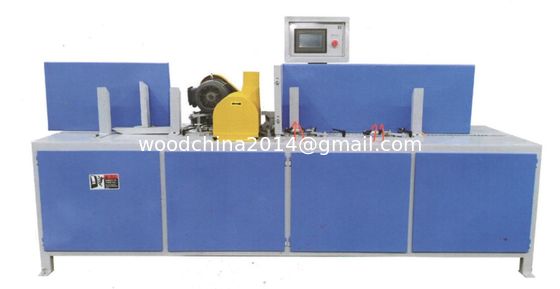

wood pallet corner cutter



Model WPC-7045
Power 4KW
Voltage 380V 50HZ 3phase
Cutter type Round cutter or straight cutter,choose one
Working width 800-1350mm
Working height 70-170mm
Productivity 700-950pc/8h
Working pressure 0.6-0.7Mpa
Machine dimension 1850mm*1150mm*1550mm
Machine weight About 500kg

Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 1

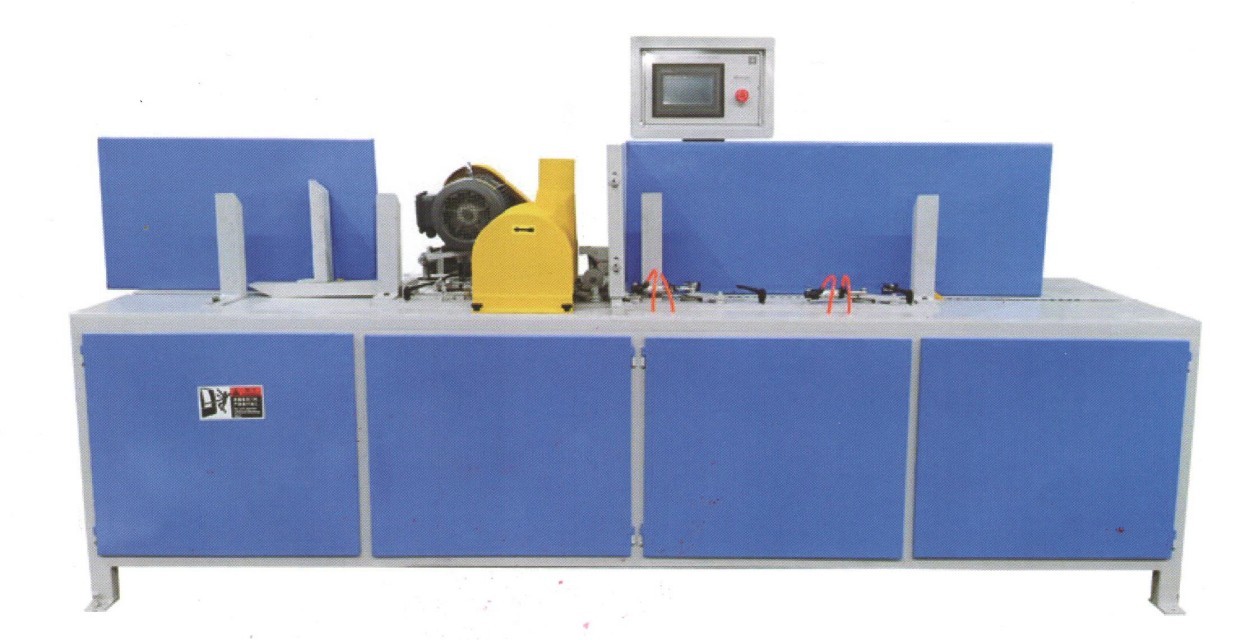

Euro pallet wood chamfer machine

Model EPWC-7050
Convey servo motor 1kw
Hydraulic motor 2.2kw
Total motor 7.2kw
Voltage 380v 50Hz 3phase
Cutter type 45° V milling cutter, left and right
Working length 600-1500mm
Working thickness 17-35mm
Working width 80-150mm
Productivity 500-700pc/h
Hydraulic pressure 0.4-0.5Mpa
Control system Siemens
Machine dimension 4450*800*1400mm
Packing dimension 3220*920*1760mm
Machine weight 1040kg

Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 2

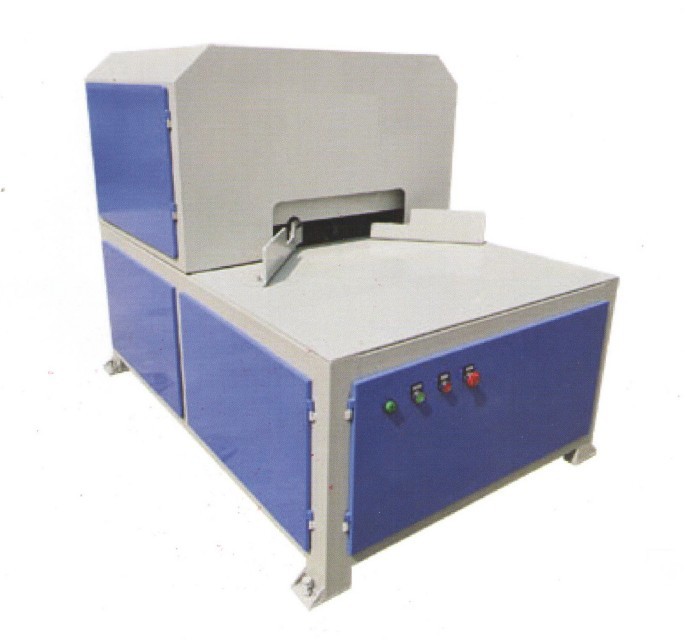

Wood block multi-blade saw



Model BM-1250
Cutting Length 1250mm
Cutting Thickness 100mm
Cutting Width 200mm
Saw Diameter 355mm
Motor 30kw
Weight 1600kg

Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 3

Slot Milling Machine /Notcher Pallet Machine

  • Making slots on the wood boards for pallet production
  • Technial data
Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.


Single blade type
Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 4
Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 5
Double blade type
Pallet Making Machine, Pallet nailing table, wood pallet corner cutter 6
