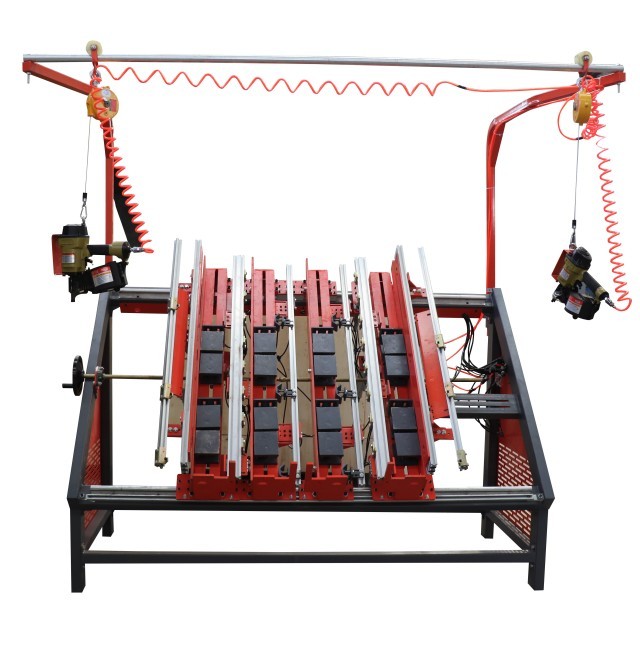

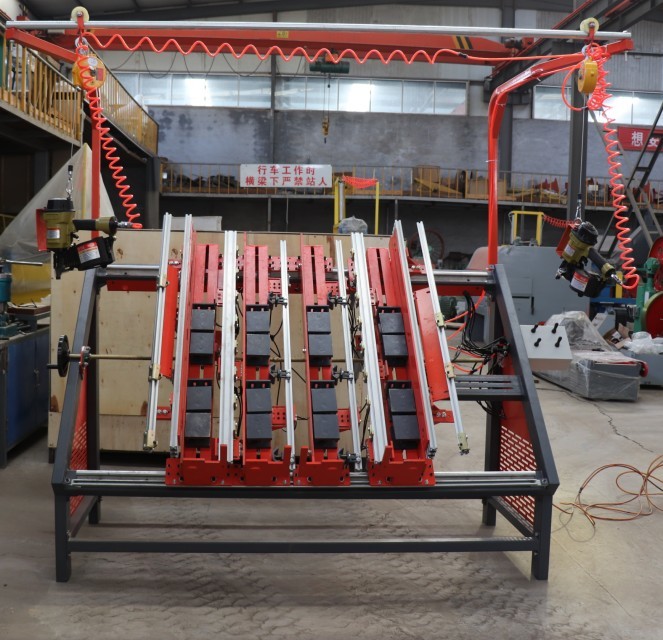

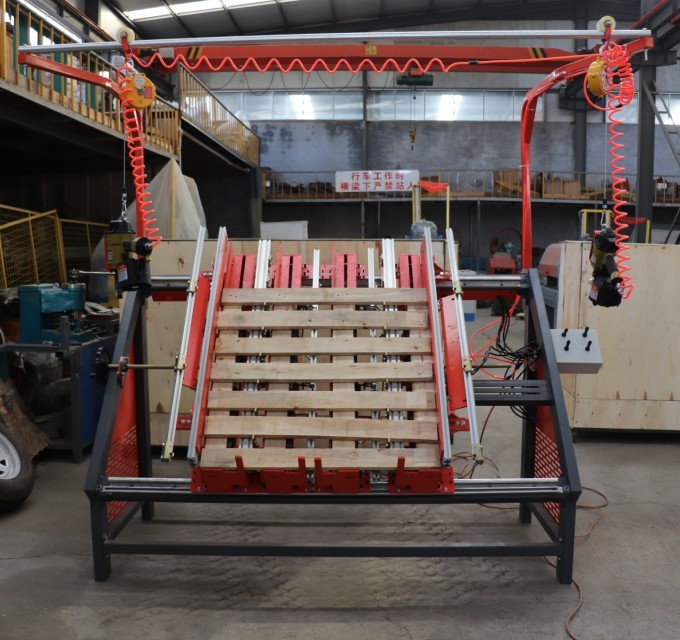

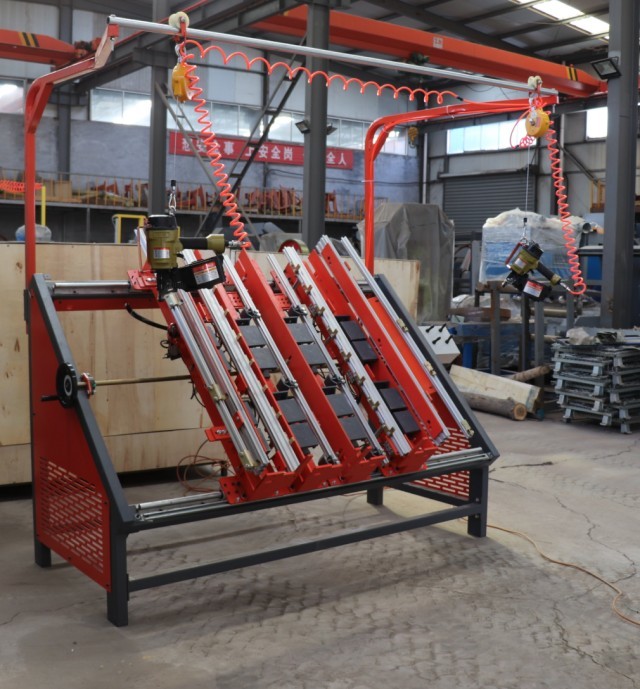

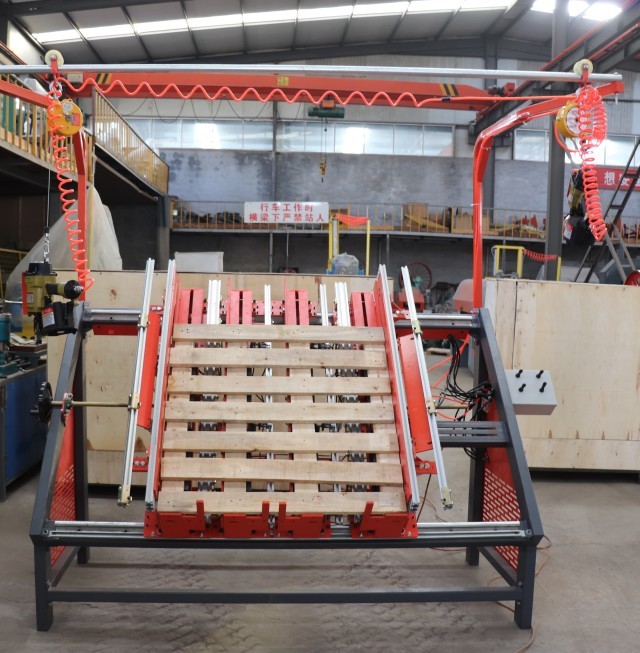

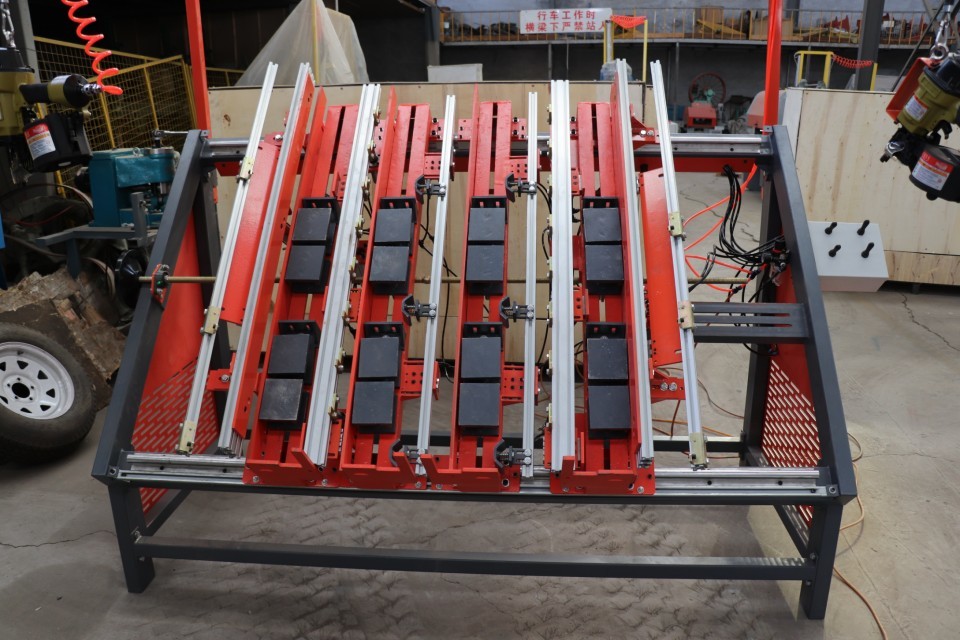

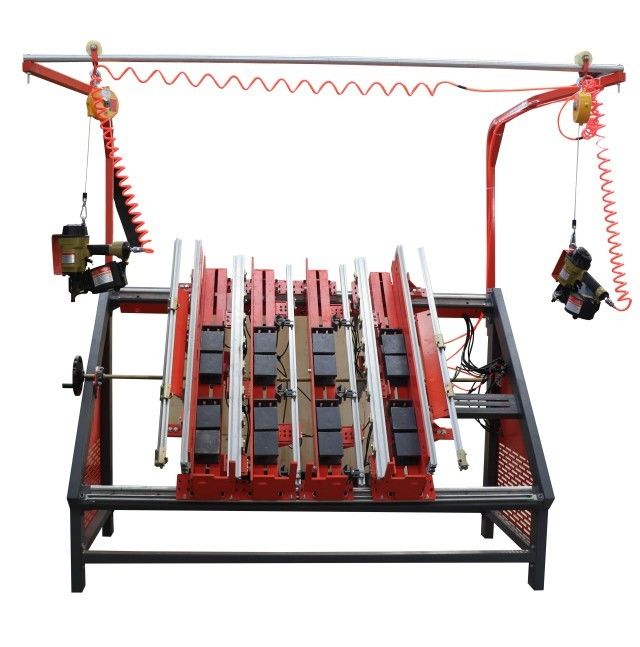

PT-1600 Wood Pallet Nailing Machine for Euro Pallets, Wood Pallet Machine

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number PT-1600
Minimum Order Quantity 1 SET Pallet nailing machine
Price US $4,200 - 21,500 / Set
Packaging Details container loading of Pallet nailing machine
Delivery Time within 20 days
Payment Terms T/T, Western Union
Supply Ability 1000sets/year of Pallet nailing machine

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pneumatic Pallet Nailing Table Pallet Width 800-1600 Mm
Pallet Length 600-1300mm Capacity 240-320 Pallets /8hours
Operating Pressure 0.8MPA Number Of Coil Nail Guns 2P (CN70、CN55)
Weight 650kgs Qty Of Stringers 2, 3, 4, Or 5 Stringers
Pneumatic Clamp Easily Centers The Blocks Pneumatic Lift Raises Pallet To Minimize Operator Lifting
After-sales Service Provided Online Support,Free Spare Parts,commissioning And Training
Leave a Message
Product Description

A universal pneumatic nailing table, Pneumatico PT-1600 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.



Instruction:

  • Easy to use One operator can build 210-230 pallets within 8 hours
  • Compact design Total footprint 3.3 m² (35.5 ft²)
  • Universal Adjustable worktop allows production of:
  • Pallets on 2, 3, 4, or 5 stringers
  • Efficient Quickly switch to any size pallet
  • Pneumatic clamp Easily centers the blocks
  • Pneumatic lift Raises pallet to minimize operator lifting
  • Overhead roller track Nail guns can move freely during work
  • Bottom template Template to build pallet legs
  • Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
  • Unique Diagonal table adjustment reduces work by 50%
  • Only 2 Allen keys required to adjust the table

Technical specifications:



Model PT-1600
Wood pallet length 600-1300mm
Wood pallet width 800-1600mm
Operational mode Pneumatic operation
Air pressure 0.8MPA
Production efficiency 30-40pcs /h
Number of beams 3p
Number of nail guns 2P (CN70,CN55)
Weight 650kg



Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
Model AS 1250- 3 nail guns type AS1250- 4 nail guns type
Nailing Range 800—1250mm 800—1250mm
Operation ,Automatic PLC touching screen PLC touching screen
Nail capacity 3000 nails/large coil nails 3000 nails/large coil nails
Number of Coil Nail Guns 3 4
Air pressure 0.8MPA 0.8MPA
Receiving Automatic palletizing (pneumatic) Automatic palletizing (pneumatic)
Production prodedure Manual feeding/automatic nailing/automatic palletizing
Pallet type American tray , European tray American tray, European tray
Weight 1000kg 1200kg
Palletizer equipment parameters
Processing size 800-1250mm pallet nailing machine supporting
Air compressure 0.8MPA
working speed 4-8 seconds/each
Motor power 1.5KW/3phase
Controlling Integrated supporting of pallet nailing machine production line
Production mode Automatic feeding of pallet nailing machine
