PT-1700 Wood Pallet Nailing Machine for American Tray, Pallet Making Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | PT-1700 |
| Minimum Order Quantity | 1 SET Pallet nailing machine |
| Price | US $4,200 - 21,500 / Set |
| Packaging Details | container loading of Pallet nailing machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000sets/year of Pallet nailing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Pneumatic Pallet Nailing Table | Pallet Width | 800-1700 Mm |
|---|---|---|---|
| Pallet Length | 600-1300mm | Capacity | 240-320 Pallets /8hours |
| Operating Pressure | 0.8MPA | Number Of Coil Nail Guns | 1P (CN70) |
| Weight | 440kgs | Qty Of Stringers | 3p (or Customized) |
| Size | 2250*980*1900mm | Warranty | 1 Year |
| After-sales Service Provided | Commissioning And Training, Spare Parts |
Product Description

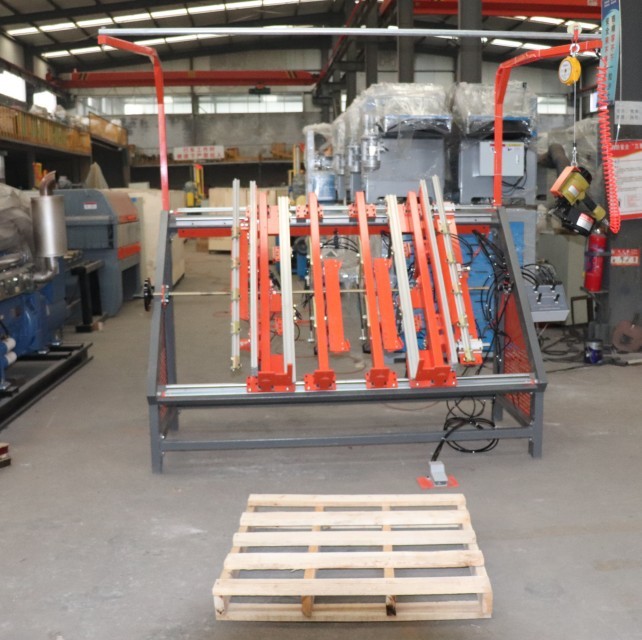

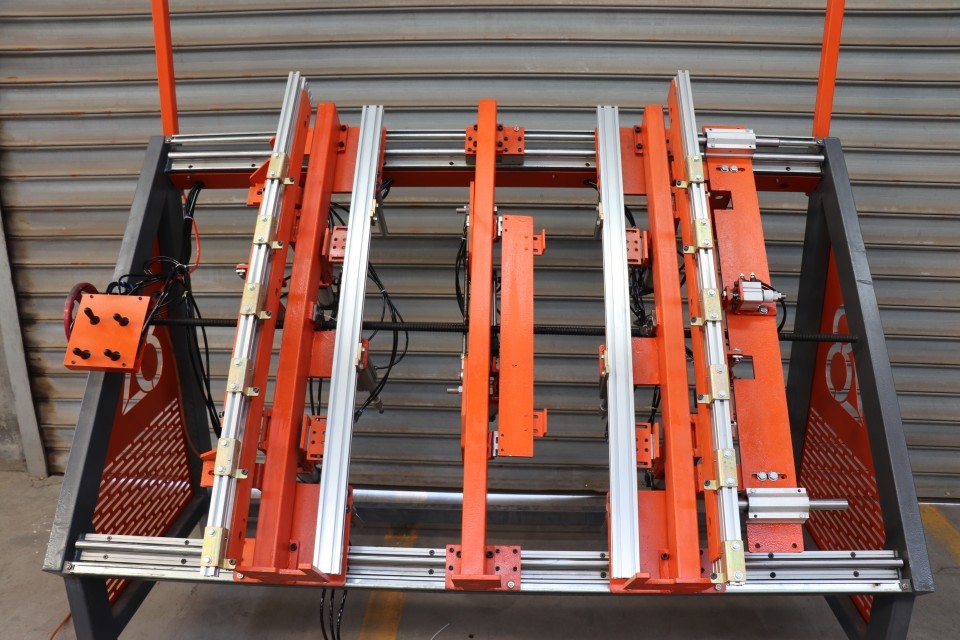

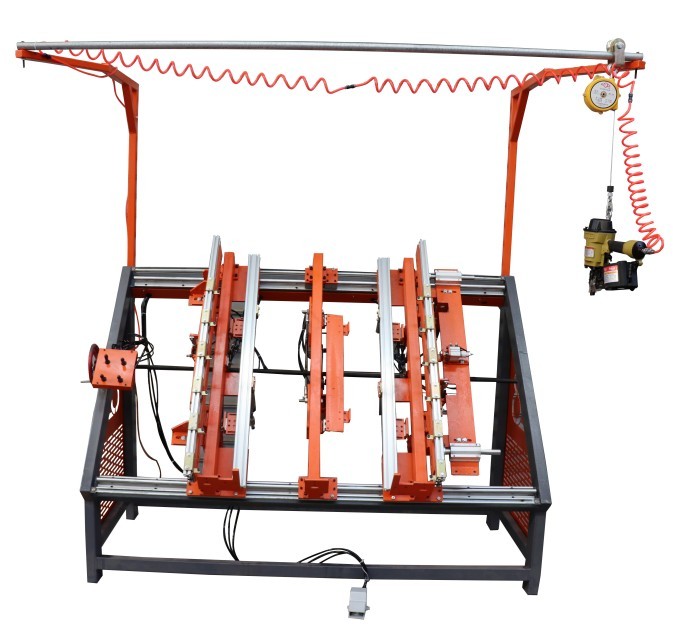

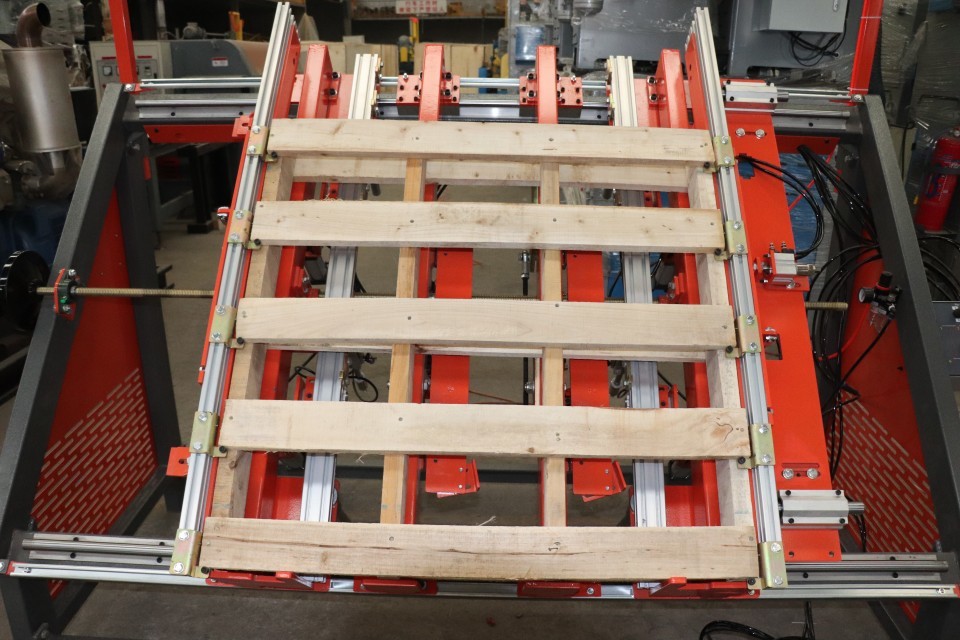

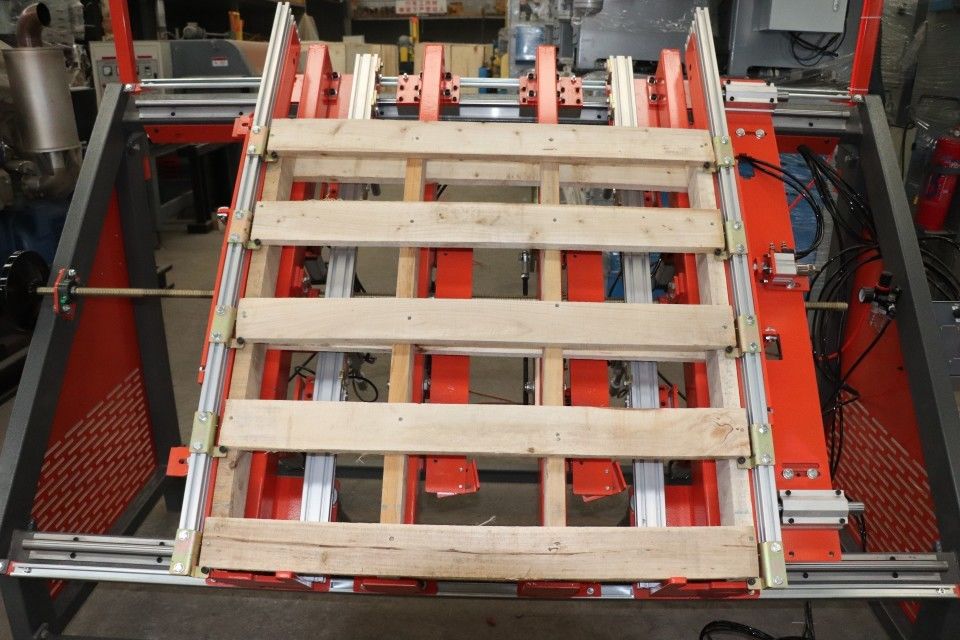

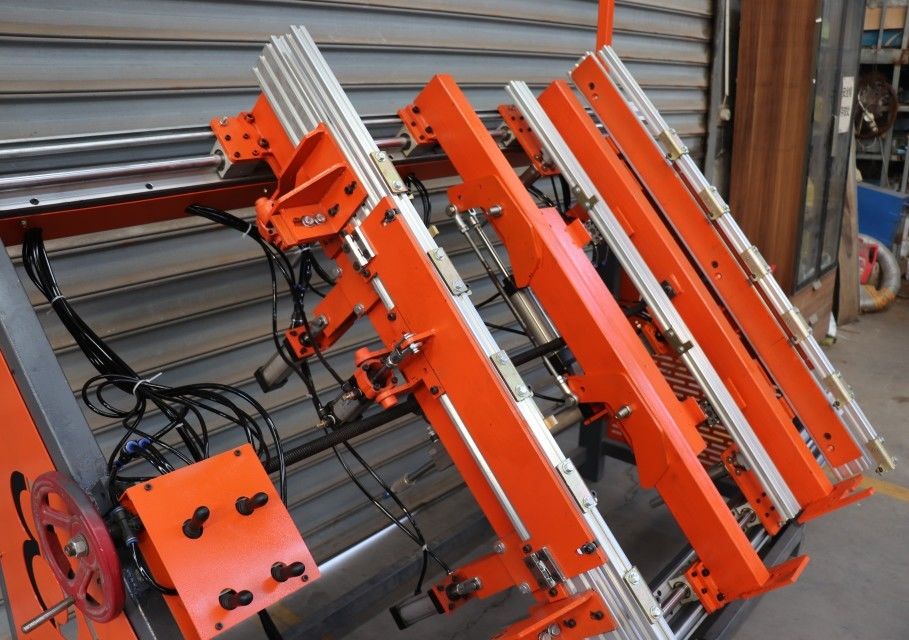

A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 210-230 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
| Model | PT-1700 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1700mm |
| Operational mode | Pneumatic operation |
| Air pressure | 0.8MPA |
| Production efficiency | 30-40pcs /h |
| Number of beams | 3p |
| Number of nail guns | 1P (CN70) |
| Weight | 440kg |
Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
| Model | AS 1250- 3 nail guns type | AS1250- 4 nail guns type |
| Nailing Range | 800—1250mm | 800—1250mm |
| Operation ,Automatic | PLC touching screen | PLC touching screen |
| Nail capacity | 3000 nails/large coil nails | 3000 nails/large coil nails |
| Number of Coil Nail Guns | 3 | 4 |
| Air pressure | 0.8MPA | 0.8MPA |
| Receiving | Automatic palletizing (pneumatic) | Automatic palletizing (pneumatic) |
| Production prodedure | Manual feeding/automatic nailing/automatic palletizing | |
| Pallet type | American tray , European tray | American tray, European tray |
| Weight | 1000kg | 1200kg |
| Palletizer equipment parameters | ||
| Processing size | 800-1250mm pallet nailing machine supporting | |
| Air compressure | 0.8MPA | |
| working speed | 4-8 seconds/each | |
| Motor power | 1.5KW/3phase | |
| Controlling | Integrated supporting of pallet nailing machine production line | |
| Production mode | Automatic feeding of pallet nailing machine | |
