USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number AWPN-1300,PT-1600, PT-1700,etc
Minimum Order Quantity 1 SET
Price US $4,800 - 21,500 / Set
Packaging Details iron frame packings or luo packings
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Pallet Nailing Machine Wood Pallet Length 600-1300mm
Wood Pallet Width 800-1300mm Working Mode Automatic Feeding And Stacking
Voltage And Power 220V/ 2kw Servo Motor Number Of Coil Nail Guns 3pcs Or 4pcs
Air Pressure 0.8MPA Nail Gun Speed 7times/second
Production Capacity 1- 2tray/minute Weight 2000kg
Leave a Message
Product Description

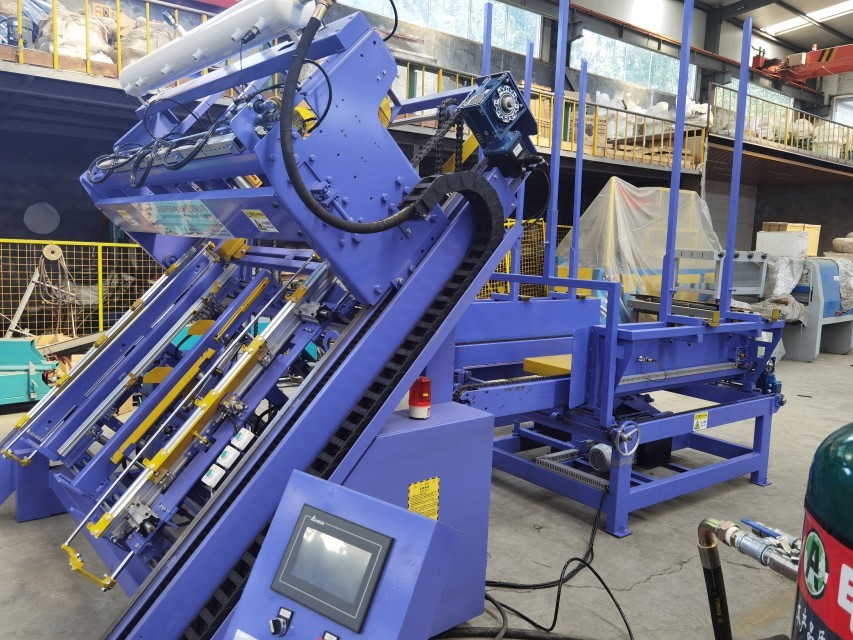

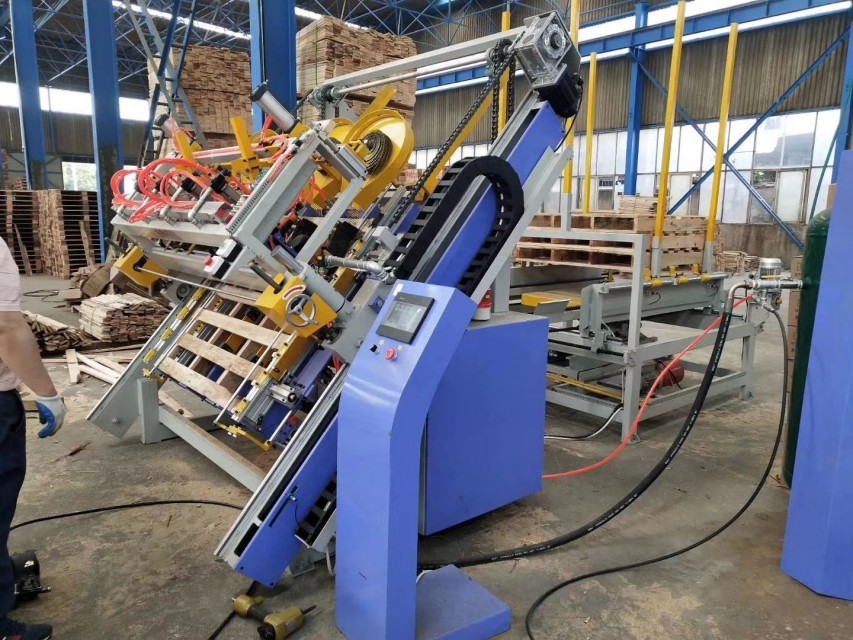

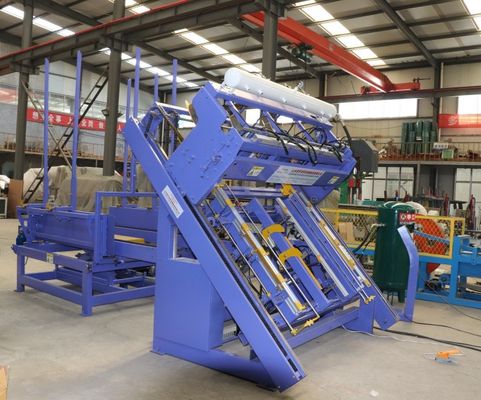

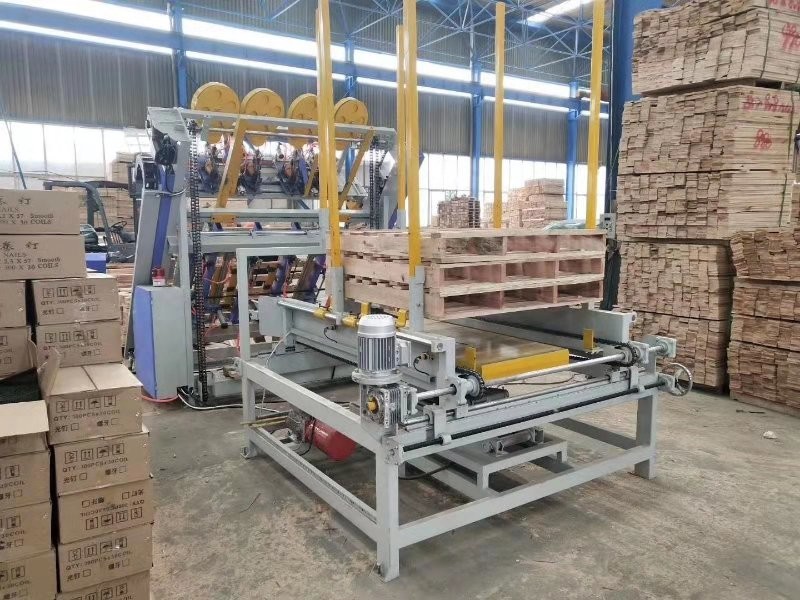

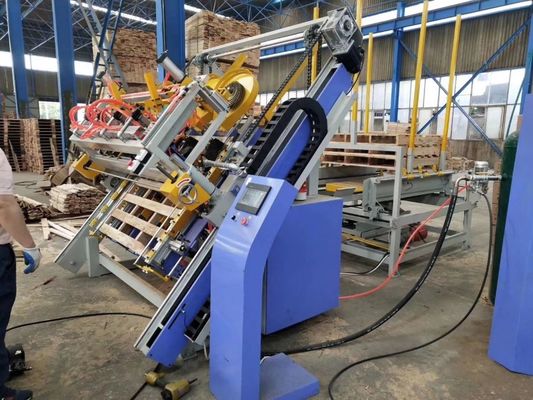

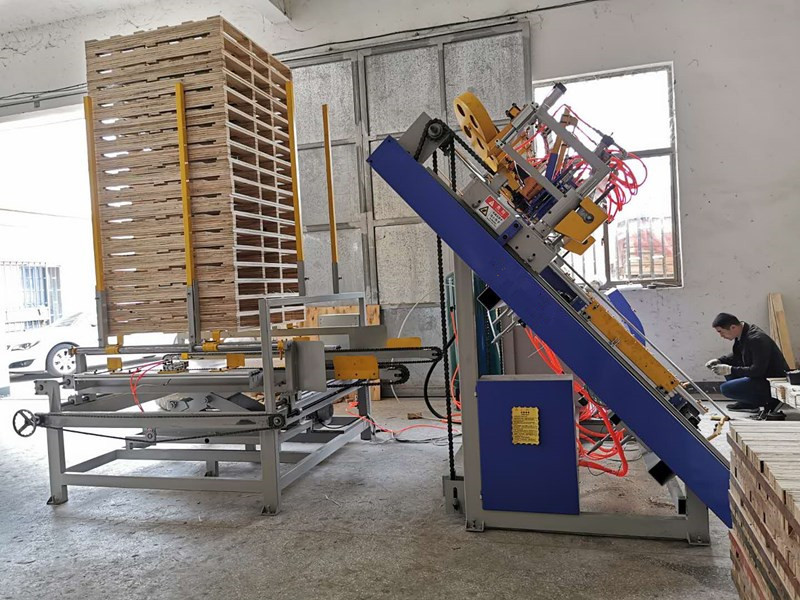

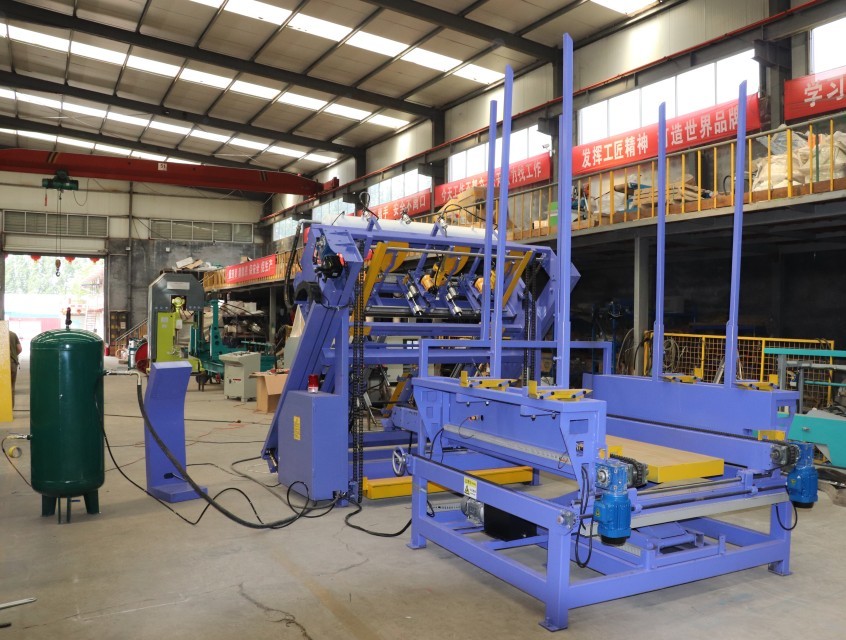

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 220V/ 2kw Servo motor
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Weight 2000kg
Size Host machine 1660*1970*2217mm
Stacking 2945*2054*1410
USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 0

USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 1USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 2

Related Products

Pallet Notcher

Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 3USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 4USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 5

Semi-Automatic wooden pallet nailing machine

Model AWPN-1500
Wood pallet length 600-1300mm
Wood pallet width 800-1700mm
Feeding mode Hand pull
Palletizing mode Automatic
Operational mode Pneumatic operation
Voltage 380V,480V or other
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Palletizing quantity 10P



USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 6USA Style Wood Pallet Nailing Machine Wood Pallet Making Production Line 7
