2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill

1 SET Circular swing blade sawmill
MOQ
US $6,700 - 14,800 / Set
Price
2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wood Cutting Saw Machine Portable Circular Swing Blade Sawmill
Application: Sawing Round Logs Into Square Timber
Max. Sawing Width: 2000mm
Max. Sawing Height: 1500mm
Max. Sawn Size, Widh X Thickness: 300mm X 210mm, 210mmx210mm
Max. Sawing Length: 6meters Or Extend Sawmill Track
Saw Head Walking Forward/back: Frequency Speed Adjustable, 3kw
Overall Size: 3700 X 2100 X 2550mm
Main Motor: 22kw , 15kw
Blade Moving Right/left: 1.5kw, Automatic
After-sales Service: Video Technical Support, Spare Parts
Guarantee: One Year
Highlight:

2000mm Portable Swing Blade Sawmill

,

2000mm Swing Blade Sawmill

,

DS2000 Swing Arm Sawmill

Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: DS700, D1300,DS2000
Payment & Shipping Terms
Packaging Details: container loading of wood saw machine
Delivery Time: within 15 days
Payment Terms: T/T, Western Union
Supply Ability: 500sets/year
Product Description

2023 Hot Sale Wood Cutting Saw Machine Portable Circular Swing Blade Sawmill

Double Saw blade Angle Circular Swing Blades SawMill

  • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
  • The angle circular saw is a machinethat:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

  • Max. sawing timber size : 300mm x 210mm
  • Carbide circular blade diameter : 760mm , 546mm
  • Log feeding : frequency auto feeding
Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM

1*760mm

1*546mm

Motors Power(KW)

11KW*2,

1.5KW*2, 2,2kw

15KW*2,

1.5KW*1,2.2KW*1, 3kw x 1

22KW*1,15KW*1

2.2KW*1, 3kw x 1, 1.5kw x 1

Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

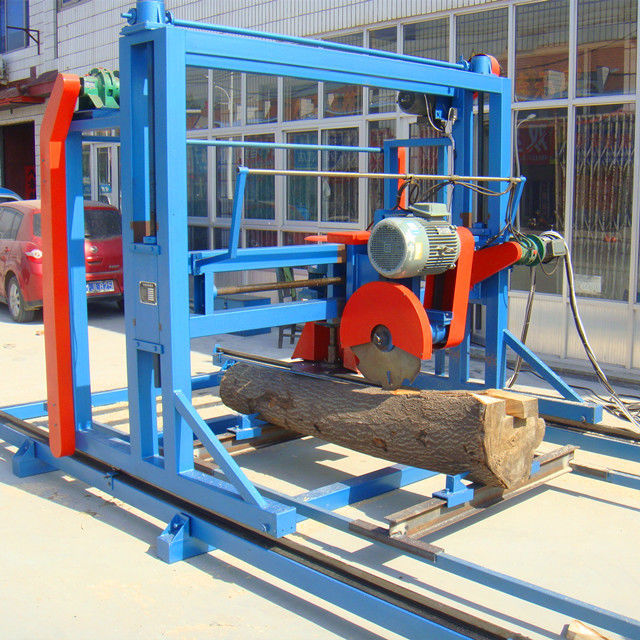

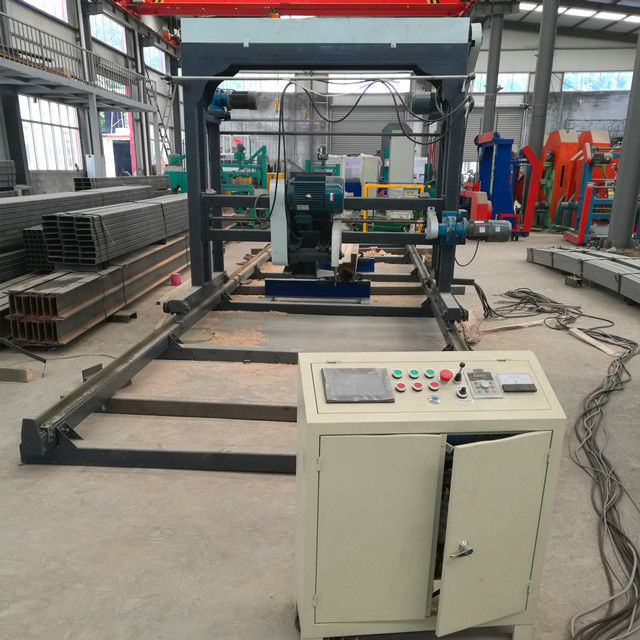

Photos:

2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 0

2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 1

Hot Selling Products:

Twin blades sliding table sawmill -manual type



model TT1500 TT2000 TT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3000mm 5000mm 6000mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode Manual Manual Manual
Setting size mode Manual Manual Manual

2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 2

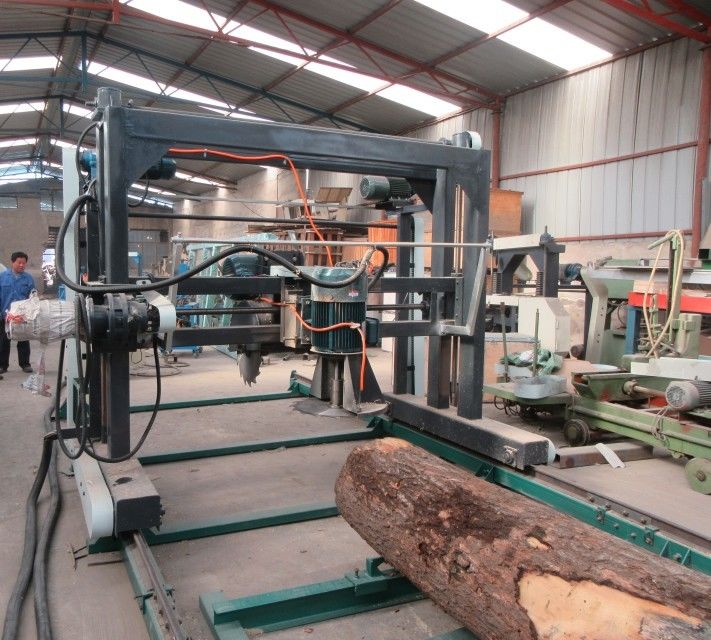

Twin blades sliding table sawmill -Computer type



2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 3

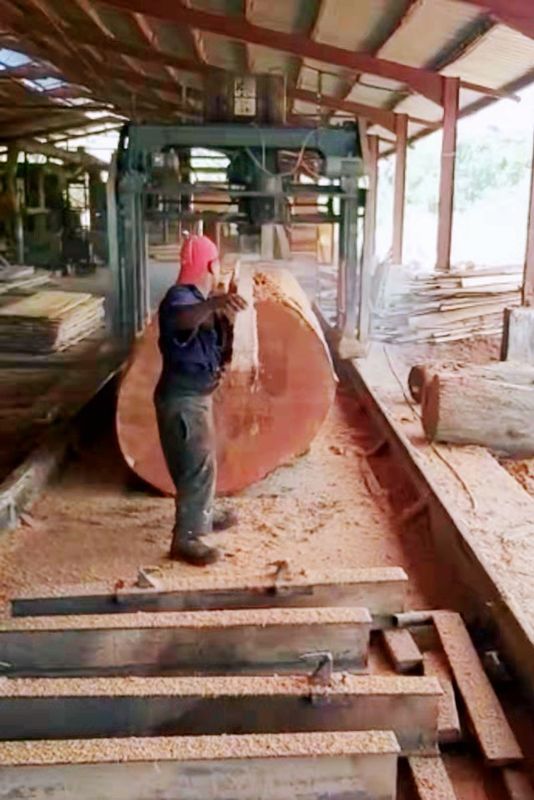

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks

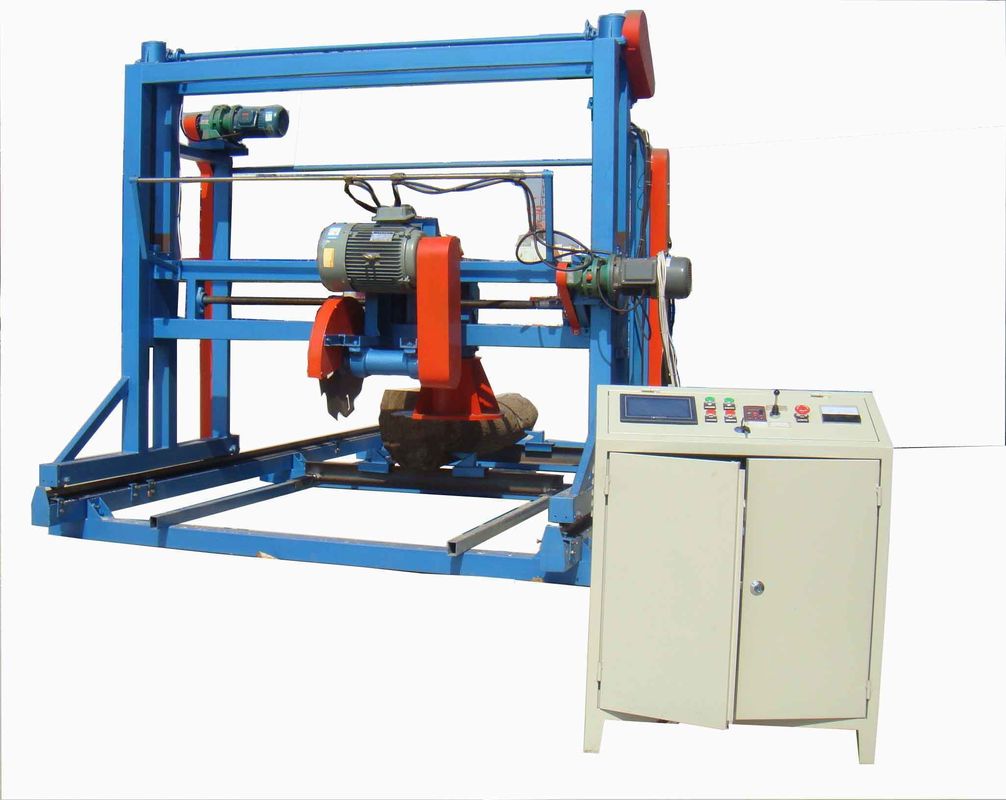

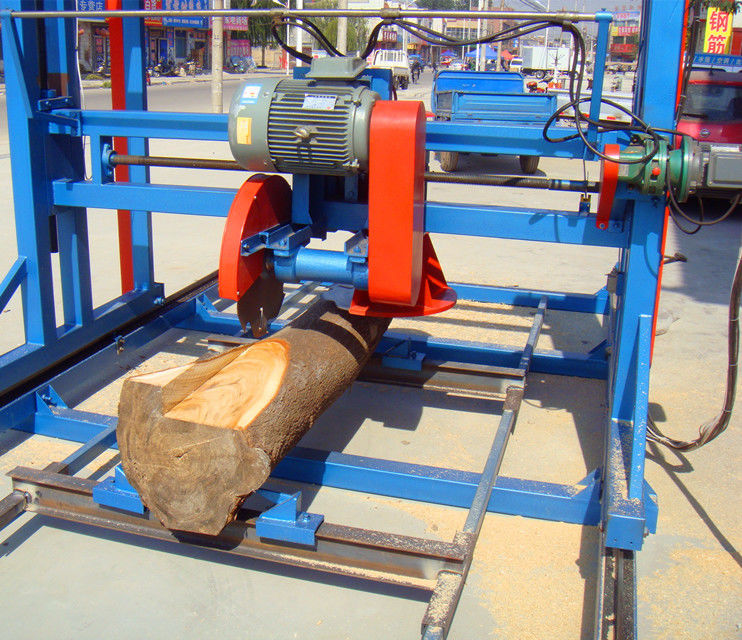

Photos

2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 4

2000mm Portable Swing Blade Sawmill DS2000 Swing Arm Sawmill 5
