Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

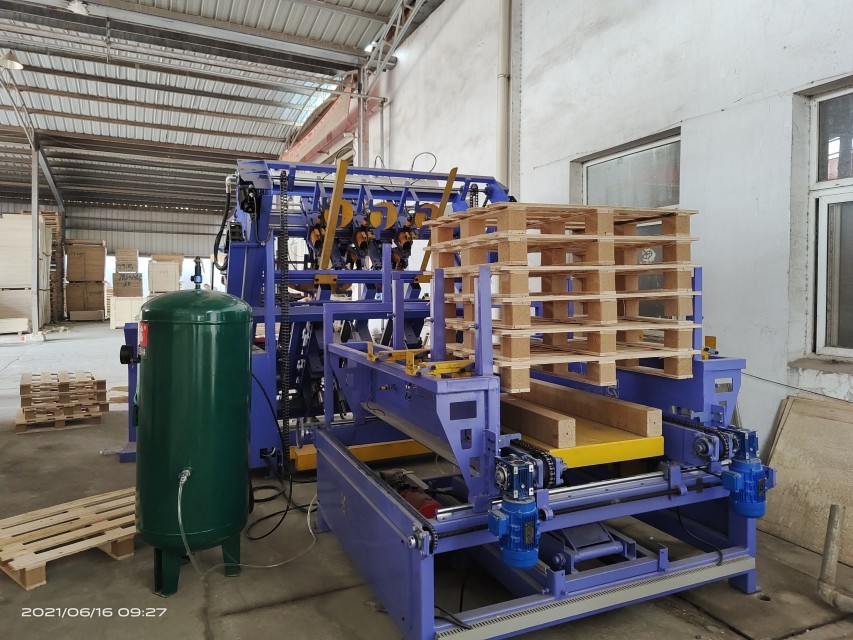

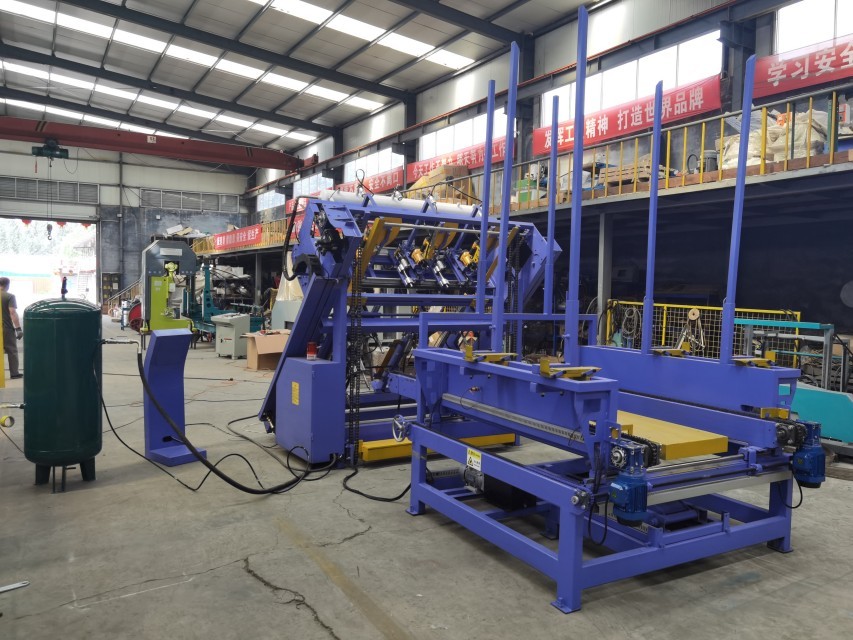

Euro Pallet Automatic Wood Pallet Making Line
Model | SLDJ-1300-3 |
Block width | 60-150mm |
Board Length | 600-1300mm |
Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
Air pressure | 0.8MPA |
Nail gun speed | 4-8 s/time |
Motor power | 1.5KW Servomotor |
Voltage | 220V(Customized) |
Operating mode | Touch screen |
Production mode | Manual discharge/automatic pin pier |

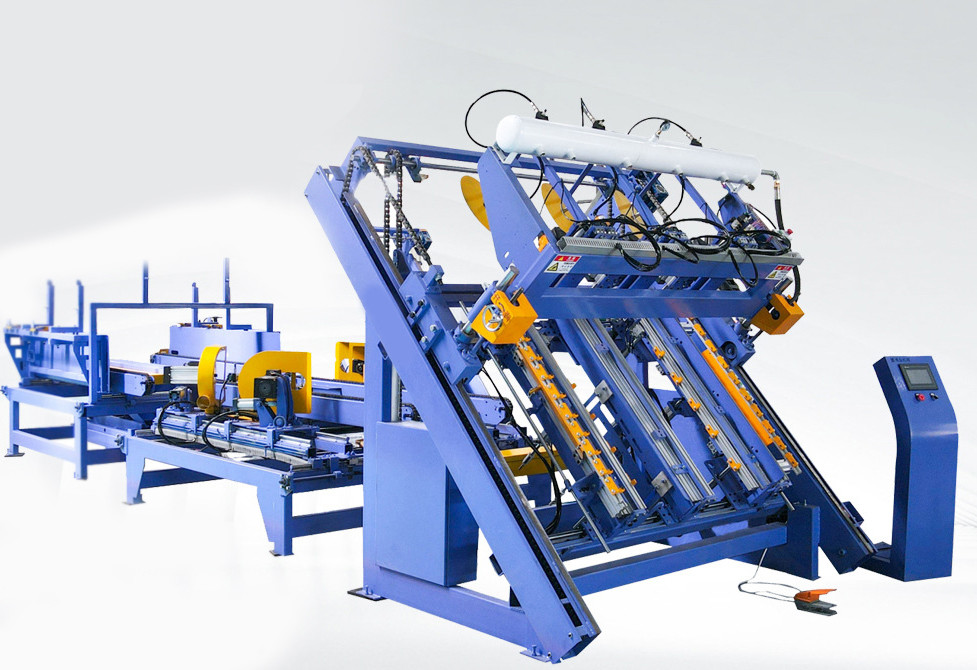

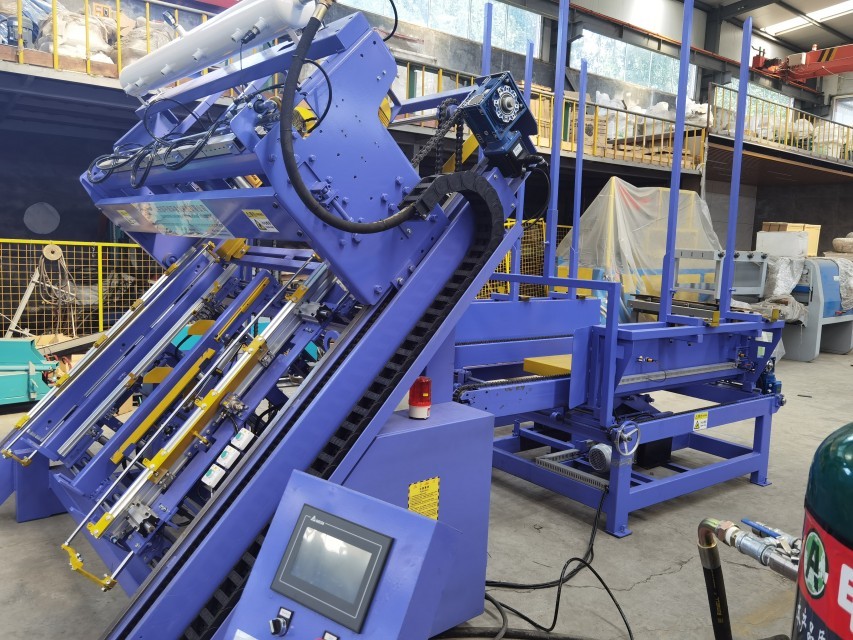

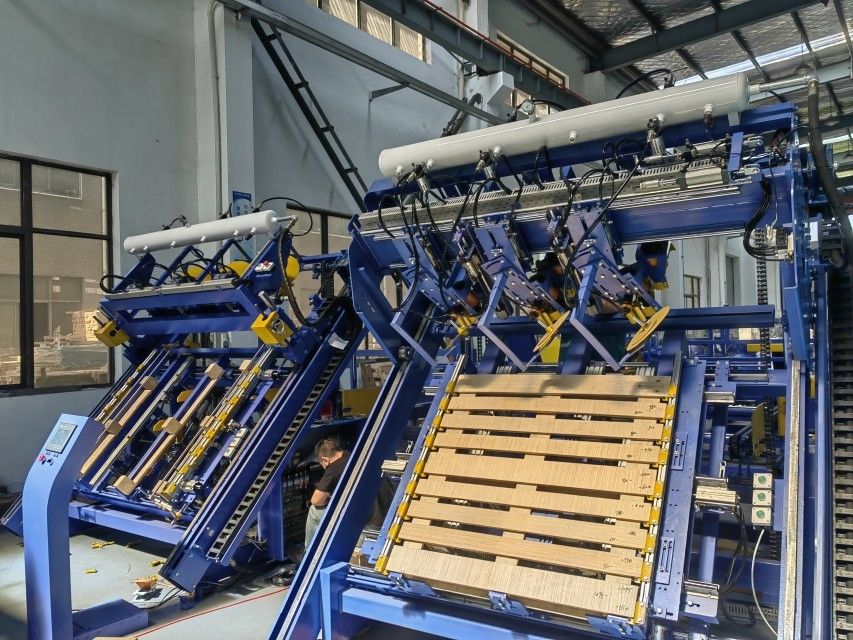

2,Automatic European pallet nailing machine
Model | AEPN-1300 |
Wood pallet length | 700-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 2kw Servo motor |
Air pressure | 0.8MPA |
Nail gun speed | 7 times /second. |
Production effciency | 1-2pcs /min |
Number of nail guns | 6P CN70,CN58 |
Weight | 2000kg |
3.Wood pallet branding machine
Model | LY-4 |
Processing Size | 800-1300mm |
Branding material | Copper/die steel |
Air pressure | 0.8MPA |
Branding speed | 4-8 s/time with pallet machine speed |
Motor power | 0.75KW*2 |
Number of branding | 1-6 pcs |
Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
Model | PQ1300-4 |
Processing size | 800-1300mm |
Circular saw blade diameter | 300mm |
Motor power | 2.2KW*4 |
Working mode | Automatic feed,Automatic Angle cutting |
Weight | 350kg |
5. Wooden pallet palletizer
Model | MD-1300Z |
Processing size | 800-1300mm |
Lift control | Hydraulic |
Palletizing speed | 4-8 s/time |
Model power | 5.2KW |
Pallet Notcher
Model | WPN-1 | WPN-2 |
Power | 15kw | 30kw |
Material of knife | Alloy | Alloy |
Capacity | 600-800pics/h | 1800pics/h |
Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
Wood pallet width: 160mm | Wood pallet width: max 90mm | |
Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
Slot depth: <45mm | Slot depth: <45mm | |
Slot width: 200-230mm | Slot width: 200-230mm | |
Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
Machine wight | 400kg | 1000kg |
Feature | Slot smooth, size consistent | |
Apply for many kinds of slots, also can customized. |
Multi Blades Rip Saw
