Hydraulic Band Saw Wood Sawmill 1200mm Lumber Milling Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJH1200E,MJH1500E |
| Minimum Order Quantity | 1 SET |
| Price | US $41,000 - 51,000 / Set |
| Packaging Details | container loading |
| Delivery Time | about 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Heavy Duty Hydraulic Automatic Band Sawmill | Max. Sawing Log Diameter | 1200mm, 1500mm |
|---|---|---|---|
| Saw Wheel Diameter | 1070mm | Saw Head Up/down | Electrical |
| Band Saw Blade Tension | Electrical | Saw Head Moving | Inverter Automatic |
| Band Saw Blade Width | 125mm, 150mm | Operation | Touching Screen Auto Setworks |
| Log Rotation | Hydraulic Chain Rotation | Sawn Sizes Setting | PLC Touching Screen Auto Setworks |
| Log Clamp | Hydraulic | After-sales Service | Video Technical Support, Spare Parts |
| High Light | Hydraulic Band Saw Wood Sawmill,Hydraulic Lumber Milling Machine,1200mm Lumber Milling Machine |
||
Product Description
Hydraulic Band saw for cutting wood wood saw machine, Wood Hydraulic Saw Machines

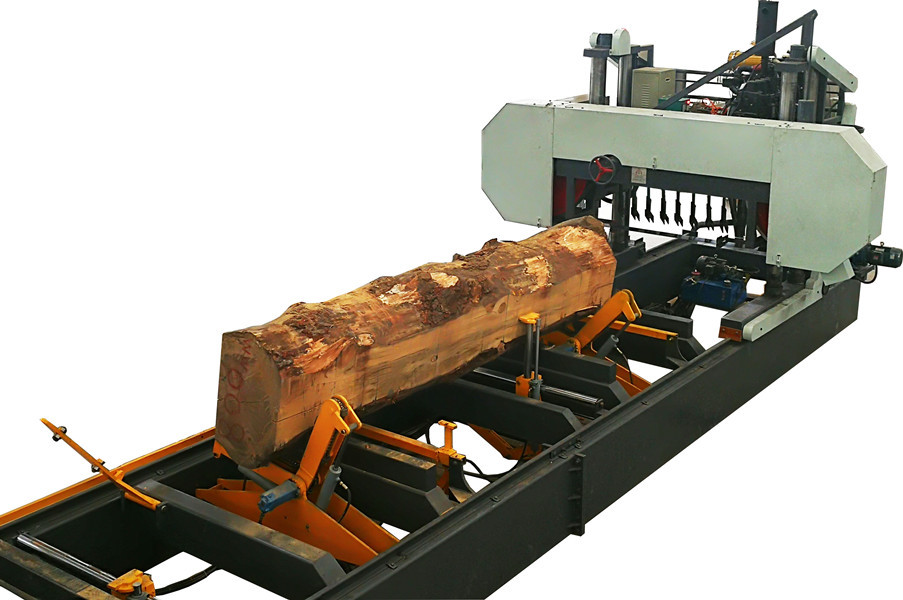

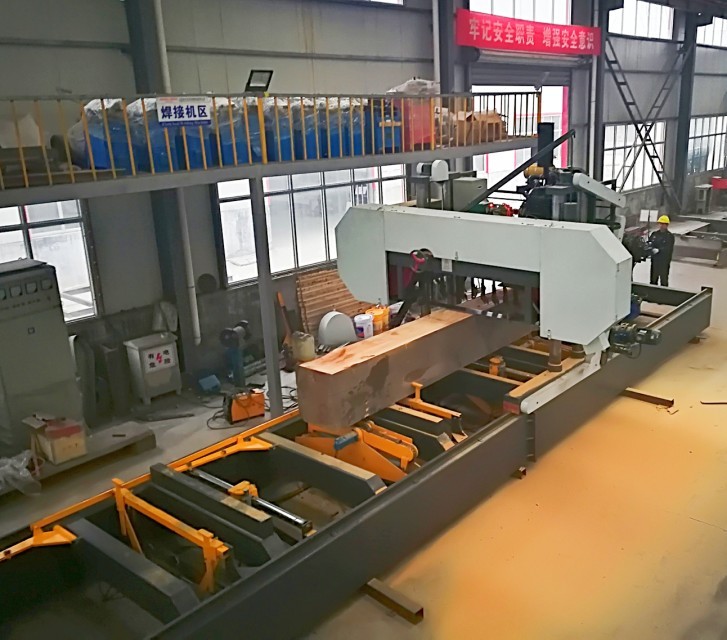

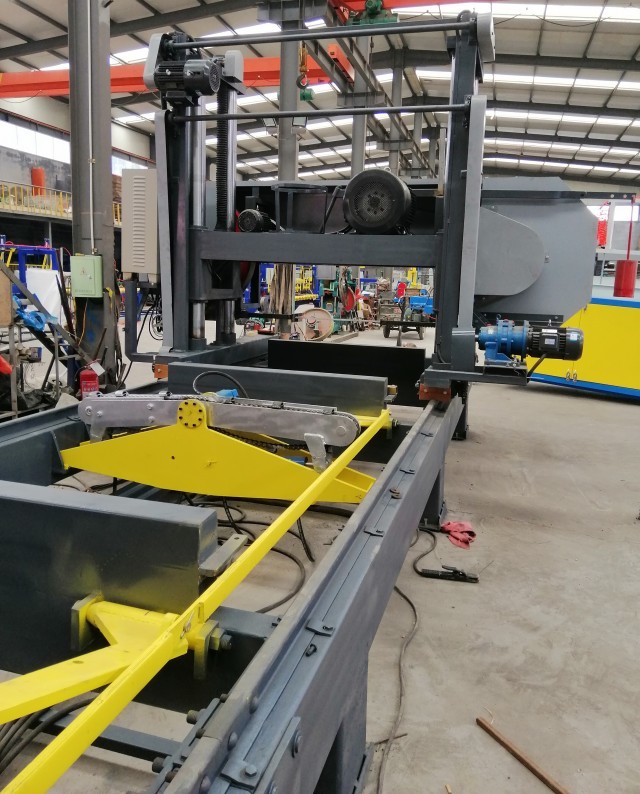

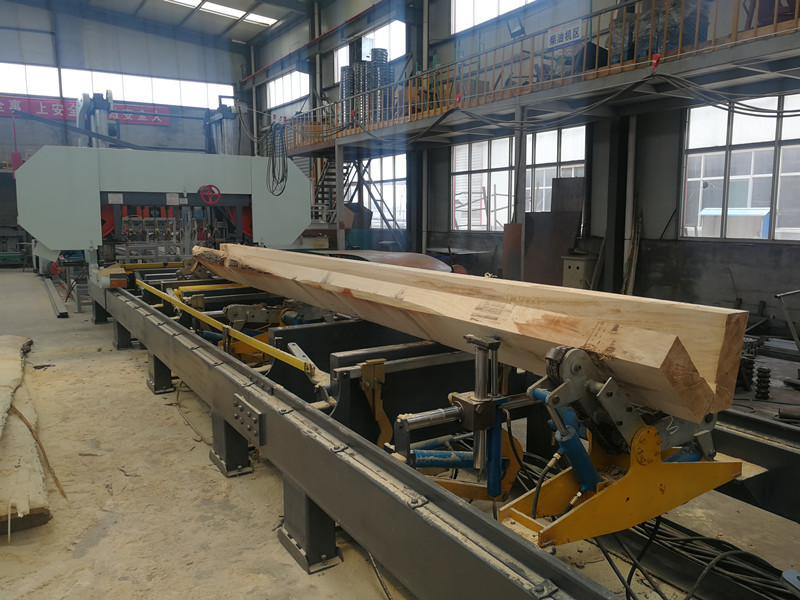

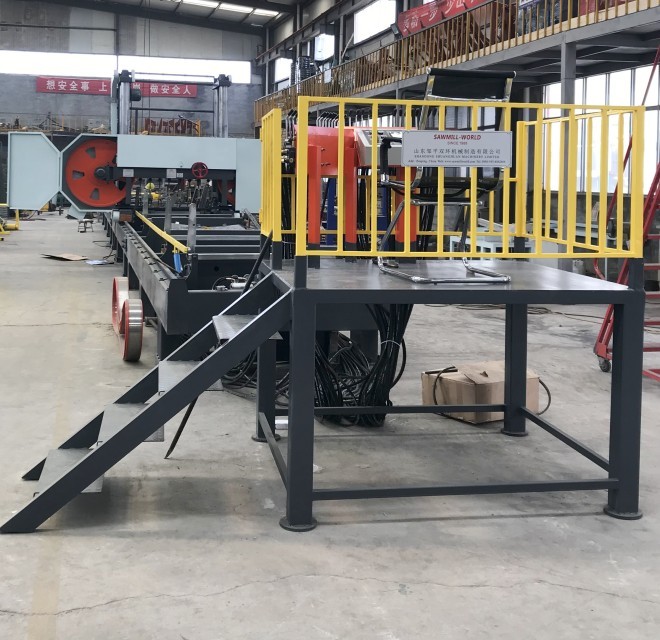

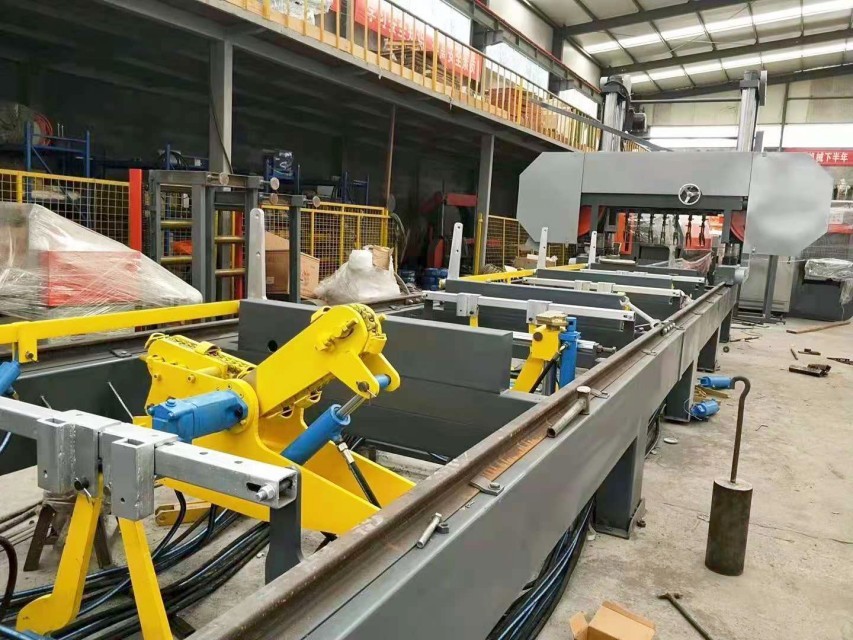

Heavy Duty Hydraulic Automatic Wood Cutting Horizontal Band Sawmill
- Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control .
- Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .
Technical Data:
|
Model
|
MJH1200E
|
MJH1500E
|
|
Max Sawing Wood Diameter
|
1200mm
|
1500mm
|
|
Saw Wheel Diameter
|
1000mm
|
1070mm
|
|
Max Sawing Wood Thickness
|
400mm
|
400mm
|
|
Standard Sawing Wood Length
|
4500mm
|
4500mm
|
|
Electric Motor Power
|
37kw
|
45kw
|
|
Up/Down Electric Motor
|
2.2kw
|
2.2kw
|
|
Forward/Backward Electric Motor
|
3kw
|
3kw
|
|
Band Saw Blade Width
|
125-150mm
|
125-150mm
|
|
Band Saw Blade Tension
|
Electric
|
|
|
Machine Length
|
7000mm
|
7000mm
|
|
Weight
|
7000kg
|
8500kg
|
