Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill

  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
  • Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number DS700, D1300,DS2000
Minimum Order Quantity 1 SET Circular swing blade sawmill
Price US $6,700 - 14,800 / Set
Packaging Details container loading of wood saw machine
Delivery Time within 15 days
Payment Terms T/T, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Circular Swing Blade Sawmill Wood Saw Machine Application Sawing Round Logs Into Square Timber
Max. Sawing Width 2000mm Max. Sawing Height 1500mm
Max. Sawn Size, Widh X Thickness 300mm X 210mm, 210mmx210mm Max. Sawing Length 6meters Or Extend Sawmill Track
Saw Head Walking Forward/back Frequency Speed Adjustable, 3kw Overall Size 3700 X 2100 X 2550mm
Main Motor 22kw , 15kw Blade Moving Right/left 1.5kw, Automatic
After-sales Service Video Technical Support, Spare Parts Guarantee One Year
High Light

Swing Blade Circular Sawmill

,

2000mm Board Edger For Sawmill

,

Circular Sawmill 2000mm
Leave a Message
Product Description

Circular saw machine wood cutting machine ,swing blade sawmill with carbide circular blade

Double Saw blade Angle Circular Swing Blades SawMill

  • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
  • The angle circular saw is a machinethat:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

  • Max. sawing timber size : 300mm x 210mm
  • Carbide circular blade diameter : 760mm , 546mm
  • Log feeding : frequency auto feeding
Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM

1*760mm

1*546mm
Motors Power(KW)

11KW*2,

1.5KW*2, 2,2kw

15KW*2,

1.5KW*1,2.2KW*1, 3kw x 1

22KW*1,15KW*1

2.2KW*1, 3kw x 1, 1.5kw x 1
Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

Photos:

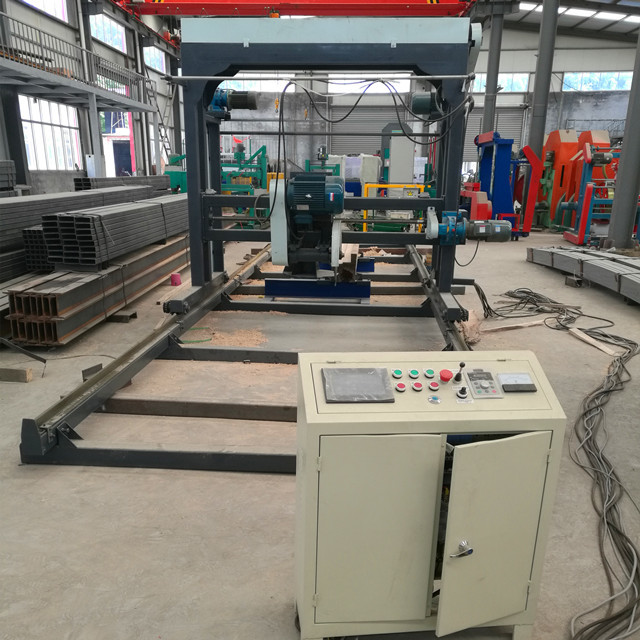

Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill 0

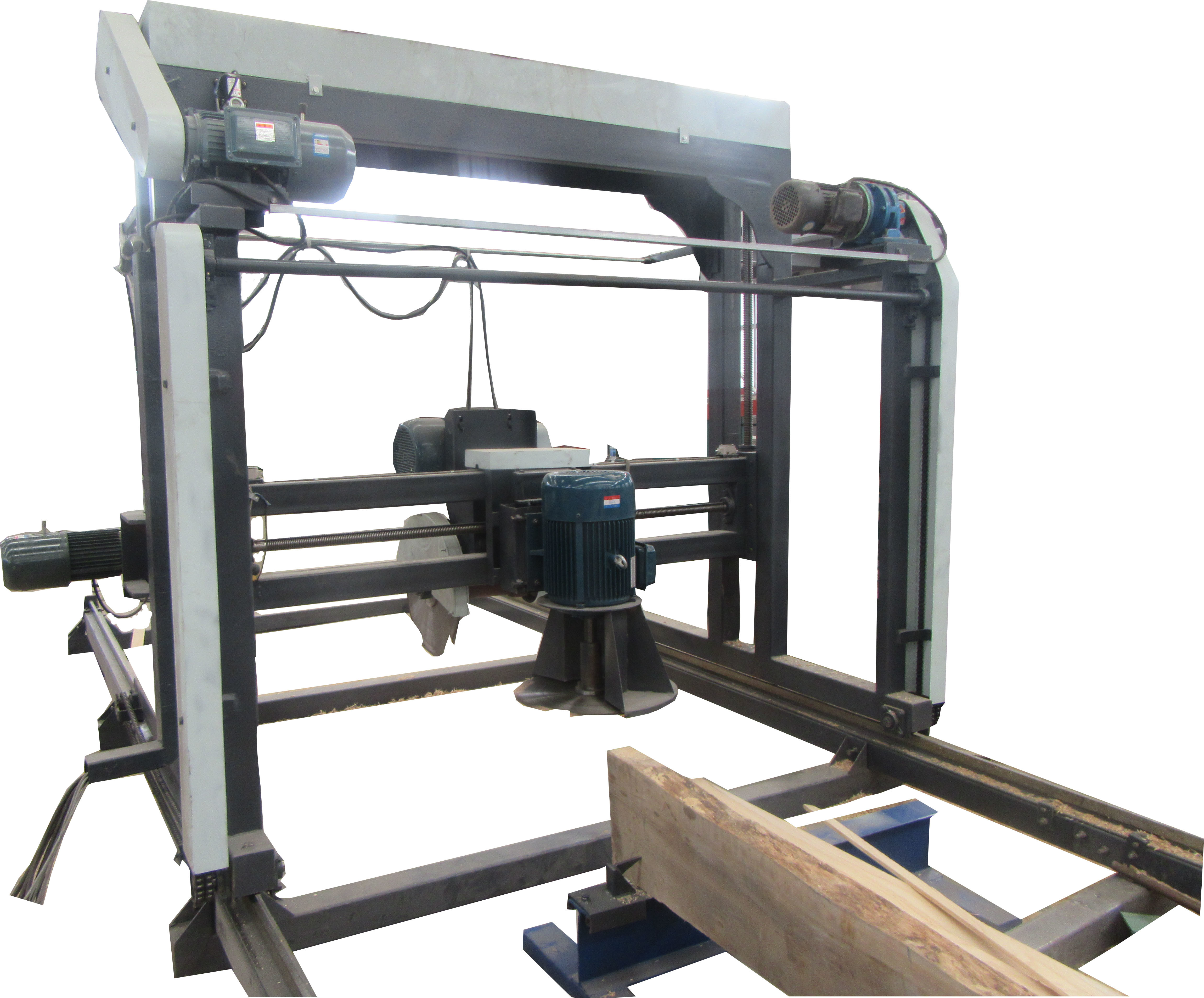

Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill 1

Hot Selling Products:

Twin blades sliding table sawmill

  • Technical data
model CT1500 CT2000 CT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3500mm 5000mm 6500mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode Electric frequency control Electric frequency control Electric frequency control
Setting size mode Touch screen computer control Touch screen computer control Touch screen computer control

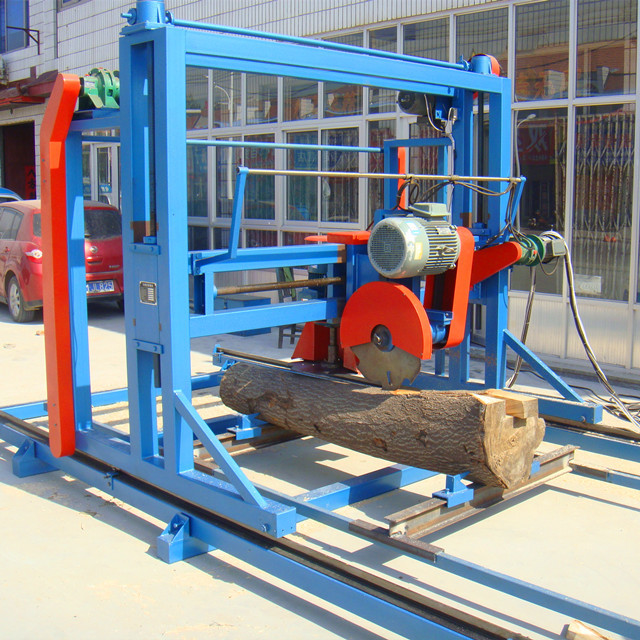

Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill 2



MJ109 Woodworking Circular Table Saw

  • Technical data
Specification MJ109
saw blade diameter 900mm
Working table size 1500mm×800mm
Max Sawing Wood Thickness 360mm
Height from table to ground 800mm
Motor power 18.5KW/380V
Rotation speed 1500r/min
Overall size 1900x1000x1350mm
Weight 630kgs

Diesel type

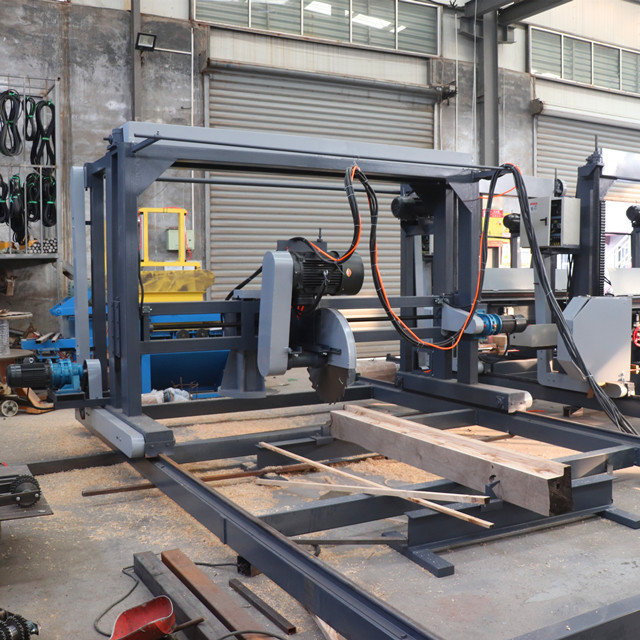

Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill 3

Electrical type

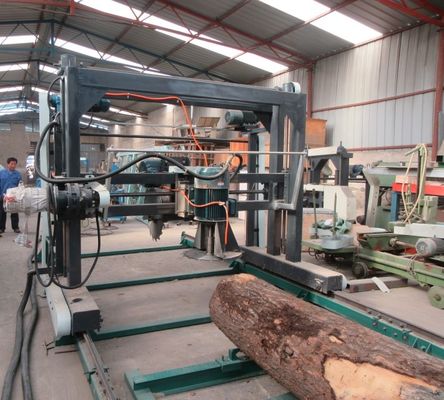

Automatic Swing Blade Circular Sawmill 2000mm Board Edger For Sawmill 4
