600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger

  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
  • 600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number EG600, EG800, EG1000
Minimum Order Quantity 1 SET
Price US $4,200 - 9,000 / Set
Packaging Details iron made frame
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Twin Blade Sawmill Edger Condition New
Sawing Width 50mm To 1000mm Sawing Thickness 10mm To 70mm
Blade Diameter 2pc X 350mm Feeding Inveter Feeding Conveyor
Feeding Speed 20-25m/min Engine 7.5KW X 2, 380V/3PH Or As Customer Needs
Configuration One Blade Movable Optional Make As Customer Needs
Guarantee 1 Year
High Light

800mm Circular Sawmill Board Edger

,

600mm Circular Sawmill Board Edger

,

Wood Saw Portable Lumber Edger
Leave a Message
Product Description

Sawmill Board Edger/ Portable Twin Blade Board Edger Wood Saw Machine

Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

4. The saw blade moves with infrared light and moves at the same time .



Technical data :

Model EG600E EG800E EG1000E
Sawing width 50-600MM 50-800MM 50-1000MM
Sawing height 10-70mm 10-70mm 10-70mm
Blade diameter 2*350MM 2*350MM 2*350MM
Feeding speed 20-25m/ minute 20-25m/ minute 20-25m/ minute
Main motor power 7.5KW*2 7.5KW*2 7.5KW*2



Photos:

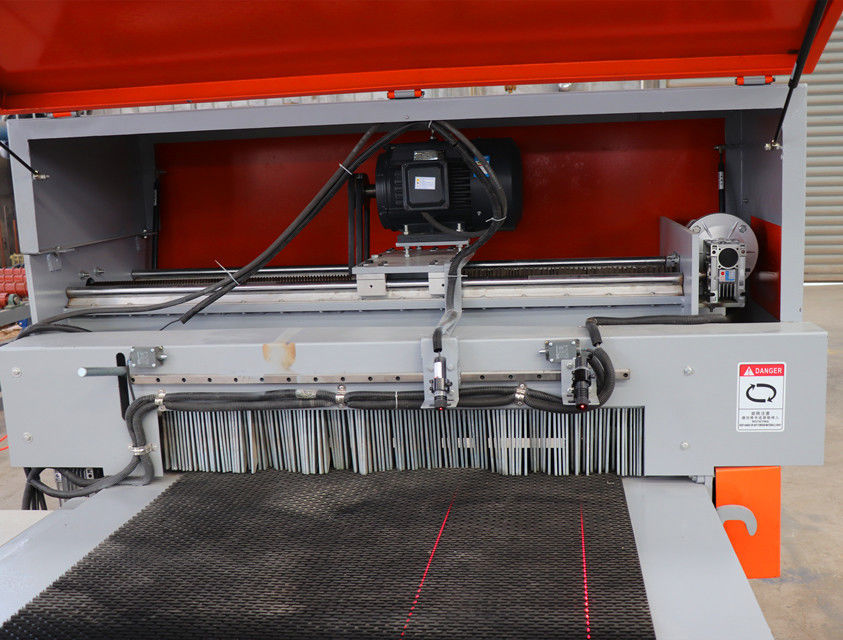

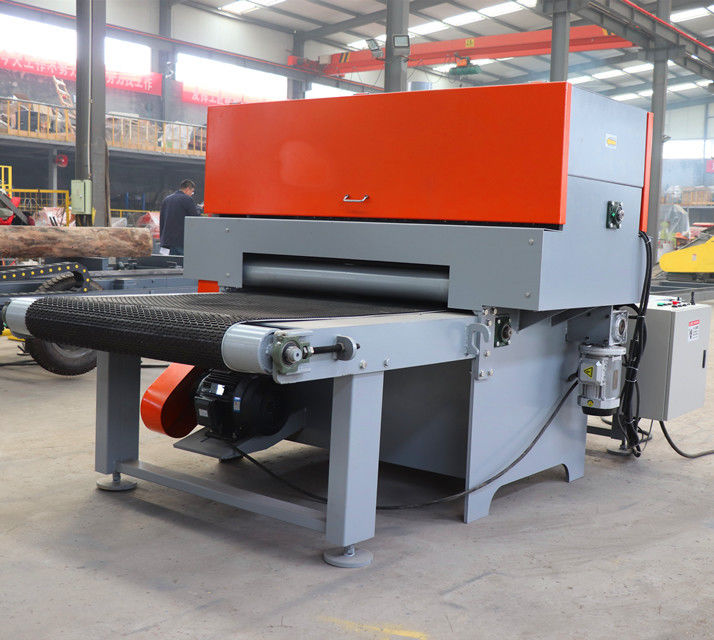

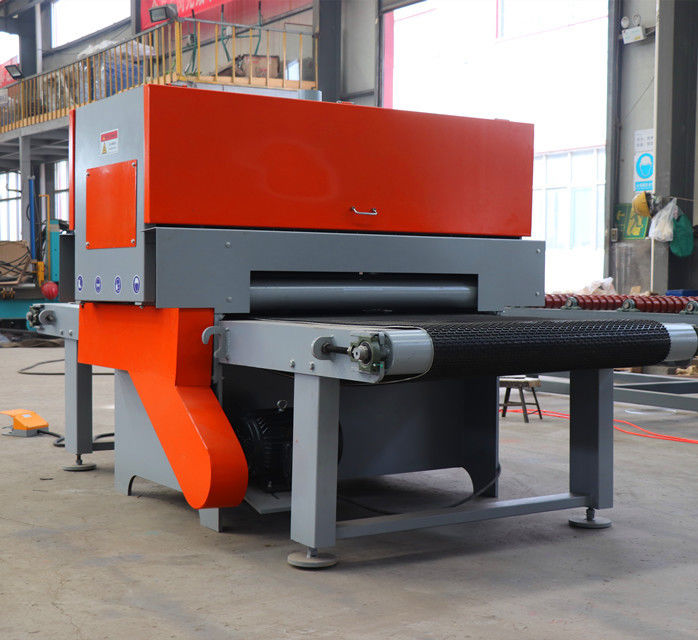

600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger 0

600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger 1

600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger 2

Related Machine

Big Width Wood Board Edger Saw

1.Fit for wider and thicker board edges cutting

2.Electrical wood feeding

3.Pneumatic wood grasp

Technical specifications:

Model BT300-6-3500 BT250-10-3500 BT250-15-3500 BT250-15-3500
Sawing max. thickness 10-300mm 10-250mm 10-250mm 10-100mm
Sawing max. length 3500mm 3500mm 3500mm 3500mm
Sawing max. width 600mm 1000mm 1500mm 600mm
Circular blade dia. 405mm 355mm 355mm 355mm
Main motor power 11KW*2 11KW*2 11KW*2 11KW
Rail length 7000mm 7000mm 7000mm 7000mm
Grasp wood type Pneumatic Pneumatic Pneumatic Pneumatic
Feeding Electrical Electrical Electrical Electrical
Size setting Manual Manual Manual Manual



Photos:

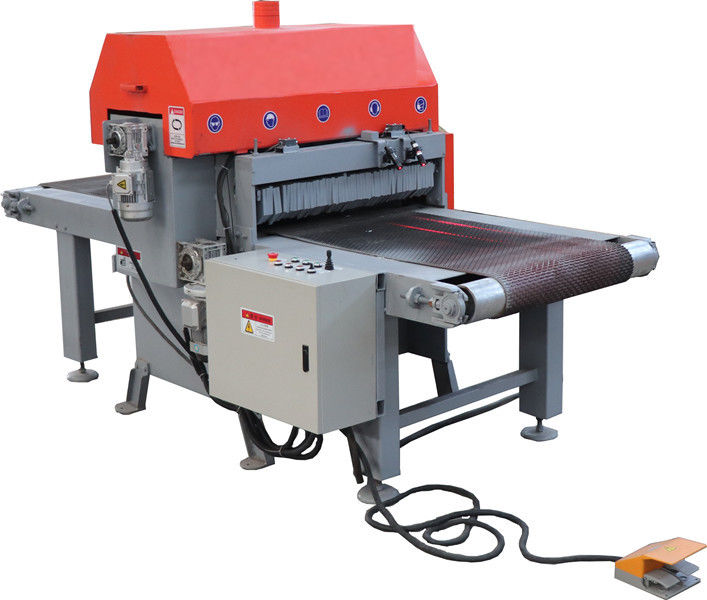

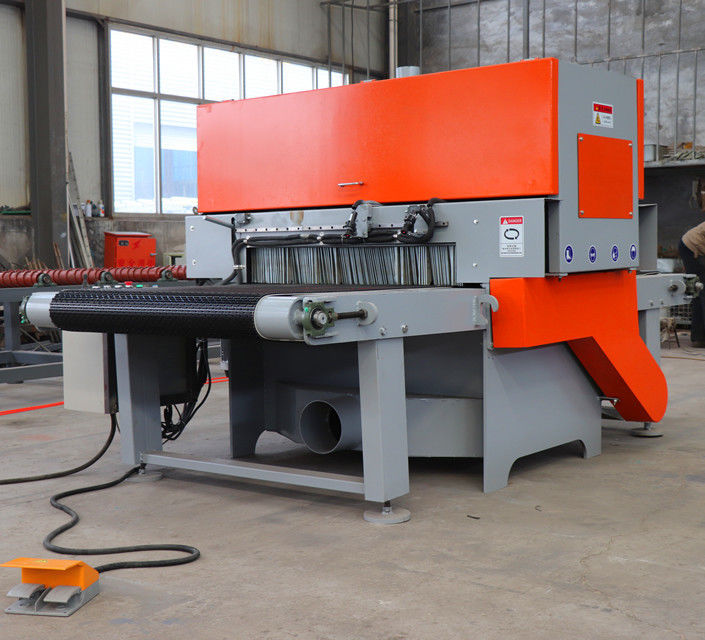

600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger 3

600mm 800mm Circular Sawmill Board Edger Wood Saw Portable Lumber Edger 4
