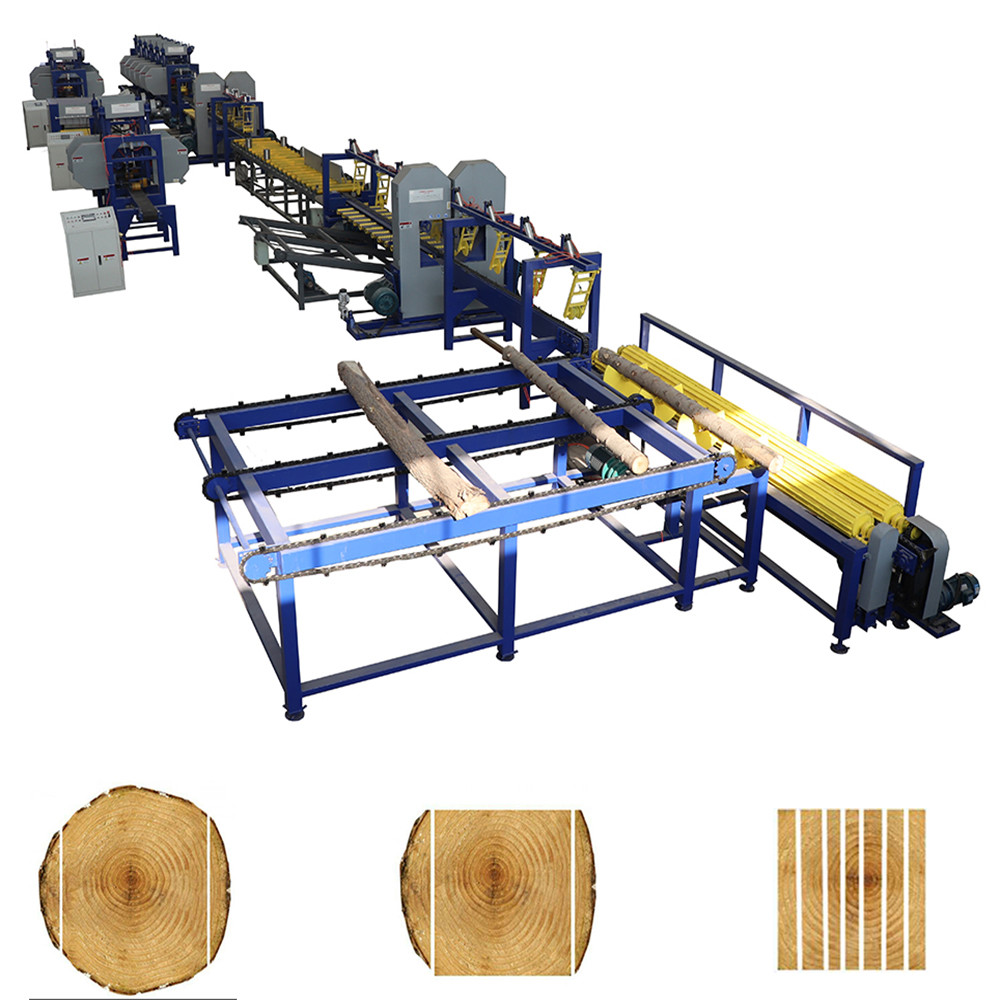

Fully automated saw timber wood sawmill production line, Double blade Vertical Sawmill with loading rack
Full Automatic Vertical Log Cutting Band Saw Production Line
NO. | Name | QTY | Details |
1 | Wood Loading Machine | 1 | Loading logs to the carriage of two-set vertical band saw |
2 | Twin Vertical Band Sawmill | 1 | Cutting two sides of logs |
3 | Rolling Board Conveyor | 1 | Transfering wood |
4 | Twin Vertical Band Sawmill | 1 | Cutting other two sides of logs |
5 | Board Multi Rip Saw | 1 | Cutting board to small size planks |
6 | Twin Blade Board Edger | 1 | Cutting both sides of the board |
7 | Rolling Board Conveyor | 1 | Output planks from twin vertical band sawmill |
8 | Rolling Board Conveyor | 1 | Output planks from twin vertical band sawmill |
9 | 2 head, 3 head, 4 head, 5 head, 6 head Horizontal Band Sawmill | 1 | Cutting wood to many pieces once |
10 | Rolling Board Conveyor | 1 | Output the boards from multi head horizontal band saw |
Technical Data:
Central Console | |
Overall size | 3000*1500mm |
Display function | LCD Monitor |
Operation | Distant control |

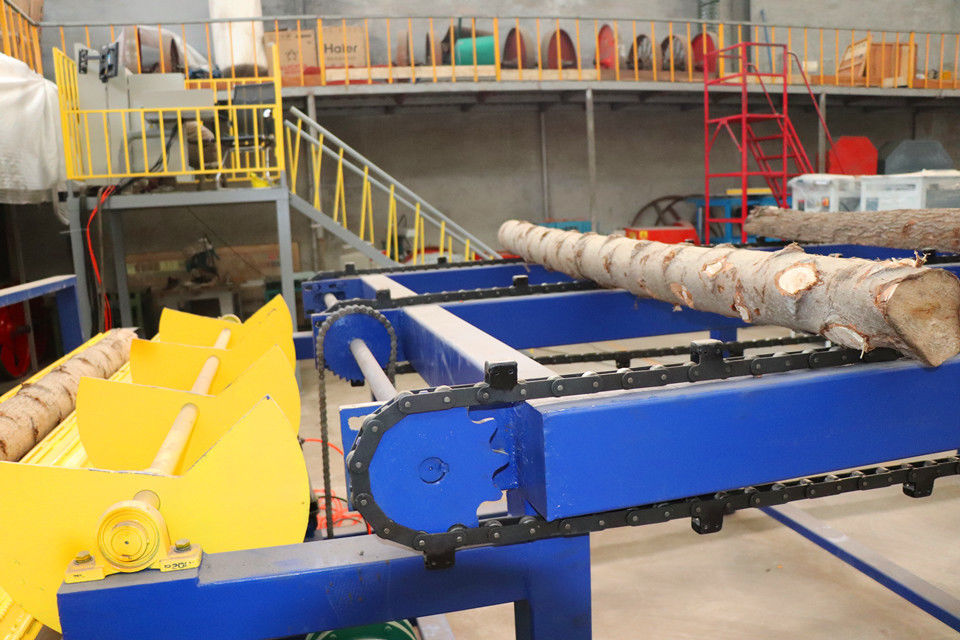

Wood loading rack | |
Length of loading rack | 4000mm |
Total width | 2500mm |
Transmission method | Inverter |
Motor | 3KW |
loading method | Pneumatic |
Feeding type | Chain feeding |
Wood automatic tumbling guide belt | |
Max. length of tumbling wood | 3m |
Transmission method | Inverter |
Total motor power | 6KW |
Control | Distant control |

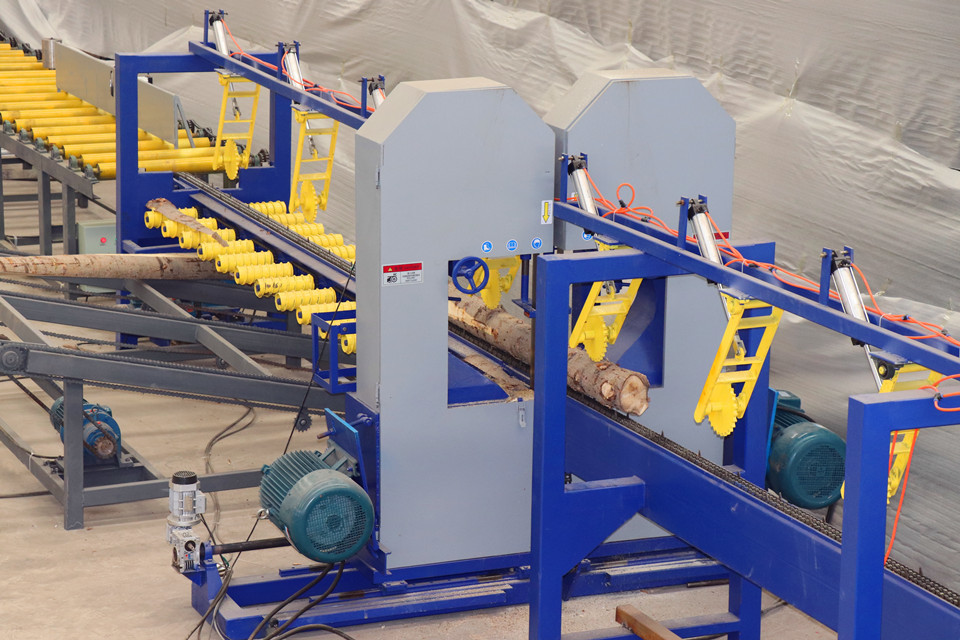

SLS350 Twin Bandsaw for logs No.1 | |
Max. sawing log diameter | 350mm |
Min.sawing log diametr | 150mm |
Log length | 800-3000mm |
Saw wheel diameter | 700mm |
Sawing speed | 9-25m/min |
Main motor power | 18.5KW *2 |
Sizing operation | CNC Touching screen |
Automatic roll adjustment centering roller frame | |
Frame length | 6000mm |
Width | 1000mm |
Motor | 5.5kw |
Log centering operation | Pneumatic |
SLSP400 Twin Bandsaw for logs No.2 | |
Max. sawing log diameter | 400mm |
Min. sawing log diameter | 150mm |
Log length | 800-3000mm |
Saw wheel diameter | 700mm |
Sawing speed | frequency |
Motor power | 18.5KW *2 |
Sizing operation | CNC touching screen |
Slab slope conveyor | |
Conveyor length | 3000mm |
Width | 2500mm |
Motor | 2.2KW |
DT300-5 Multi Heads Band Saw-5heads | |
Max. sawing width | 300mm |
Max. sawing thickness | 300mm |
Main motor | 15kw*5 |
BPJ300 Slabs Cutting Saw | |
Max. sawing width | 300mm |
Max. sawing thickness | 200mm |
Motor power | 7.5KW*2 |
CB600 Wood Edger | |
Max. sawing width | 600mm |
Max. sawing thickness | 80mm |
Blades No. | 1-5pcs |
Motor power | 22kw |

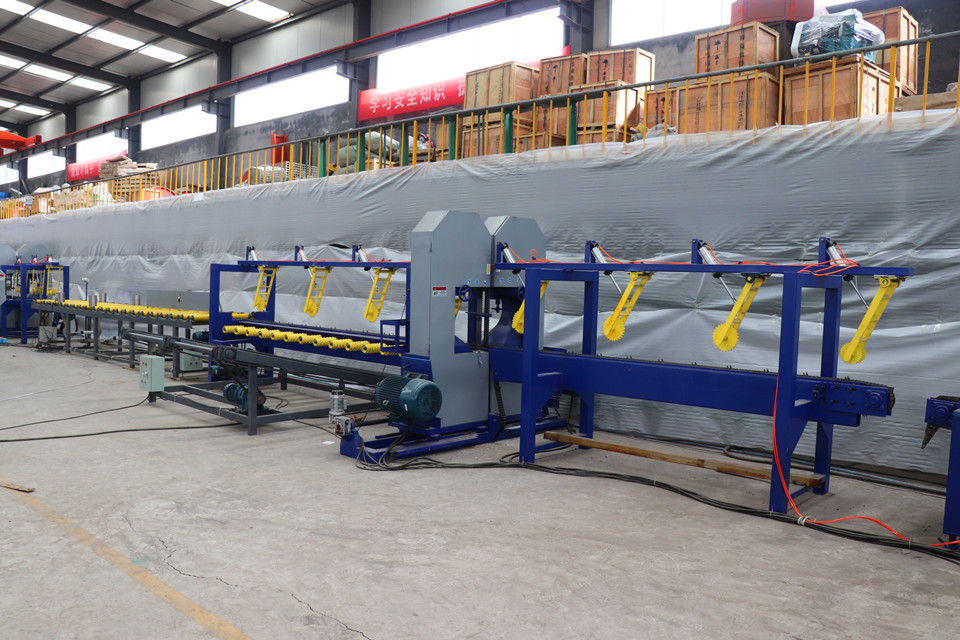

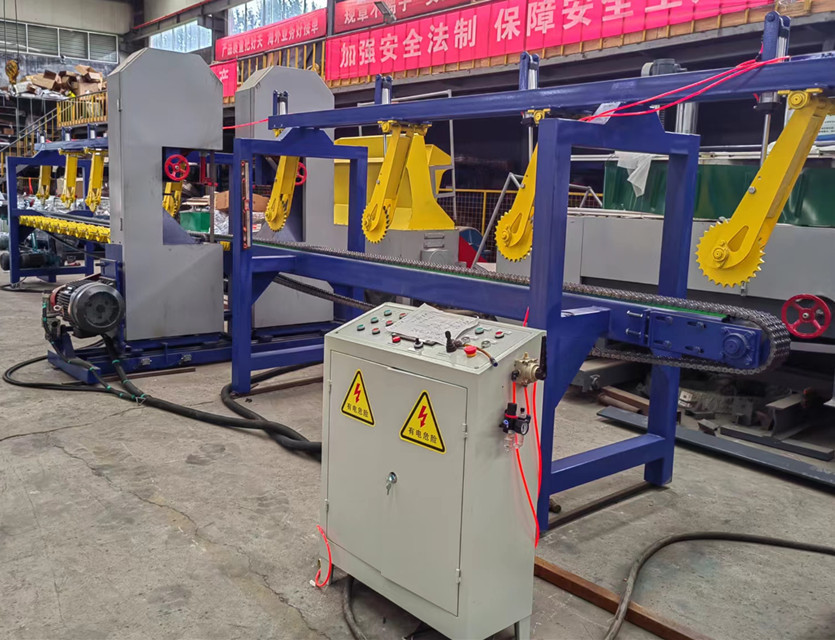

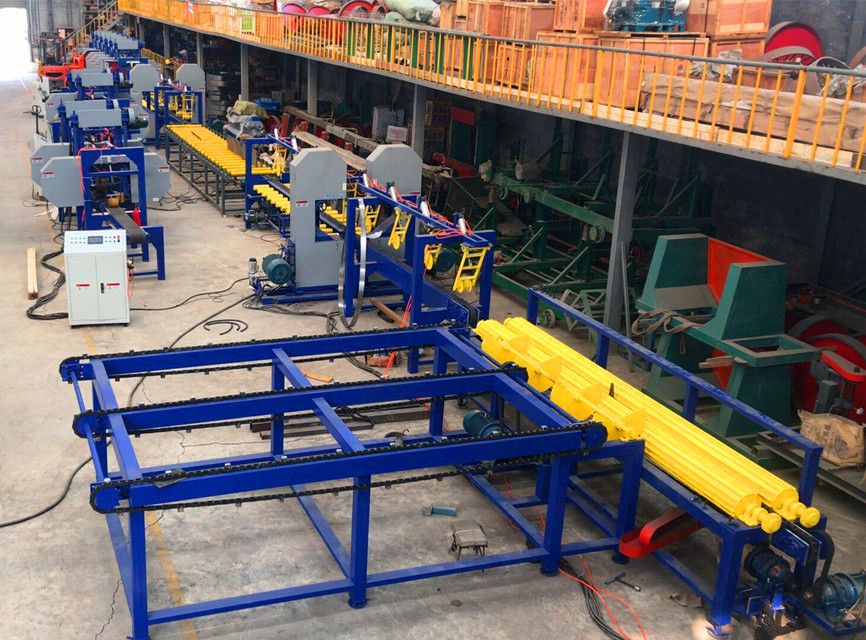

Photos
Related Products
Multi Heads Band Resaw
Technical data
Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
Feeding | Variable frequency speed adjustable conveyor | ||||
Operation | Touching screen auto setworks for sawn thickness |
Detailed Image -6heads reaw equipment
Slabs Cutting Saw
Specifications:
Model Specifications |
BPJ200 | BPJ250 | BPJ300 |
Cutting width (mm) | 200 | 250 | 300 |
Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 7.5kw x 2 |
Feeding | Frequency variable auto feeding | ||
Circular blade diameter (mm) | 300 | 355 | 405 |
Weight (kg) | 200 | 220 | 250 |
Multi Blades Rip Saw
Technical data :
Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
Sawing wood width | 800mm | 800mm | 800mm |
Carbide blade diameter | 280mm | 305mm | 355mm |
Main motor | 22KW | 30KW | 37KW |
Blade quantity | 1P-10P | 1P-10P | 1P-10P |
Rotation speed | 3500/min | 3500/min | 3500/min |
