Detail Information

Name:	Twin Vertical Bandsaw	Power(W):	218.5KW,222KW
Saw Wheel Diameter:	700mm	Max. Sawing Wood Diameter:	500MM
Sawing Wood Length:	1m To 3m Or As Customer Needs	Control:	CNC Digital
Feeding Speed:	Variable Frequency Speed Adjustable	Bandsaw Blade Width:	50-80mm
Sawn Sizes Setting:	PLC Touching Screen Auto Setworks	Application:	Cut Four Side Of Log,produce Cants Or Square Wood
Guarantee:	1 Year
Highlight:	vertical band sawmill with big motor , wood cutting vertical band saw , twin vertical band sawmill production

Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

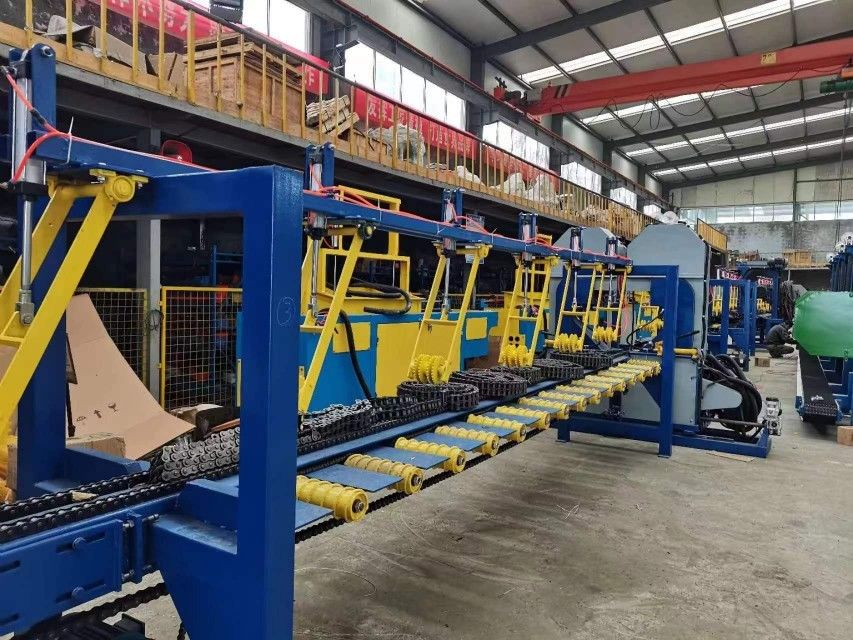

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 0

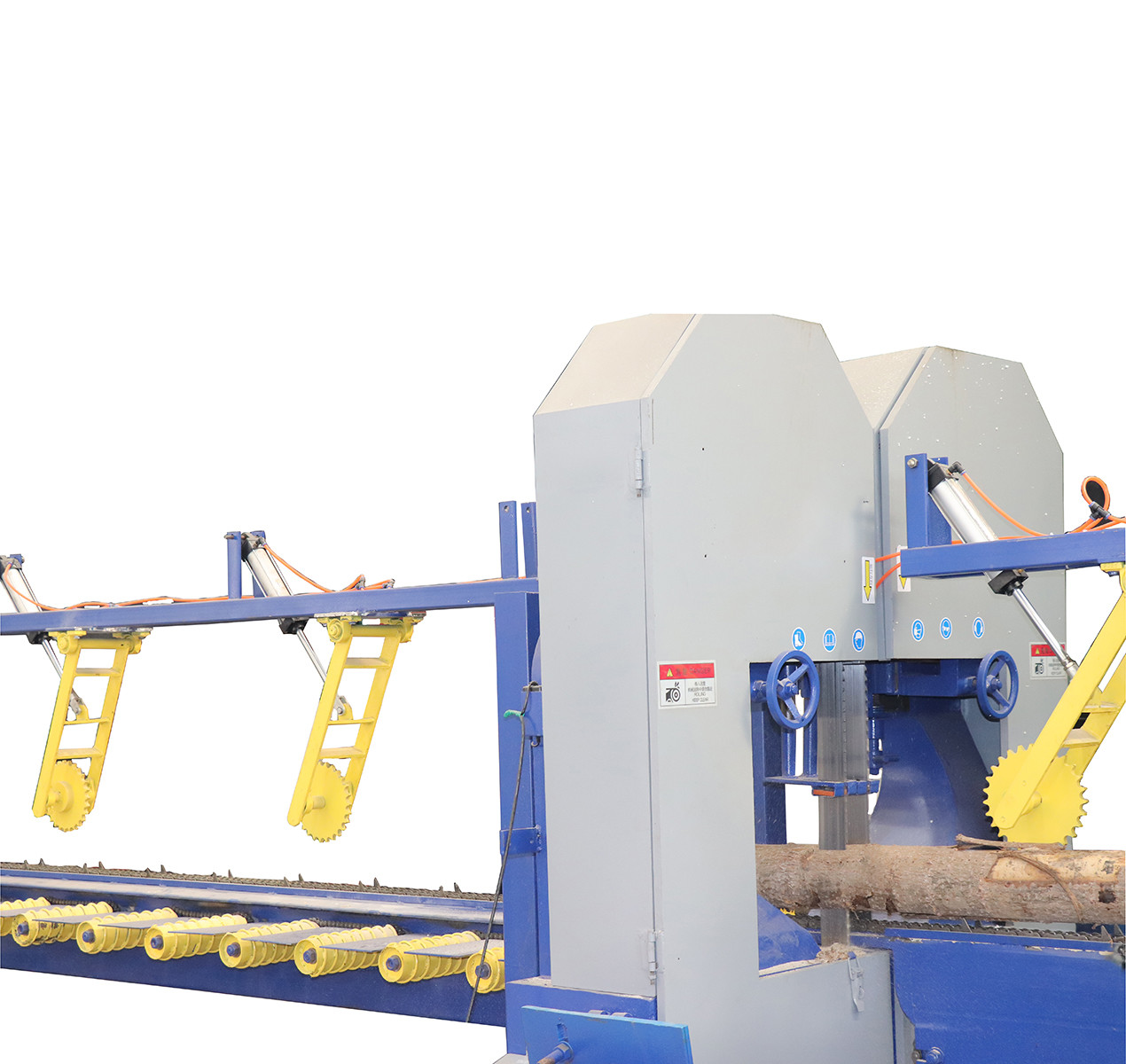

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 2

SLSP400 Twin Bandsaw for log in plat bottom
	sawing max. diameter	400mm
	sawing min. diameter	150mm
	sawing length	800-3000mm
	saw wheel diameter	700mm
	sawing speed	9-25meters/min
	main motor power	18.5kw x 2sets
	sawn size settting	CNC touching screen

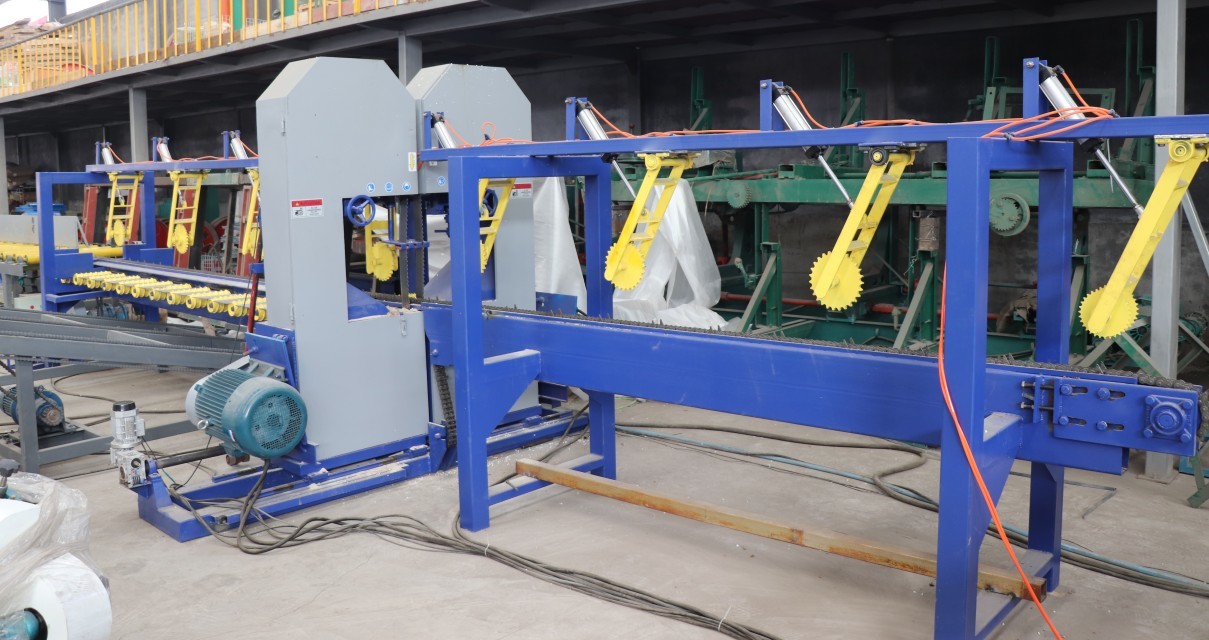

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 3

Related Saw Machine

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment

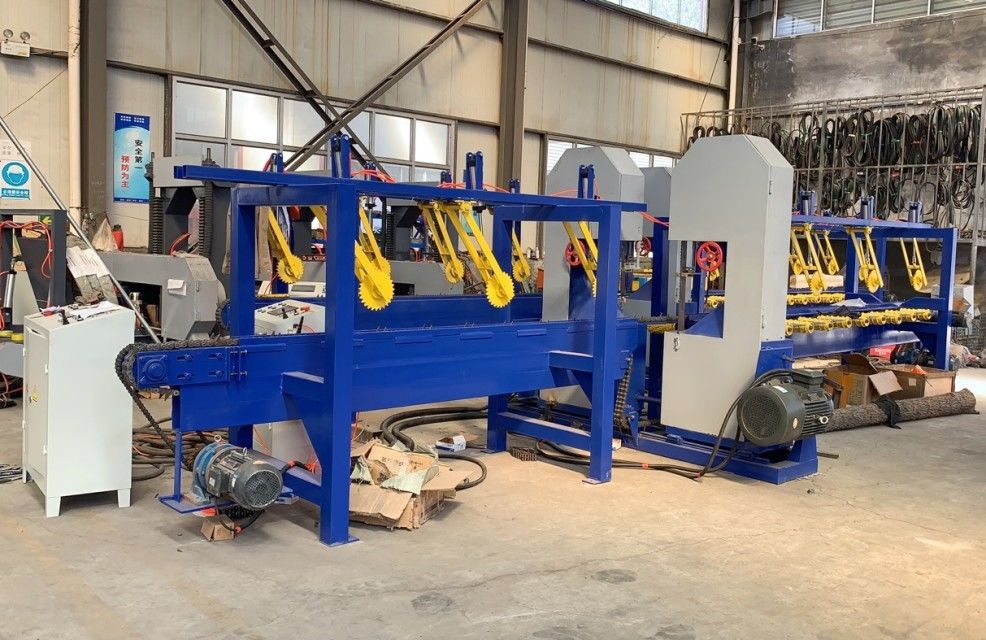

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 4
Optional - board returning conveyor

5heads reaw equipment

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

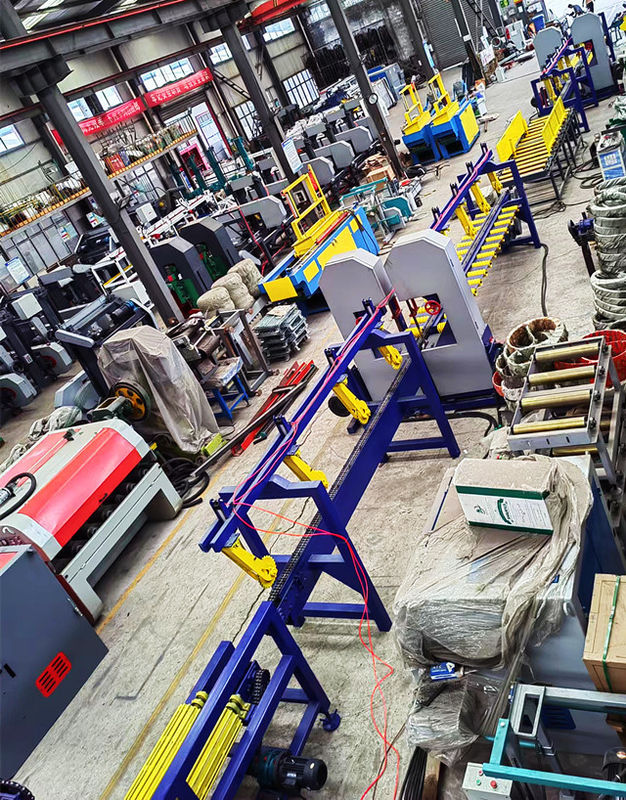

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 7

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

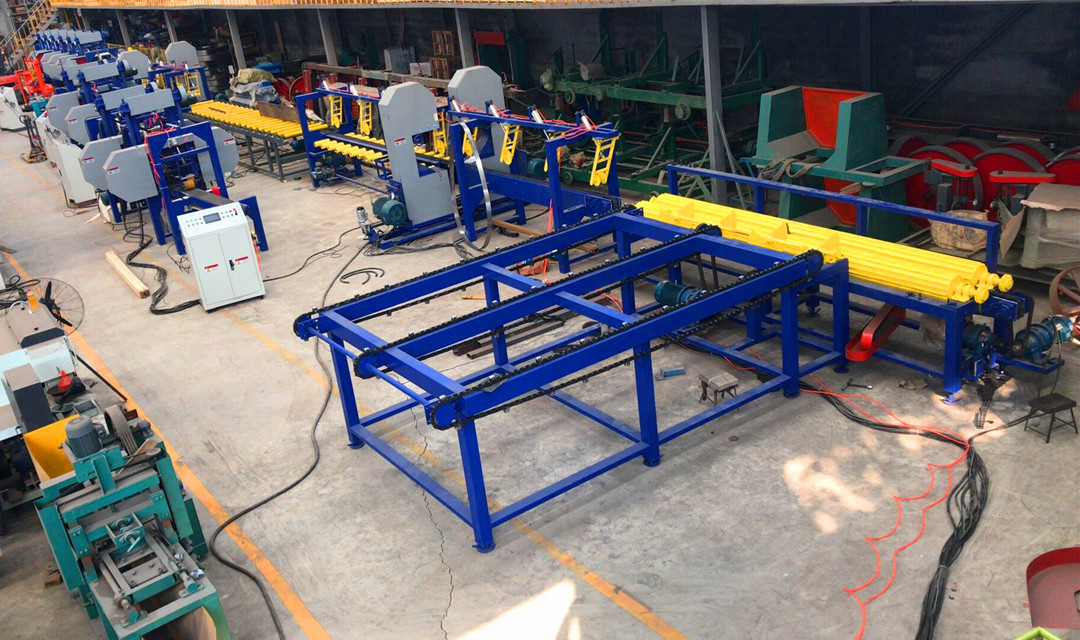

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line, big motor vertical saw 9

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SLS350, SLS500

Minimum Order Quantity:	1 SET
Price:	US $12,500 - 18,000 / Set
Packaging Details:	container loading
Delivery Time:	within 25 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1500sets/year
