Twin Vertical Band Saw Wood Saw Mill,Woodworking Electric Vertical Bandsaw
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SLS350, SLS500 |
| Minimum Order Quantity | 1 set wood saw machine vertical band sawmill |
| Price | US $13,000 - 50,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Efficiency And Auto Setworks | Name | Twin Vertical Band Sawmill |
|---|---|---|---|
| Condition | New | Sawing Log Max. Diameter | 350mm, 500mm |
| Sawing Log Max. Length | 3meters Or As Customer Needs | Blade Size | 50-70mm |
| Feeding | Inverter | Operation | PLC Touching Screen Auto Setworks |
| Function | Sawing Both Edges Of Log Or Into Timber | After-sales Service | Video Technical Support, Working Test Before Delivery |
Product Description
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |

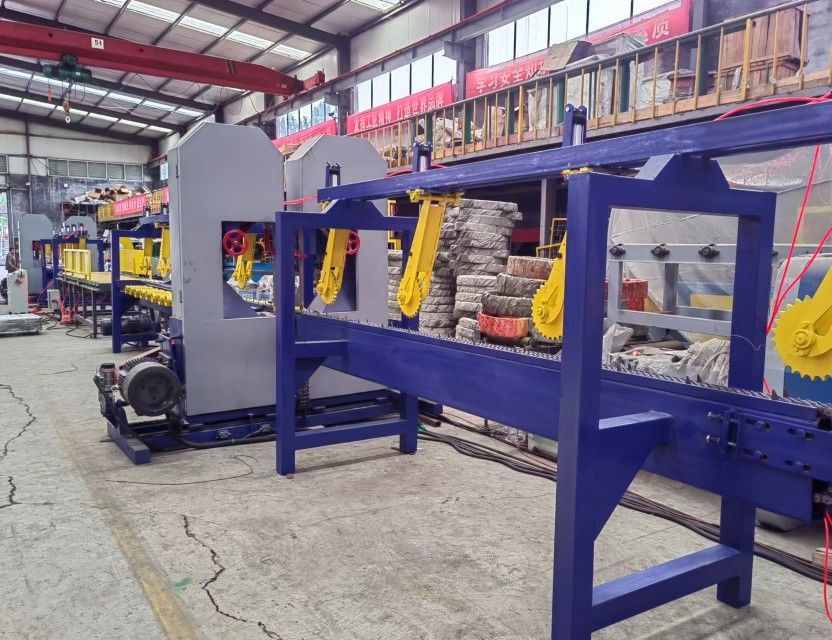

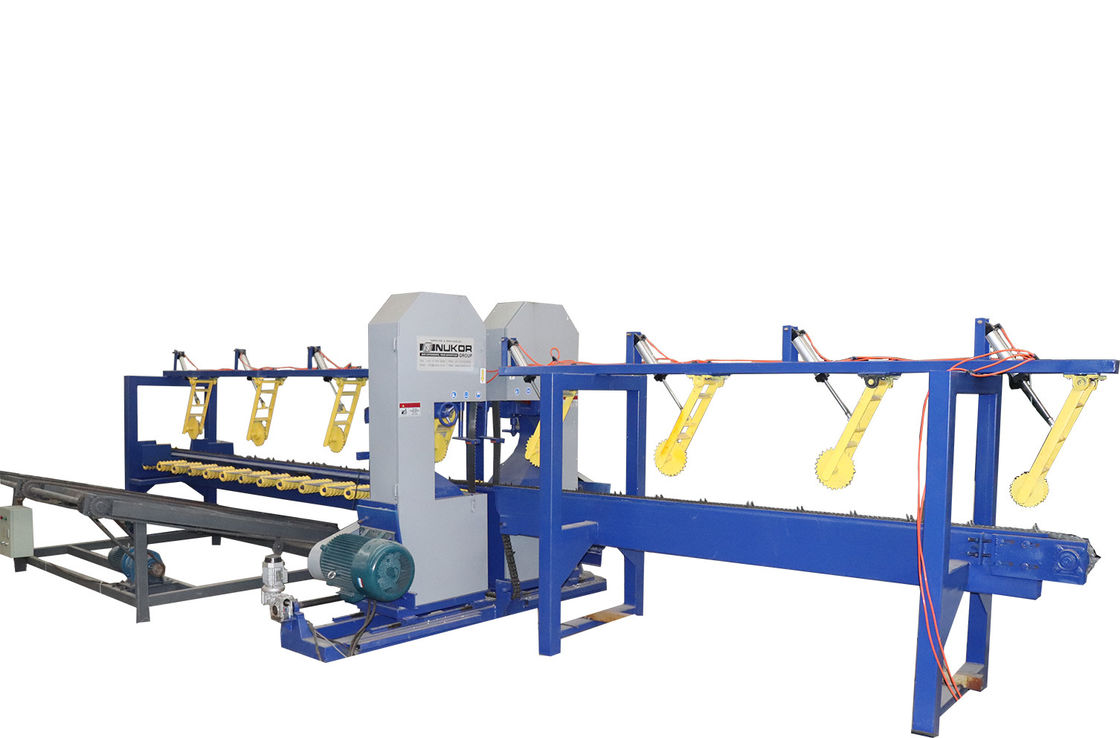

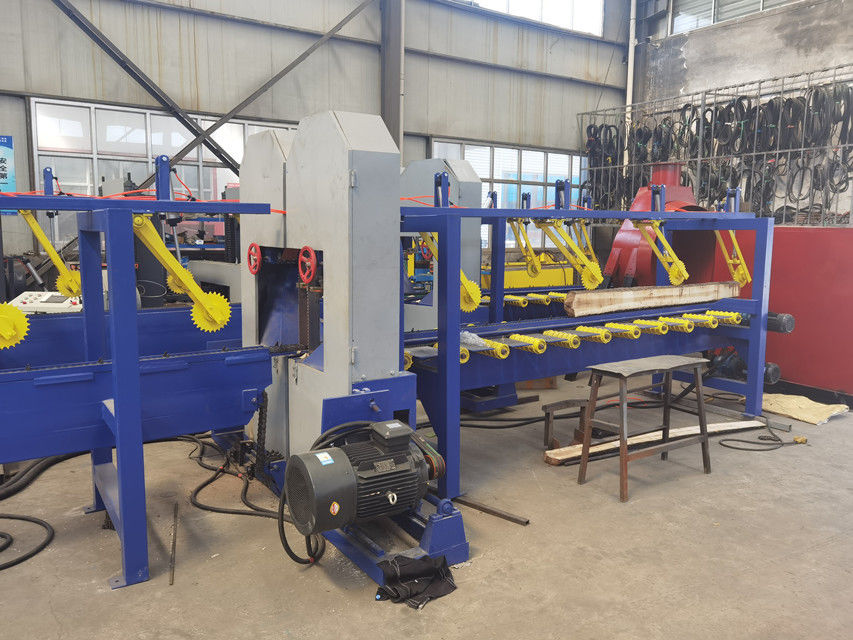

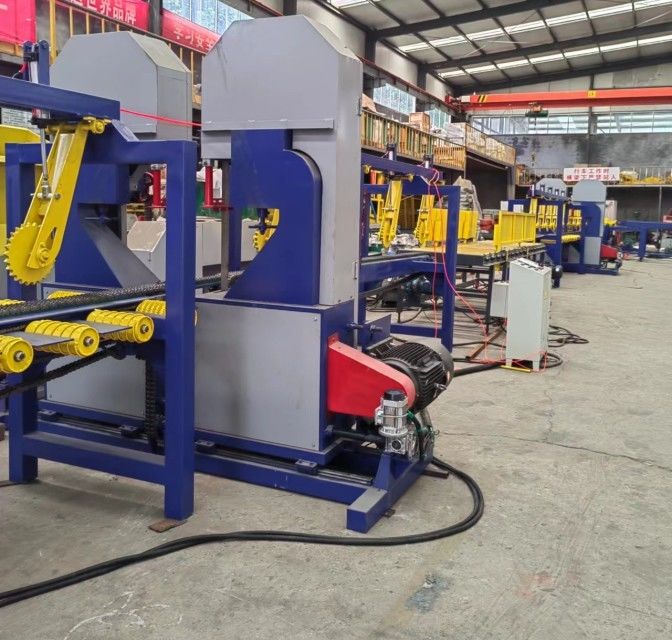

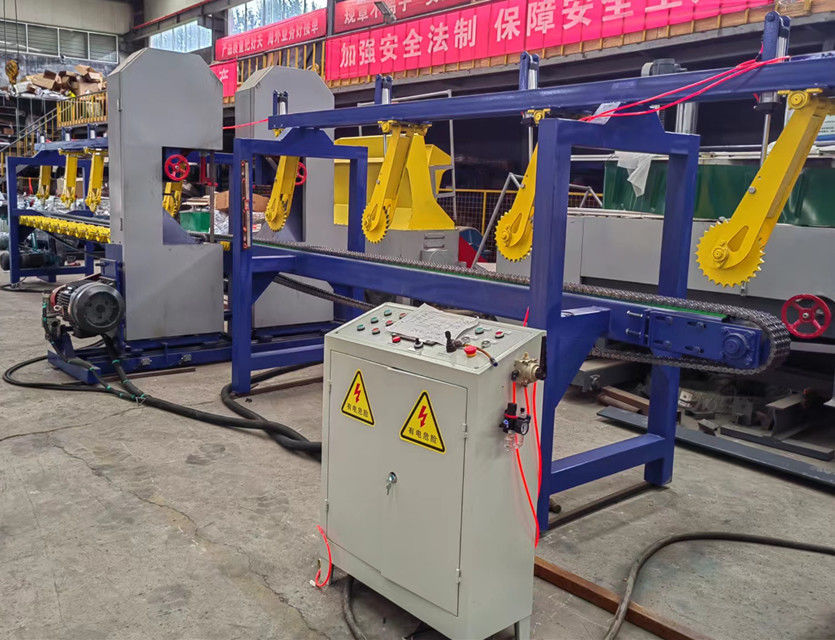

Photos
Optional - slabs slope conveyor
Optional - log loading deck
Optional -Roller conveyor

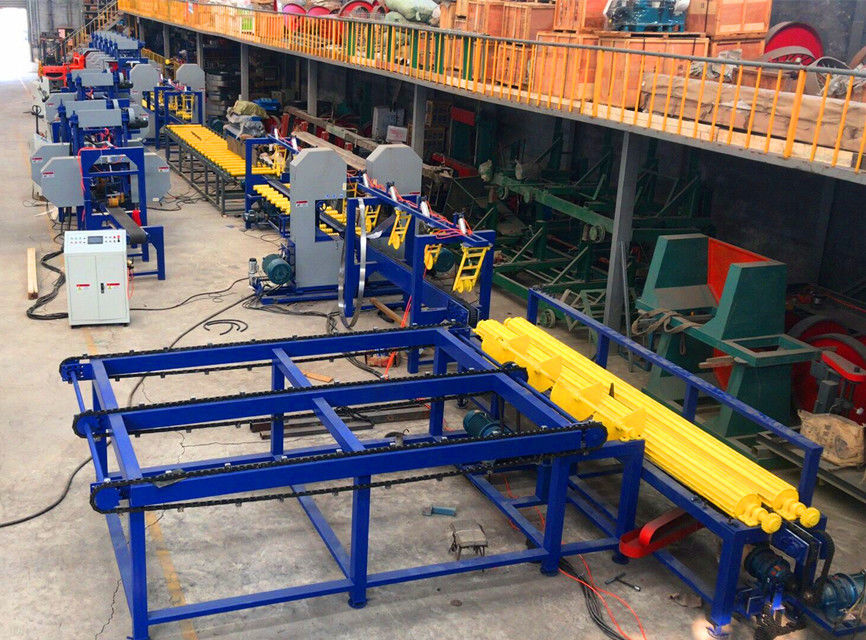

Twin bandsaw complete sawmill line
