Semi Automatic Pallet Nailing Machine, nailing machine for wooden pallet, machine to nail the pallet
Place of Origin | Shandong Province, China |
---|---|
Brand Name | SH |
Certification | ISO9001 |
Model Number | AWPN-1500,PT-1500,AEPN-1300 |
Minimum Order Quantity | 1 SET Pallet nailing machine Automatic |
Price | US $4,200 - 21,500 / Set |
Packaging Details | container loading of Pallet nailing machine |
Delivery Time | within 20 days |
Payment Terms | T/T, Western Union |
Supply Ability | 1000sets/year of Pallet nailing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Semi-Automatic Pallet Nailing Machine With Stacker | Pallet Length | 60cm To 130cm |
---|---|---|---|
Wood Pallet Width | 800-1300mm | Capacity | 1-2pcs /min |
Operating Pressure | 0.8MPA | Number Of Coil Nail Guns | 3pc |
Qty Of Beams | 3beams | Pallet Type | American Tray |
Stacker Working Mode | Pneumatic | Weight | 2000kgs |
After-sales Service Provided | Online Support,Free Spare Parts,commissioning And Training |

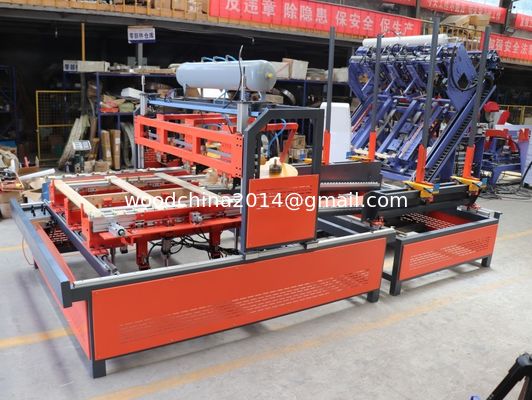

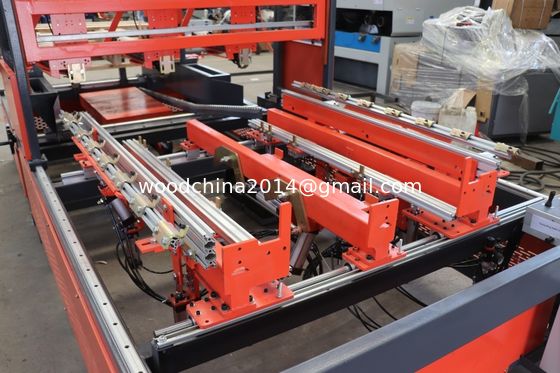

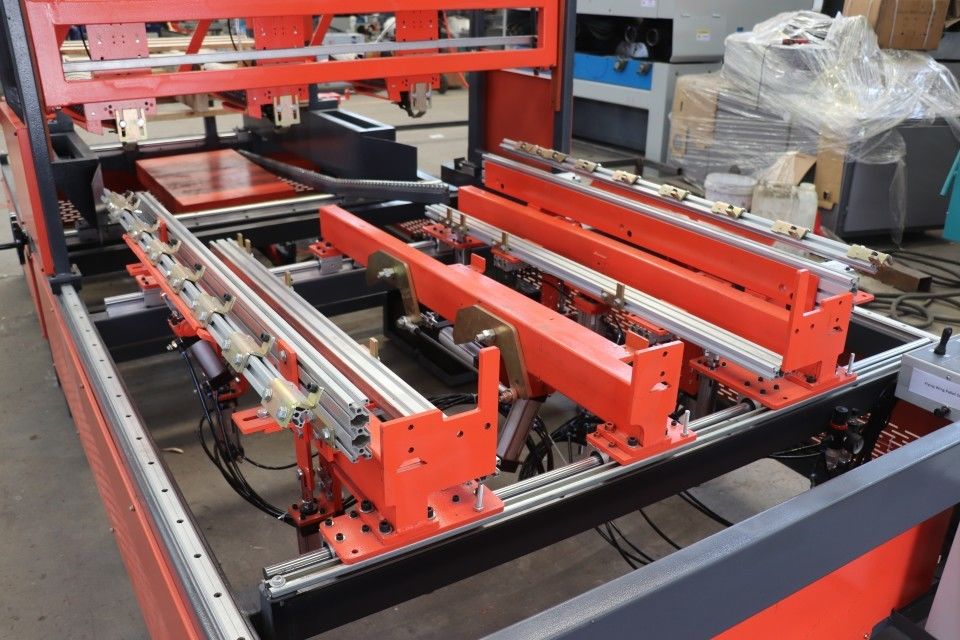

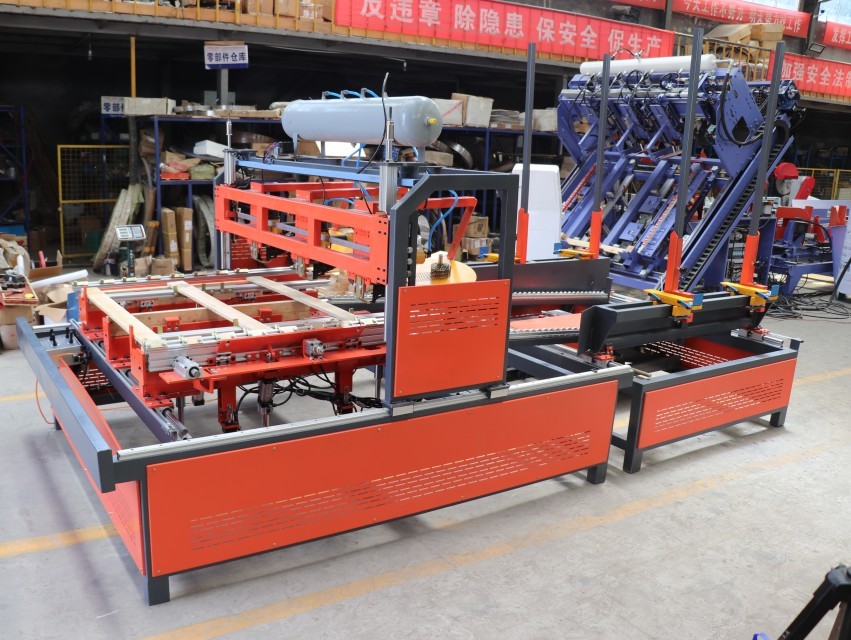

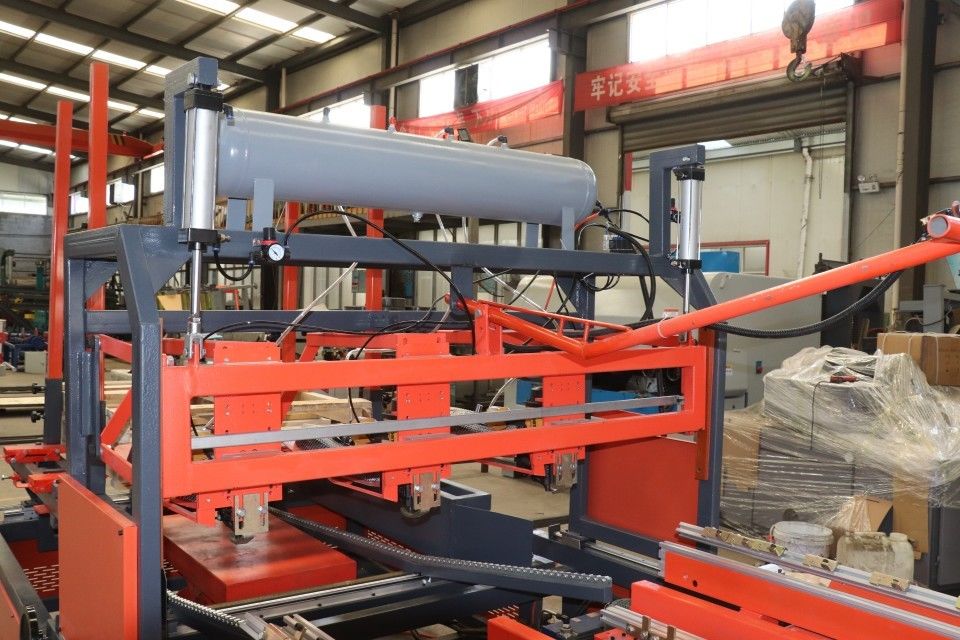

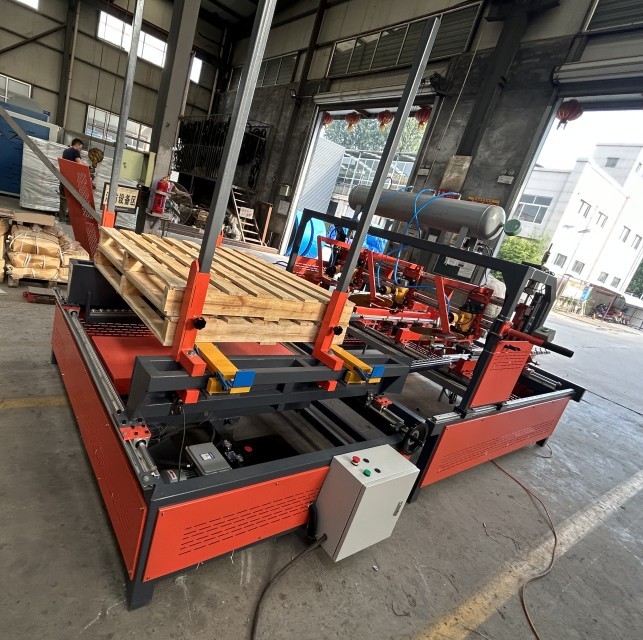

Semi-Automatic Pallet machine Wooden Pallet Nailing Machine with palletizer
Semi-Automatic Pallet Nailing Machine with Palletizer
Technical data :
Model | AWPN-1500 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Feeding mode | Hand pull |
Palletizing mode | Automatic |
Operational mode | Pneumatic operation |
Voltage | 380V,480V or other |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |

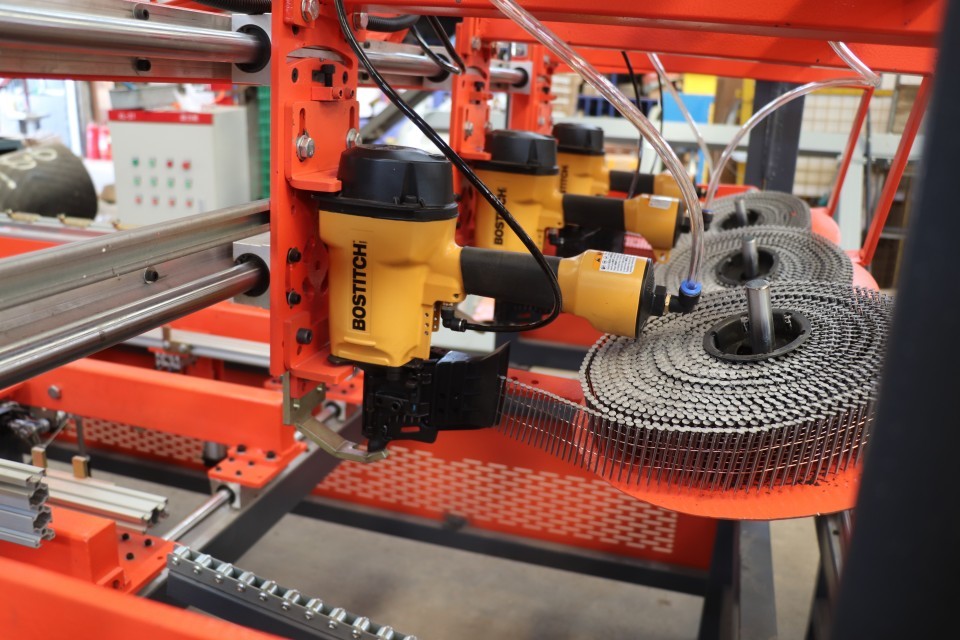

Number of nail guns | 3P OR 4P |
Palletizing quantity | 10P |
Weight | 2000kg |
A universal pneumatic nailing table, Pneumatico PT-1500 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 210-230 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
Model | PT-1700 | PT-3400 |
Wood pallet length | 600-1300mm | 700-1500mm |
Wood pallet width | 800-1700mm | 900-3400mm |
Operational mode | Pneumatic operation | Pneumatic operation |
Air pressure | 0.8MPA | 0.8MPA |
Production efficiency | 30-40pcs /h | 20-30pcs /h |
Number of beams | 3p (or customized) | 5p (or customized) |
Number of nail guns |
1P (CN70) American Stanley staple gun |
1P (CN70) American Stanley staple gun |
Weight | 440kg | 840kg |
Size | 2250*980*1900mm | 4050*1050*2100mm |

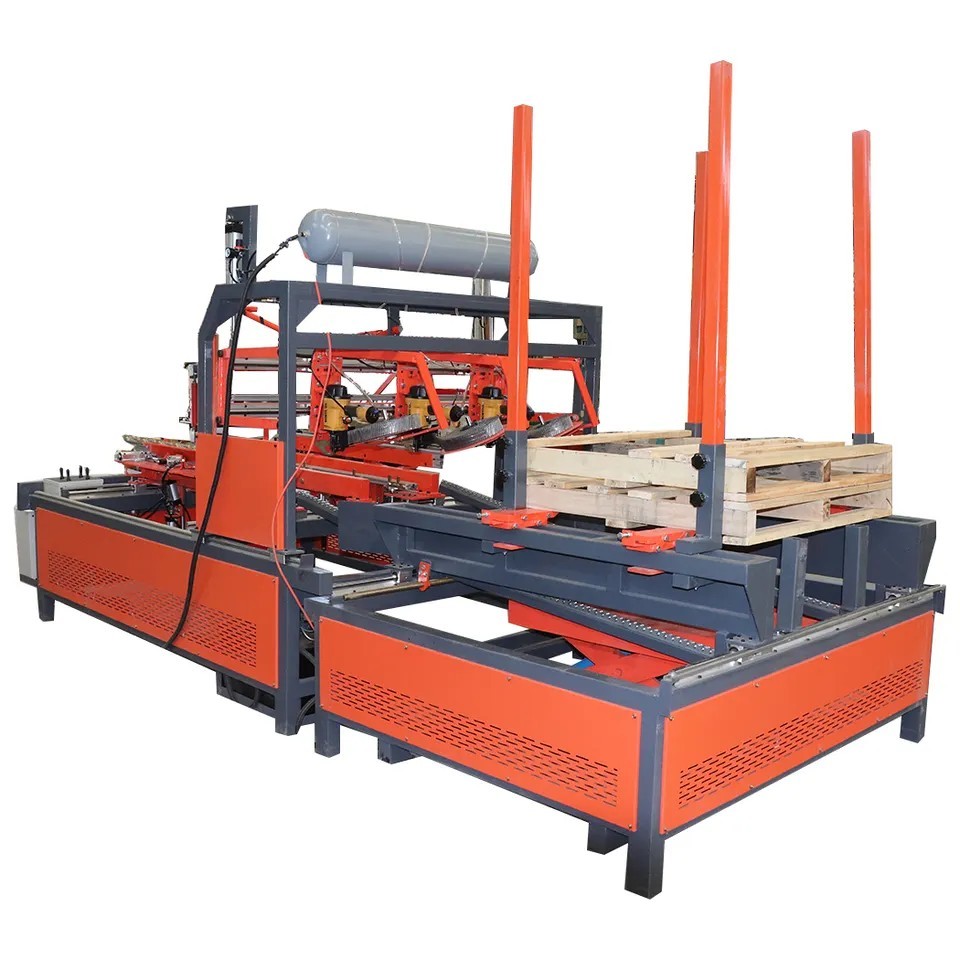

Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
Model | AWPN-1300 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 220V/ 2kw Servo motor |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Weight | 2000kg |
Related Products
Pallet Notcher
Model | WPN-1 | WPN-2 |
Power | 15kw | 30kw |
Material of knife | Alloy | Alloy |
Capacity | 600-800pics/h | 1800pics/h |
Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
Wood pallet width: 160mm | Wood pallet width: max 90mm | |
Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
Slot depth: <45mm | Slot depth: <45mm | |
Slot width: 200-230mm | Slot width: 200-230mm | |
Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
Machine wight | 400kg | 1000kg |
Feature | Slot smooth, size consistent | |
Apply for many kinds of slots, also can customized. |
