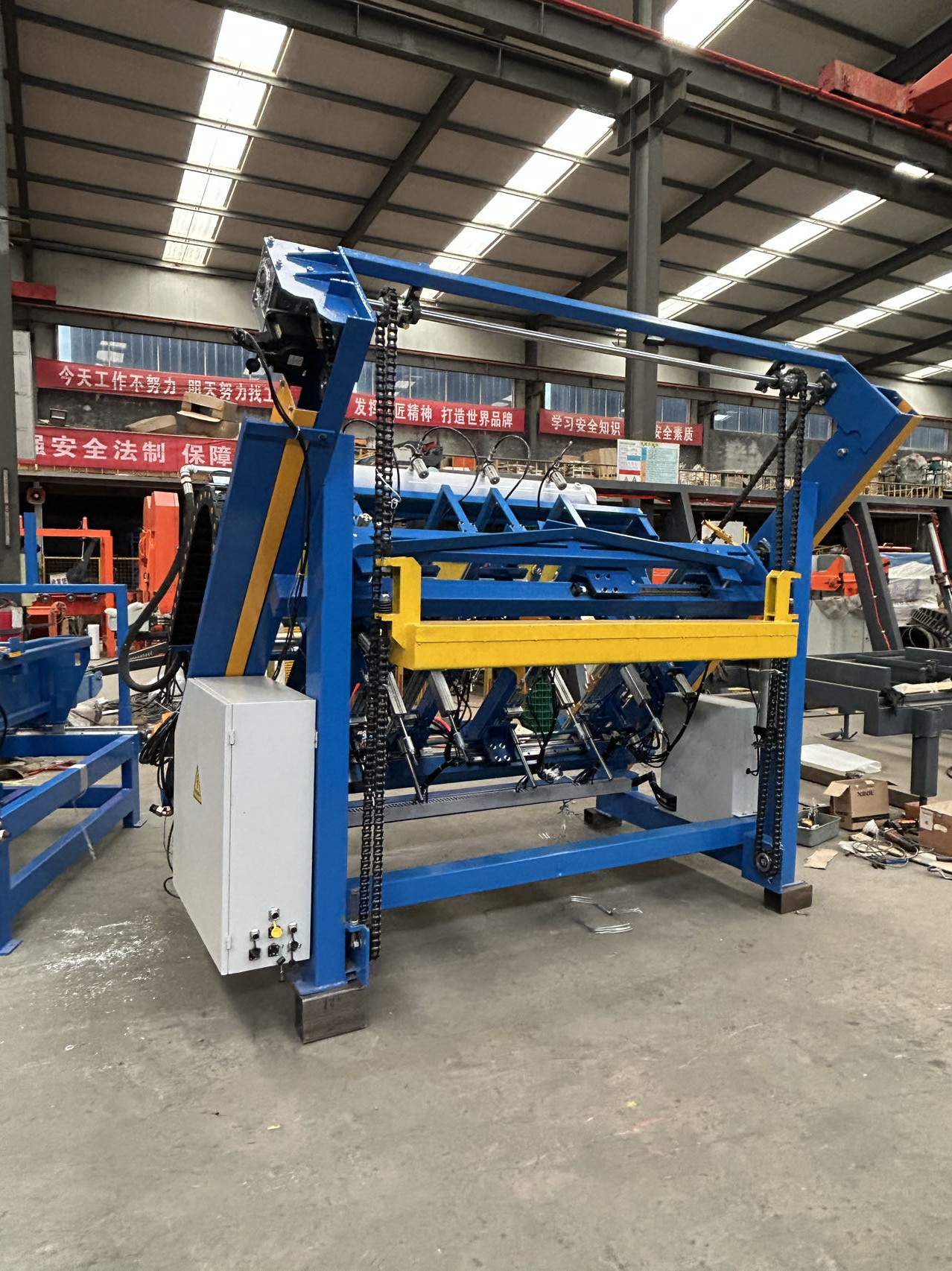

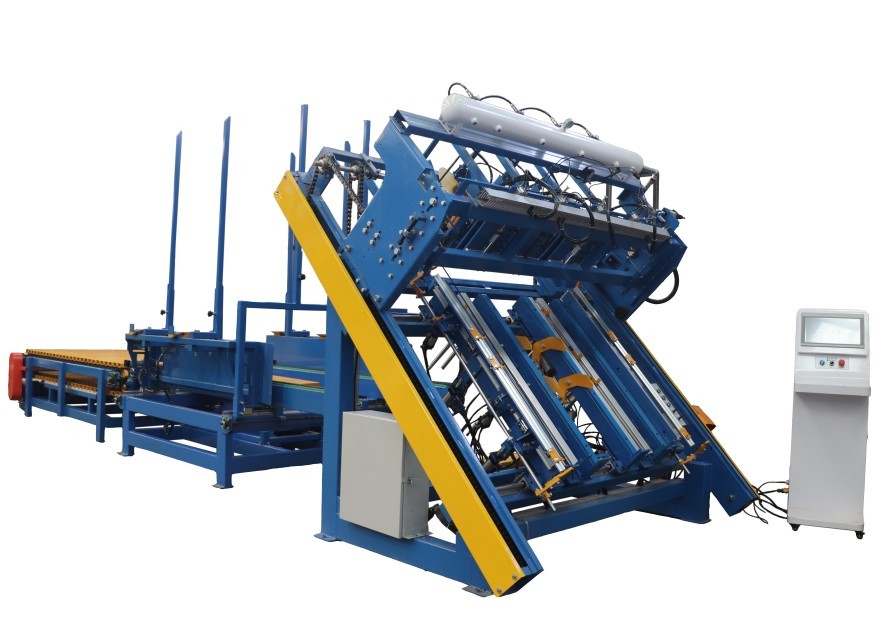

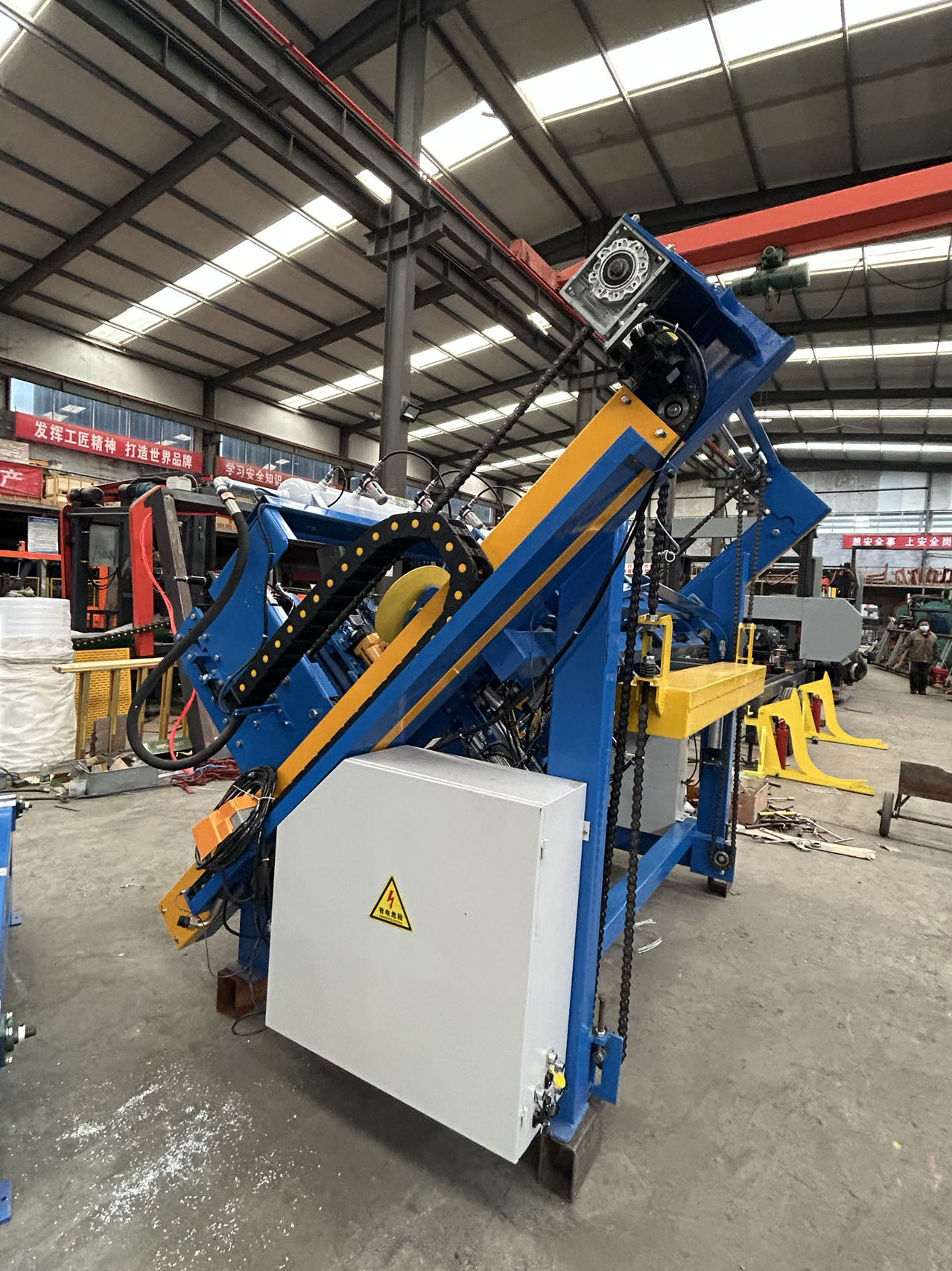

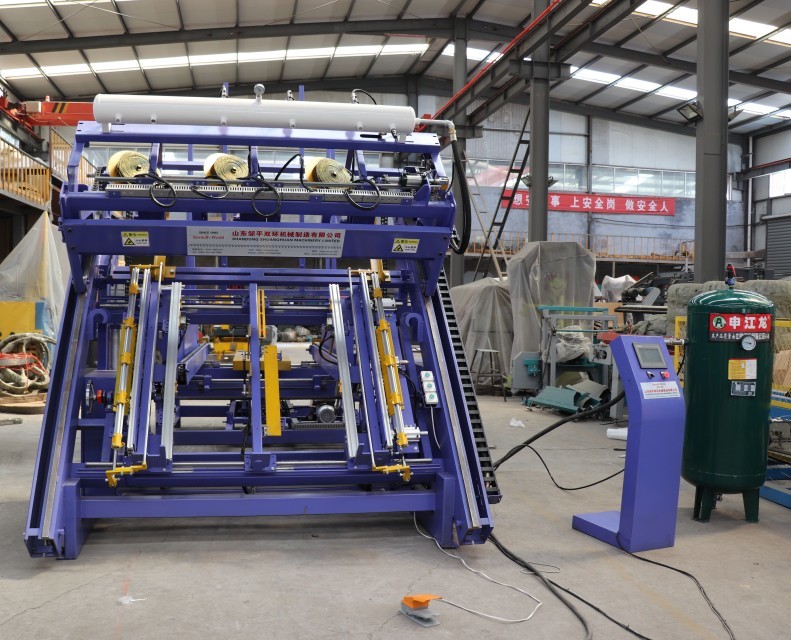

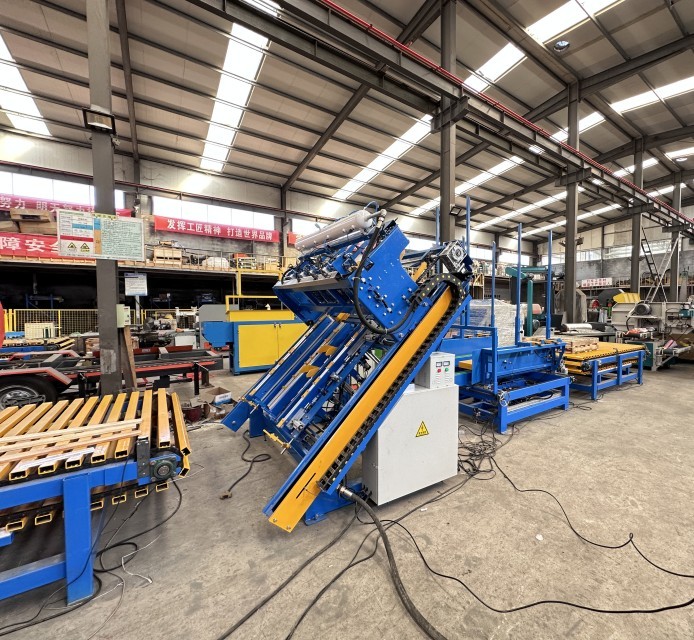

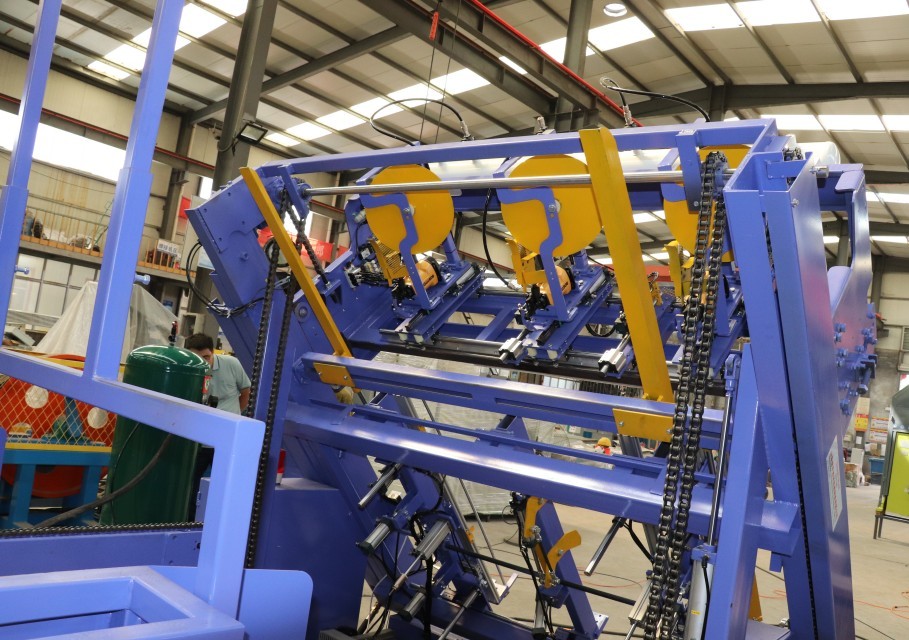

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine

  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
  • Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number AWPN-1300, PT-1700, PT-3400, AWPN-1500
Minimum Order Quantity 1 SET Pallet nailing machine
Price US $19,800 - 21,500 / Set
Packaging Details container loading of Pallet nailing machine
Delivery Time within 20 days
Payment Terms T/T, Western Union
Supply Ability 1000sets/year of Pallet nailing machine

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Pallet Nailing Machine Application Nailing Wood Pallets
Wood Pallet Length 600-1300mm Wood Pallet Width 800-1300mm
Operation PLC Touching Screen Auto Setworks Air Pressure 0.8MPA
Number Of Coil Nail Guns 3pcs Or 4pcs Production Prodedure Manual Feeding/automatic Nailing/automatic Palletizing
Palletizer Equipment With It ,automatic Working Pallet Type American Tray
Coil Nails Yes After-sales Service Provided Online Support,Free Spare Parts,commissioning And Training
Leave a Message
Product Description

Automatic Wood Pallet Nailer, Pallet Nailer with 4 nail guns ,wood pallet nailing machine

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 220V/ 2kw Servo motor
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Weight 2000kg

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 0

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 1

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 2

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 3



Related Products

Pallet Notcher

Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 4Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 5

Semi-Automatic wooden pallet nailing machine

Model AWPN-1500
Wood pallet length 600-1300mm
Wood pallet width 800-1700mm
Feeding mode Hand pull
Palletizing mode Automatic
Operational mode Pneumatic operation
Voltage 380V,480V or other
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Palletizing quantity 10P
Weight 2000kg

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 6Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 7

Manual American Wood Pallet Nailing Table

Processing Pallet Width:800-1700mm
Processing Pallet Length:1300mm
Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 8
Manual Euro Wood Pallet Nailing Table
Processing Pallet Width:800-1700mm
Processing Pallet Length:1300mm
Model PT-1600 PT-3300
Wood pallet length 600-1300mm 700-1500mm
Wood pallet width 800-1600mm 900-3300mm
Operational mode Pneumatic operation Pneumatic operation
Air pressure 0.8MPA 0.8MPA
Production efficiency 30-40pcs /h 30-40pcs /h
Number of beams 3p (customized) 5p (customized)
Number of nail guns

2P (CN70,CN55)

American Stanley staple gun

2P (CN70,CN55)

American Stanley staple gun
Weight 650kg 950kg
Size 2400*980*1900mm 4000*980*1900mm
Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 9

Automatic Euro Wood Pallet Nailing Machine

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine 10
