Pallet wood nailing machine, Pneumatic Wood Pallet Nailing Machine width max. 3300mm
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | PT-1600, PT-3300, AWPN-1300, etc |
| Minimum Order Quantity | 1 SET Pallet nailing machine |
| Price | US $4,200 - 21,500 / Set |
| Packaging Details | container loading of Pallet nailing machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000sets/year of Pallet nailing machine |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Pneumatic Pallet Nailing Table | Pallet Width | 800-1600 Mm |
|---|---|---|---|
| Pallet Length | 600-1300mm | Capacity | 240-320 Pallets /8hours |
| Operating Pressure | 0.8MPA | Number Of Coil Nail Guns | 2P (CN70、CN55) |
| Weight | 650kgs | Qty Of Stringers | 2, 3, 4, Or 5 Stringers |
| Pneumatic Clamp | Easily Centers The Blocks | Pneumatic Lift | Raises Pallet To Minimize Operator Lifting |
| After-sales Service Provided | Online Support,Free Spare Parts,commissioning And Training |
Product Description

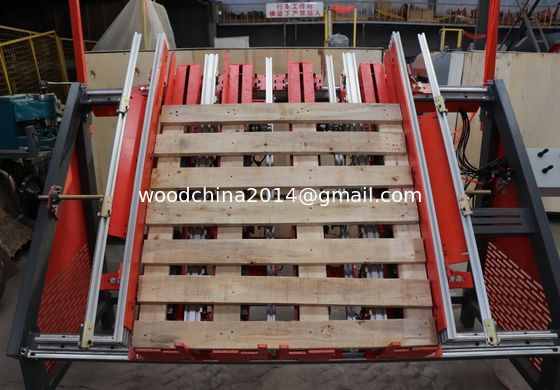

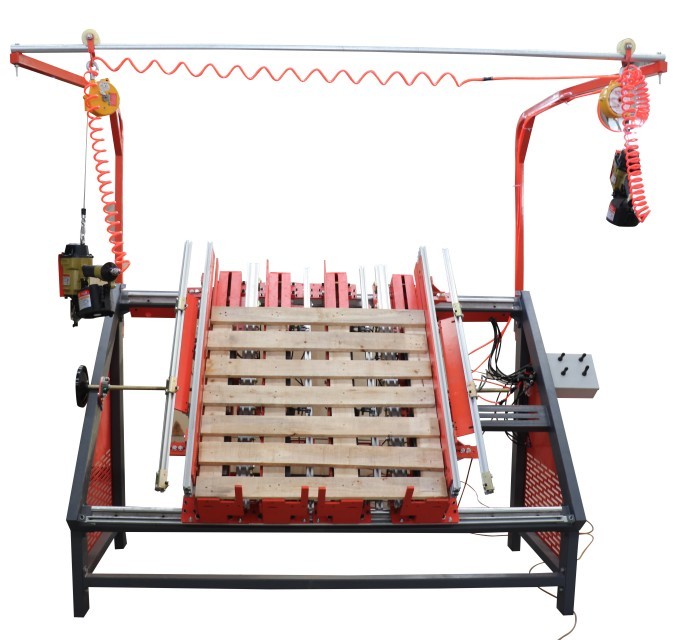

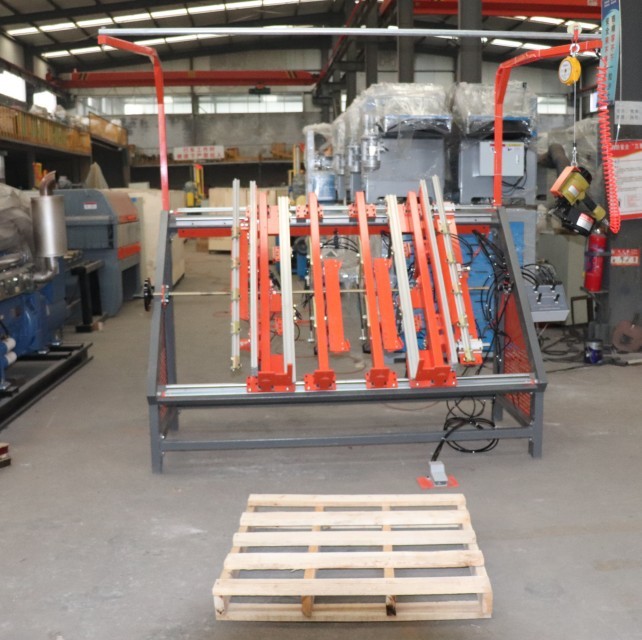

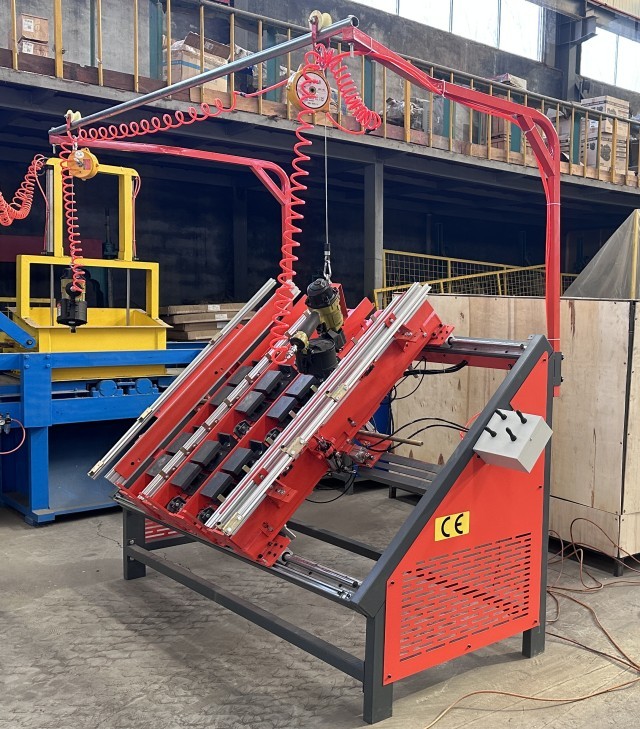

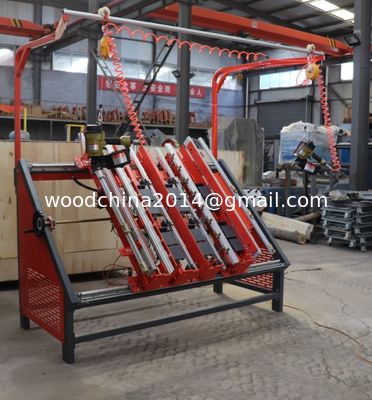

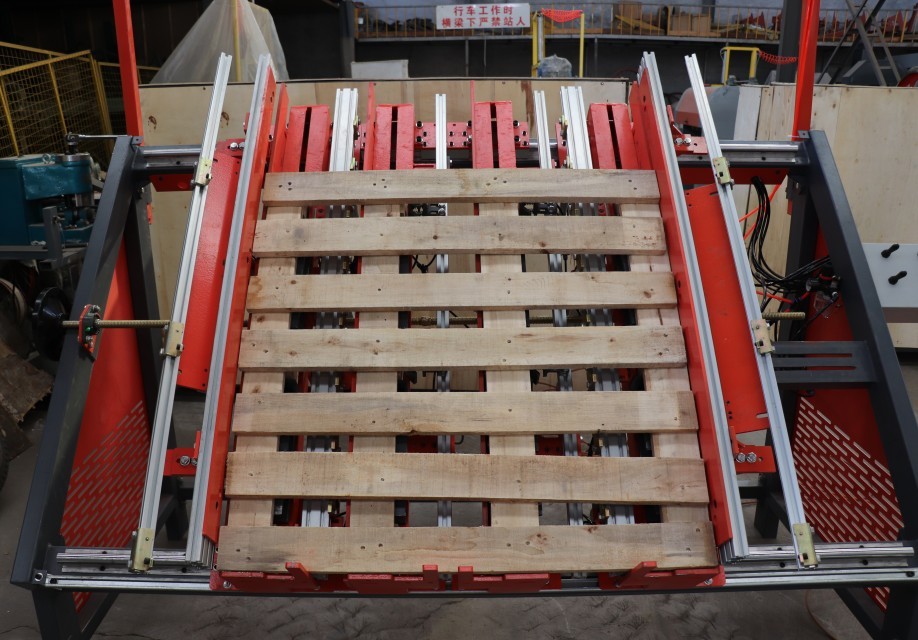

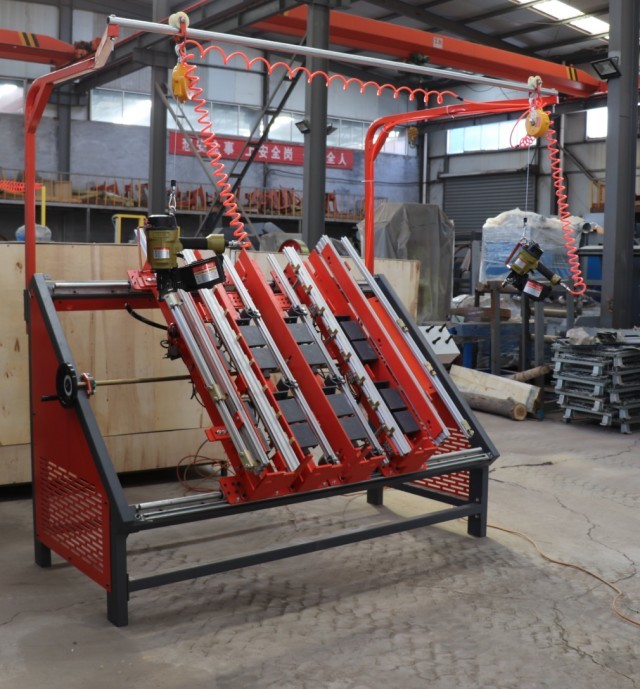

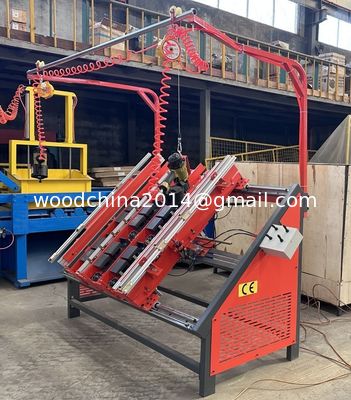

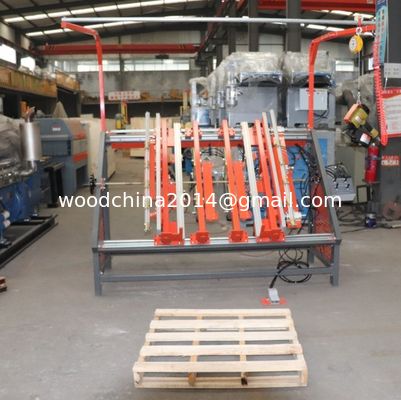

A universal pneumatic nailing table, Pneumatico PT-1600 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 210-230 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
| Model | AWPN-1300 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 220V/ 2kw Servo motor |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Weight | 2000kg |
| Size | Host machine 1660*1970*2217mm Stacking 2945*2054*1410 |
Related Products
Pallet Notcher
| Model | WPN-1 | WPN-2 |
| Power | 15kw | 30kw |
| Material of knife | Alloy | Alloy |
| Capacity | 600-800pics/h | 1800pics/h |
| Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
| Wood pallet width: 160mm | Wood pallet width: max 90mm | |
| Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
| Slot depth: <45mm | Slot depth: <45mm | |
| Slot width: 200-230mm | Slot width: 200-230mm | |
| Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
| Machine wight | 400kg | 1000kg |
| Feature | Slot smooth, size consistent | |
| Apply for many kinds of slots, also can customized. | ||
