Log Cutting Saw Swing Twin Blade Sawmill Portable Circular Saw Mill Machine Dia 760mm
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DS700 D1300,DS2000 |
| Minimum Order Quantity | 1 SET Circular saw machine wood cutting machine |
| Price | US $8,700 - 14,800 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Circular Saw Machine Wood Cutting Machine | Application | Sawing Round Logs Into Square Timber |
|---|---|---|---|
| Sawing Log Max. Diameter | 1300mm Or 2000mm | Sawn Timber Max. Size | 210x210mm, 300x210mm |
| Carbide Blade Diameter | 546mm, 760mm | Saw Head Walking | Automatic Frequency Speed Adjustable |
| Main Motor Power | 15kw, 22kw | Walking Power | 2.2kw, 3kw |
| Sawing Log Max. Length | 6meters Or Extend Sawmill Track | After-sale Service | Spare Parts, Online Support 24hours |
| High Light | Circular Twin Blade Sawmill,Log Cutting Twin Blade Sawmill,Portable Circular Saw Mill Machine 760mm |
||
Product Description
Hardlogs Wood Cutting Circular Saw Machine,Portable Swing blade angle circular sawmill with big motor power
Double Saw blade Angle Circular Swing Blades SawMill
- The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
- The Blades enables cutting in both directions,which considerably increases the cutting capacity.
- Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
- The angle circular saw is a machinethat:
- Produces lumber with saw-cut dimension accuracy up to ± 1mm
- Produces lumber of excellent surface quality
- Results in very low operational costs
- Electric invertor crane, computer touch screen for length calculation and remote control.
Specification:
- Max. sawing timber size : 300mm x 210mm
- Carbide circular blade diameter : 760mm , 546mm
- Log feeding : frequency auto feeding
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) |
11KW*2, 1.5KW*2, 2.2kw x 1 |
15KW*2, 1.5KW*1 2.2kw *1,3kw *1 |
22KW*1, 15KW*1 1.5KW*1 ,2.2kw *1 3kw *1 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |

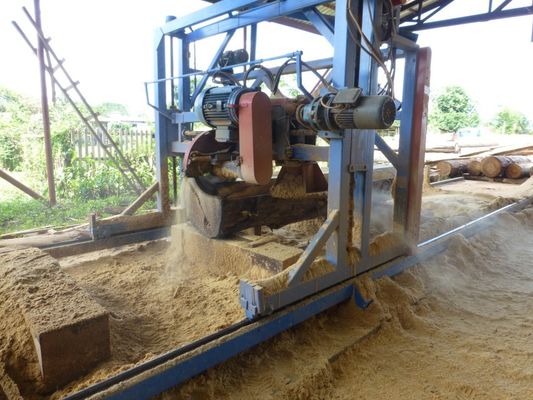

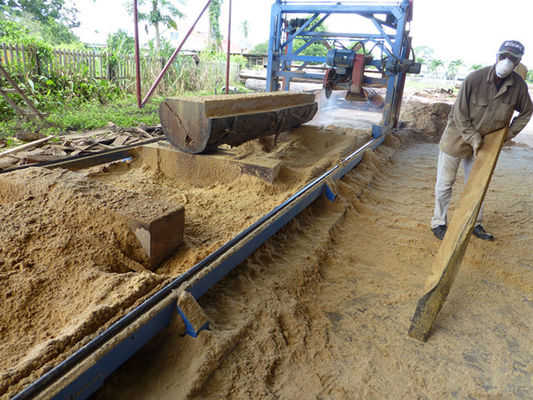

Photos:
Hot Selling Products:
Twin blades sliding table sawmill - Electrical manual type
| model | TT1500 | TT2000 | TT3000 |
| Cut log max. diameter | 400mm | 400mm | 400mm |
| Cut length | 1.5m | 2m | 3m |
| Blade diameter | 500mm | 500mm | 500mm |
| Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
| Track length | 3000mm | 5000mm | 6000mm |
| Log clamping | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
| Feeding mode | Manual | Manual | Manual |
| Setting size mode | Manual | Manual | Manual |
Twin blades sliding table sawmill -computer type
Twin blades sliding table sawmill - Diesel engine type
MJ109 Woodworking Circular Table Saw
Multi Blades Rip Saw
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
- with Infrared positioning
- for big thickness board edger cutting
- high working efficiency, low cost ,fulfil the max. value of the wood
- easy usage, no installation
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
