Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ700,MJ1000,MJ1300,MJ1600
Minimum Order Quantity 1 SET
Price US $4,500 - 12,200 / Set
Packaging Details iron frame pallet or film wrapped packings
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Portable Sawmil Wood Saw Machines Condition New
Type Horizontal Band Saw Saw Wheel Diameter 700mm
Max. Sawing Width 1600mm Max. Sawing Length 4.5meters Or Extend Sawmill Track
Power(W) 22HP, 25HP, 30HP Warranty 12 Months
Application Cutting Soft/hardwood Log Feeding Manual Or Inverter
Other We Can Customize Machine According To Customer Needs
High Light

700mm Horizontal Wood Saw Machine

,

Wood Horizontal Band Sawmill

,

Diesel Wood Portable Sawmill

Leave a Message
Product Description

band saw machine for wood cutting,portable saw mill,wood working machine



The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.



  • It is simple installation,easy operation,labor saving,and high productivity.
  • This machine can be drived by either electric motor or diesel engine.
  • It is widely used by the timber processing enterprises in the virgin forests areas.

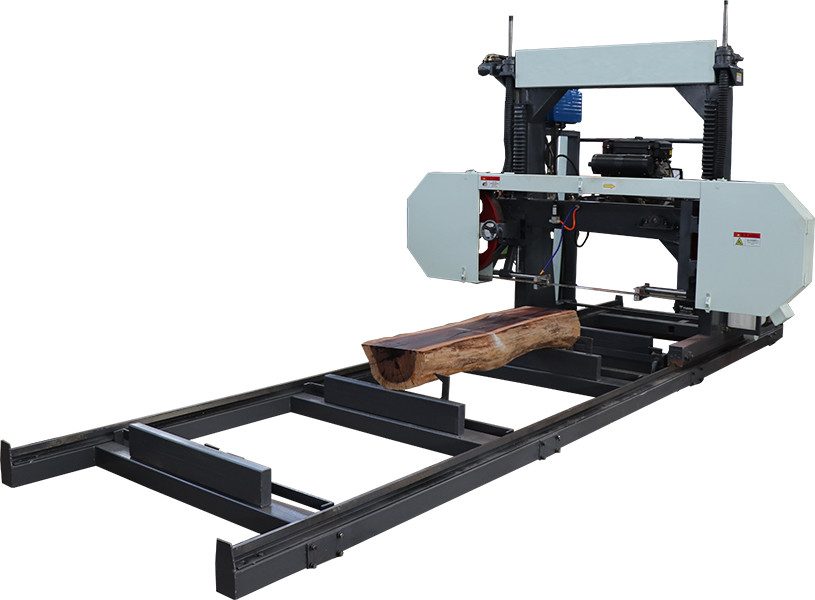

Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawn Thicknes

2-250 2-300 2-300 2-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

1100 1100 1300 1500



Image :

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 0

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 1

Image- Mobile Usage -optional

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 2

Image- Mobile Usage with hydraulic log loading arm - optional

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 3





PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

1100 1100 1300 1500



Image -standard model

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 4Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 5

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 6

Image- extended sawmill track - optional

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 7

Image- CNC type - pneumatic log clamping - optional

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 8

Image- CNC type - board returning hook - optional

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 9

Image- feedback from abroad users

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 10

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 11

Sharpener

Wood Horizontal Band Sawmil Diesel Portable Horizontal Wood Saw Machine 12
