Detail Information

Condition:	New	Type:	Band Saw
Use:	Woodworking	Blade Size:	150 X 1.25mm
Power(W):	55KW/3PH	Saw Wheel Diameter:	1250mm
Max. Sawing Log Diameter:	1500mm	Keyword:	Band Sawing Machine \| Band Saw Machine \| Wood Cutting Band Saw Machine,Cnc Cut
Max. Sawing Log Length:	6000mm	Warranty:	12 Months
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support

Product Description

China Made Vertical Saw Mill, Timber sawing vertical band saw sawmill machine with trolley

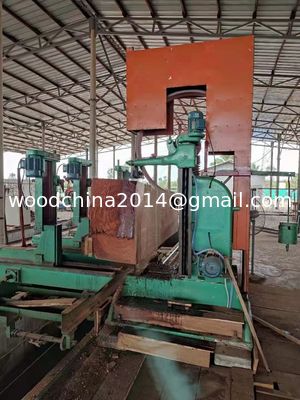

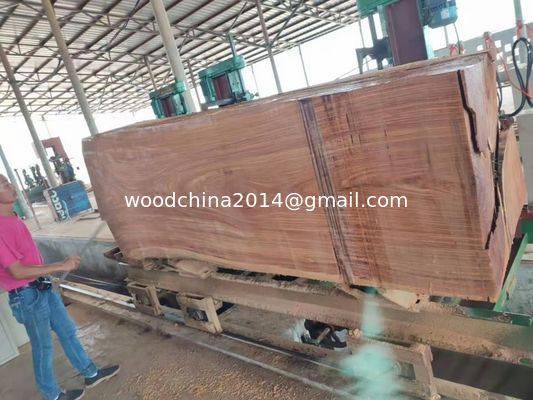

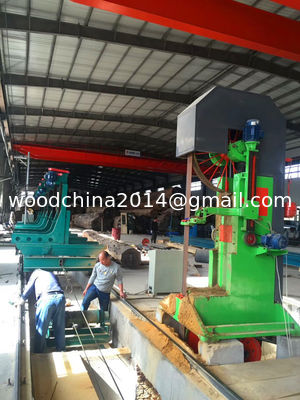

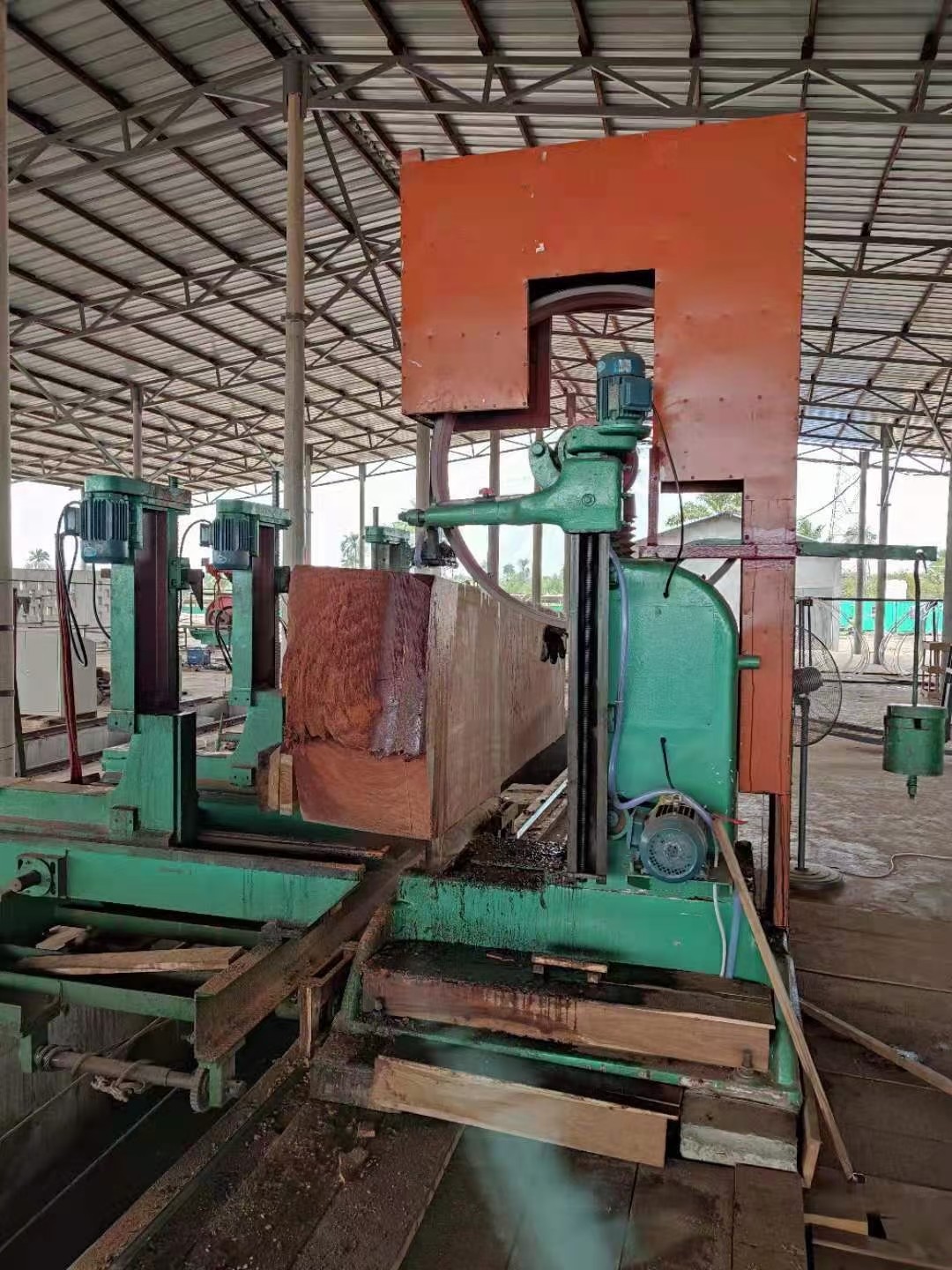

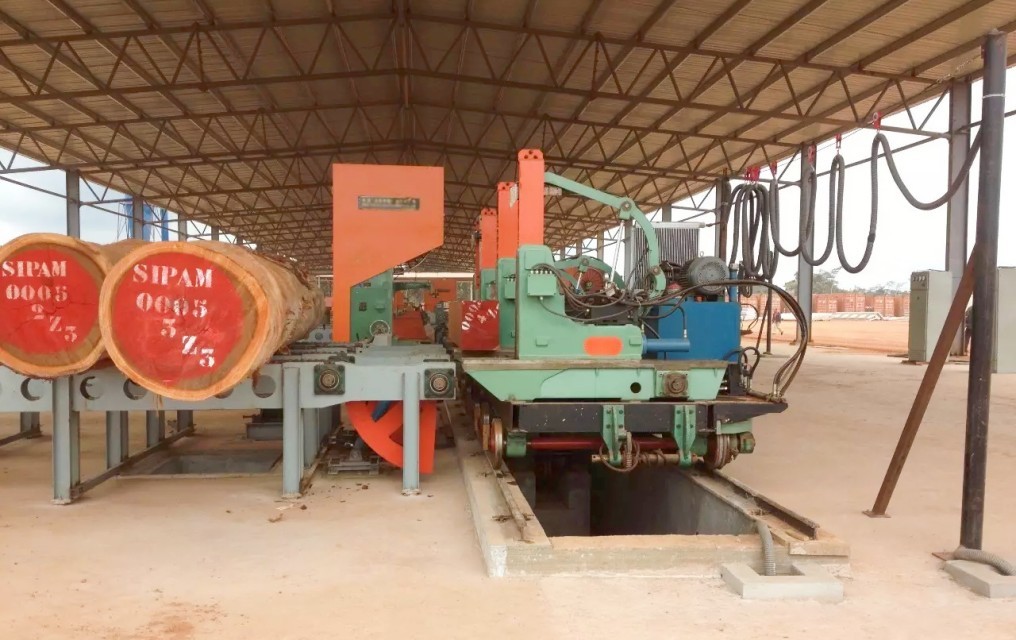

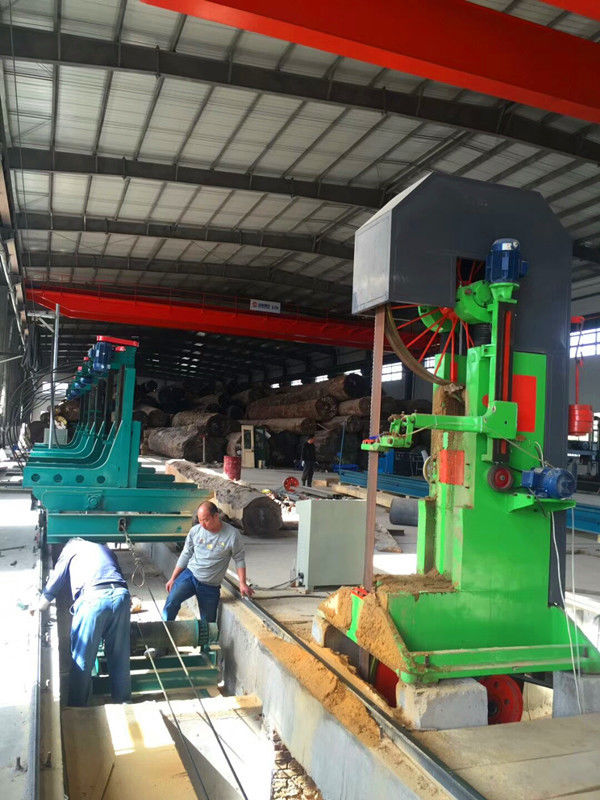

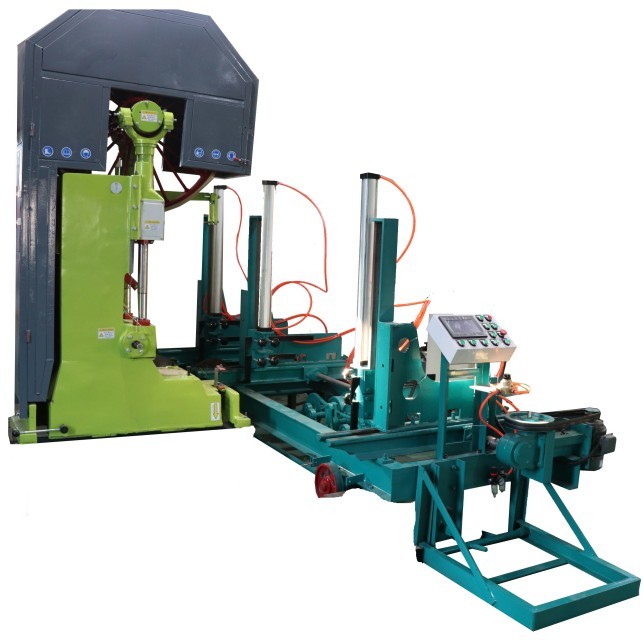

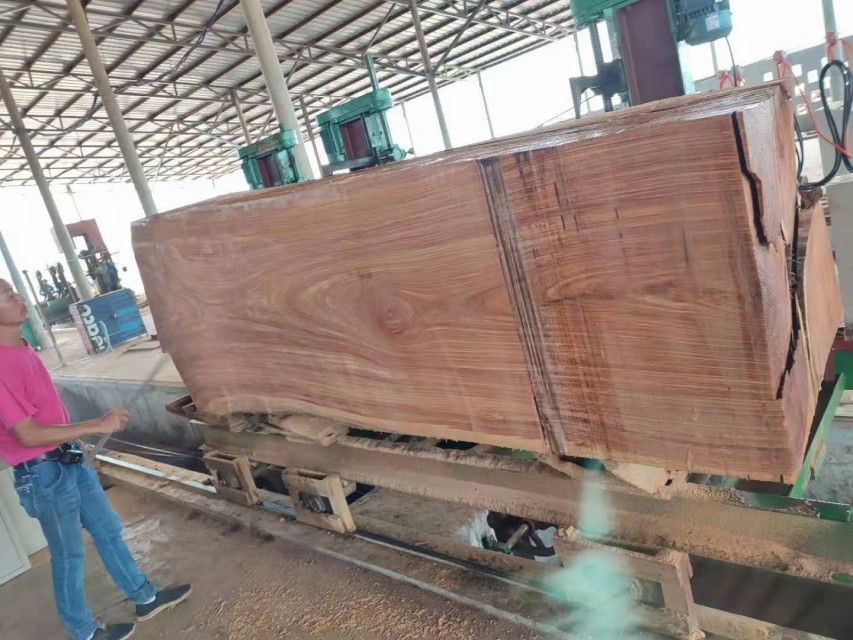

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical data	MJ3212-CNC3000	MJ3212-CNC5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1200mm	1200mm
Maximum sawing log length	4meters	6meters
Main motor	37KW	37KW
Saw blade LWT	8600x150x1.25mm	8600x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	7500kgs	8000kgs

2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-CNC3000	MJ3212B-CNC5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs

60'' Heavy-duty CNC Wood Saw Machine Vertical Band Sawmill Commercial Log Cut Saw for timber 0
Optional part : hydraulic chain log turner

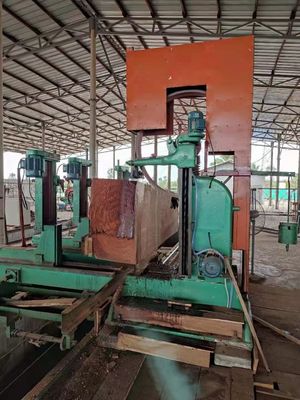

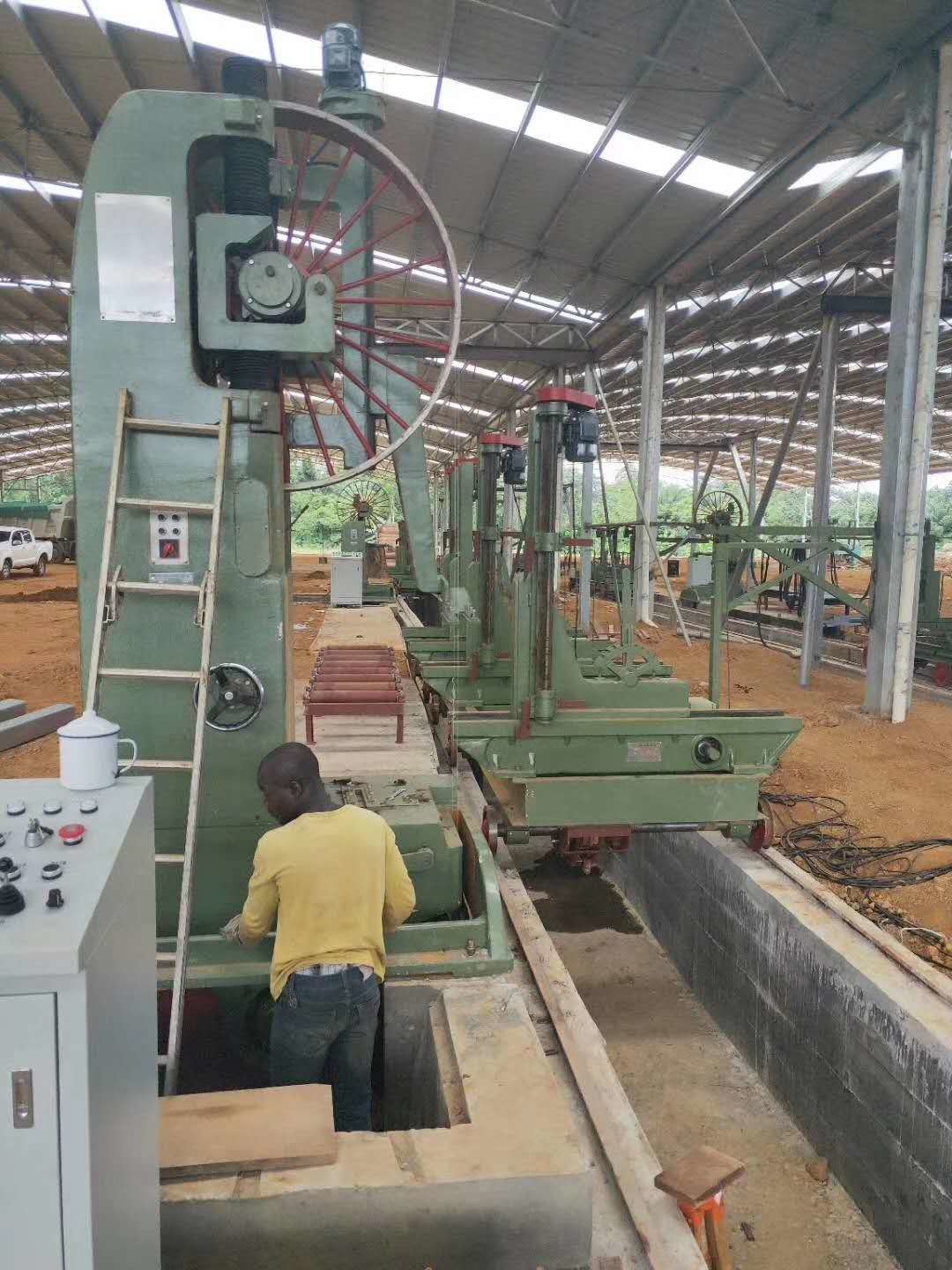

Feedback from Users

Optional part : Log loading deck

Related Machine
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

60'' Heavy-duty CNC Wood Saw Machine Vertical Band Sawmill Commercial Log Cut Saw for timber 5

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ3212-3000, MJ3212B-5000, etc

Minimum Order Quantity:	1 SET
Price:	US $5,000 - 40,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year
