Detail Information

Name:	Twin Vertical Band Sawmill Production Line	Application:	Log Cutting To Different Sizes
Sawing Log Diameter:	100mm To 500mm	Max. Sawing Log Length:	3m, 4.5m, Etc As Customer Needs
Capacity:	150-200CBM/hour	Operation:	Automatic
Guarantee:	1 Year	After-sales Service:	Video Technical Support, Spare Parts At Stock
Keywords:	Wood Cutting Vertical Band Saw
Highlight:	Industrial Vertical Blade Sawmill , Forest Tree Processing Sawmill Equipment , Twin Wood Electric Band Saw

Product Description

Wood Cutting Vertical Band Saw Twin Vertical Band Sawmill Production Line

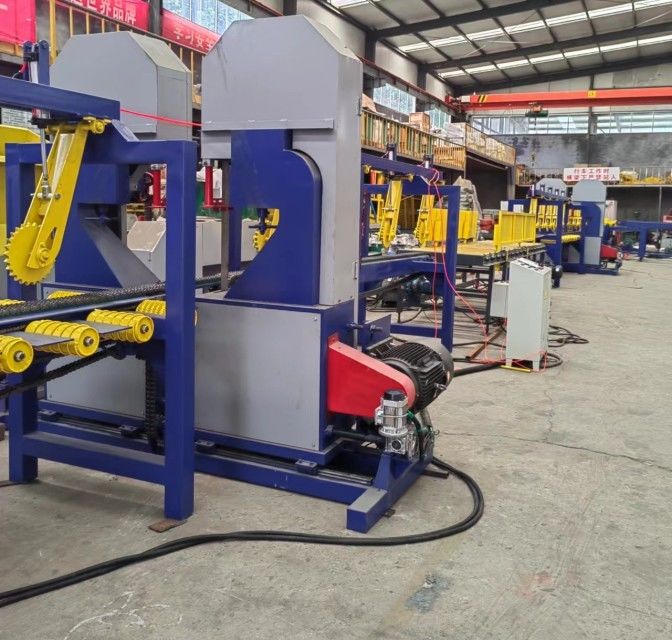

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 0

Full Automatic Vertical Log Cutting Band Saw Production Line

sawing log max. diameter : 500mm
sawing log max. length : 3meters to 6meters
Operation: automatic
capacity: 150m3/day
Design instroduction

NO.	Name	QTY	Details
1	Wood Loading Machine	1	Loading logs to the carriage of two-set vertical band saw
2	Twin Vertical Band Sawmill	1	Cutting two sides of logs
3	Rolling Board Conveyor	1	Transfering wood
4	Twin Vertical Band Sawmill	1	Cutting other two sides of logs
5	Board Multi Rip Saw	1	Cutting board to small size planks
6	Twin Blade Board Edger	1	Cutting both sides of the board
7	Rolling Board Conveyor	1	Output planks from twin vertical band sawmill
8	Rolling Board Conveyor	1	Output planks from twin vertical band sawmill
9	2 head, 3 head, 4 head, 5 head, 6 head Horizontal Band Sawmill	1	Cutting wood to many pieces once
10	Rolling Board Conveyor	1	Output the boards from multi head horizontal band saw

Technical Data:

Central Console
Overall size	3000*1500mm
Display function	LCD Monitor
Operation	Distant control
Wood loading rack
Length of loading rack	4000mm
Total width	2500mm
Transmission method	Inverter
Motor	3KW
loading method	Pneumatic
Feeding type	Chain feeding
Wood automatic tumbling guide belt
Max. length of tumbling wood	3m
Transmission method	Inverter
Total motor power	6KW
Control	Distant control
SLS350 Twin Bandsaw for logs No.1
Max. sawing log diameter	350mm
Min.sawing log diametr	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed	9-25m/min
Main motor power	18.5KW *2
Sizing operation	CNC Touching screen
Automatic roll adjustment centering roller frame
Frame length	6000mm
Width	1000mm
Motor	5.5kw
Log centering operation	Pneumatic
SLSP400 Twin Bandsaw for logs No.2
Max. sawing log diameter	400mm
Min. sawing log diameter	150mm
Log length	800-3000mm
Saw wheel diameter	700mm
Sawing speed	frequency
Motor power	18.5KW *2
Sizing operation	CNC touching screen
Slab slope conveyor
Conveyor length	3000mm
Width	2500mm
Motor	2.2KW
DT300-5 Multi Heads Band Saw-5heads
Max. sawing width	300mm
Max. sawing thickness	300mm
Main motor	15kw*5
BPJ300 Slabs Cutting Saw
Max. sawing width	300mm
Max. sawing thickness	200mm
Motor power	7.5KW*2
CB600 Wood Edger
Max. sawing width	600mm
Max. sawing thickness	80mm
Blades No.	1-5pcs
Motor power	22kw

Photos

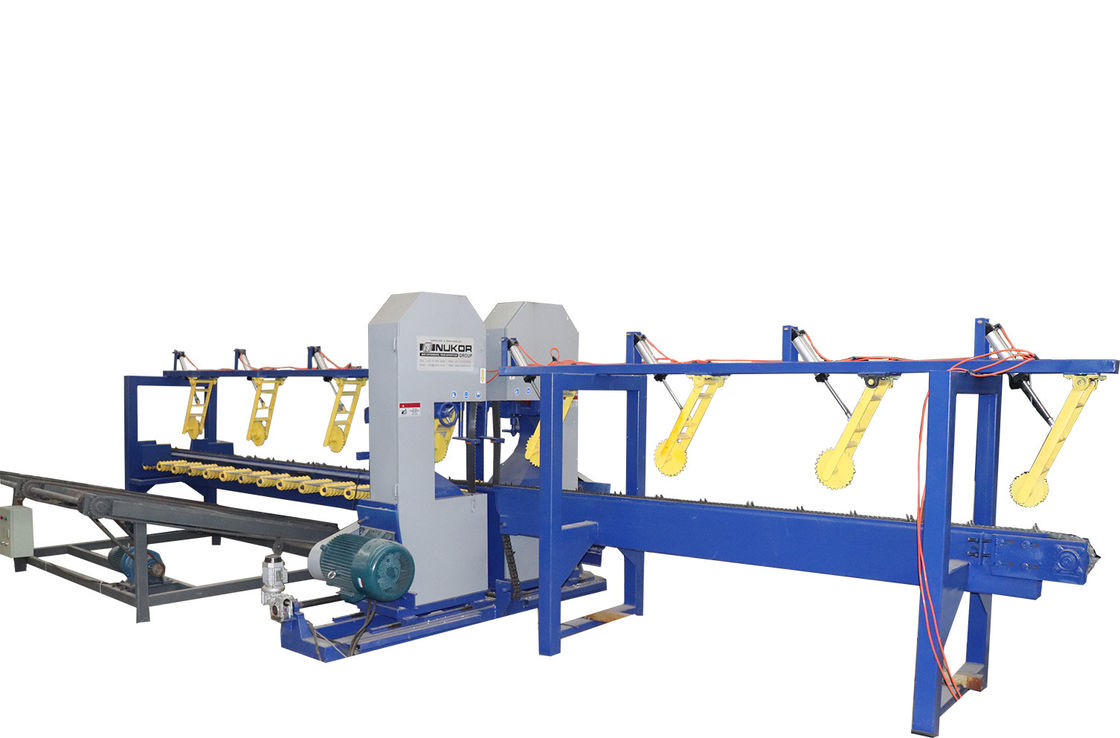

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 1

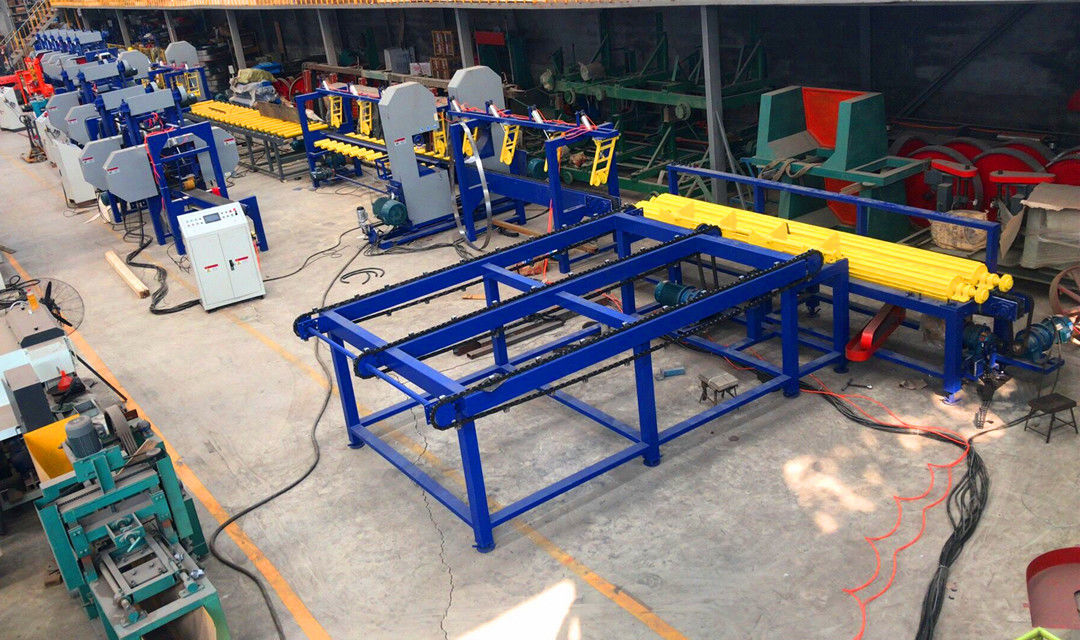

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 4

Related Products

Multi Heads Band Resaw

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

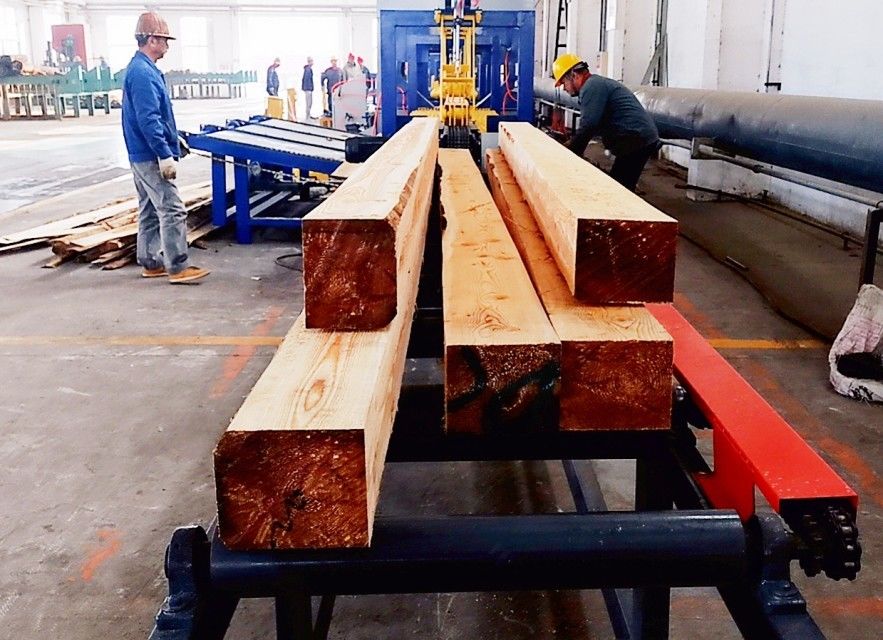

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 5

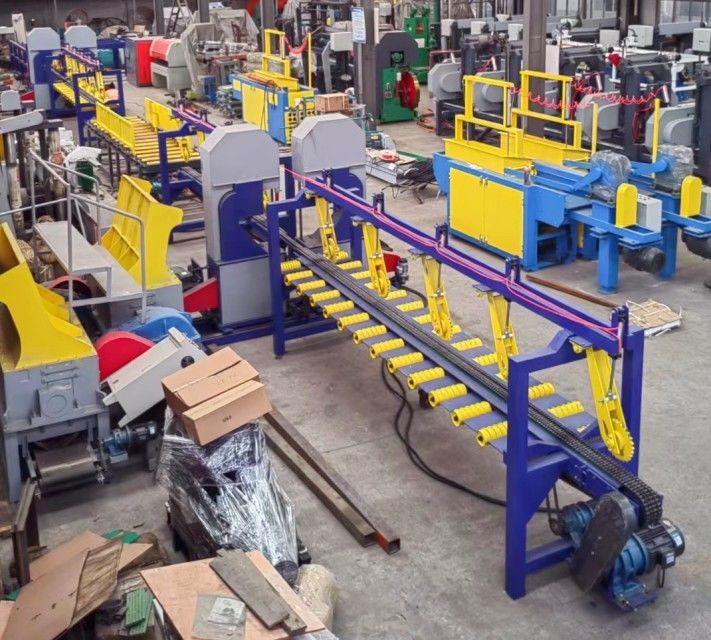

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 6

Slabs Cutting Saw

Wood Slabs Cutting Circular Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Cutting height	100mm	100mm	150mm
Motor power (KW)	7.5kw x 2	7.5kw x 2	11kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter	305(mm)	355(mm)	405(mm)
Weight (kg)	480	600	750
Overall size	1450x1150x1400mm	1450x1200x1400mm	1750x1250x1550mm

Photos :

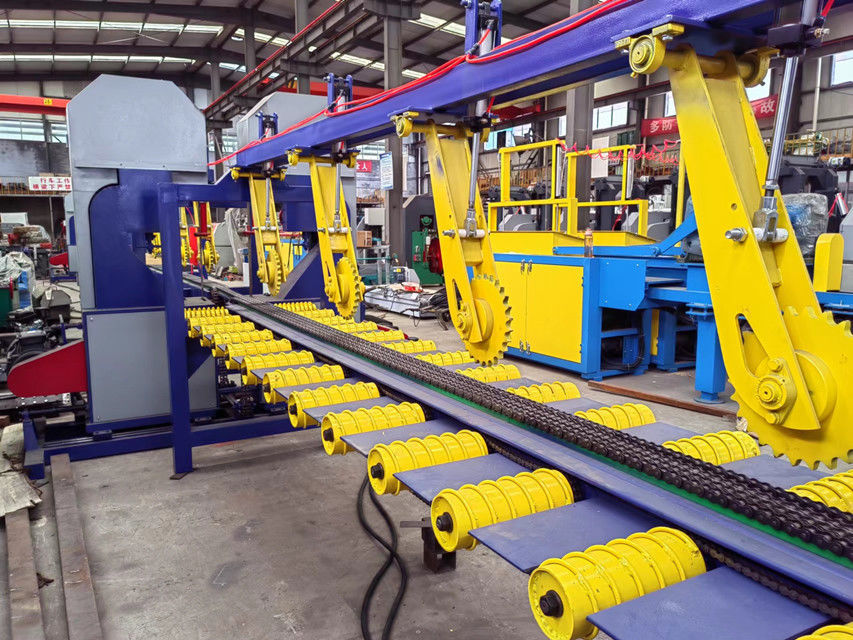

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 7

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 8

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 9

Multi Blades Rip Saw

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 10

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 11

Double Shaft Multi Blades Rip Saw

Forest Tree Processing Twin Vertical Wood Electric Band Saw Vertical Blade Sawmill 12

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SLS350, SLSP400, SLS500

Minimum Order Quantity:	1 SET
Price:	USD3,000-USD100,000/SET
Packaging Details:	container loading
Delivery Time:	within 25 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100 sets/year of wood cutting vertical sawmill production line
