Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number AEPN-1300
Minimum Order Quantity 1 SET Wood Pallet Nailing Machine
Price US $4,800 - 21,500 / Set
Packaging Details iron frame packings or luo packings
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Pallet Nailing Machine Wood Pallet Length 700-1300mm
Wood Pallet Width 800-1300mm Working Mode Automatic Feeding And Stacking
Voltage And Power 220V/ 2kw Servo Motor Number Of Coil Nail Guns 3pcs Or 4pcs
Air Pressure 0.8MPA Nail Gun Speed 7times/second
Production Capacity 1- 2tray/minute Weight 2000kg
Leave a Message
Product Description

Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 0

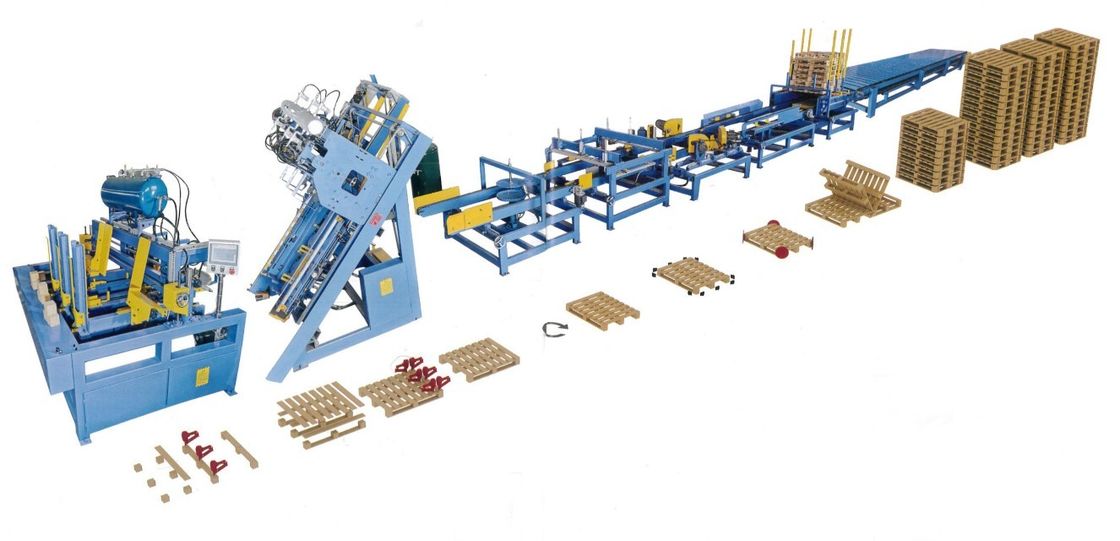

Euro Pallet Automatic Wood Pallet Making Line

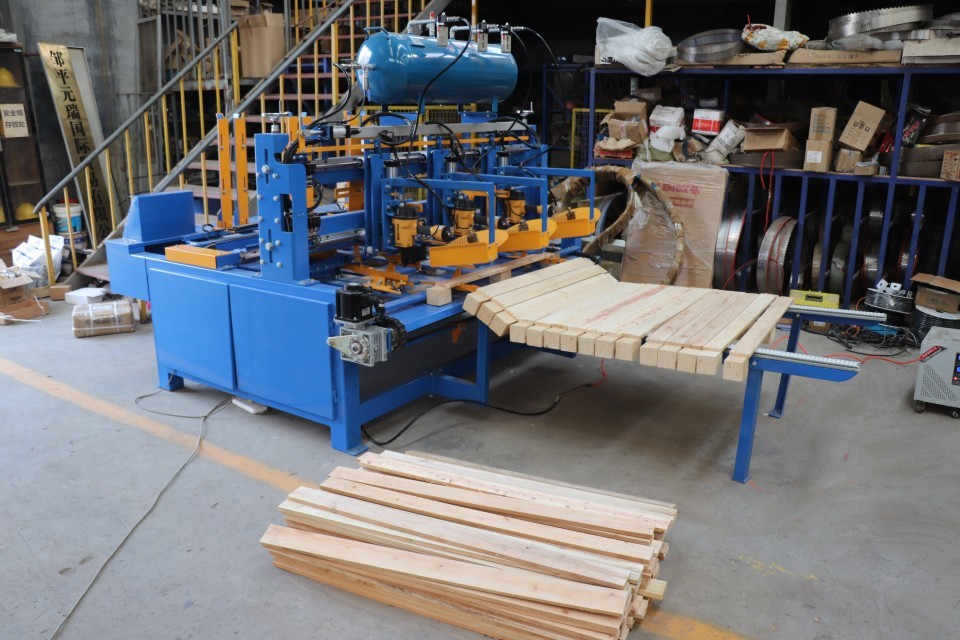

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model SLDJ-1300-3
Block width 60-150mm
Board Length 600-1300mm
Nail gun CN70*3Stanley BOSTITCH Stitch CN70*3
Nailing method 1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure 0.8MPA
Nail gun speed 4-8 s/time
Motor power 1.5KW Servomotor
Voltage 220V(Customized)
Operating mode Touch screen
Production mode Manual discharge/automatic pin pier

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 1

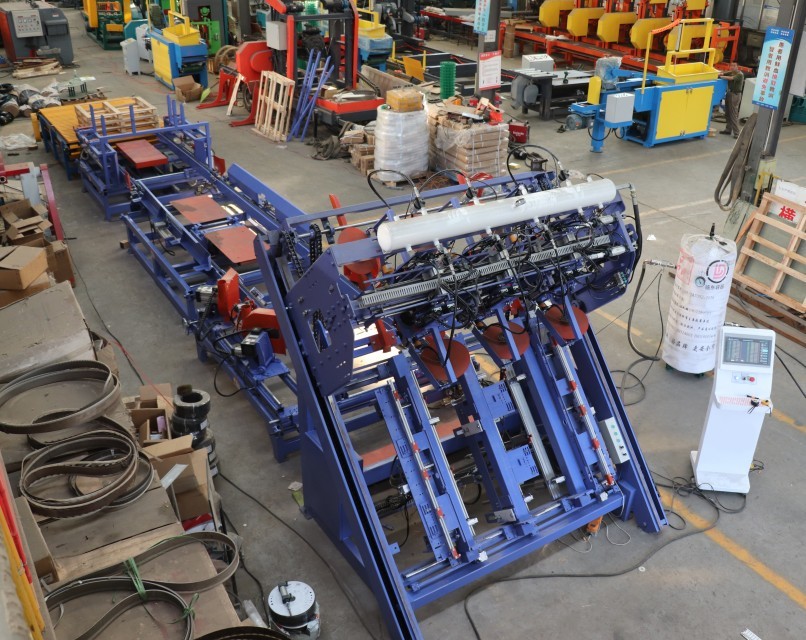

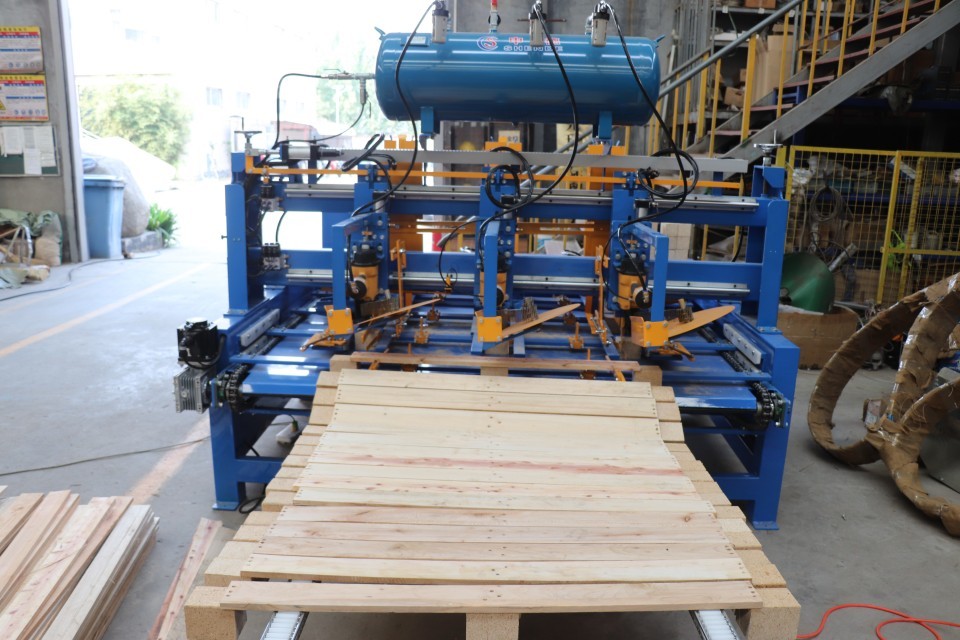

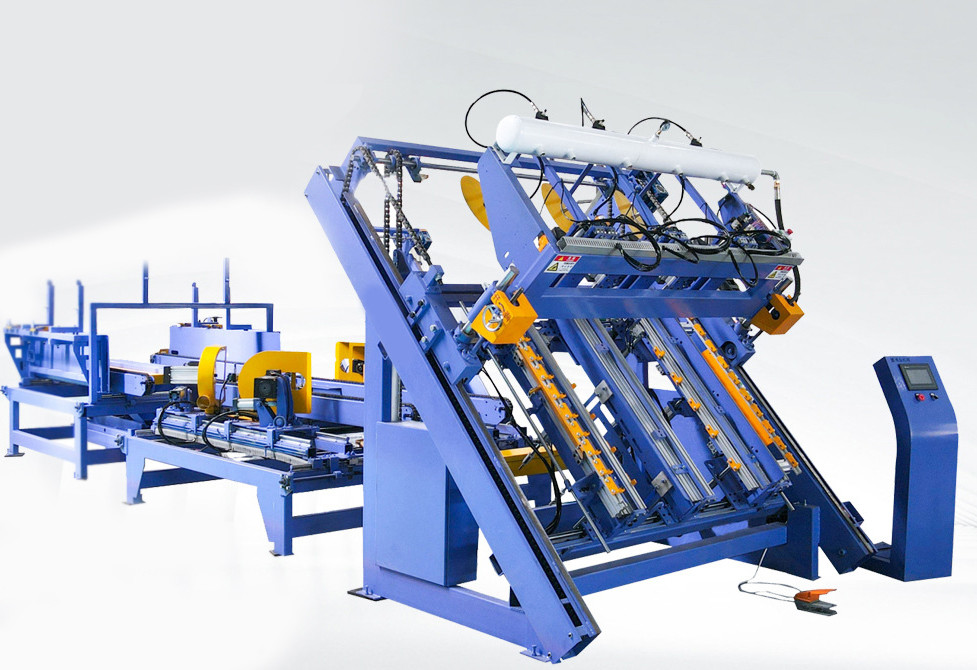

2,Automatic European pallet nailing machine

Model AEPN-1300
Wood pallet length 700-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production effciency 1-2pcs /min
Number of nail guns 6P CN70,CN58
Weight 2000kg

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 2



3.Wood pallet branding machine



Model LY-4
Processing Size 800-1300mm
Branding material Copper/die steel
Air pressure 0.8MPA
Branding speed 4-8 s/time with pallet machine speed
Motor power 0.75KW*2
Number of branding 1-6 pcs
Control mod Pallet machine production line integrated supporting



Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 3

4. Pallet angle cutting machine



Model PQ1300-4
Processing size 800-1300mm
Circular saw blade diameter 300mm
Motor power 2.2KW*4
Working mode Automatic feed,Automatic Angle cutting
Weight 350kg

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 4





5. Wooden pallet palletizer



Model MD-1300Z
Processing size 800-1300mm
Lift control Hydraulic
Palletizing speed 4-8 s/time
Model power 5.2KW

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 5

Related Products

Pallet Notcher

Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 6Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 7Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 8

Multi Blades Rip Saw

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 9

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line 10
