Home /Products/Wood Portable Sawmill/4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer

1 SET

MOQ

US $4,200 - 10,200 / Set

Price

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Electric Portable Sawmill / Horizontal Band Saw Machine

Saw Wheel Diameter: 700mm

Max. Sawing Wood Width: 1600mm, 1300mm, 1000mm, 70mm

Carbide Blade Width: 0.9 Thickness X 75mm Width

Saw Head Walking: Automatic Frequency Speed Adjustable

Sawing Log Max. Length: 4500mm Or As Customer Needs

Weight: 1100kgs To 1500kg

Dimension(l*w*h): 3200*1900*2250mm

Application: Wood Saw,wood Industry,Wood Factory

Keyword: Wood Cutting Band Saw,Horizontal Band Sawmill,sawmill

Highlight:

Round Timber Sawmill On Trailer

,

Horizontal Band Sawmill

,

Long Wood Cutting Band Sawmill

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ700, MJ1000, MJ1300, MJ1600

Payment & Shipping Terms

Packaging Details: iron frame pallet or paper carton packings

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1000sets/year

Gallery

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer

Product Description

Portable Horizontal Wood Cutting Bandsaw Sawmill For Sale ,wood bandsaw sawmill

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

CNC Horizontal Band Sawmill

Model	MJ700	MJ1000	MJ1300	MJ1600
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Walking motor power	2.2kw	2.2kw	2.2kw	2.2kw
Total Weight (KG)	1100	1100	1300	1500

Images:

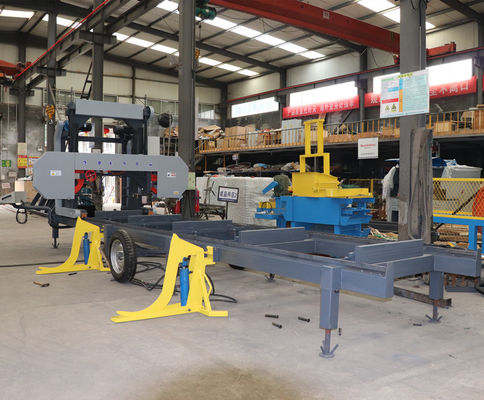

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 0

Optional - Pneumatic log clamping

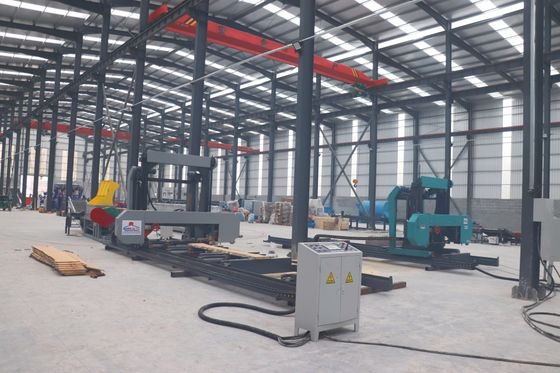

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 1

Optional - Board returning hook

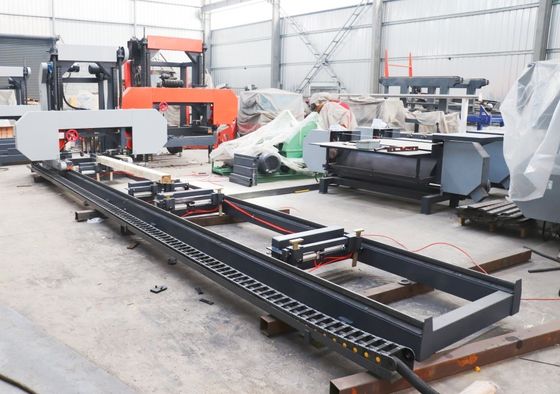

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 2

Optional - Mobile usage + hydraulic log loading arm

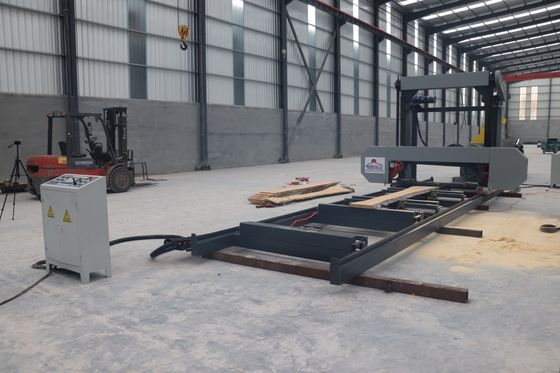

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 3

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL -electrical
Technical Parameter	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	600	1100	1300	1500

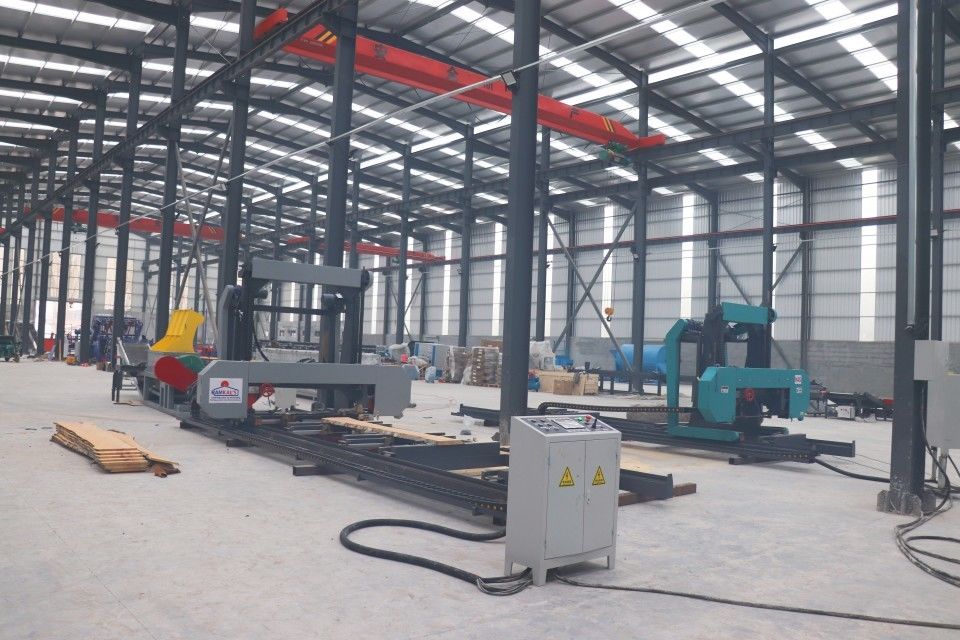

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 4

Related Products

Wood Board Edger Saw

Technical data:

Model	EG600A	EG800	EG1000
Max. Processing width	600mm	800mm	1000mm
Min. Processing width	50mm	50mm	50mm
Max. Processing height	70mm	70mm	70mm
Blade	2*350mm	2*350mm	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute, speed adjustable
Electric motor power	7.5KW x 2sets	7.5KW x 2sets	7.5KW x 2sets
Machine weight	1000KG	1600KGS	1800KGS
Customize: Working electric voltage, bigger motor power

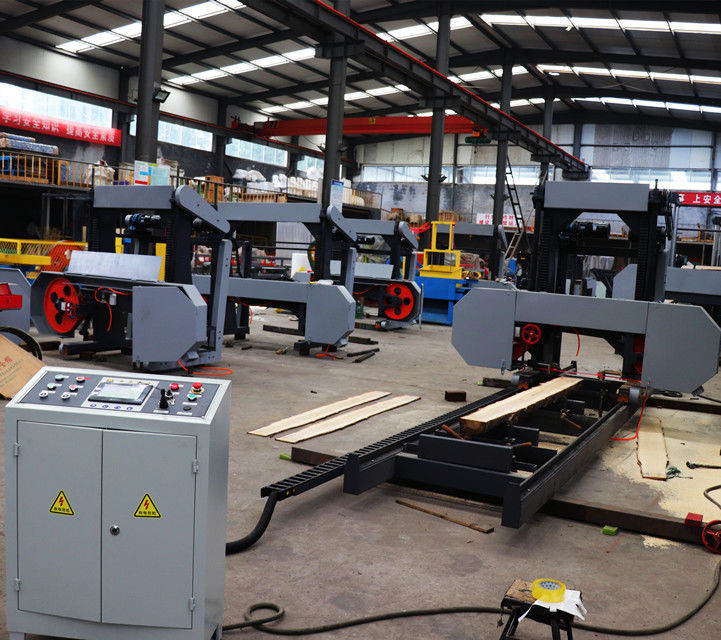

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 6

4.5M Long Horizontal Band Sawmill For Wood Cutting Portable Big Round Timber Sawmill On Trailer 7

Tag:

cutting wood machine

wood saw machines

portable horizontal band sawmill
