Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine

1 SET
MOQ
US $14,200-37,700 / Set
Price
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Resaw Machine
Condition: New
Style: Horizontal
Sawing Wood Max. Width: 300mm
Sawing Wood Thickness: 260mm
Saw Wheel Diameter: 700MM
Motor Power: 15kw X 2set, 3sets, 5sets...
Weight: 900kg-4000kgs
Voltage: 380V/50HZ/3PH Or As Customer Needs
Applicable Industries: Manufacturing Plant,woodworking
After-sales Service Provided: Online Support,Video Technical Support,commissioning And Training
Warranty: 12 Months
Highlight:

Multi Head Band Saw Machine

,

Horizontal Resaw Band Saw Machine

,

Industrial Used Band Saw Machine

Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: DT300-1,DT300-2,DT300-3,DT300-5,DT300-6
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Product Description

Multiple Heads Band Saw Resaw Wood Cutting Machine, Wood Resaw equipment

Multiple Heads Horizontal Resaw Band Saws

  • This machine is easy-operated,high efficiency and easy-installed.
  • The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
  • Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data

Technical specifications DT300-1 DT300-2 DT300-3 DT300-5 DT300-6
Sawing width 300mm 300mm 300mm 300mm 300mm
Minimum wood thickness 2mm 2mm 2mm 2mm 2mm
Maximum wood height 260mm 260mm 260mm 260mm 260mm
Band wheel diameter 700mm 700mm 700mm 700mm 700mm
Saw motor 15kw 15kw x 2 15kw x 3 15kw x 5 15kw x 6
Saw machine length 3500mm 4500mm 5800mm 8500mm 11000
Weight 900kg 1500kg 2200kg 3500kg 5000kg
Feeding Variable frequency speed adjustable conveyor
Operation Touching screen auto setworks for sawn thickness

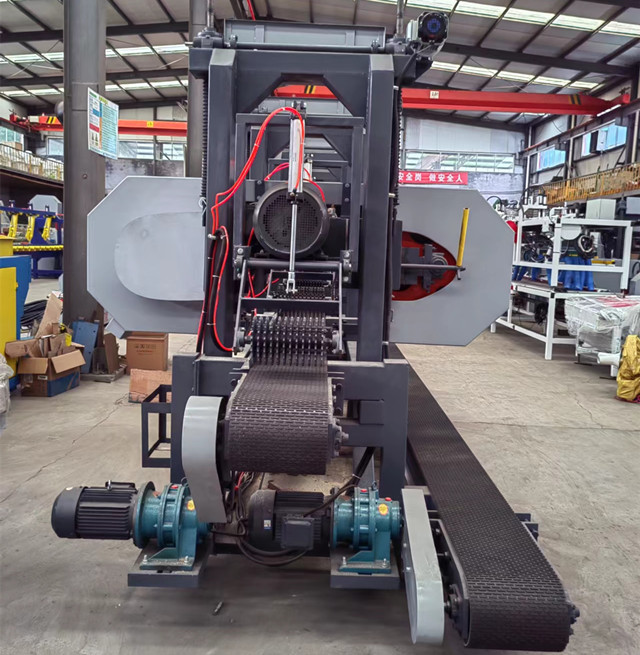

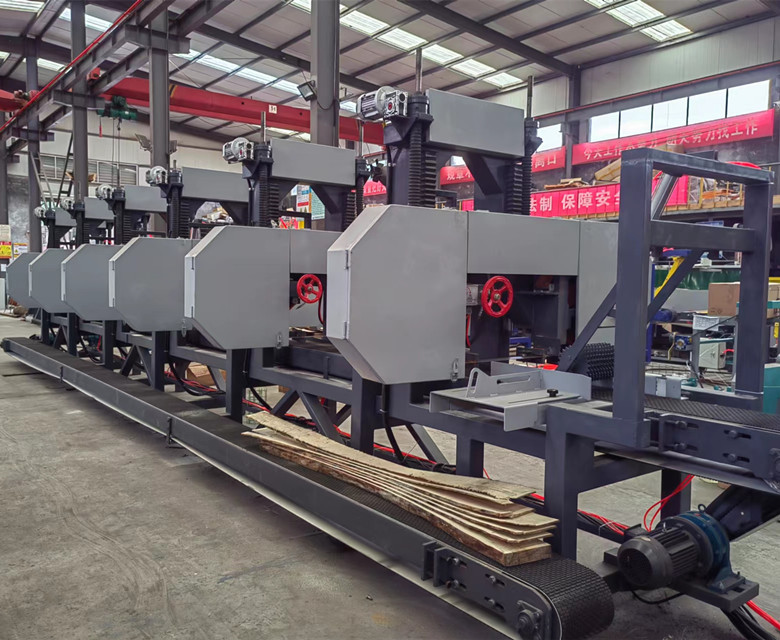

Detailed Image -6heads reaw equipment
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 0

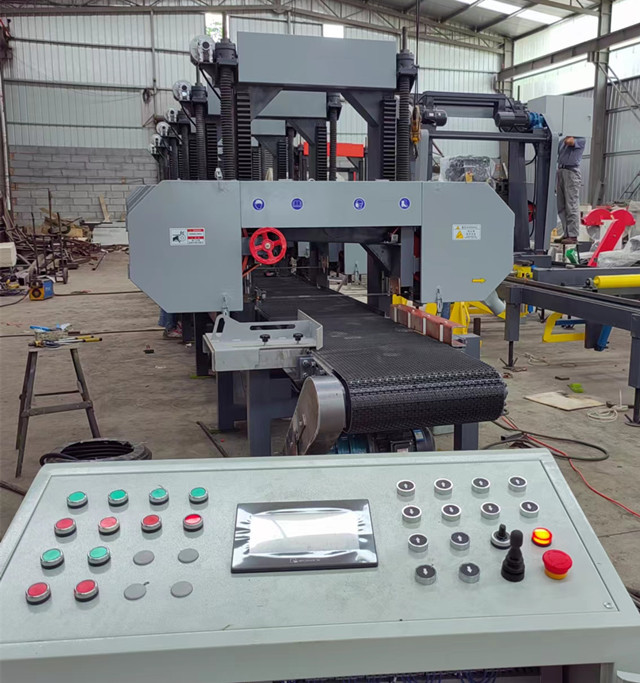

Optional - board returning conveyor
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 1

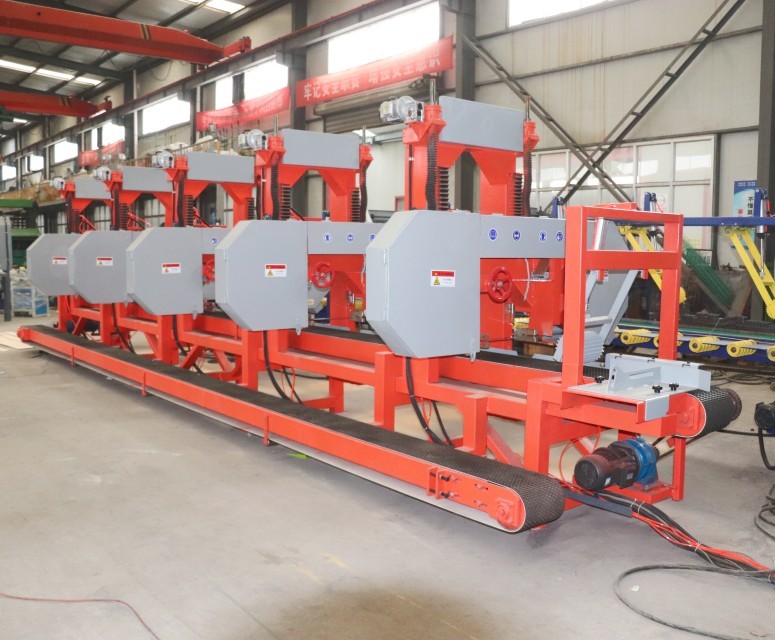

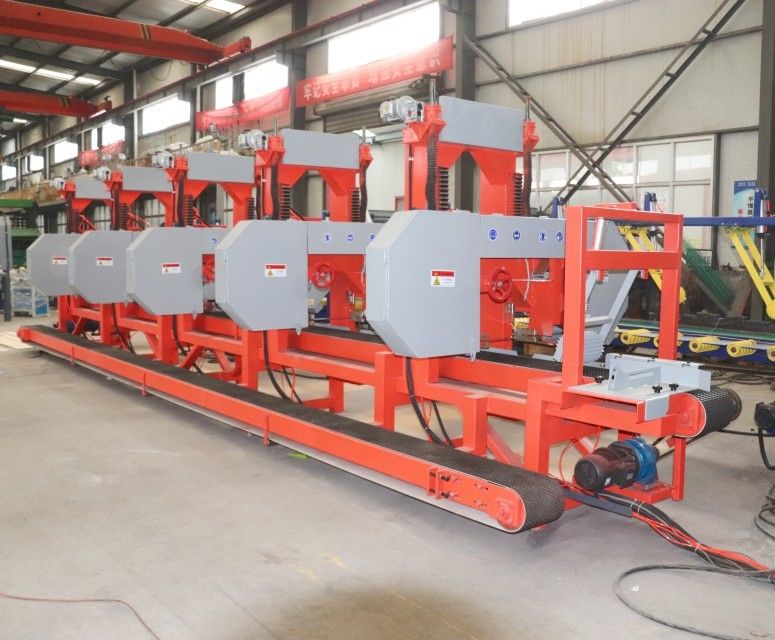

5heads reaw equipment
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 2

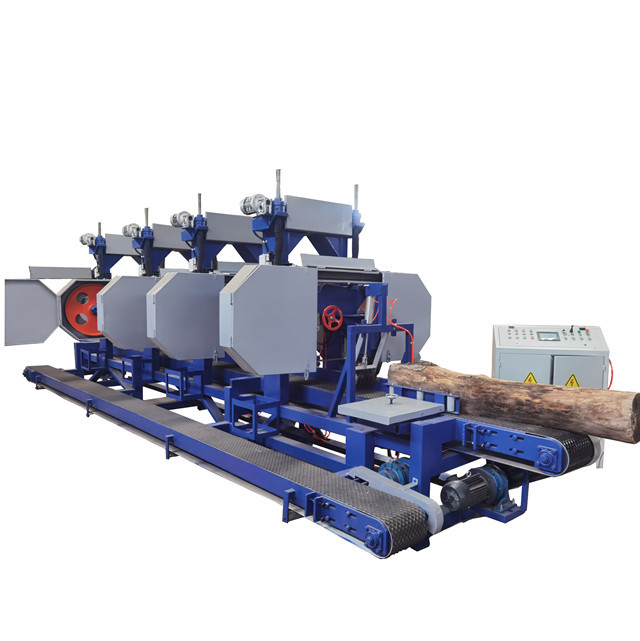

4heads reaw equipment

Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 3

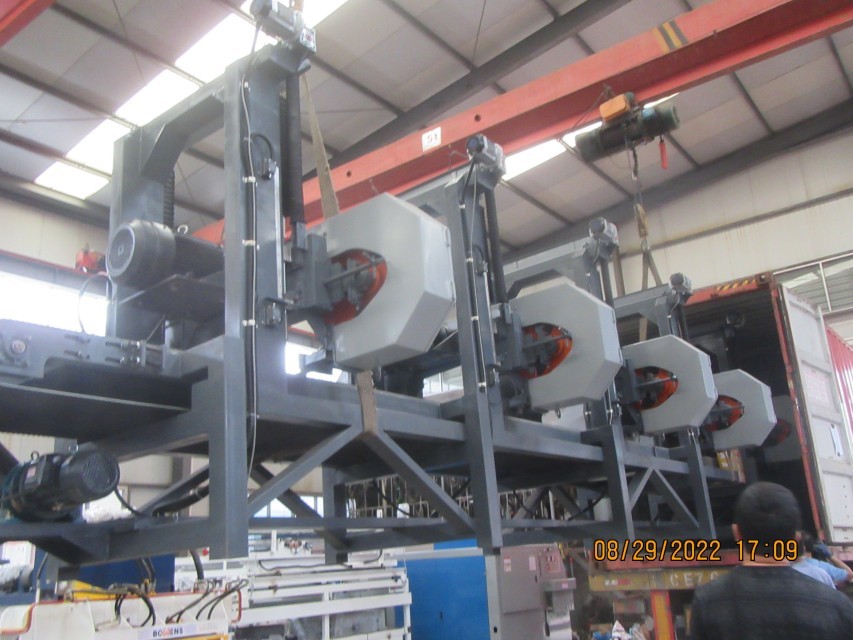

Container loading
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 4
Optional - max. sawing width upto 640mm
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 5

Related Saw Machine

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks


Photos
Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 6





Log Cutting Multiple Blade Ripsaw

Maximum cut log diameter can reach 500mm(20'')



Specifications:

Model
SHYM150
SHYM200
SHYM240
SHYM260
SHYM285
SHYM330
Sawing Log Diameter
20-150mm
60-200mm
80-240mm
100-260mm
130-285mm
150-330mm
MinSawing Log Length
600mm
600mm
600mm
600mm
600mm
600mm
Main Motor power
18.5KW*2
22KW*2
30KW*2
30/37KW
30/37KW
37KW*2
Spindle Diameter
50mm
50mm
60mm
60mm
60mm
70mm
Saw Blade Diameter
255mm
305mm
355mm
380mm
405mm



450mm
Weight
1570KG
1720KG
2200KG
2300KG
2350KG
2550KG
Model
SHYM340
SHYM360
SHYM400
SHYM430
SHYM480
Sawing Log Diameter
150-340mm
170-360mm
180-400mm
200-430mm
250-480mm
Min Sawing Log Length
600mm
600mm
600mm
600mm
600mm
Main Motor power
45KW/55KW
55KW*2
55KW*2
75KW*2
75KW*2
Spindle Diameter
80mm
80mm
80mm
100mm
100mm
Saw Blade Diameter
480mm
500mm
550mm
600mm
650mm
Weight
2650KG
2680KG
3500KG
3880KG
4100KG

Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 7



Electric Industrial Used Lumber Sawmill Multi Head Horizontal Resaw Band Saw Machine 8
