Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw

  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
  • Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ3212-3000, MJ3212B-5000, etc
Minimum Order Quantity 1 SET
Price US $5,000 - 40,000 / Set
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Band Saw
Use Woodworking Blade Size 150 X 1.25mm
Power(W) 55KW/3PH Saw Wheel Diameter 1250mm
Max. Sawing Log Diameter 1500mm Keyword Band Sawing Machine | Band Saw Machine | Wood Cutting Band Saw Machine,Cnc Cut
Max. Sawing Log Length 6000mm Warranty 12 Months
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
High Light

Carriage Vertical Band Saw Machine

,

Wood Cutting Vertical Band Saw Machine

,

Vertical CNC Band Saw Machine
Leave a Message
Product Description

China Made Vertical Saw Mill, Timber sawing vertical band saw sawmill machine with trolley

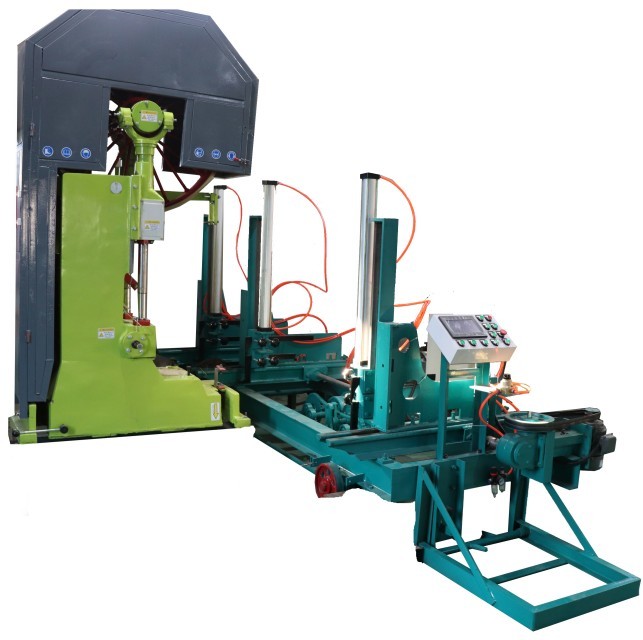

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical dataMJ3212-CNC3000MJ3212-CNC5000
Saw wheel diameter1250mm1250mm
Maximum sawing log diameter1200mm1200mm
Maximum sawing log length4meters6meters
Main motor37KW37KW
Saw blade L*W*T8600x150x1.25mm8600x150x1.25mm
Carriage clip stake quantity3sets4sets
Wood grasp modeElectricElectric
Carriage walking/advanceFrequency converterFrequency converter
Setting sawn sizePLC touching screenPLC touching screen
Carriage length3meters5meters
Rail length10meters18meters
Weight7500kgs8000kgs


2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage


Technical dataMJ3212B-CNC3000MJ3212B-CNC5000
Saw wheel diameter1250mm1250mm
Maximum sawing log diameter1500mm1500mm
Maximum sawing log length4meters6meters
Main motor45KW45KW
Saw blade L*W*T9200x150x1.25mm9200x150x1.25mm
Carriage clip stake quantity3sets4sets
Wood grasp modeElectricElectric
Carriage walking/advanceFrequency converterFrequency converter
Setting sawn sizePLC touching screenPLC touching screen
Carriage length3meters5meters
Rail length10meters18meters
Weight11000kgs12000kgs


Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 0
Optional part : hydraulic chain log turner
Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 1
Feedback from Users
Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 2Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 3

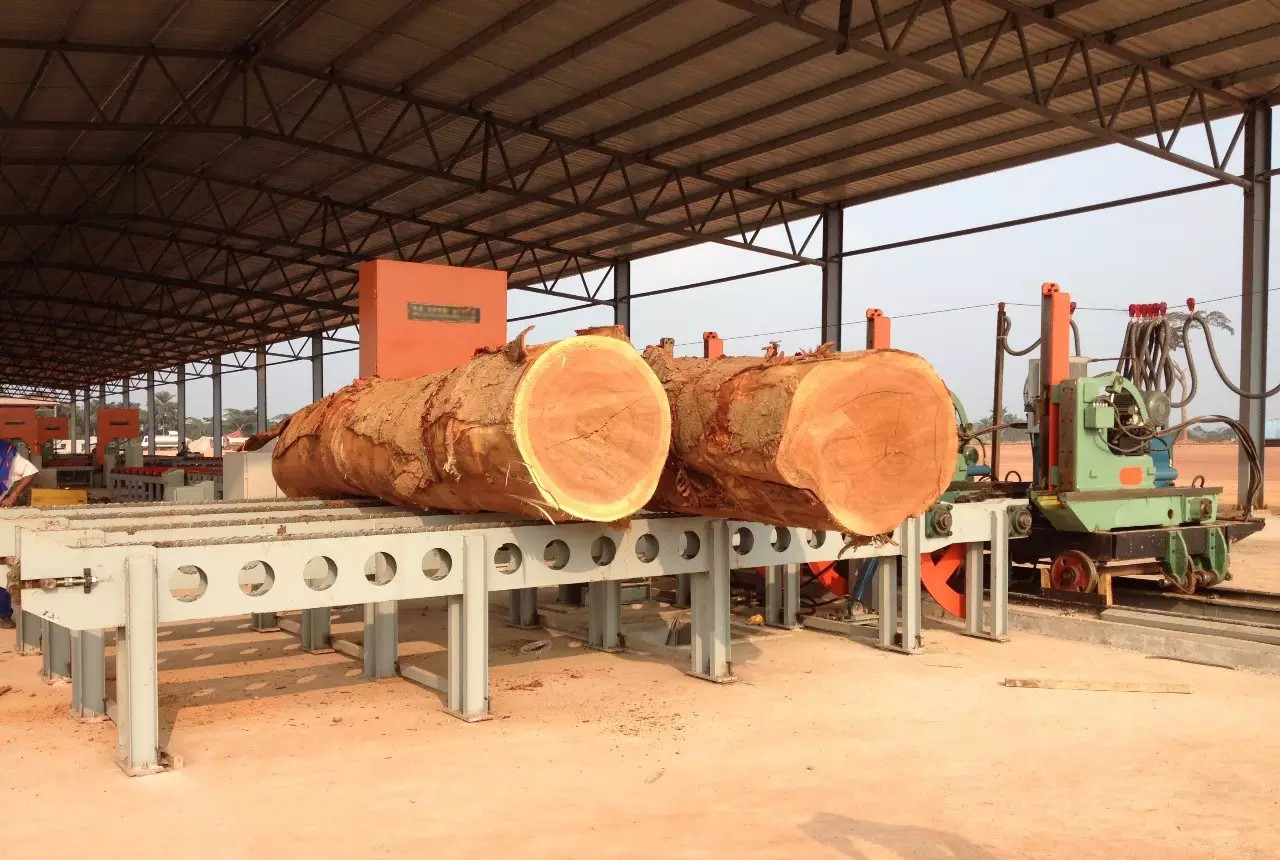

Optional part : Log loading deck
Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 4
Related Machine
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

  • with Infrared positioning
  • for big thickness board edger cutting
  • high working efficiency, low cost ,fulfil the max. value of the wood
  • easy usage, no installation

Technical data :

ModelZHW800-70ZHW800-80ZHW800-100
Sawing wood height10-70mm10-80mm20-100mm
Sawing wood width800mm800mm800mm
Carbide blade diameter280mm305mm355mm
Main motor22KW30KW37KW
Blade quantity1P-10P1P-10P1P-10P
Rotation speed3500/min3500/min3500/min
















Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage, CNC Band Saw 5
