Home > Products> Pallet Nailing Machine> Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DZ-450,DZ-600

Minimum Order Quantity:	1 SET
Price:	US $6,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year

Get Best Price Contact Now

Detail Information

Name:	Automatic Wood Cut Off Saw Machine	Saw Blade Diameter:	600mm*30mm
Feeding Table Length:	2m/ 4m/ 6m	Discharge Table Length:	1200mm
Cutting Height:	10-140mm	Cutting Width:	30- 300mm
Cutting Section Thickness*width:	Max.120300mm 140280mm	Total Power:	12.5kw
Operation:	Siemens PLC Touching Screen	Weight:	1500kgs
Warranty:	1 Year
Highlight:	Pneumatic Cut Saw , Timber Wood Cross Cut Saw , Horizontal Cut Saw

Product Description

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

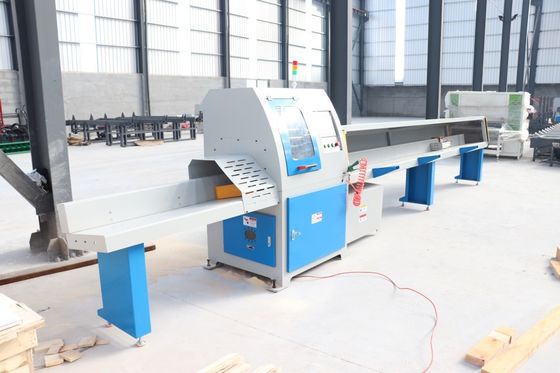

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw 0

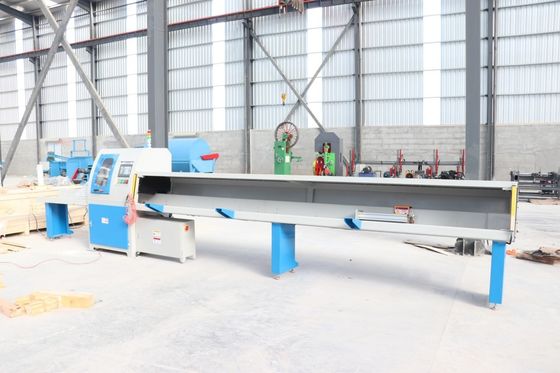

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw 1

Pallet Foot Pier Cutting Saw Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

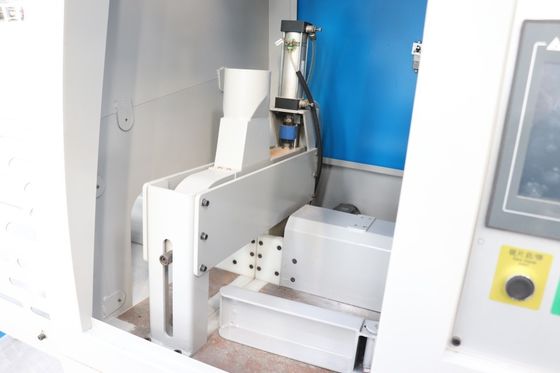

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw 2

Multi Blades Circular Saw for wood panels cutting off

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

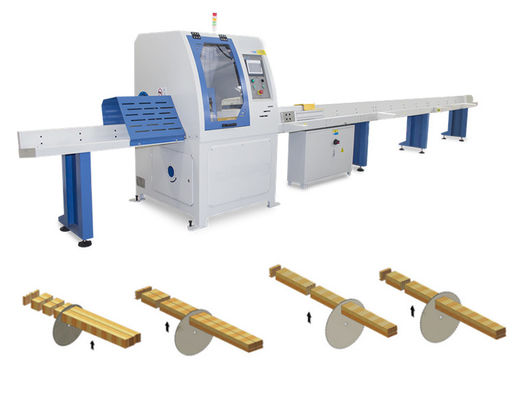

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw 3

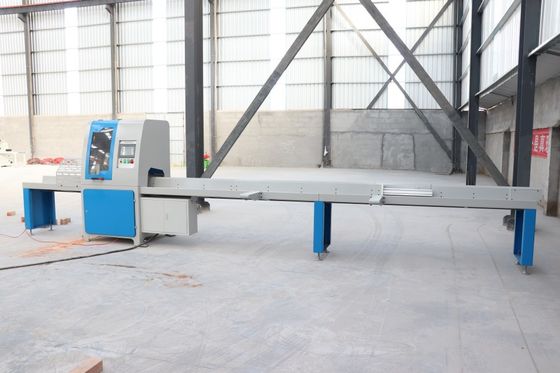

Industrial Wood Automatic Cut Off Saw Horizontal Pneumatic Timber Wood Cross Cut Saw 4

Pneumatic Cross Cut Sawmill For Planks


			Model
			SH274
			SH276

			Max Cutting Width
			150mm(Thick about 110mm)
300mm(Thick about 40mm)

			650mm(Thick about 50mm)
200mm(Thick about200mm)

			Saw Blade Diameter
			450MM
			620MM

			Motor Power
			5.5KW
			7.5KW

			Weight
			300KG
			550KG

			Overall Dimension
			2900*930*1100MM
			4250*1150*1300MM

Wood Slasher
Technical data


			Technical Parameter
			DM1100
			DM1300
			DM1600
			DM1900
			DM2100
			DM2400


			Guide Plate Length(MM)
			1100
			1300
			1600
			1900
			2100
			2400


			Log Diameter(MM)
			900
			1100
			1300
			1600
			1900
			2200


			Motor(KW)
			3
			3
			4
			4
			5.5
			5.5


			Weight(KG)
			180
			190
			200
			220
			250
			280






Tag:

Automatic Wood Pallet Nailing Machine,

Wooden Pallets Nailing Making Machine,

Woodworking Pallet Nailing Machine

Contact Details

More Pallet Nailing Machine

Pallet Making Machine Automatic European Wood Pallet Production Line Wood Pallet Block Making Machine

Contact Now

100pcs Per Hour Capacity Acoustic Panel Nailing Machine Sound Insulation Panels Making Machine

Contact Now

Wood Pallets Nailing Machine,Wood Pallet Nailing Table Machine Euro / US Style Pallet Making Machine

Contact Now

EPAL Automatic Pallet Nailing Machine European Block Wooden Pallet Nailing Production Line

Contact Now

Wood Pallet Nailing Making Machine Wood Pallet Machine, Euro style Pallet Production Line

Contact Now

Stringer Pallet Machine To Make Wood Pallet Automatic Wooden Pallet Making Machine

Contact Now

Pallet Making Machine Wooden Stringer Pallet Pneumatico PT-1700 Universal Pneumatic Nailing Table

Contact Now

Automatic Decoration Board Sound Proof Acoustic Ceiling Wooden Panel Nailing Machine

Contact Now

Model	SH274	SH276
Max Cutting Width	150mm(Thick about 110mm) 300mm(Thick about 40mm)	650mm(Thick about 50mm) 200mm(Thick about200mm)
Saw Blade Diameter	450MM	620MM
Motor Power	5.5KW	7.5KW
Weight	300KG	550KG
Overall Dimension	29009301100MM	425011501300MM

Technical Parameter	DM1100	DM1300	DM1600	DM1900	DM2100	DM2400
Guide Plate Length(MM)	1100	1300	1600	1900	2100	2400
Log Diameter(MM)	900	1100	1300	1600	1900	2200
Motor(KW)	3	3	4	4	5.5	5.5
Weight(KG)	180	190	200	220	250	280
