Detail Information

Name:	Heavy Duty Multi-head Cutting Saw	Max. Sawing Height:	10 -120mm
Max. Sawing Length:	6000mm	Circular Blade Diameter:	450mm
Main Motor Power:	7.5kW5 ,0.75kW2	Blades Quantity:	3pcs, 4pcs, 5pcs
Capacity:	200m³/8h	Cutting Length:	Adjusable
Guarantee:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Cross Cutting Saw Machinery , Multi Heads Wood Sawmill Machine , Automatic Wood Cutting Saw Machine

Product Description

Multi end trim saw, Trim Saws for wood panels multiple rip saw machine

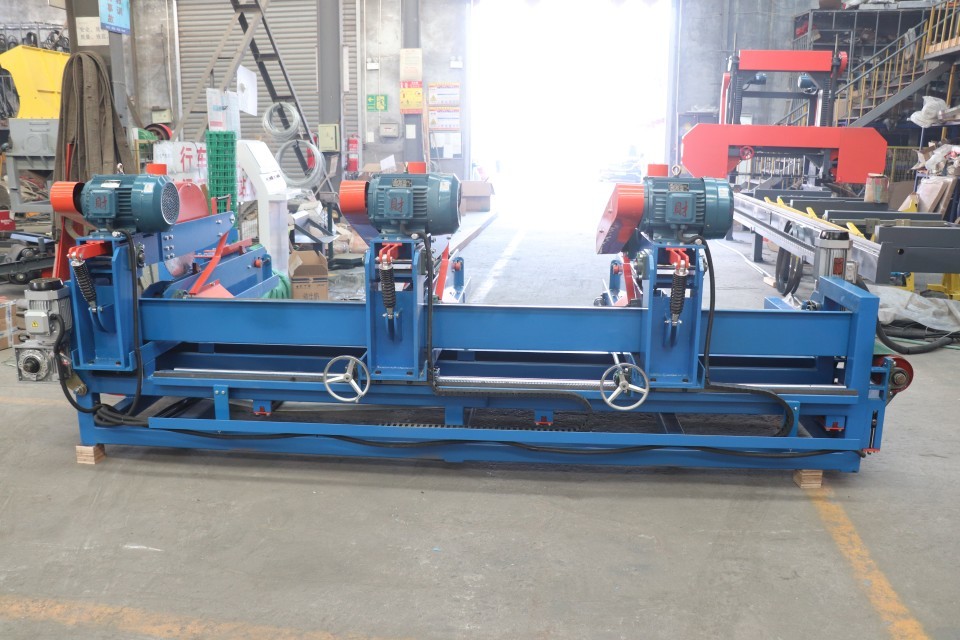

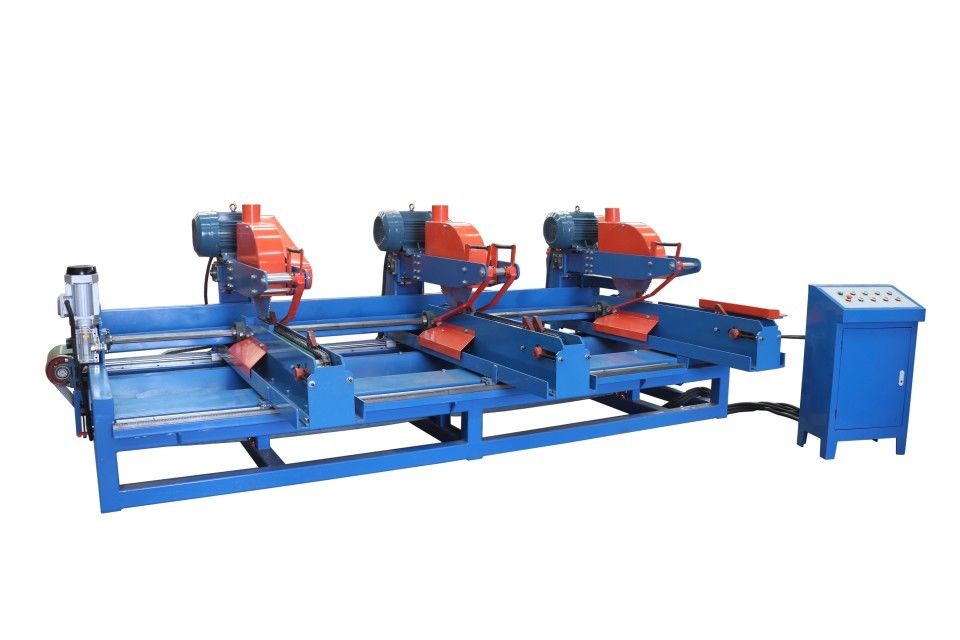

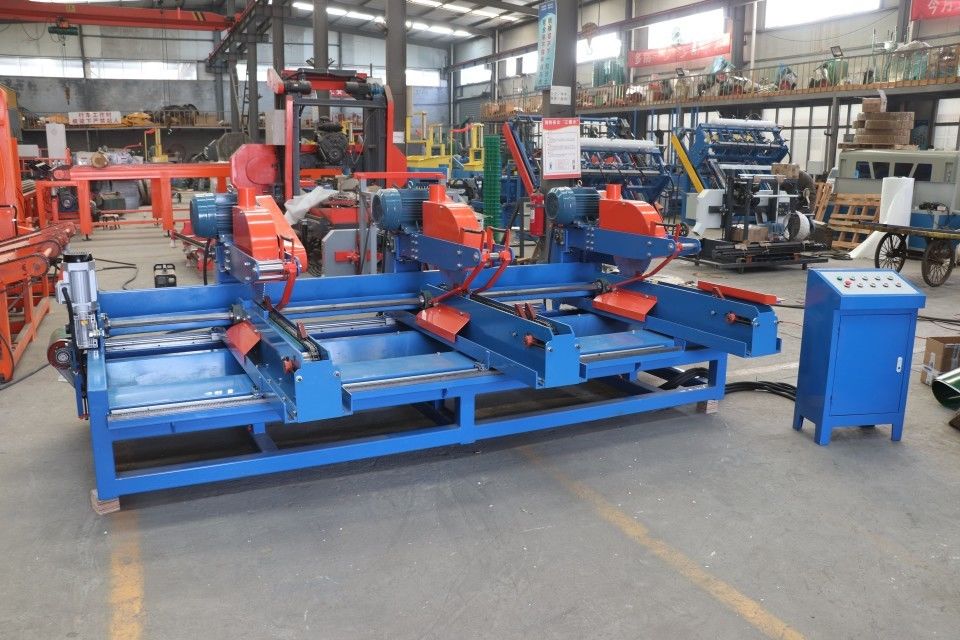

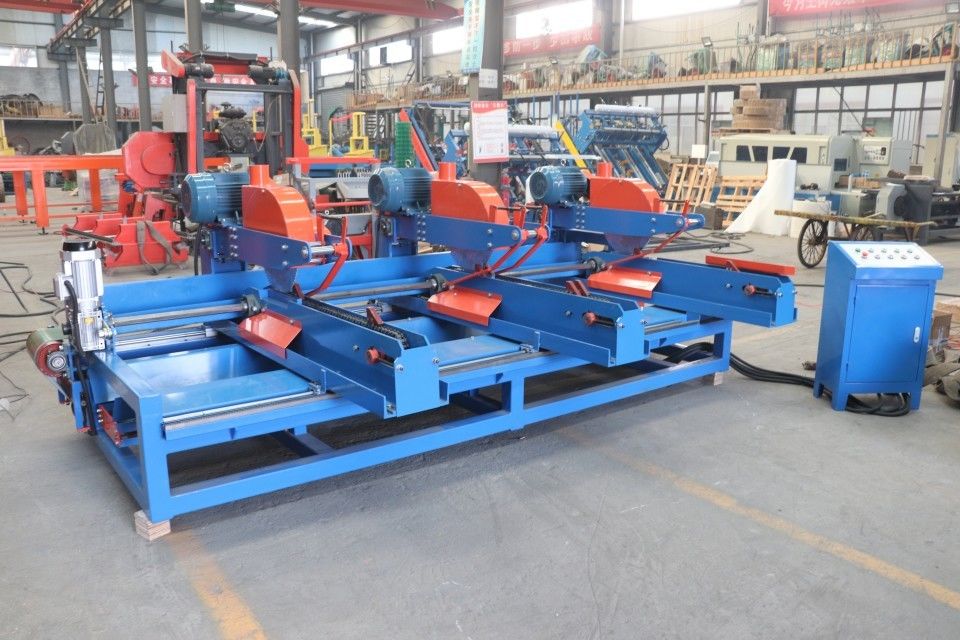

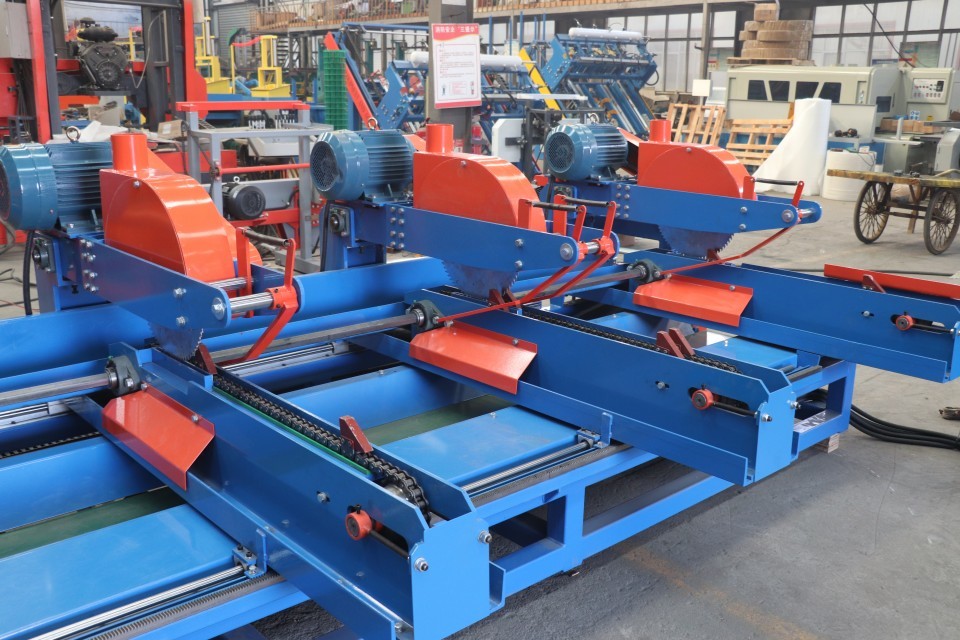

Heavy duty multi-head cutting saw

Technical data

Model	PE-40003	PE-50004	PE-60005
Cutting Length	600-4000mm	600-5000mm	600-6000mm
Cutting Thickness	10-120mm	10-120mm	10-120mm
Cutting Width	10-400mm	10-400mm	10-400mm
Saw Diameter	450mm	450mm	450mm
Blade Pieces	3P	4P	5P
Motor	7.5kW3 0.75kW2	7.5kW4 0.75kW2	7.5kW5 0.75kW2
Efficiency	100m³/8h	150m³/8h	200m³/8h
Weight	2000kg	2500kg	3000kg

Images

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 0

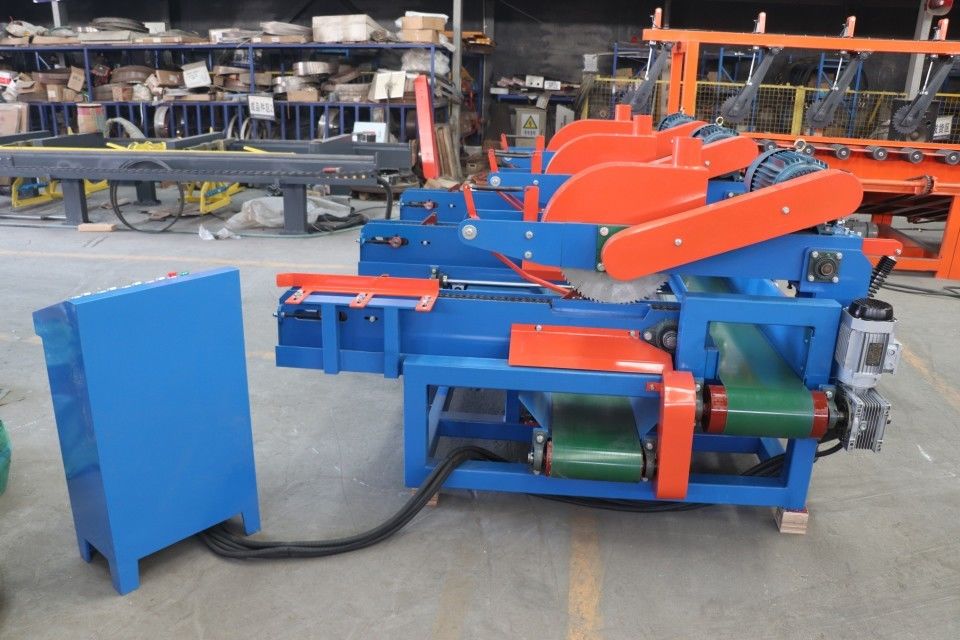

Light Wood Cut Off Trim Off Circular Saw

Data

Cutting length	400-1500mm or customized
Cutting thickness	10-120mm or customized
Cutting width	10-400mm or customized
Feeding speed	30m/min, adjustable speed
Saw blade diameter	450mm
Motor	4kw x 2, 0.75kw x 2
Efficiency	2000-3000pcs/hour

Images

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 2

Trim Saw

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw - Trim Saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 5

Multi Blades Ripsaw for Planks/Lumber Cutting

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Saw Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 6

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 8

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm	350-400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

Multi Heads Wood Cutting Saw Woodworking Automatic Cross Cutting Saw Machinery Wood Sawmill Machine 9

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PE-40003,PE-50004,PE-60005

Minimum Order Quantity:	1 SET Heavy duty multi-head cutting saw
Price:	USD2800-6900/SET
Packaging Details:	wooden pallet or iron frame packing
Delivery Time:	within 10 days
Payment Terms:	T/T, Western Union
Supply Ability:	100 Set/Sets per Month
