Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ700, MJ1000, MJ1300, MJ1600

Minimum Order Quantity:	1 SET
Price:	US $4,200 - 10,200 / Set
Packaging Details:	iron frame pallet or paper carton packings
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Name:	Electric Portable Sawmill / Horizontal Band Saw Machine	Saw Wheel Diameter:	700mm
Max. Sawing Wood Width:	1600mm, 1300mm, 1000mm, 70mm	Carbide Blade Width:	0.9 Thickness X 75mm Width
Saw Head Walking:	Automatic Frequency Speed Adjustable	Sawing Log Max. Length:	4500mm Or As Customer Needs
Weight:	1100kgs To 1500kg	Dimension(lwh):	320019002250mm
Application:	Wood Saw,wood Industry,Wood Factory	Keyword:	Wood Cutting Band Saw,Horizontal Band Sawmill,sawmill
Highlight:	Log Processing Wood Portable Sawmill , Horizontal Bandsaw Wood Portable Sawmill , Automatic Wood Portable Sawmill

Product Description

Portable Horizontal Wood Cutting Bandsaw Sawmill For Sale ,wood bandsaw sawmill

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

CNC Horizontal Band Sawmill

Images:

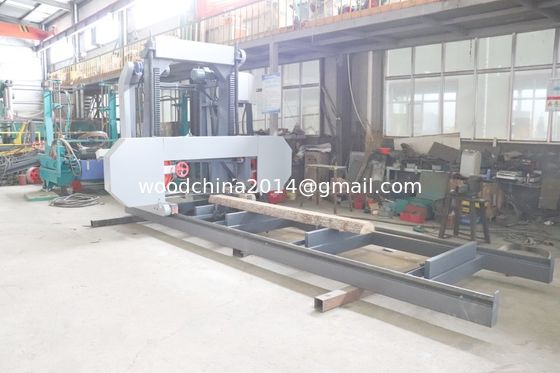

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding 0

Optional - Pneumatic log clamping

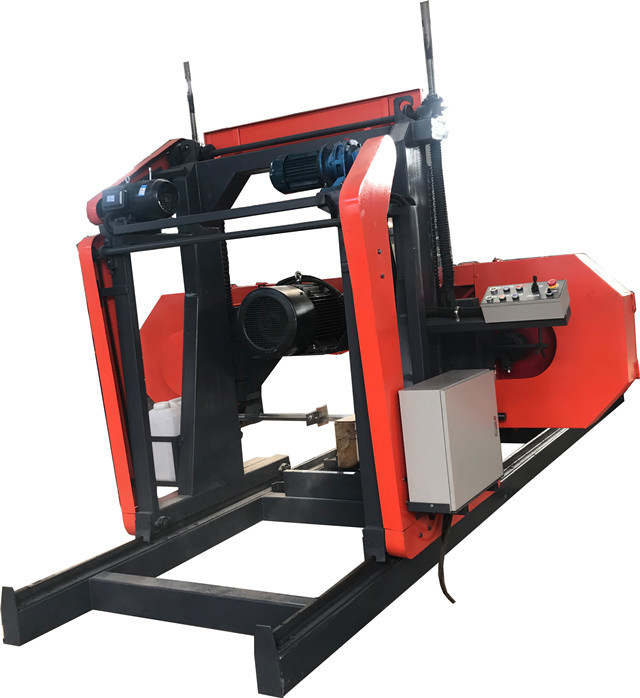

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding 1

Optional - Board returning hook

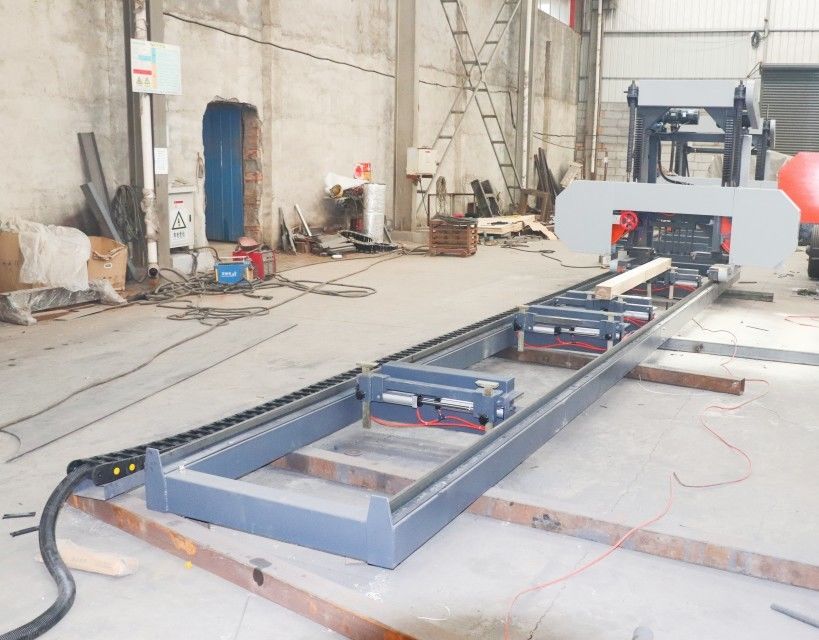

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding 2

Optional - Mobile usage + hydraulic log loading arm

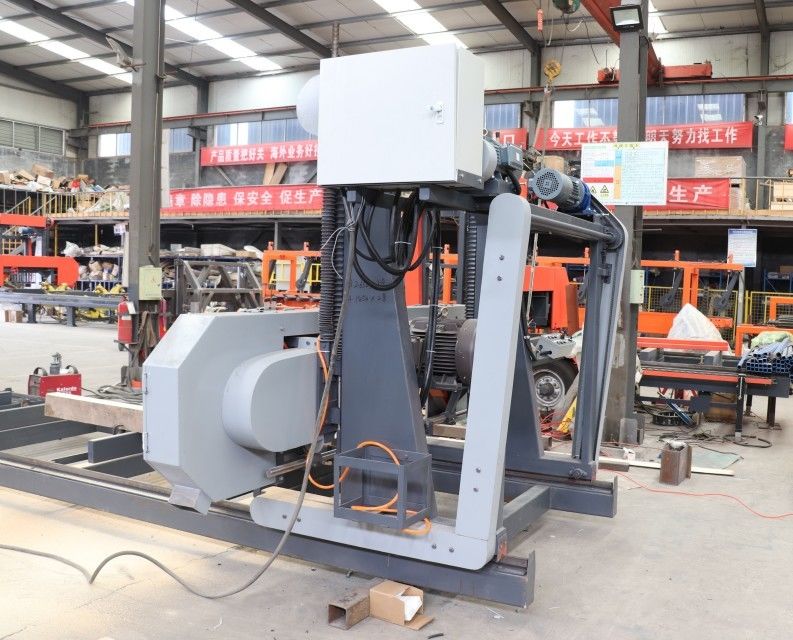

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding 3

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL -electrical
Technical Parameter	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	600	1100	1300	1500

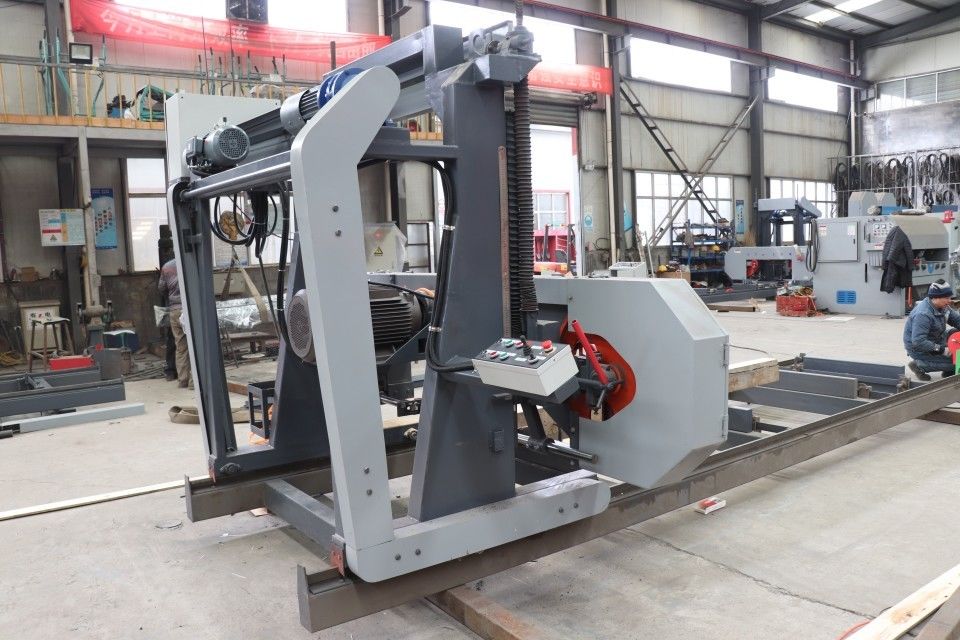

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding 4

Model	EG600A	EG800	EG1000
Max. Processing width	600mm	800mm	1000mm
Min. Processing width	50mm	50mm	50mm
Max. Processing height	70mm	70mm	70mm
Blade	2*350mm	2*350mm	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute, speed adjustable
Electric motor power	7.5KW x 2sets	7.5KW x 2sets	7.5KW x 2sets
Machine weight	1000KG	1600KGS	1800KGS
Customize: Working electric voltage, bigger motor power

Log Wood Processing Sawmill Machine Wood Portable Sawmill, Automatic Horizontal Bandsaw with inverter feeding

Log Processing Wood Portable Sawmill
