Detail Information

Name:	Circular Saw Machine	Application:	Sawing Round Logs Into Square Timber
Max. Sawing Width:	2000mm	Max. Sawing Height:	1500mm
Max. Sawn Size:	300mm X 210mm	Max. Sawing Length:	6meters Or Extend Sawmill Track
Saw Head Walking Forward/back:	Frequency Speed Adjustable	Overall Size:	3700 X 2100 X 2550mm
Main Motor:	22kw , 15kw	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Double Blades Circular Sawmill Machine , Square Wood Cutting Circular Sawmill Machine , Angle Swing Blade Circular Sawmill Machine

Product Description

Electric Circular Saw Portable Sawmill for sale, Twin Blades Circular Sawmill with big motor power

Double Saw blade Angle Circular Swing Blades SawMill

The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
The angle circular saw is a machinethat:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric invertor crane, computer touch screen for length calculation and remote control.

Specification:

Photos:

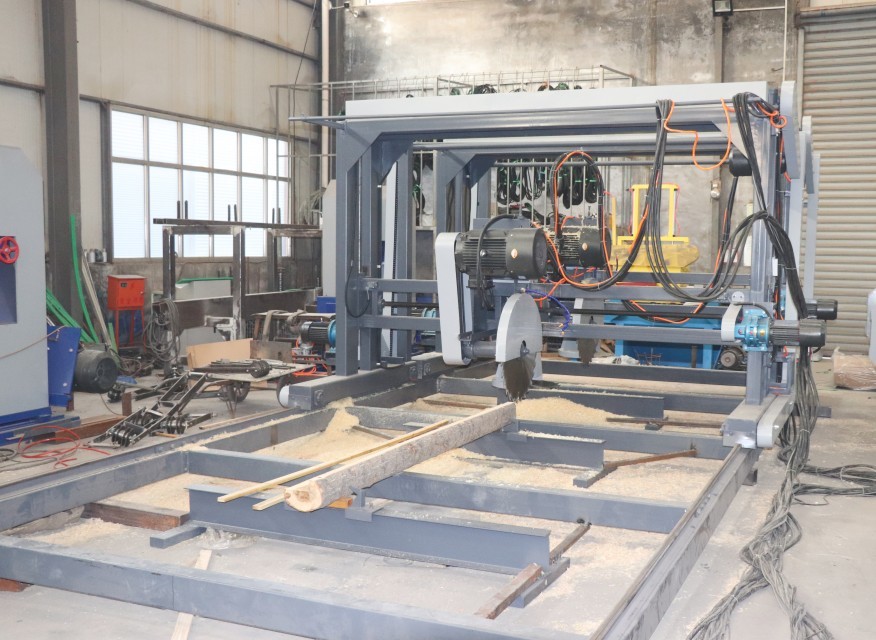

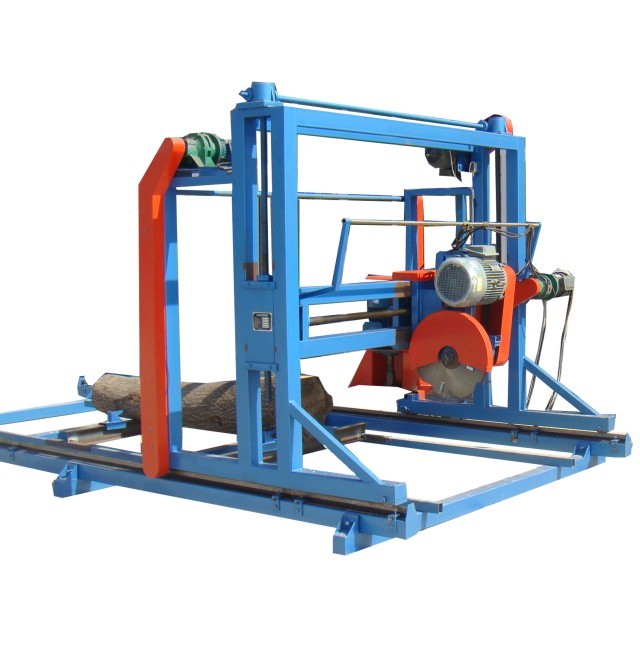

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine 0

Hot Selling Products:

Twin blades sliding table sawmill

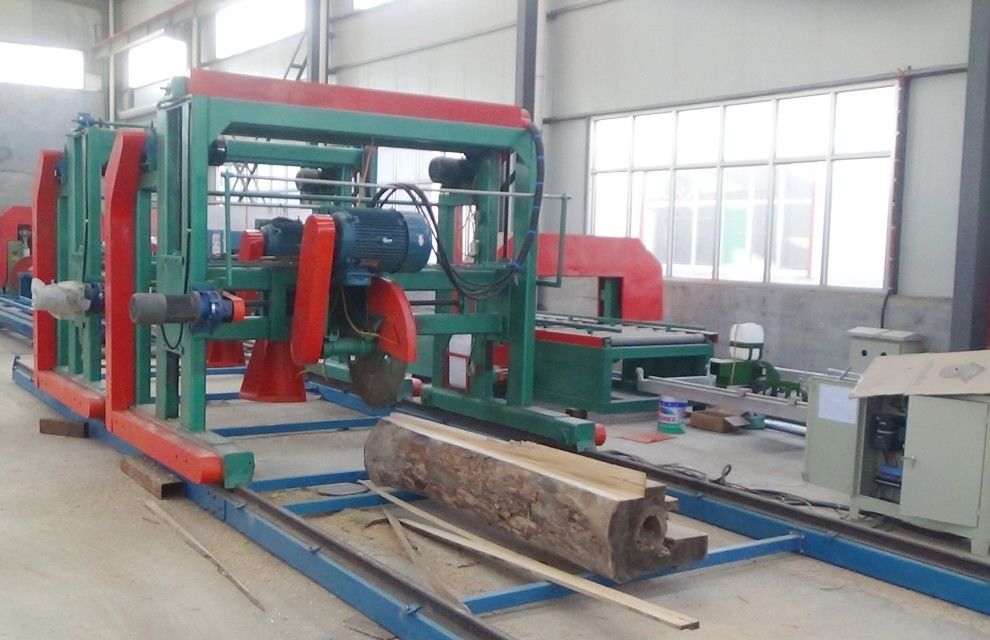

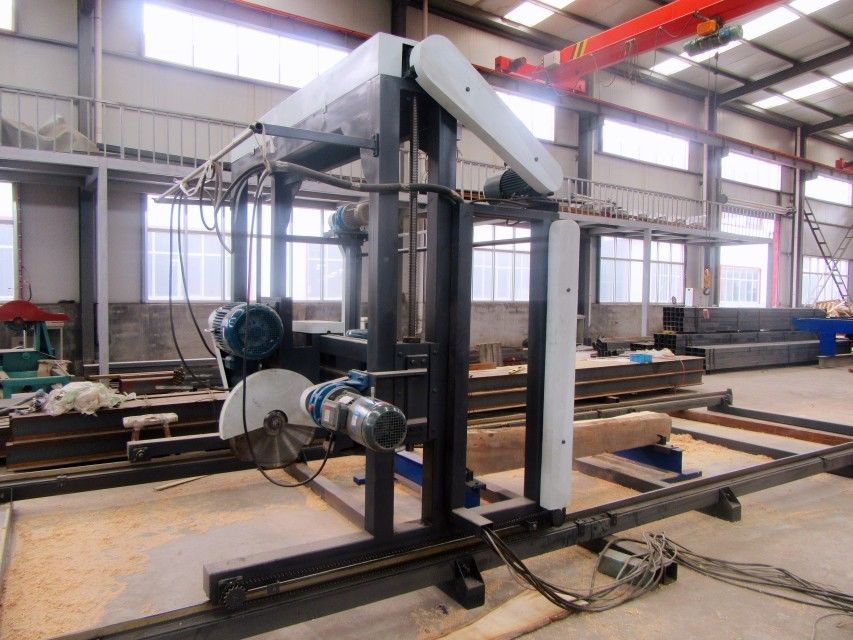

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine 1

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

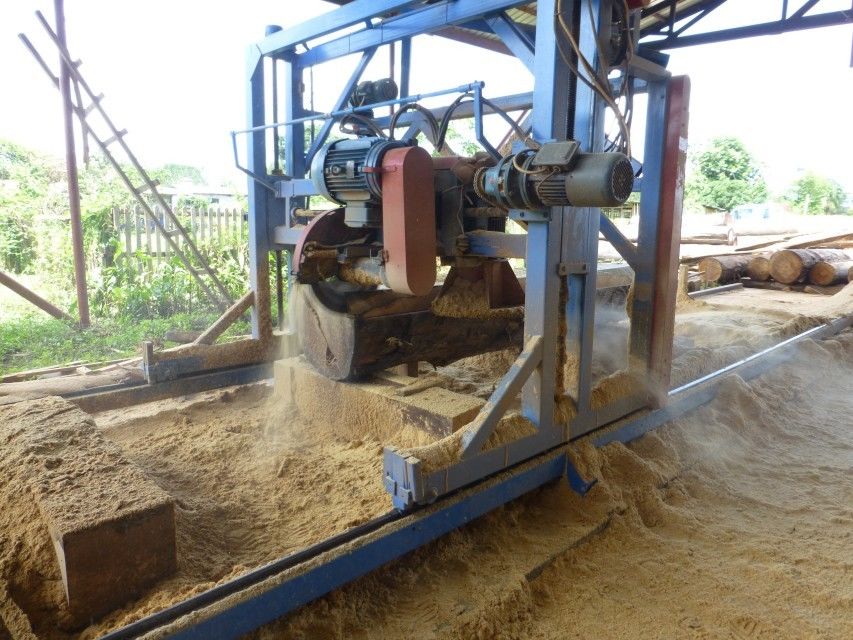

Angle Swing Blade Saw Double Blades Circular Saw , Square Wood Cutting Circular Sawmill Machine 2
