Name: Heavy Duty Multi Head Horizontal Bandsaw Resaw With High Precision
Brand: SH
SKU: SHJM400,SHJM650,SHJM800
Price: 5 USD
Availability: InStock
Rating: 4.9 (152 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Wood Block Cutting Horizontal Band Resaw Mini Bandsaw Machine

Type: Band Saw

Style: Horizontal

Voltage: 380vV, 3PH,50HZ Or As Customer Needs

Power(W): 15KW-22KW

Max. Sawing Width: 400mm, 650mm, 800mm

Dimension: 1900*1800*1950MM

Weight: 1850-2750kg

Application: Thinner Board Cutting

Other: We Can Customize Sawmill

Highlight:

Multi Head Horizontal Bandsaw Resaw

High Precision Horizontal Bandsaw Resaw

Heavy Duty Horizontal Bandsaw Resaw

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001,CE

Model Number: SHJM400,SHJM650,SHJM800

Payment & Shipping Terms

Packaging Details: iron frame packing

Delivery Time: within 25 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 100 Sets/month

Gallery

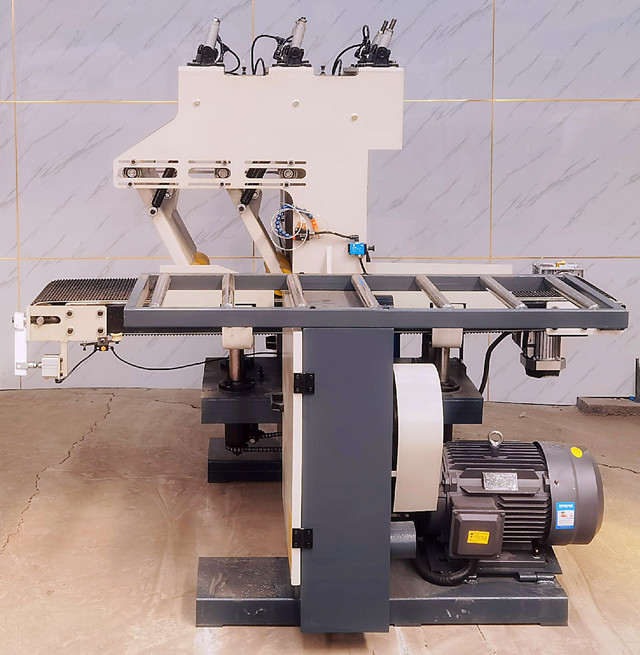

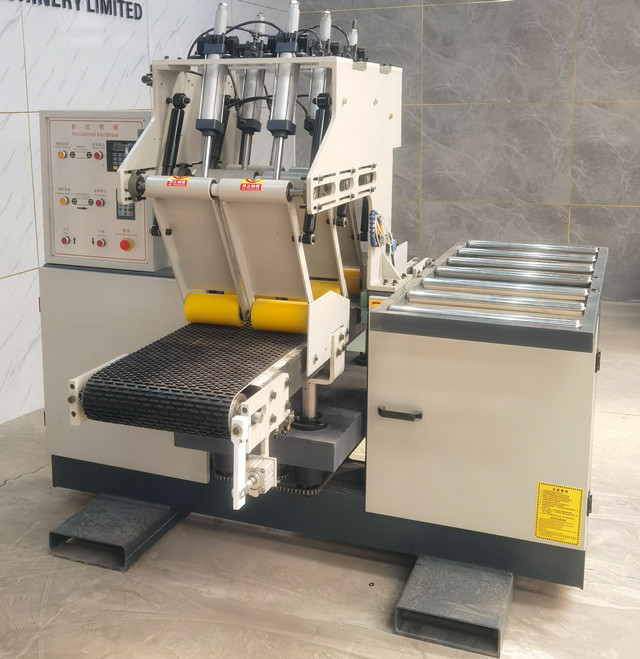

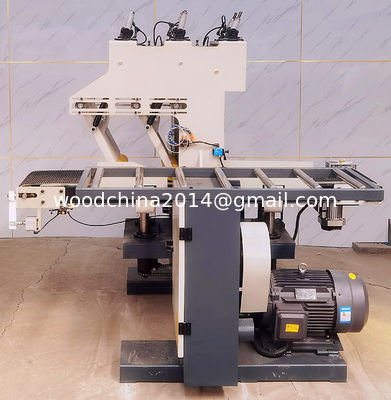

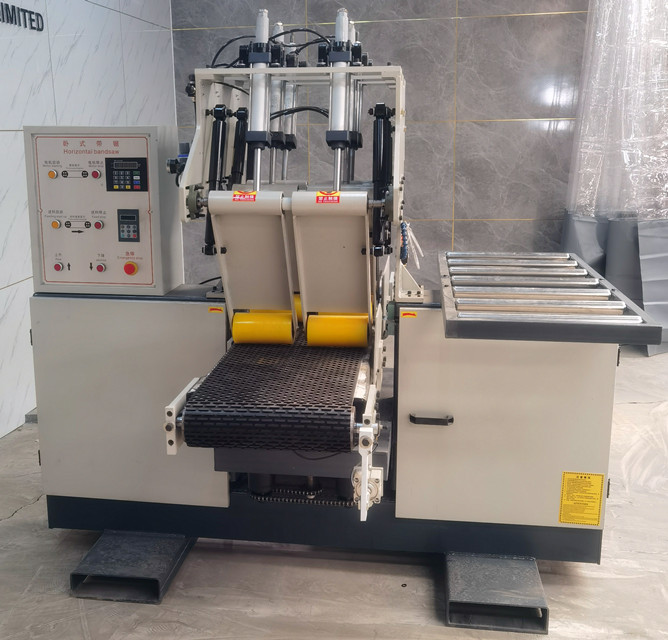

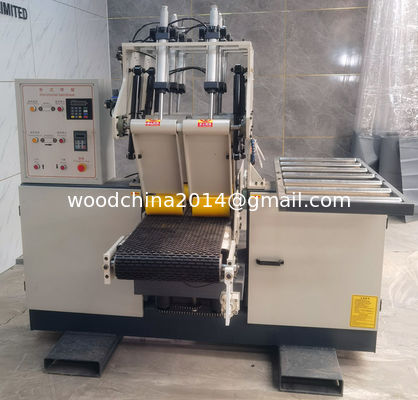

Heavy Duty Multi Head Horizontal Bandsaw Resaw With High Precision

Product Description

Automatic Thin Wood Cutting Machine, Bandsaw Mill for Woodworking,Precision resaw bandsaw for sale

Precision Wood Cutting Horizontal Resaw Band Saws For Sale

Digital Control Sawing Thickness Setting
Max. sawing wood width: 1300mm
Saw wheel diameter : 600mm or 700mm or 800mm
With board returning conveyor
Specifications:

Model	SHJM-400	SHJM-650	SHJM-800	SHJM-1200
Saw wheel diameter	600MM	700MM	700MM	700MM
Max. processing width	400MM	650MM	800MM	1200MM
Max. processing height	110MM	110MM	110MM	110MM
Sawn min.thickness	2MM	2MM	2MM	2MM
Feeding speed	0.1-30m/min	0.1-30m/min	0.1-30m/min	0.1-30m/min
Main motor power	15KW	18.5KW	22KW	30KW
Feeding motor power	0.75KW	0.75KW	1.5KW	1.5KW
Sawn sizes setting	CNC digital	CNC digital	CNC digital	CNC digital
Machine weight	1850kgs	2550kgs	2750kgs	3150kgs

Detailed Image

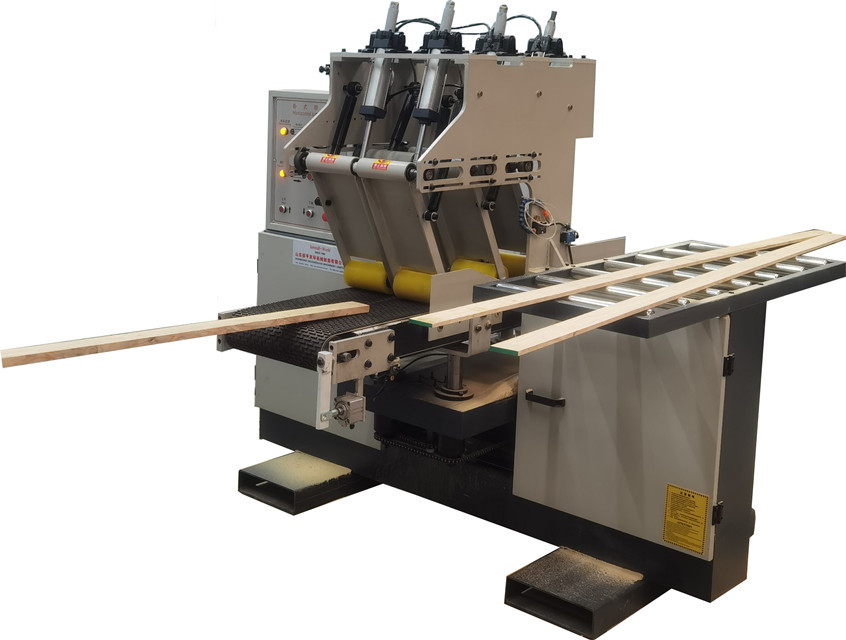

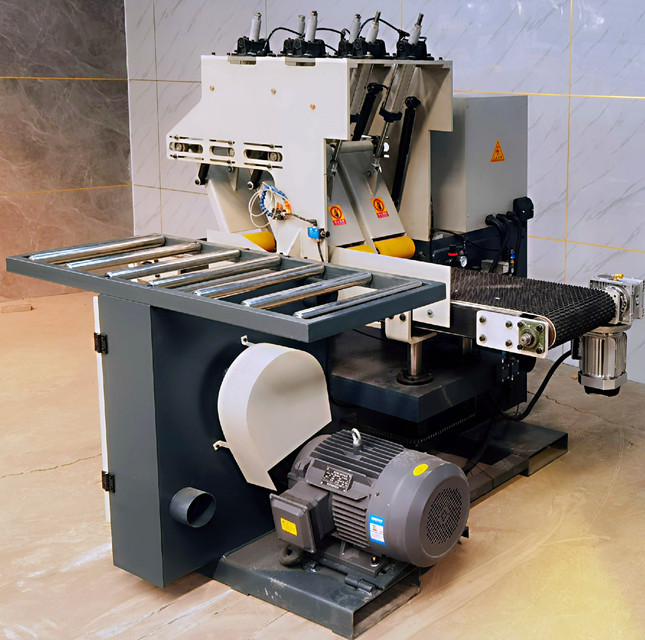

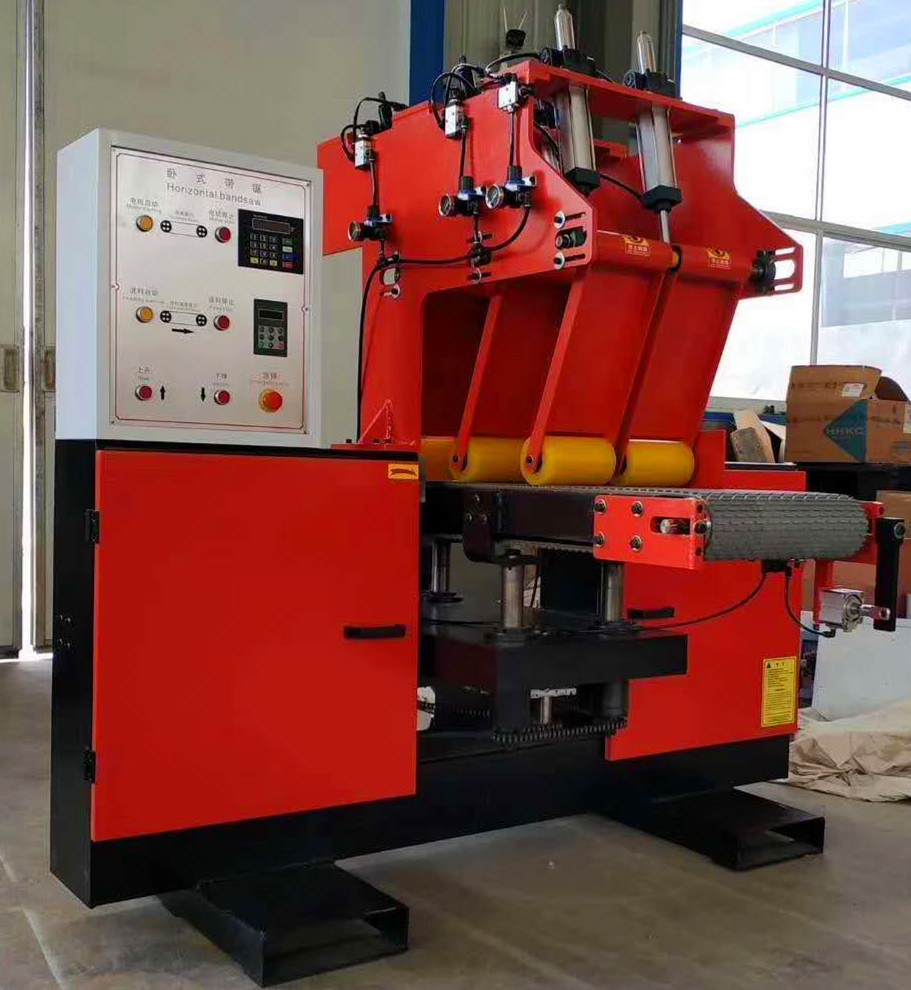

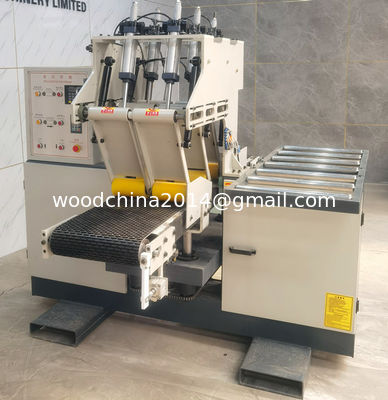

Heavy Duty Multi Head Horizontal Bandsaw Resaw With High Precision 0
Related Saw Machine

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Heavy Duty Multi Head Horizontal Bandsaw Resaw With High Precision 3

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min
