Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ1200 MJ1500 MJ2000 MJ2500
Minimum Order Quantity 1 SET
Price US $10,000 - 32,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Horizontal Bandsaw Sawmill Machine Power 55KW
Max. Sawing Wood Width 2500mm Blade Tension Electrical
Height From Saw Track To Blade 2200mm Band Wheel Diameter 1070mm
Application Horizontal Wood Band Saw Sawmill,sawmill Timber Lumber Factory,Furniture Factory Keyword Horizontal Band Saw Machine,horizontal Band Sawmill Wood Cutting
After-sales Service Provided Online Support,commissioning And Training Color Customer Actual Requirements
Warranty 12 Months
Leave a Message
Product Description

Big Wood Tree Cutting heavy duty Horizontal Bandsaw Sawmill Machine For Sale



Heavy Duty Large Size Horizontal Band Sawmill



1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

3. Diesel engine powered big sawmill is workable

Structure Features:

1.High quality parts, SKF bearings from Sweden

2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .



Technical specifications:



Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg

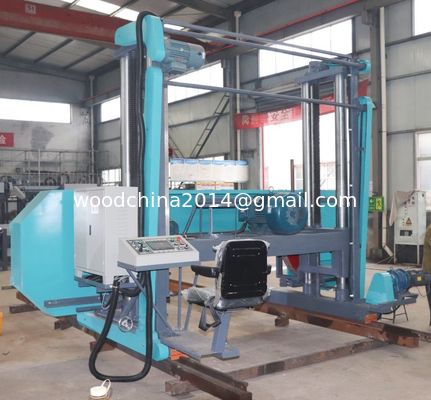

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 0

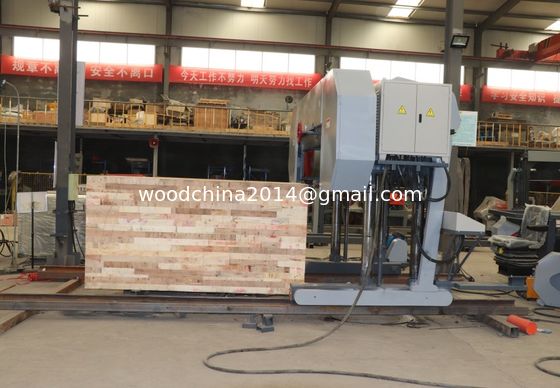

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 1

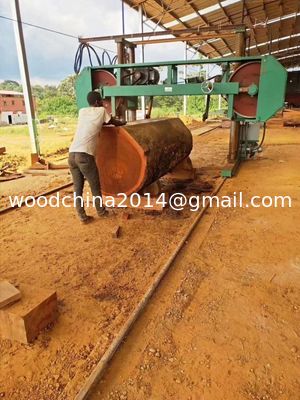

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 2

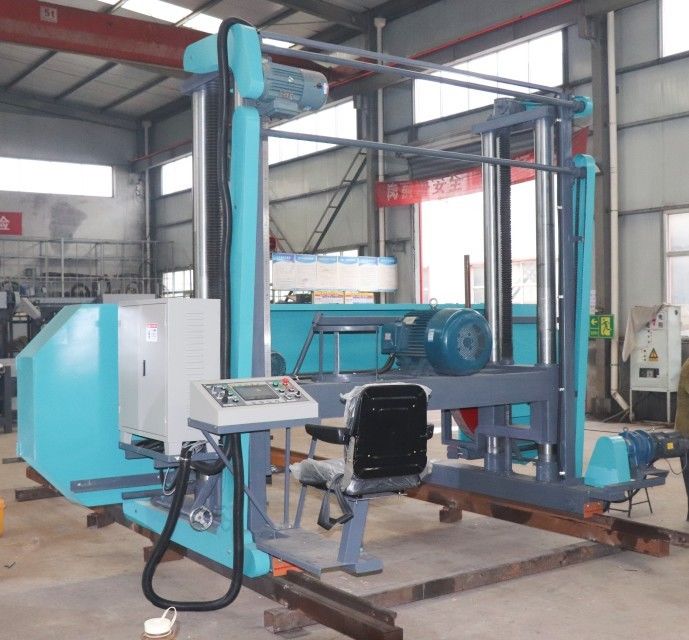

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 3

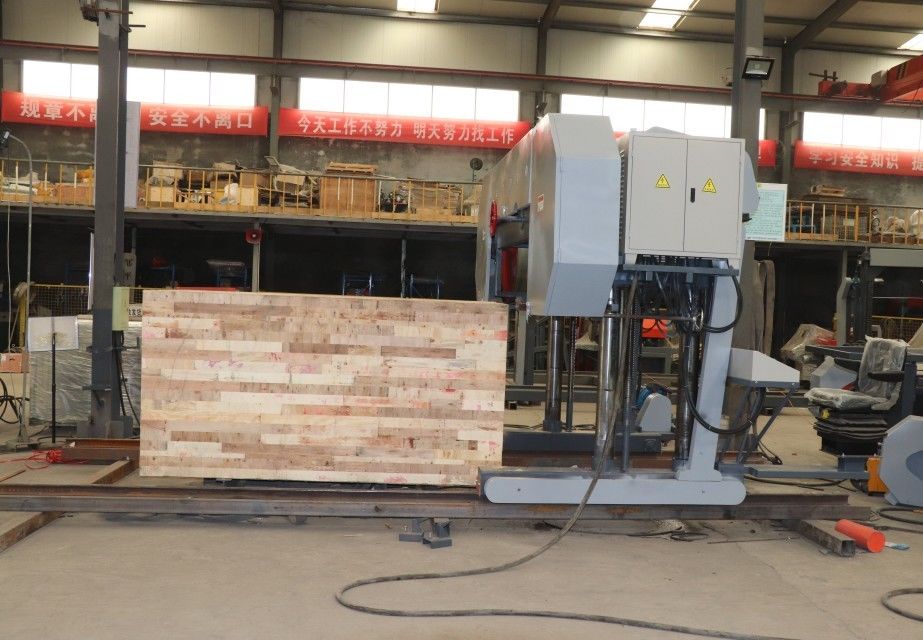

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 4
Optional Parts- free base ground track

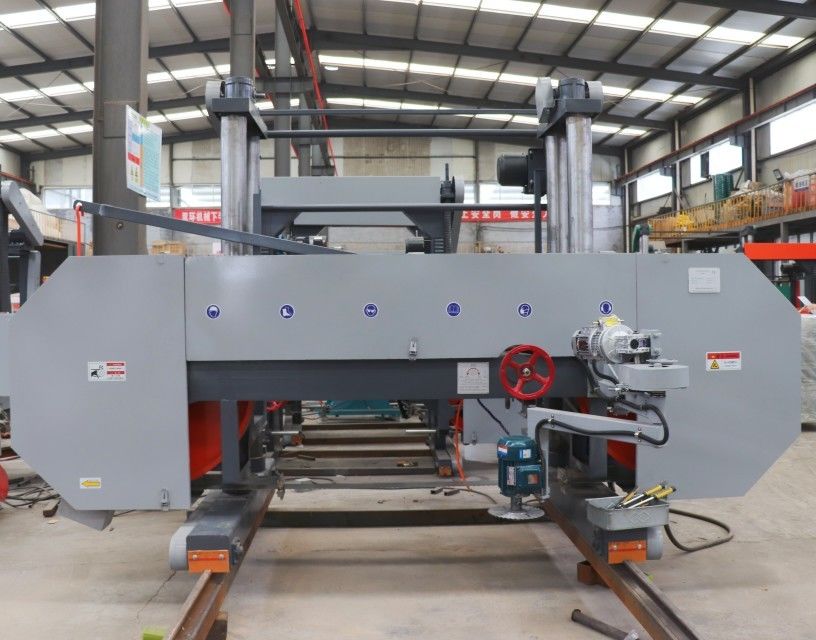

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 5
Optional Parts- pre cutting wood optimizer

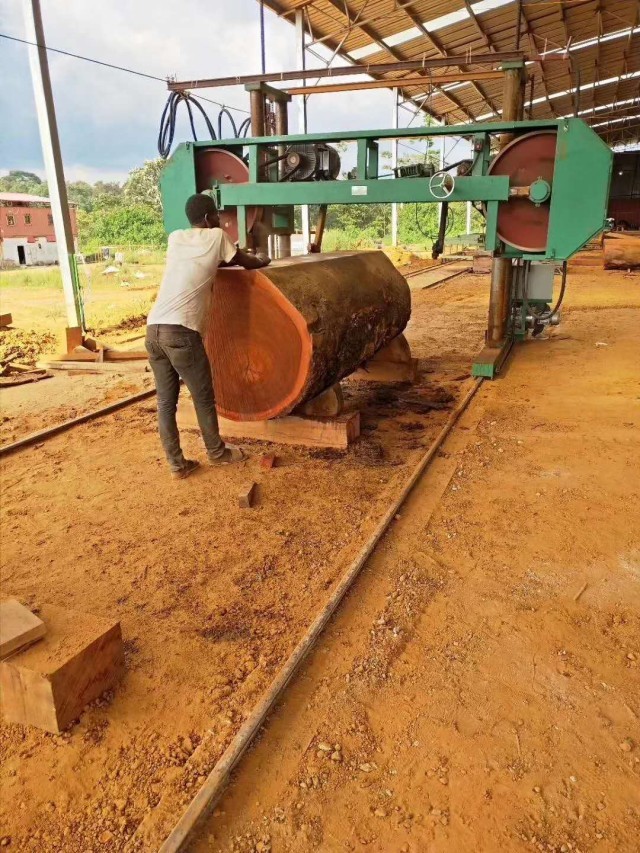

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 6



Optional - Diesel Engine Powered Large Size Horizontal Band Sawmill

Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Diesel engine +20kw generator 80HP 80HP



80HP

80HP
Weight 3800kgs 4500kg 5000kg 5500kg

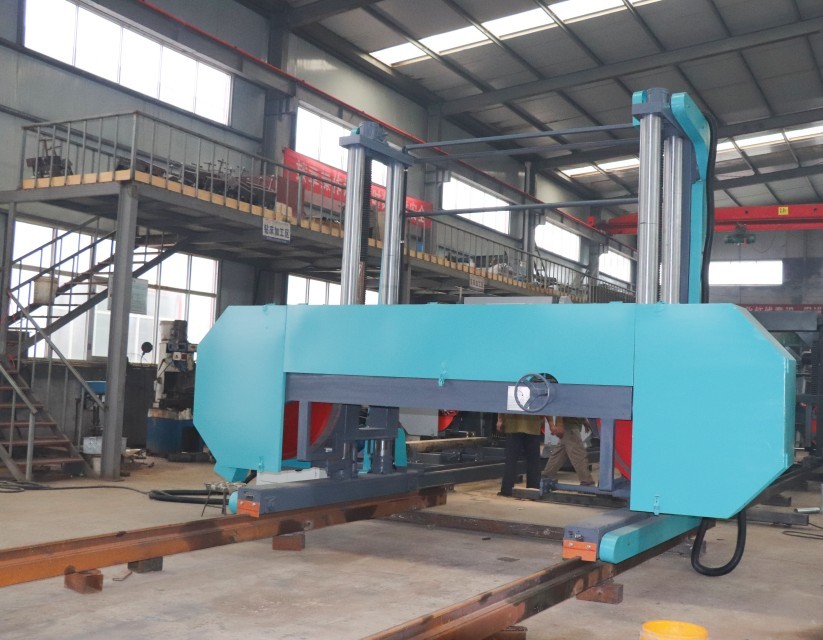

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 7Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 8

Low Cost Factory Sale Automatic Band Saw Machine Horizontal Bandsaw Machines for large diameter logs 9





Wood Edger Cutting Circular Blade Table Sawmill

Introduction:

1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.

2.Sawing max width is upto 1.5meters

3.The saw equipped with carbide blade for hardwood cutting .

4.The saw machine is with auto feeding .



Technical data:

Model BT3000-600 BT3000-1000 BT3000-1500
Sawing thickness 10-180mm 10-180mm 10-180mm
Sawing maximum length 3000mm 3000mm 3000mm
Sawing maximum width 600mm 1000mm 1500mm
Circular blade diameter 500mm 500mm 500mm
Motor power 11KW 15KW 15KW
Track length 5800mm 5800mm 5800mm
Wood grasp type Pneumatic Pneumatic Pneumatic
Feeding Manual Manual Manual
Operation Manual Manual Manual

Optional parts:

1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks
